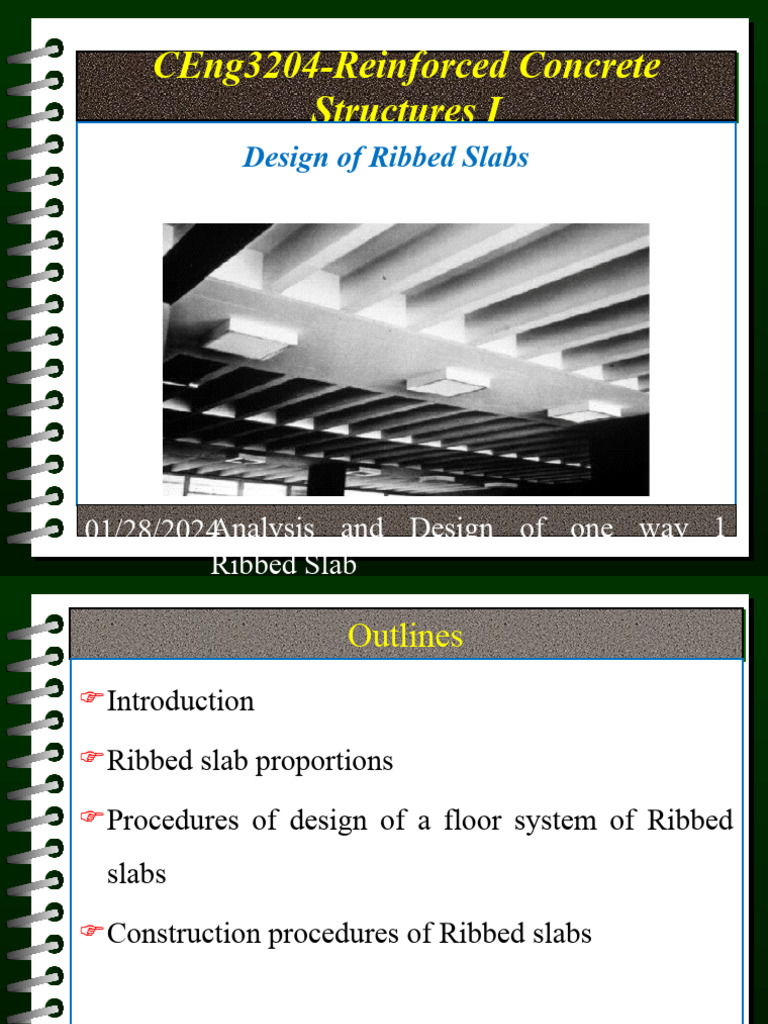

CEng3204-Reinforced Concrete

Structures I
Design of Ribbed Slabs

01/28/2024Analysis and Design of one way 1

Ribbed Slab
 Outlines
Introduction
Ribbed slab proportions
Procedures of design of a floor system of Ribbed
slabs
Construction procedures of Ribbed slabs

01/28/2024
Analysis and Design of one way 2
 Introduction
 Long-span floors for relatively light live loads can be
constructed as a series of closely spaced cast-in-place
T-beams (or joists or ribs) with a cross section.
 Since concrete is weak in tension and its tensile
strength is neglected in design, the use of ribbed slab
eliminate much of tension concrete in a slab that
results in a saving of weight with little alteration in
the structural behavior of the slab.
01/28/2024Analysis and Design of one way 3
 Introduction

01/28/2024
Analysis and Design of one way 4
 Introduction

Ribbed floor-slab supported by system of beams and girders

01/28/2024Analysis and Design of one way 5

 Introduction

Ribs/Joists

01/28/2024Analysis and Design of one way 6

 Introduction
Ribbed floor slabs are economical than solid slabs
for buildings such as apartment houses, hotels and
hospitals where live loads are fairly small and the
spans are comparatively long.
Ribbed floors are not suitable for heavy
construction, such as in ware houses and heavy
manufacturing buildings.

01/28/2024Analysis and Design of one way 7

 Introduction
They may be constructed in a variety of ways.
Two principal methods of construction are:

a) Ribbed slabs without permanent blocks,

b) Ribbed slabs with permanent hollow or solid
blocks.

01/28/2024Analysis and Design of one way 8

 Introduction

Ribbed slab

Ribbed slab with hollow blocks

01/28/2024Analysis and Design of one way 9

 Introduction

Typical Ribbed slab cross-section

01/28/2024Analysis and Design of one way 10

 Ribbed slab proportions
The topping or concrete floor panels between ribs
may or may not be considered to contribute to the
strength of the slab.
The hollow or solid blocks may also be counted in
assessing the strength using rules given in the
codes.

01/28/2024Analysis and Design of one way 11

 Ribbed slab proportions
Minimum slab thickness

01/28/2024Analysis and Design of one way 12

 Ribbed slab proportions
Minimum slab thickness
To ensure adequate stiffness against bending and
torsion and to allow ribbed slabs to be treated as
solid slabs for the purpose of analysis, ES EN 1992:
2015 Part 1-1 recommends that the following
restrictions on size are satisfied.

01/28/2024Analysis and Design of one way 13

 Ribbed slab proportions
1) The center-to-center spacing of ribs should not
exceed 1,500mm.
2) The minimum rib width should be determined by
consideration of cover, bar spacing and fire
resistance.
 In the code, the minimum rib width is 125 mm.

1) The depth of ribs excluding topping should not

exceed four times their average width.
01/28/2024Analysis and Design of one way 14
 Ribbed slab proportions
4) The thickness of structural topping or flange
should not be less than 50 mm or one tenth of the
clear distance between ribs.
 In the case of ribbed slabs incorporating permanent
blocks, the lower limit of 50mm may be reduced to
40mm.

01/28/2024Analysis and Design of one way 15

 Ribbed slab proportions
Minimum area of reinforcement and their spacing
Topping slab is reinforced primarily for
temperature and shrinkage stresses using small
bars placed at right angles to the joists.
The area of this reinforcement is usually about
0.12% of the cross-sectional area of topping slab
in each direction should be provided. .

01/28/2024Analysis and Design of one way 16

 Ribbed slab proportions
 The spacing of reinforcements should not exceed one-half
the center-to-center distance of the ribs.
 The mesh reinforcement is placed in the center of the
topping and requirements of cover in the code should be
satisfied.
 If the ribs are widely spaced (ribbed spacing larger than
1,500mm), the topping may need to be designed for
moment and shear as a continuous one-way slab between
ribs.
01/28/2024Analysis and Design of one way 17
 Ribbed slab proportions
 Generally, ribs (joists) are designed as regular T-beam sections
supported by girders.
 The minimum reinforcement of the ribs usually consists of two bars,
where one is bent near the support and the other straight.
 If the span of the ribs exceeds 6m, transverse ribs may be provided
as the thickness of the topping will be larger.
 The girder supporting the joist may be rectangular or T-beam with the
flange thickness equal to the floor thickness.
 The girder supporting the joist may be rectangular or T-beam with
the flange thickness equal to the floor thickness.
01/28/2024Analysis and Design of one way 18
Procedures of design of a floor system of ribbed slab

Step1: Ribbed slab proportions

 Thickness of topping slab, width, depth and spacing
of ribs are assumed based on code’s
recommendations.
Step2: Determine design loads supported by each ribs.
 Loads may be computed on the basis of center line
of the spacing of joists.

01/28/2024Analysis and Design of one way 19

Procedures of design of a floor system of ribbed slab

Step3: Analyze the ribs as regular simply supported or

continuous T-beams supported by the supporting
girders.
Step4: Check adequacy of depth of ribs for both flexure
and shear.
 If the shear stress developed in the rib section
exceeds the shear strength of T-beam, shear
reinforcement is provided for excess shear.
01/28/2024Analysis and Design of one way 20
Procedures of design of a floor system of ribbed slab

 Shear reinforcement shall not be provided in the

narrow web of joist thus a check for the section
capacity against shear is carried out.
 The shear capacity may be approximated as of
regular rectangular sections.
 Determine flexural reinforcement and consider
minimum provision in the final solution.

01/28/2024Analysis and Design of one way 21

Procedures of design of a floor system of ribbed slab

Step5: Provide the topping or slab with reinforcement

as per temperature and shrinkage requirement.
Step6: Design the girder as a beam.

01/28/2024Analysis and Design of one way 22

 Construction procedures of Ribbed slabs

Placing of HCB

01/28/2024Analysis and Design of one way 23

 Construction procedures of Ribbed slabs

ent
cem
n f or
rei
i t h
l a bw
r s
g o
p p in
ft o
t o
en
g em
r a n
Ar

01/28/2024Analysis and Design of one way 24

 Construction procedures of Ribbed slabs

Casting of concrete

01/28/2024Analysis and Design of one way 25
