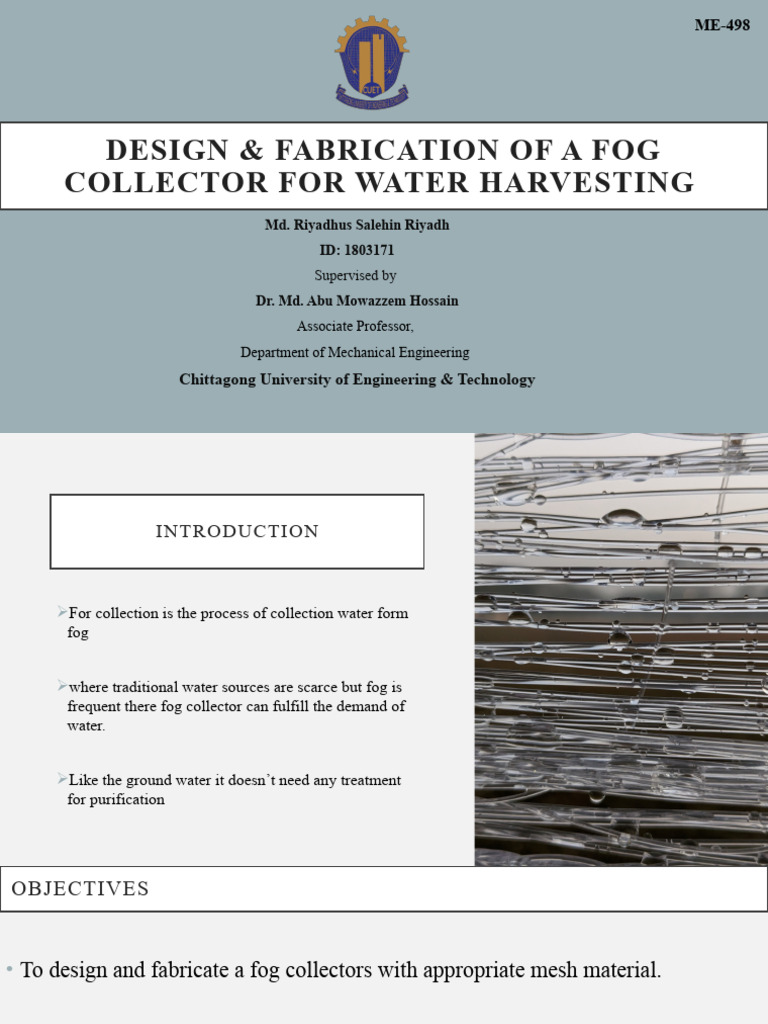

    ME-498

    DESIGN & FABRICATION OF A FOG


    COLLECTOR FOR WATER HARVESTING
    Md. Riyadhus Salehin Riyadh
    ID: 1803171
    Supervised by
    Dr. Md. Abu Mowazzem Hossain
    Associate Professor,
    Department of Mechanical Engineering
    Chittagong University of Engineering & Technology
    INTRODUCTION

    For collection is the process of collection water form


    fog

    where traditional water sources are scarce but fog is


    frequent there fog collector can fulfill the demand of
    water.

    Like the ground water it doesn’t need any treatment


    for purification
    OBJECTIVES

    • To design and fabricate a fog collectors with appropriate mesh material.

    • To evaluate the performance of fog collectors

    • To compare the efficiency and water collection rate of the fog collector at
    different location and different frame orientation
    COMPONENT OF FOG COLLECTOR

    Frame

    Mesh

    Tray

    Stand

    Reservoir
    METHODOLOGY

    Designing on
    SolidWorks

    Mash Material
    Selection

    Frame
    Fabrication

    Monofilament Nylon( Polyamide)

    Mesh Weaving

    Stand
    Fabrication

    Experimental
    Setup
    DATA COLLECTION
    4 experiment was done at 2 different location in 2 different alignment of frame
    Experiment 01: At CUET Central field and Horizontal alignment of Frame
    Experiment 02: At CUET Central field and Vertical alignment of Frame
    Experiment 03: At roof top of Q.K Hall and horizontal alignment of frame
    Experiment 04: At roof top of Q.K Hall and Vertical alignment of frame

    Experiment 01 Experiment 03 Experiment 04


    DATA COLLECTION(CONT.…)

    Total water collection for 6hr experiment at different cases:


    Average water collection
    Experiment Frame Orientation Time of Total Water
    Experiment(hr) collection (L) 2000
    Location-1(Central Horizontal 6 1.2 1800

    Total Water Collection(mL)


    1600
    Field) 1400
    Location-1(Central Vertical 6 1.4 1200
    1000
    Field) 800
    Location-2(Q. K Horizontal 6 1.55 600
    400
    Hall) 200
    Location-2(Q. K. Vertical 6 1.83 0
    Location-1(Central Location-1(Central Location-2(Q. K Location-2(Q. K.
    Field) Field) Hall) Hall)
    Hall)
    RESULTS & DISCUSSION

    Case Location-1 (Central Location-1 Location-2 (Q. K Location-2 (Q K


    Field) & Horizontal (Central Field) Hall) & Hall) & Vertical
    Frame Orientation & vertical Horizontal Frame Frame Orientation
    Frame Orientation
    Orientation

    Efficiency 14% 17% 22% 25%


    Average water 200 233.33 258.33 305
    collection
    rate(ml/hr)

     The fog collector exhibited a higher efficiency and average water collection rate when deployed in a vertical orientation
    compared to a horizontal orientation.

     And the fog collector collect more water in higher elevation


    CONCLUSION
    Reason for advantage on vertical frame over horizontal frame

    When the frame is positioned vertically

    The mesh threads also become vertical

    This allows water droplets that condense on the mesh to utilize gravity

    The droplets can easily roll down using the vertical threads

    Reason for fog collector advantage over elevation


    Increased Fog Density

    Higher Wind Speeds


    Thank You
