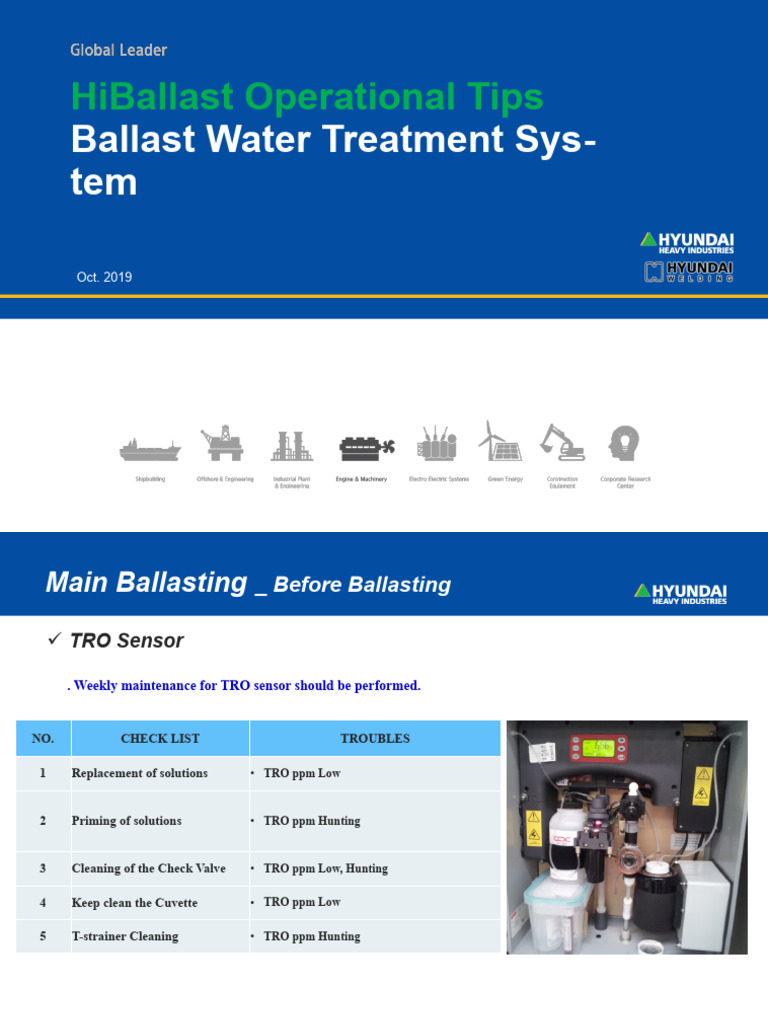

HiBallast Operational Tips

Ballast Water Treatment Sys-


tem

Oct. 2019
Main Ballasting _ Before Ballasting
 TRO Sensor

. Weekly maintenance for TRO sensor should be performed.

NO. CHECK LIST TROUBLES

1 Replacement of solutions • TRO ppm Low

2 Priming of solutions • TRO ppm Hunting

3 Cleaning of the Check Valve • TRO ppm Low, Hunting

4 Keep clean the Cuvette • TRO ppm Low

5 T-strainer Cleaning • TRO ppm Hunting

2
Main Ballasting _ Before Ballasting

1. Replacement of solutions
AA) Check TRO solutions life time
Replacement interval : Indicator : 3 months / Buffer solution : 1 year

2. Priming of solutions

BB) Press “PRIME” Button and “ENTER” Button


Check each reagent is completely drawn into the cuvette

3
Main Ballasting _ Before Ballasting

3. Cleaning of the check valve

AA) TRO reagent is not fed into the measurement cuvette Check Valve Flushing Procedure

Put check v/v in warm water for 20min.


until flushing inside.
Remove all tubes attached
to Check v/v from OPTICS

BB) Use 10cc syringe to check them whether they are stuck or not

CC) If check valves are stuck, It needs to be in warm water for 20 min
4
Main Ballasting _ Before Ballasting

4. Keep clean the cuvette

AA) Turn the cuvette counterclockwise


BB) After cleaning cuvette, please reassemble it in the reverse order

5
Main Ballasting _ Before Ballasting

5. T-strainer Cleaning

AA) Disconnect the top of the T-strainer and regulator from the tubing and clear of the case
BB) Clean the T-strainer screen and replace and then be sure to tighten the bowl of the strainer

6
Main Ballasting _ Before Ballasting
 Strainer

NO. CHECK LIST TROUBLES

Cleaning of the Y-strainer on • TRO Sensor Error


1
TRO Sampling line • TRO ppm Low

Cleaning of the Strainer in • Strainer DP High


2
SWFU • Injection Flow Low

7
Main Ballasting _ Before Ballasting
 Ready for Heavy Muddy Seawater
. Before entering a port, the filter elements must be kept clean.

 Cleaning by the water jet with high pressure (10 bar ~ 16bar)

Caution!!
Clean the filter elements from outside to inside.

8
Main Ballasting _ Before Ballasting
 Ready for Heavy Muddy Seawater
. Before entering a port, the filter elements must be kept clean.

 If the elements are contaminated by mineral deposits, organic impurities and rust,
the elements can be cleaned by use of cleaning agents with a pH value between
3 to 9.

The cleaning agent ; Citric acid solution base for acid cleaning
Caustic soda solution base for alkaline cleaning

9
Main Ballasting _ Before Ballasting
 Ready for Heavy Muddy Seawater
. Caution!!
 After operation, the filter is always fully filled with water to prevent hard scale and rust.
 Exchange seawater in the filter to fresh water, if long term standby of the filter is required.

10
Main Ballasting _ Before Ballasting
 Valve Line-up
. Check the valve line-up for ballasting
. Click button to check the status of the valve line-up
Open or close the valves by VRCS according to the valve line-up
[Old HMI]
and then change the control mode from VRCS to BWTS.

Note)

Ballast valves except main FCV, inlet/outlet valve


of main filter and bypass valve involved in BWTS
operation can be controlled by VRCS even if
switched to BWTS mode.

11
Main Ballasting _ During Ballasting

 Air Venting at start-up


When the discharge pressure of the SW Feed Pump is not reached to the rated pressure(5~6bar).

 Check the valves on the suction line is opened.

 Vent air from the SW Feed Pump until the rated discharge pressure is reached.

 Vent air from the strainer in SWFU

12
Main Ballasting _ During Ballasting

 Air Venting at start-up

. Always open the isolation valve for the auto vent valve during operation.

13
Main Ballasting _ During Ballasting
 TRO value Low
. Is the sampling flow rate suitable for the TRO sensor ? (11 ~ 13)

 No.
 Adjust the sampling flow rate

[TRO Sensor Unit]


Regulating Valve
To TRO sensor To open
Bypass Valve

To close

Inlet Valve

str ainer?
To drain
wa te r c o ming into the
Is
Inlet Valve  To be fully opened.
No. e
Bypass Valve  ¼ ~ ½ turns from fully closed
e c lo s e th e Bypass Valv
Mor

14
Main Ballasting _ During Ballasting

 Unbalance Current on the rectifier


. Compare the shunt current values on the MIMIC to actual currents on
the output power cables of the rectifiers.

 If the value on the MIMIC and the measured value are almost the same,
Inspect the inside of the electrolyzer for which the current value is significantly lower
than the others.

If scale is accumulated between the electrodes and the masking plates,


remove the scale and perform the acid cleaning per the maintenance manual.

15
Main Ballasting _ During Ballasting

 High Voltage on the rectifier


Rectifier High High
. Check salinity or temperature of the feeding seawater Model Voltage(V)
Low salinity(< 15PSU), Low temperature (< 10 ℃)
35D 133
. If the salinity and the temperature are OK, 50D 175
inspect the inside of the electrolyzer. 100D 175

If scale is accumulated between the electrodes, the masking plates,


remove the scale and perform the acid cleaning per the maintenance manual.

16
Main Deballasting

• Before Deballasting

 NA Tank Level for Neutralization Agent

 Injection Solenoid Valve in NU

 NA Consumption

17
Main Deballasting _ Before Deballasting

 NA Tank Level for Neutralization Agent


. The tank level  Keep > 60%

. Before sailing, prepare Neutralization Agent at least 100% capacity of the NA tank

 Recommend solution type


Sodium Thiosulfate as the Neutralization Agent
for consistent neutralization
performance.

18
Main Deballasting _ Before Deballasting

 NA Consumption

. To optimize the NA consumption

 Before starting deballasting, change the set values for the stroke of NA pump.
The residual oxidant depends on the retention day in the ballast tank

TRO Decay(reference only)

19
Main Deballasting _ Before Deballasting
 Neutralization Agent Consumption
. Recommended set table for Neutralization Pump Stroke(reference only)
Model Retention days MAX. PUMP MIN. PUMP
(capacity) in Ballast tank(days) STROKE(%) STROKE(%)
~5 70 15
HiBallast-2000
5 ~ 15 40 10
(1000m3/h x2)
15 ~ 20 5
~5 60 15
HiBallast-3000
5 ~ 15 30 10
(1500m3/h x2)
15 ~ 20 5
~5 70 15
HiBallast-4000
5 ~ 15 40 10
(2000m3/h x2)
15 ~ 20 5
~5 50 15
HiBallast-5000
5 ~ 15 25 10
(2500m3/h x2)
15 ~ 15 5
~5 60 15
HiBallast-6000
5 ~ 15 30 10
(3000m3/h x2)
. Change the set values for the stroke
15 ~ of neutralization pump
20 5

20
Main Deballasting

• During Deballasting

 TRO value High

21
Main Deballasting _ During Deballasting

 TRO value High


. TRO Sensor  OK
. Injection of Neutralization Agent  OK

 Was the powder type of the neutralization agent used ?


↓Suspect the mixing ratio between Sodium Thiosulfate and fresh water

↓Was it completely dissolved during mixing ?

. If the powder type of the neutralization agent is used, please refer the following table.
However, the solution type of the neutralization agent is recommended

Mixing Ratio(weight base)


Neutralization Agent Molecular
Sodium thiosulfate Fresh water

Sodium thiosulfate Na2S2O3·5H2O 50% 50%


pentahydrate

To make NA Solution (Liter) Required Sodium Thiosufate(kg) Required fresh water(kg)

100L 64 64 (64 Liter)

200L 128 128 (128 Liter)

22
