  • Introduction to Mercerising Range
  • Impregnation Chamber
  • Stabilizing Section
  • Lye Recuperator
  • Continuous Mercerization Range and Features

Mercerising Range

Housing segments consist of stainless steel material All bottom rolls are fixed steel construction and rotates on flange type sealed bearings Two adjacent bottom rollers support a rubber covered roller and forms a pool of liquor for better impregnation Rotary drum filter with circulation pump system with level management automation for caustic level

Indirect heating for caustic outside the tank (optional) for hot mercerization Complete impregnation is divided into number of section as per production requirement Caustic spray pipes between two rubber rollers High efficiency squeezer at outlet Very low contact free fabric flow which provides very low width shrinkage

Housing segments consists of stainless steel material All bottom rolls are fixed steel construction & rotates on flange type sealed bearings Two adjacent bottom rollers support a rubber covered roller to avoid contact free fabric flow till maximum caustic is removed from fabric

Counter flow washing with rotary drum filter, circulation pump system for better recovery of caustic Indirect heating for caustic outside the tank (optional) for hot mercerization Washed water spray pipes between two rubber rolls High efficiency squeezer at the outlet

The lye recuperator consists of a stainless steel chamber sub divided into compartments as per process requirement All top & bottom guiding rollers in high quality execution with a high concentricity
7

Perforated steam pipes are provided which allow steam to be blown into the space between the cloth passage and thereby providing a sufficient removal of caustic with steam inlet control valve An arrangement is provided for feeding fresh water wherever necessary Large size doors are provided on each side Possibilities of usage of washed water from subsequent washers

Flex-nip for add-on of caustic. Intensive tentering of fabric Diffusion compartment for swelling of cotton fabric with grooved stainless steel rollers. Length / width stretching zone for stretching fabric length and width wise. Counter current washing and pH control Specially designed recuperator

10

Mercersing is a very important preparatory process for cotton fabric. Process involves the treatment of cotton fabrics with caustic soda having a concentration of 215-255gm/kg under maximum tension. It is done at room temperature and the reaction time is between 40 to 60 secs. The process results in swelling of cotton fibres which is mercerizing.

11

The objective is to achieve a high degree of mercerising thereby improving 1] Lustre 2] Tensile strength 3] Dye update 4] Dimension stability of cotton fabric.

12

Low shrinkage High lustre Low residual caustic retention Less requirement of washing High recovery of caustic

13

Types

Stabilizatio Production Impregnati Recupator n cloth m/hrs 50 on cloth cloth contents seconds of contents contents metres impregnatio metres metres n 9.5 14.3 19.0 23.7 33.2 7.7 10.0 12.3 17.0 24.0 8.5 12.5 15.0 21.0 25.0 685 1030 1370 1700 2390
14

4x3x4 6x4x6 8x5x7 10 x 7 x 8

14 x 10 x 2 x 6

Add-on of caustic even on wet fabric Accelerated diffusion due to higher concentration gradient Dimensionally stable fabric Reduction of caustic volume Savings of drying process for feed fabric Less residual shrinkage Large savings in terms of chemicals, energy, water and time Less polluting and more eco-friendly
15

THANK YOU
16

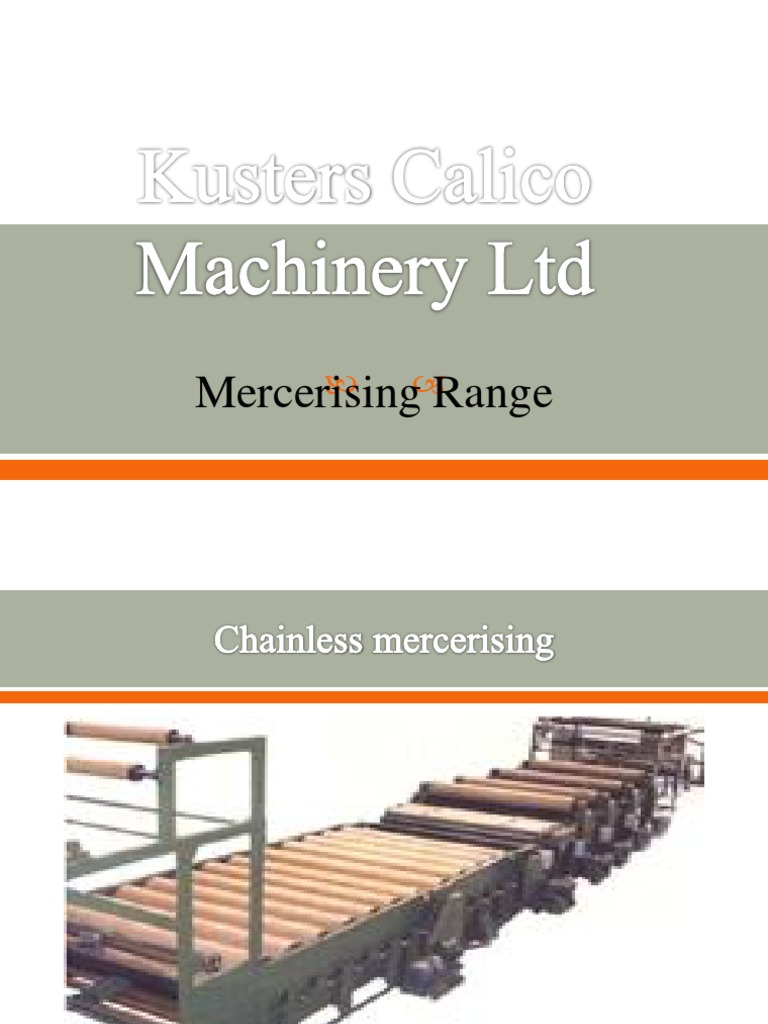

  Kusters Calico Machinery Ltd KustersCalico Machinery Ltd Mercerising Range
