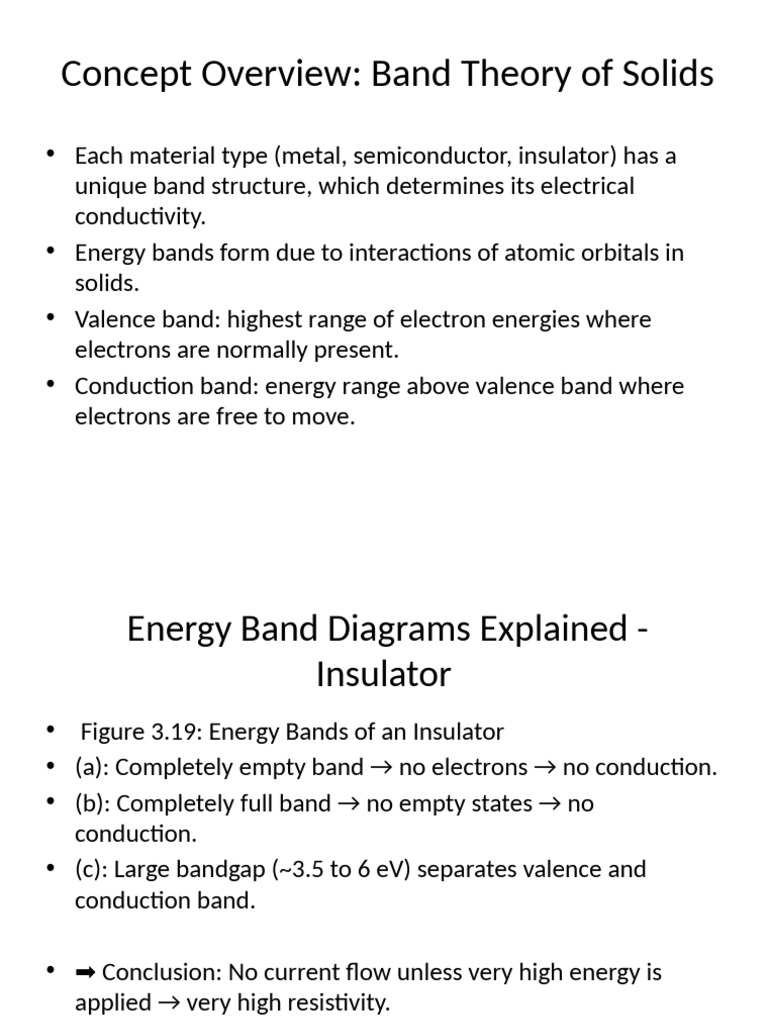

Concept Overview: Band Theory of Solids

• Each material type (metal, semiconductor, insulator) has a


unique band structure, which determines its electrical
conductivity.
• Energy bands form due to interactions of atomic orbitals in
solids.
• Valence band: highest range of electron energies where
electrons are normally present.
• Conduction band: energy range above valence band where
electrons are free to move.
Energy Band Diagrams Explained -
Insulator
• Figure 3.19: Energy Bands of an Insulator
• (a): Completely empty band → no electrons → no conduction.
• (b): Completely full band → no empty states → no
conduction.
• (c): Large bandgap (~3.5 to 6 eV) separates valence and
conduction band.

• ➡ Conclusion: No current flow unless very high energy is


applied → very high resistivity.
Energy Band Diagrams Explained -
Semiconductor
• Figure 3.20: Energy Bands of a Semiconductor
• (a): Few electrons near the bottom of conduction band →
some conduction possible.
• (b): Valence band almost full → holes contribute to
conduction.
• (c): Moderate bandgap (~1 eV) between valence and
conduction bands.

• ➡ Conclusion: Moderate conductivity, increases with


temperature or doping.
Energy Band Diagrams Explained - Metal
• Figure 3.21: Energy Bands of a Metal
• (a): Partially filled band → electrons can move to empty states
→ excellent conduction.
• (b): Overlapping bands → electrons flow easily from lower to
upper bands.

• ➡ Conclusion: Metals show very low resistivity, as there are


always free electrons available to conduct.
Detailed Classification
• Material Band Structure Bandgap (Eg)
Conduction Mechanism
• Insulator Full valence band, empty conduction band >
3.5 eV No conduction (no free carriers)
• Semiconductor Nearly full valence, nearly empty
conduction ≈ 1 eV Thermally/electrically excited electrons
& holes
• Metal Partially filled or overlapping bands = 0 or overlap
Free electrons readily available
Effect of Electric Field on Carriers
• In semiconductors:
• - Electrons in conduction band accelerate and flow as current.
• - Holes move in opposite direction, also contributing to
current.

• In insulators:
• - No carriers are available → no current.

• In metals:
• - Plenty of free carriers → high current flows easily.
Temperature Dependence
• Metals:
- Resistivity increases slightly with temperature (due to
scattering).

• Semiconductors:
- Conductivity increases exponentially with temperature (more
electrons excited to conduction band).

• Insulators:
- Negligible change at room temperature due to large Eg.
