By:Tirth Ramoliya
UCT21145

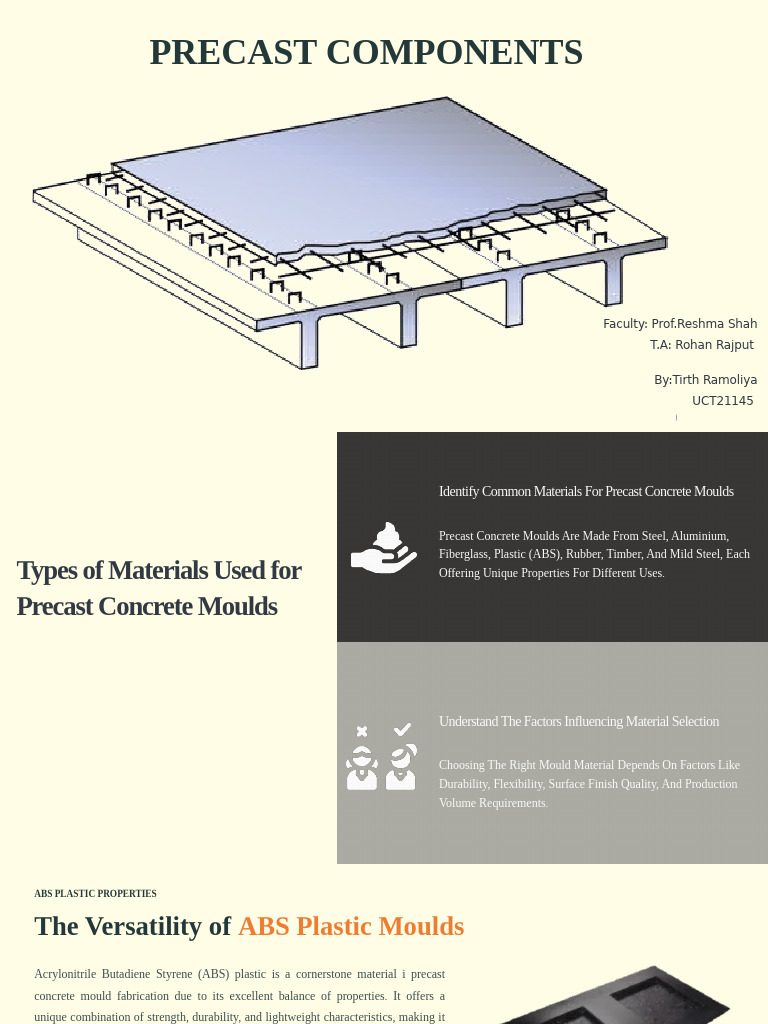

Identify Common Materials For Precast Concrete Moulds
• Strength & Lightweight: ABS is remarkably strong, resisting impact and wear, yet
remains lightweight, simplifying mould transportation and setup. ABS Plastic Moulds
• Fast Production: The material's thermoplastic nature allows for rapid
manufacturing processes, making ABS moulds ideal for bulk orders and high-
volume production cycles.
• Chemical Resistance: ABS exhibits good resistance to the chemicals present in
concrete, ensuring a longer lifespan for the moulds and consistent performance.
FLEXIBILITY AND SHORE HARDNESS
• Shore Hardness Customization: Rubber moulds are available in various Rubber Moulds
shore hardness levels (e.g., Shore A, Shore D), which can be customized to
specific project requirements. A softer shore hardness is ideal for highly
detailed or delicate pieces, while a harder shore hardness offers greater
durability for simpler, higher-volume casts.
• This adaptability makes rubber moulds perfectly suited for projects demanding complex or flexible moulding,
providing a safe and effective method for producing high-quality precast concrete elements with intricate
Rubber Moulds
details.
VERSATILITY AND ELASTICITY
• Toughness and Elasticity: Timber possesses natural toughness, strength, and elasticity. This allows it to absorb
impacts and return to its original shape after use, contributing to its durability and resilience for multiple casting
cycles.
• Weight Selection: The choice of timber weight is crucial. Heavy timbers, such as hardwoods, provide
exceptional strength and stability for robust moulds that endure significant pressure. Lighter timbers, like
softwoods, are easier to handle and cut, making them ideal for custom or intricate designs where frequent
modifications are needed.
• Shape Retention: Despite its natural flexibility, timber's elasticity ensures that moulds maintain their precise
dimensions and structural integrity, crucial for consistent concrete element production.
Timber moulds are particularly valuable for their ability to be easily modified or customized on-site, offering a cost-effective solution for diverse moulding
requirements across various project scales.
STRENGTH AND DURABILITY
• Long Service Life: Their inherent resistance to wear, tear, and corrosion—
especially with proper maintenance and surface treatments—guarantees a
prolonged operational life, reducing the need for frequent replacements.
• Mass Production: The stability and rigidity of steel moulds enable highly
efficient mass manufacturing. They are ideal for producing a large number of
identical, high-quality precast elements with minimal deviation.
MILD STEEL CONCRETE MOULDS
The malleability of mild steel facilitates easier and quicker fabrication compared to other metals, reducing manufacturing lead times. Reinforcement, often
through welding additional steel profiles, is crucial to enhance their longevity and ensure they withstand the internal pressures of concrete pouring and vibration
without distortion. This combination of attributes makes mild steel moulds an excellent choice for high-volume production environments where both cost-
efficiency and performance are key.
COMMON TYPES OF MOULDS
Panel Moulds For walls, floors, and roofs, allowing for diverse sizes and finishes.
Column Moulds Mainly horizontal casting, featuring movable side platforms for various column dimensions. Vertical moulds are rare and
typically used for round columns.
Beam Moulds System moulds designed for producing multiple beam elements efficiently, often in a continuous process.
Wall Moulds Includes Battery, Vertical Battery, Tilting, and Flat/Table moulds, each offering different casting orientations and efficiencies.
Slab Moulds Variations include prestressed hollow core, prestressed plank, and non-prestressed options for various floor and roof
applications.
Bridge Moulds Highly specialized moulds for casting large, custom bridge components like girders and deck segments.
Custom Moulds Tailored for unique project requirements, offering bespoke solutions for complex or non-standard concrete elements.
Each mould type plays a vital role in the precast concrete ecosystem, enabling manufacturers to meet diverse construction demands with precision and speed.
COMMON TYPES OF MOULDS
Panel moulds are foundational in precast concrete manufacturing, specifically engineered to produce consistent, high-quality panels for a wide range of structural
applications. Their design facilitates the creation of versatile building components that are critical for modern construction practices.
• Versatile Applications: The panels produced from these moulds are integral to various building elements, serving as robust walls, durable floors, and reliable
roof components. This versatility makes them indispensable for both residential and commercial projects.
• Design Flexibility: Panel moulds are highly adaptable, capable of being tailored to produce panels of varying sizes, thicknesses, and surface finishes. This
customization allows for diverse architectural and structural requirements to be met with precision, from smooth aesthetic finishes to textured, load-bearing
surfaces.
• Rapid & Consistent Production: A key advantage of panel moulds is their ability to enable quick and uniform production. This efficiency translates into faster
construction timelines and ensures that all panels meet stringent quality standards, reducing on-site labor and material waste.
By utilizing panel moulds, manufacturers can significantly enhance productivity and deliver high-performance precast concrete panels that contribute to the structural integrity and aesthetic
appeal of any building.
COLUMN MOULDS
1 2 3
The meticulous design of column moulds ensures that precast columns are produced with precise dimensions, smooth finishes, and consistent structural integrity, essential for
safe and efficient construction.
BEAM MOULDS
components
Advantages of Using Precast Concrete Moulds
Versatile for structural uses Save time and budget
These moulds suit load-bearing and Using precast concrete moulds cuts costs and
architectural elements, boosting design speeds up projects by avoiding lengthy on-site
flexibility in projects. casting processes.
Precast moulds require precise and Effective management of joinery Certain finishing tasks demand Transporting and managing large
complex manufacturing steps to details, installation techniques, experienced workers to achieve the precast pieces can be complicated,
ensure quality and consistency in transportation logistics, and curing desired surface quality and accuracy requiring special equipment and
the final concrete elements. methods is essential to maintain in precast elements. careful planning to avoid damage.
structural integrity and
performance.
Mix
Formulate strong concrete.
Batching
Measure materials exactly.
Casting
Pour concrete into moulds.
Curing
Harden concrete properly.
Design and Mould Preparation
Step-by-step process for designing and preparing moulds for precast concrete
Design Precast Elements To Create Reusable Steel Or Fiberglass Ensure Moulds Match Shape And Surface Prepare Moulds With Release
Create Detailed Designs That Meet Develop Moulds Made From Verify That The Moulds Accurately Apply Release Agents To Prevent
The Required Dimensions And Durable Materials Like Steel Or Replicate The Desired Shape And Sticking And Add Bracing To
Functional Needs Of The Precast Fiberglass41 That Can Be Used Surface Texture Of The Precast Maintain Mould Stability During
Concrete Elements. Multiple Times For Casting. Elements To Ensure Quality. Casting.
Concrete Mix Design and
Include essential materials in concrete mix Adjust mix for strength, durability, and Batching
workability
Concrete mix consists of cement, aggregates The concrete mix proportions are tailored to meet Steps 2 & 3: Adjusting and preparing concrete
(sand and gravel), water, and admixtures that specific performance requirements such as mix for optimal performance
modify properties. structural strength, durability, and ease of use.
Concrete poured into moulds Use of vibrators to consolidate concrete Curing in controlled environments Proper curing develops strength
and durability
Concrete is poured into moulds Vibrators remove air pockets from Curing takes place in steam chambers Effective curing processes enhance
containing steel bars or mesh concrete to improve density and or water baths to maintain optimal the final strength and durability of
reinforcement to ensure strength. structural integrity. moisture and temperature. precast concrete elements.
Demoulding and Finishing
Steps 6 & 7: Careful removal and surface treatment of precast elements
Ensure the elements are fully cured before gentle demoulding to avoid damage and maintain structural integrity.
Thoroughly clean moulds after demoulding to remove residues and prepare them for subsequent casting cycles.
Finishing may include surface treatments like polishing and coatings to enhance both aesthetic appeal and functional quality.
Finishing processes help achieve the desired look and performance standards for precast concrete elements.
Time Cycle For Precast Element
Use specialized vehicles for Employ handling equipment for On-site erection with cranes and lifting Plan carefully to ensure safety and
transporting precast elements loading and unloading tools efficiency
Transporting precast concrete Loading and unloading precast Cranes and lifting tools are essential on-site Detailed planning is necessary to
requires specialized vehicles elements involve specific handling to erect precast elements accurately and coordinate transportation and
designed to safely carry heavy and equipment to ensure secure and safely, facilitating proper assembly of the installation activities, minimizing
large elements to the construction efficient movement during these structure. risks and optimizing workflow on-
site without damage. critical stages. site.
Joinery Details
Floor-to-beam connection
Column-to-beam connection
Joinery Details
Staircase connection
On Site Pictures
Equipment Used
Formwork
Batching Rebar
Formwork and moulds shape
Concrete batching plants Rebar machines cut, bend, and concrete elements; release
ensure precise mixing and tie steel bars to required shapes, agents prevent sticking, and
weighing of raw materials, essential for structural support bracing ensures stability during
forming the foundation for in precast elements. casting.
quality precast elements.
Curing
Vibrators
Finishing Curing systems such as steam
Concrete vibrators remove air
Finishing tools like trowels and chambers accelerate concrete
bubbles and compact concrete
grinders smooth and refine hardening, enhancing strength
within moulds, improving
concrete surfaces after casting, and durability in controlled
strength and surface finish of
preparing them for curing. settings.
elements.
Erection
Testing Transport
Site cranes and lifting gear
Quality testing instruments Flatbeds and tilt-bed trucks position and install precast units
verify concrete properties and transport precast elements from safely and accurately during
standards compliance, ensuring the plant to construction sites construction phases.
precast product reliability. efficiently and securely.
Equipment Used
Delivery
Concrete pumps and chutes
transport concrete efficiently
from mixers to moulds,
ensuring continuous flow and
reducing delays.
Handling
Cranes and forklifts move
heavy precast components
safely within the plant and for
loading onto transport vehicles.
Precast Concrete Components in India
Types of Precast Concrete Components
Precast concrete products in India include structurally and architecturally relevant components, such as:
•Beam, columns, slabs, and wall panels designed for residential, commercial, and infrastructure use
•Boundary walls, lintel beams, earth pit chambers for site development and utilities
•Manholes, RCC pipes, U-drains, trenches, and cable covers for drainage and underground infrastructure
•Paver blocks, kerbstones, and retaining wall blocks for landscaping, traffic management, and soil support
•Staircases, facades, and partition walls for customized architectural needs
•Specialized components like street light pole foundations, weight blocks for solar panels, noise barrier elements, and prestressed slabs for roads and
pavements
Precast Concrete Components in India
Efficiency RRTS
Precast tech ensures faster, quality construction Delhi’s RRTS uses precast segments for viaducts
across sectors. and stations, ensuring quality.
Structures Utilities
Box culverts, walls, and noise barriers are precast for Precast pipes, manholes, and channels improve installation
strength and quick setup. speed and reliability.
Quality Assurance
Producing precast concrete in Factories perform
Off-Site Production
a factory ensures uniform inspections and testing to
quality every time. keep high standards and cut Benefits of Precast
defects.
Custom
Cost Save
Special moulds enable
Better resource use in
custom shapes and finishes
factories lowers waste and
in the factory.
overall costs.
Flexible
Off-site production offers
flexible scheduling and unit
storage.
Leading Indian Precast Manufacturers
1.Teemage Precast IN (Chennai) - Focuses on cost-effective, high-quality precast building services with modern manufacturing facilities.
2.Pacific Precast (Pune) - Specializes in precast concrete solutions for construction and infrastructure projects using advanced technologies.
3.Precision Precast Solutions (PPS) Pvt Ltd - Offers structural precast concrete consultancy and solutions, including hollow core slabs and band
beams.
4.Concretech Infra Solutions - Provides prestressed and precast concrete solutions, including compound walls and cottages, ensuring adherence to
local codes.
5.Strongplus India Private Limited - Manufactures precast concrete building components with innovative solutions, having completed over 500
projects worldwide.
6.BRHC Concrete Industries (Faridabad) - Focuses on manufacturing a wide range of precast concrete products with emphasis on quality and
sustainability.
7.Arto Precast (Bengaluru) - Delivers innovative and customized precast concrete solutions prioritizing durability, aesthetics, and sustainability.
8.Illuminati Solutions Pvt LTD (Mumbai) - Technology-driven precast concrete solutions aimed at improving speed and quality, especially for
low-cost housing.
9.CC Precast Solutions Pvt Ltd - A leader in Prestressed Precast Concrete Pavement in India, known for cost-effective and environmentally
friendly precast roads.
10.BRHC Pipe Industries (Faridabad) - Manufacturer specializing in precast concrete products with technical proficiency and quality standards.
REFERENCES
Advanced curing techniques and equipment for precast concrete elements. (2023, June 15). Knowledge Center -.
https://www.slabsc.com/knowledgecenter/advanced-curing-techniques-and-equipment-for-precast-concrete-elements/#:~:text=
Archiesivan22. (n.d.). Joinery details 2. Scribd.
https://www.scribd.com/document/465410095/Joinery-details-2
Bombini, A. (2022, July 12). Tools and equipment used in precast concrete manufacturing. TKL GROUP.
https://www.tklgroup.com/equipment-used-in-precast-concrete-manufacturing/?utm_source=chatgpt.com
Chaudhary, S. (n.d.). Precast-concrete details. SlideShare.
https://www.slideshare.net/sauravc/precastconcrete-details#8
Different types of precast concrete moulds. (2023, June 13). Constro Facilitator.
https://constrofacilitator.com/different-types-of-precast-concrete-moulds/
Google search. (n.d.).
https://batchingplantsupplier.com/precast-concrete-plant-equipment/?utm_source=chatgpt.com
A guide to concrete moulds: Everything you need to know. (2020, June 8). Global Wetcast Mould Solutions.
https://numold.com/concrete-moulds/
Mild steel concrete moulds |Types of precast concrete Moulds| Concrete mould. (n.d.). Stimex Engineers | Scaffolding, Formwork, Shuttering Panels &
Precast Moulds in Indore.
https://www.stimexengineers.com/precast-moulds.html
Posicionuno. (2024, February 23). Precast concrete manufacturing: How it is made. Mid Continent Steel and Wire.
https://mcswusa.com/how-is-precast-concrete-made/#:~:text=8,weight%20of%20the%20precast%20pieces
REFERENCES
Precast concrete process. (2012, March 25). The Constructor. https://theconstructor.org/concrete/precast-concrete-process/6272/
Precast concrete products manufacturer in India. (n.d.). Spartek.
https://www.spartek.in/precast-products.php
What is the process of precast erection and how does it work? | Urbanaac precast manufacturer. (2025, February 3). Urbanaac India's Top
Precast Manufacturer Based in Ahmedabad - Future of Infrastructure by Precast Manufacturing.
https://urbanaac.com/what-is-the-process-of-precast-erection-and-how-does-it-work-urbanaac-precast-manufacturer/
THANK YOU
