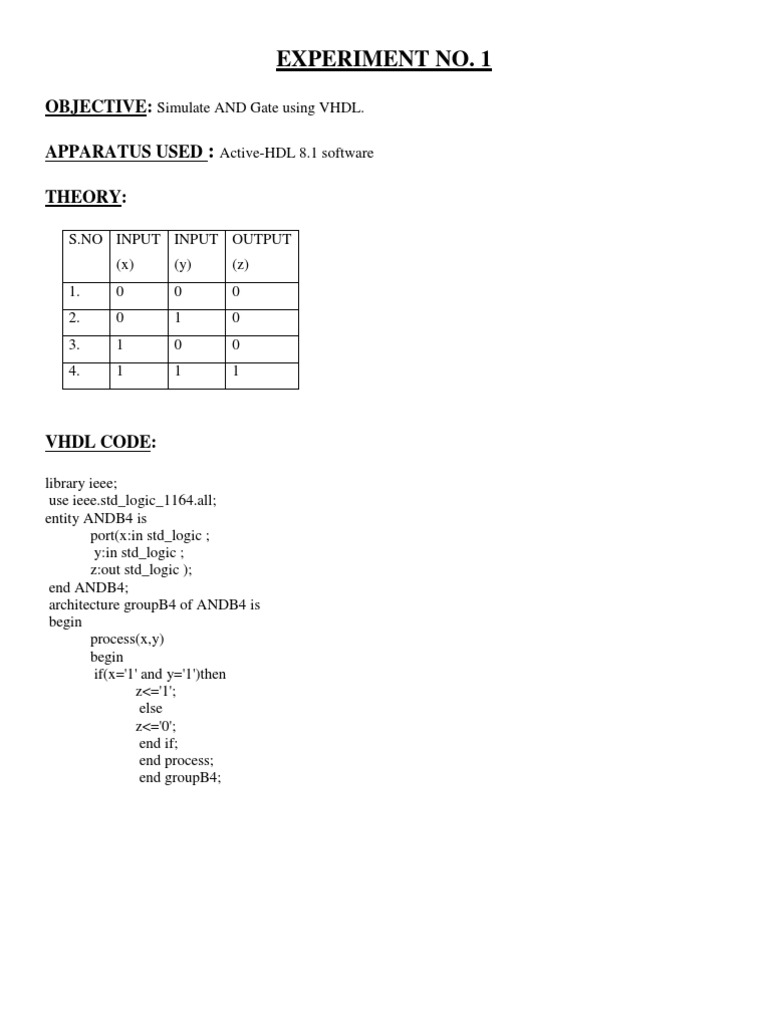

EXPERIMENT NO.

1
OBJECTIVE: Simulate AND Gate using VHDL. APPARATUS USED : Active-HDL 8.1 software THEORY:
S.NO INPUT INPUT OUTPUT (x) 1. 2. 3. 4. 0 0 1 1 (y) 0 1 0 1 (z) 0 0 0 1

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity ANDB4 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end ANDB4; architecture groupB4 of ANDB4 is begin process(x,y) begin if(x='1' and y='1')then z<='1'; else z<='0'; end if; end process; end groupB4;

RESULT:

EXPERIMENT -2
OBJECTIVE: Simulate OR Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT INPUT OUTPUT (x) 1. 2. 3. 4. 0 0 1 1 (y) 0 1 0 1 (z) 0 1 1 1

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity or2 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end or2; architecture groupb4 of or2 is begin process(x,y) begin if(x='0' or y='0')then z<='0'; else z<='1'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 3
OBJECTIVE: Simulate NOT Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO 1. 2. INPUT (x) 0 1 OUTPUT(z) 1 0

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity not2 is port(x:in std_logic ; z:out std_logic ); end not2; architecture groupb4 of not2 is begin process(x) begin if(x='0')then z<='1'; else z<='0'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 4
OBJECTIVE: Simulate NAND Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT INPUT OUTPUT (x) 1. 2. 3. 4. 0 0 1 1 (y) 0 1 0 1 (z) 1 1 1 0

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity nand2 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end nand2; architecture groupb4 of nand2 is begin process(x,y) begin if(x='1' and y='1')then z<='0'; else z<='1'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 5

OBJECTIVE: Simulate NOR Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT INPUT OUTPUT (x) 1. 2. 3. 4. 0 0 1 1 (y) 0 1 0 1 (z) 1 0 0 0

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity nor2 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end nor2; architecture groupb4 of nor2 is begin process(x,y) begin if(x='0' and y='0')then z<='1'; else z<='0'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 6

OBJECTIVE: Simulate Ex-OR Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT (x) 1. 2. 3. 4. 0 0 1 1 INPUT (y) 0 1 0 1 OUTPUT (z) 0 1 1 0

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity xor2 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end xor2; architecture groupb4 of xor2 is begin process(x,y) begin if(x=y)then z<='0'; else z<='1'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 7
OBJECTIVE: Simulate Ex-NOR Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT INPUT OUTPUT (x) 1. 2. 3. 4. 0 0 1 1 (y) 0 1 0 1 (z) 1 0 0 1

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity xnor2 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end xnor2; architecture groupb4 of xnor2 is begin process(x,y) begin if(x=y)then z<='1'; else z<='0'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 8

OBJECTIVE: Simulate Half Adder Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT(a) INPUT(b) SUM(s) CARRY(C) 1. 2. 3. 4. 0 0 1 1 0 1 0 1 0 1 1 0 0 0 0 1

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity ha2 is port(x:in std_logic ; y:in std_logic ; z:out std_logic ); end ha2; architecture groupb4 of ha2 is begin process(x,y) begin if(x=y)then z<='0'; else z<='1'; end if; end process; end groupb4;

RESULT:

EXPERIMENT 9

OBJECTIVE: Simulate Full Adder Gate using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO INPUT(a) INPUT(b) INPUT(Cin) OUTPUT(S) OUTPUT(Cout)

1. 2. 3. 4. 5 6. 7. 8.

0 0 0 0 1 1 1 1

0 0 1 1 0 0 1 1

0 1 0 1 0 1 0 1

0 1 1 0 1 0 0 1

0 0 0 1 0 1 1 1

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity fa2 is port(a:in std_logic ; b:in std_logic ; cin:in std_logic ; s:out std_logic ; cout:out std_logic); end fa2; architecture groupb4 of fa2 is begin s<= a xor b xor cin; cout<= (a and b) or (b and cin) or (cin and a); end groupb4;`

RESULT:

EXPERIMENT 10
OBJECTIVE: Simulate Multiplexer using VHDL. APPARATUS USED: Active-HDL 8.1 software THEORY:
S.NO i1 1. 2. 3. 4. 5 6 7 8 0 0 0 0 1 1 1 1 i0 0 0 1 1 0 0 1 1 S 0 1 0 1 0 1 0 1 OUTPUT 0 0 1 1 0 1 0 1

VHDL CODE:
library ieee; use ieee.std_logic_1164.all; entity mux is port( i0: in STD_logic ; i1: in STD_logic ; s: in STD_logic ; o: out STD_logic ) ; end mux; --}} End of automatically maintained section architecture mux of mux is begin o<=(i0 and(not s)) or (i1 and s); end mux;

RESULT:
