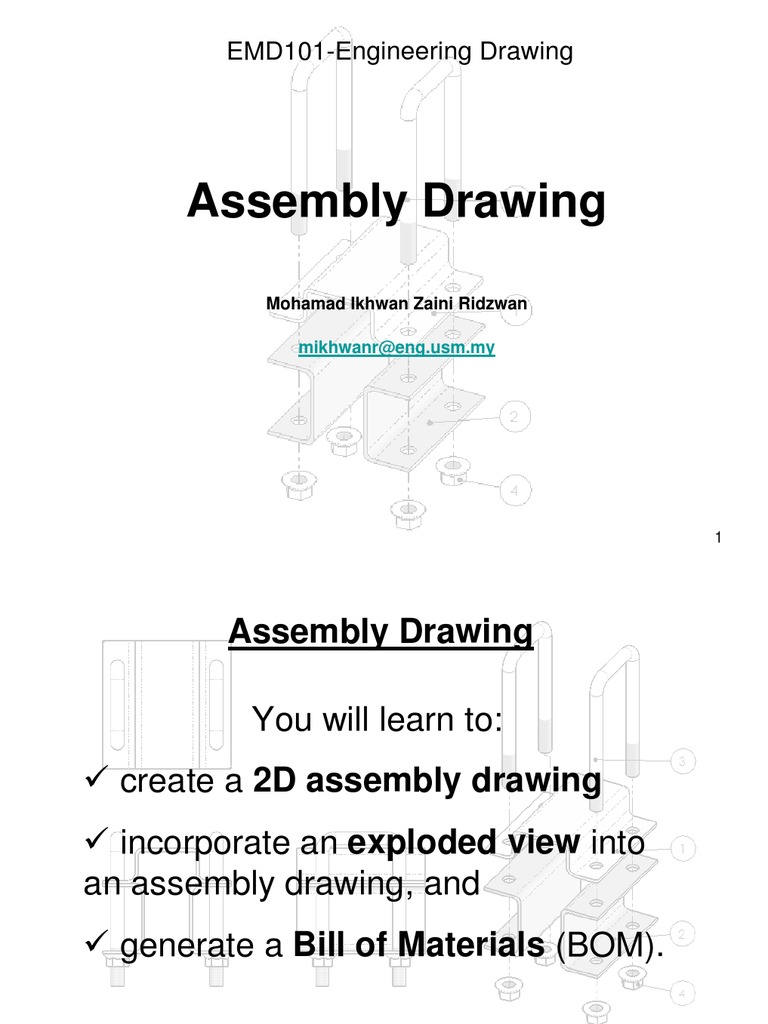

EMD101-Engineering Drawing

Assembly Drawing
Mohamad Ikhwan Zaini Ridzwan mikhwanr@eng.usm.my

Assembly Drawing You will learn to: 9 create a 2D assembly drawing 9 incorporate an exploded view into an assembly drawing, and 9 generate a Bill of Materials (BOM).

Assembly Drawing Assembly drawings show all the parts and how they go together Dimensioning is not usually required Hidden lines usually omitted 3D CAD packages can generate assembly drawings directly from assembly models

Elements of an Assembly Drawing


All parts are shown in one drawing
assembled view sectioned assembly exploded assembly

Parts list or bill of materials (BOM)


part ID, quantity, description, catalogue number, etc.

Balloons
each part is identified by a numbered balloon, and referenced to the parts list

Machining and assembly instructions

Assembly Drawing
Balloons

Isometric

Parts list (BOM)


5

Exploded Assembly Drawing

Creating an Assembly Drawing Open the assembly file Sliding brace assembly.sldasm. Make sure that the assembly is in the collapsed configuration OK to accept the Drawing Template

Uncheck the box


7

2D Assembly Drawing In the new drawing window, select the Standard 3 View, and make sure it is in Third angle projection

Adding an Exploded View Select the Model View Tool from Drawings group

Select Trimetric from the list Trimetric view


9

Adding an Exploded View


2

1 Right click the Trimetric View and Select Properties Check the box
10

Exploded View

11

Creating a Bill of Materials Select any of the drawing views From the main menu, select Insert: Tables: Bill of Materials Accept the default selections

12

Edit the title box

1 Click on the Part Number cell, and select Column Properties

2 Edit the title box to read PART NAME

13

Bill of Materials
The drawing is almost complete, but the item numbers in the Bill of Materials are not linked with the components in the drawing. We will add balloons with part numbers to the drawing.

14

AutoBalloons Select the exploded Trimetric Views. Select the AutoBalloons Tool from the Annotations group of the CommandManager.

Balloons will be added to the view.

15

AutoBalloons
Click and drag the part numbers to relocate the balloons.

Balloon styles Circular Triangular Hexagon


Circular split line
Item number Quantity

16

17

Other Example

The Shock assembly


The exploded state of the Shock assembly

The Bill Of Material for the Shock assembly

18

Tutorial Advanced drawing Assembly drawing views

19

1 Assembly Drawing Mohamad Ikhwan Zaini Ridzwan mikhwanr@eng.usm.my EMD101-Engineering Drawing
2 Assembly Drawing You will learn to: 9 create a 2D assembly drawing 9 incorporate an exploded view into an assembly drawing
3 Assembly Drawing ƒ Assembly drawings show all the parts and how they go together ƒ Dimensioning is not usually required ƒ
4 Elements of an Assembly Drawing ¾All parts are shown in one drawing •assembled view •sectioned assembly •exploded assembly
5 Balloons Parts list (BOM) Isometric Assembly Drawing
6 Exploded Assembly Drawing
7 Creating an Assembly Drawing • Open the assembly file “Sliding brace assembly.sldasm”. Make sure that the assembly is in
8 2D Assembly Drawing In the new drawing window, select the Standard 3 View, and make sure it is in Third angle projection
9 Adding an Exploded View Select the Model View Tool from Drawings group Select Trimetric from the list Trimetric view
10 Adding an Exploded View Check the box 2 1 Right click the Trimetric View and Select Properties
