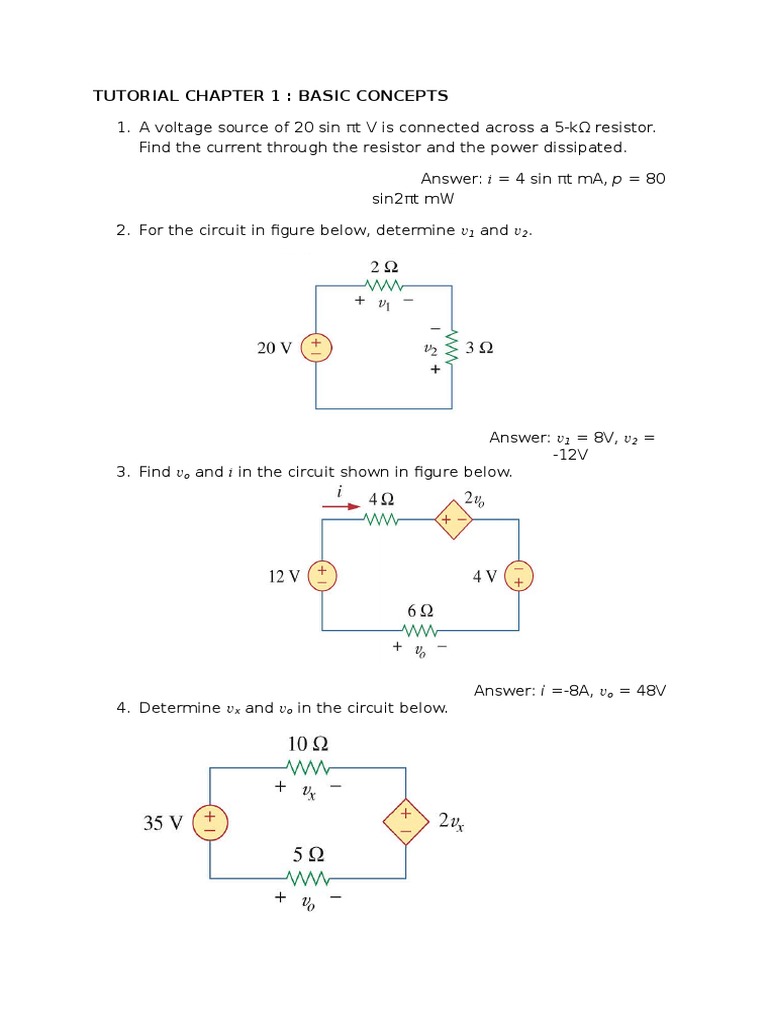

TUTORIAL CHAPTER 1 : BASIC CONCEPTS

1. A voltage source of 20 sin t V is connected across a 5-k resistor.

Find the current through the resistor and the power dissipated.
Answer: i = 4 sin t mA, p = 80
sin2t mW
2. For the circuit in figure below, determine v1 and v2.

Answer: v1 = 8V, v2 =
-12V
3. Find vo and i in the circuit shown in figure below.

Answer: i =-8A, vo = 48V

4. Determine vx and vo in the circuit below.

Answer : vx = 10V, vo
= -5V
5. Determine io and vo in the circuit shown in figure below.

Answer: io = 6A, vo
= 24V
6. Find vo and io in the circuit shown below.

Answer : vo = 8V, io = 4A
7. Determine the currents and voltages in the circuit shown below.

Answer : i1 = 3A, i2 = 2A, i3 =

1A, v1 = 24V, v2 = 2V, v3 = 6V

8. Determine the currents and voltages in the circuit shown below.

Answer : v1 = 3V, v2 = 2V, v3 = 5V, i1 = 1.5A, i2 = 0.25A, i3 = 1.25A

9. Find all the currents and voltages shown in circuit below.

Answer: v = 20V, i1 = 1A, i2 = 2A, i3 = 4A, i4 = 1A

10.

Determine I and Vab in the circuit shown below.

Answer: I = 4A, Vab

= 28V
