System Level Timing Analysis

System Level Timing Analysis 1

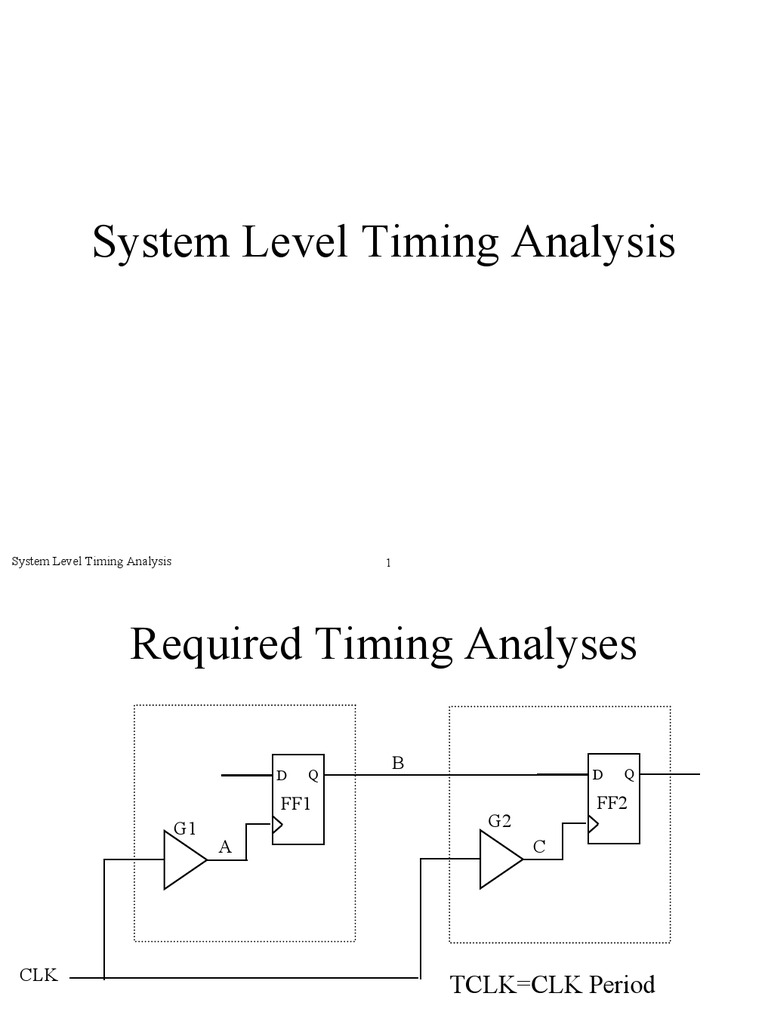

Required Timing Analyses

B
D Q D Q

FF1 FF2
G1 G2
A C

CLK
TCLK=CLK Period

The circuit must be analyzed to show that the set-up (tSU) and
hold (tH) times of FF2 are met under worst-case conditions.

System Level Timing Analysis 2


Analysis Assumptions
• The propagation delay of G1, tPDG1, includes all the
delays from CLK to the clock input of FF1:
tPDG1 = The connection delay from CLK to G1 input
+ delay of G1 itself
+ connection delay from G1 output to FF1
clock input
• Similarly for G2
• Similarly, tPDFF1 includes the connection delay from
the FF1 output to FF2 input

System Level Timing Analysis 3


Set-up Time Analysis

tSU@FF2 = TCLK - Slowest Data + Fastest CLK


= TCLK - (tPDG1Max + tPDFF1Max) + tPDG2Min

tPDDataMax
tPDG2Min
CLK
B
C
tSU

System Level Timing Analysis 4


Hold Time Analysis
tH@FF2 = Fastest Data - Slowest CLK
= tPDG1Min + tPDFF1Min - tPDG2Max

tPDDataMin

CLK

C
tH
tPDG2Max

System Level Timing Analysis 5


Hold Time Support

Optional delay is matched


to the clock distribution
delay to make tH = 0 ns.
System Level Timing Analysis 6
Clock Skew
• If the clock is slower than the data, then the wrong value will
be transferred from FF1 to FF2

• tH@FF2 = tPDG1Min + tPDFF1Min - tPDG2Max < 0


If tPDG2Max > tPDG1Min + tPDFF1Min

Should latch this Latches this instead

CLK
tPDDATA
B
C tPDCLK
tH < 0

System Level Timing Analysis 7


Using Minimum Delays
• In the tSU and tH equations, the minimum
delays are questionable
– Minimum delays are supplied by some vendors
but not all.
• If no guaranteed minimum delay value
exists, then the correct value to use is 0 ns.

System Level Timing Analysis 8


Minimum Delays and Skew

• Given that tPDMin=0 should be assumed


unless guaranteed otherwise, we have
tH@FF2 = tPDG1Min + tPDFF1Min - tPDG2Max < 0
= 0 + 0 – tPDG2Max < 0
which is true for any tPDG2Max > 0.
⇒ Circuits should be more carefully examined for
skew effects now that parts are getting faster.

System Level Timing Analysis 9
