TM

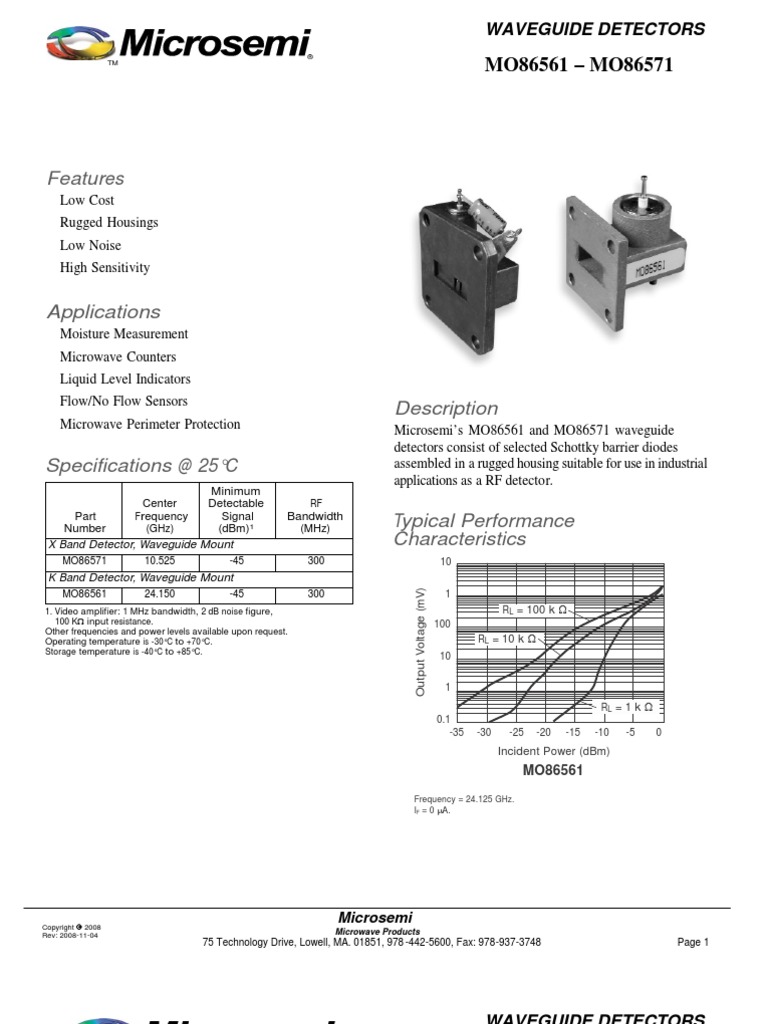

MO86561 – MO86571
Features
● Low Cost
● Rugged Housings
● Low Noise
● High Sensitivity
Applications
● Moisture Measurement
● Microwave Counters
● Liquid Level Indicators
● Flow/No Flow Sensors
Description
● Microwave Perimeter Protection Microsemi’s MO86561 and MO86571 waveguide
detectors consist of selected Schottky barrier diodes
Specifications @ 25°C assembled in a rugged housing suitable for use in industrial
applications as a RF detector.
Minimum
Center Detectable RF
Part Frequency Signal Bandwidth
Number (GHz) (dBm)1 (MHz) Typical Performance
X Band Detector, Waveguide Mount Characteristics
MO86571 10.525 -45 300 10
K Band Detector, Waveguide Mount
Output Voltage (mV)
Copyright 2008
Microsemi
Rev: 2008-11-04 Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978 -442-5600, Fax: 978-937-3748 Page 1
WAVEGUIDE DETECTORS
®
TM
MO86561 – MO86571
Waveguide Detectors
MO86561 MO86571
0.125 Max.
(3.18)
2 x 0.875
(22.23) 1.30 Max.
(33.02)
Copyright 2008
Microsemi
Rev: 2008-11-04 Microwave Products
75 Technology Drive, Lowell, MA. 01851, 978 -442-5600, Fax: 978-937-3748 Page 2
