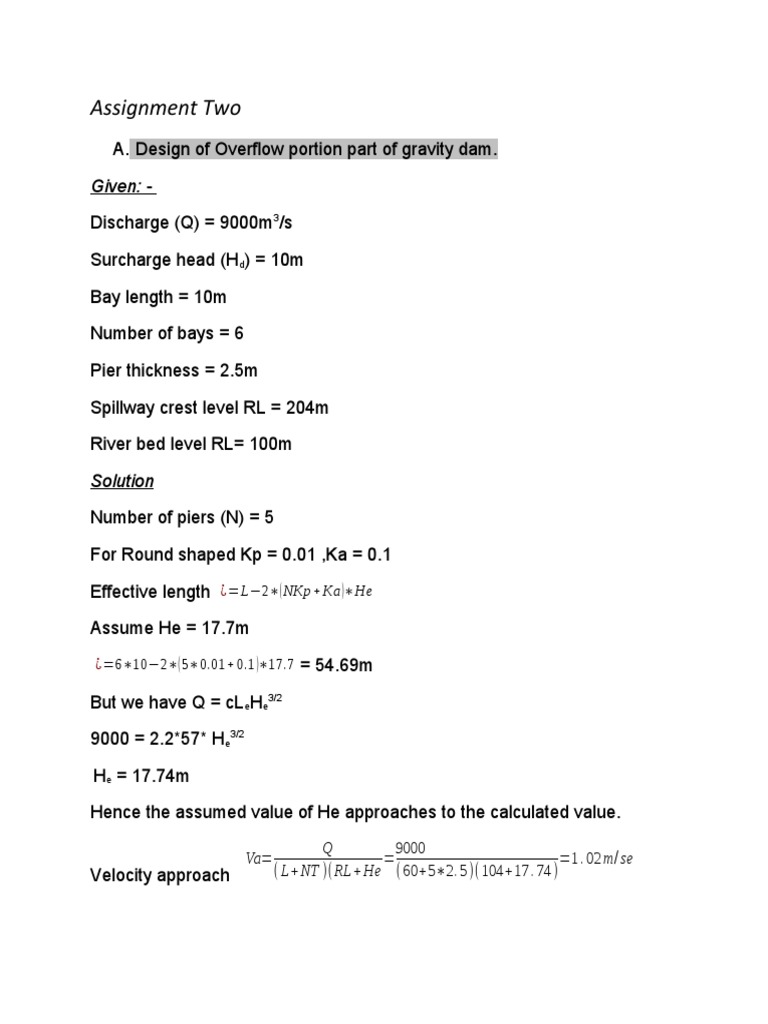

Assignment Two

A. Design of Overflow portion part of gravity dam.

Given: -

Discharge (Q) = 9000m3/s

Surcharge head (Hd) = 10m

Bay length = 10m

Number of bays = 6

Pier thickness = 2.5m

Spillway crest level RL = 204m

River bed level RL= 100m

Solution

Number of piers (N) = 5

For Round shaped Kp = 0.01 ,Ka = 0.1

Effective length ¿=L−2∗( NKp + Ka )∗He

Assume He = 17.7m
¿=6∗10−2∗( 5∗0.01+ 0.1 )∗17.7 = 54.69m

But we have Q = cLeHe3/2

9000 = 2.2*57* He3/2

He = 17.74m

Hence the assumed value of He approaches to the calculated value.

Q 9000
Va= = =1 . 02 m/ se
Velocity approach ( L+NT )(RL+He (60+5∗2. 5 )(104+17 . 74 )
 2 2
Va 1 .02
Ha= = =0 .05 m
Velocity Head 2 g 2∗9 . 81 which is very small.

B. Velocity distribution calculation

Downstream 0.7H: 1V
For downstream profile and vertical upstream face equation is given as
n
X = K* H d n−1 *Y
But for the spillway with vertical or optimally vertical
Upstream face, the value of
K = 2.00, n = 1.85

H d = 10m
n n-1 0.85
Hence, X = k*H d X 1.85 = 2* (10) * Y = 14.16Y
X 1. 85
Y=
14 . 16
The calculation is on Excel
X Y Coordinate Remark
-4.4300 -1.1086 -4.43,-1.1086
-2.4300 -0.3650 -2.43,-0.365 U/S profile
-0.4300 0.0148 -0.43,0.0148
0.0000 0.0000 0,0 Origin
2.0000 0.2546 2,0.2545
4.0000 0.9178 4,0.9178
6.0000 1.9432 6,1.9432
8.0000 3.3087 8,3.3087
10.0000 4.9996 10,4.9996
12.0000 7.0052 12,7.0052
D/S Profile
14.0000 9.3169 14,9.3169
16.0000 11.9278 16,11.9278
18.0000 14.8317 18,14.8317
20.0000 18.0236 20,18.0236
22.0000 21.4990 22,21.4990221014843
24.0000 25.2538 24,25.2538469324757
