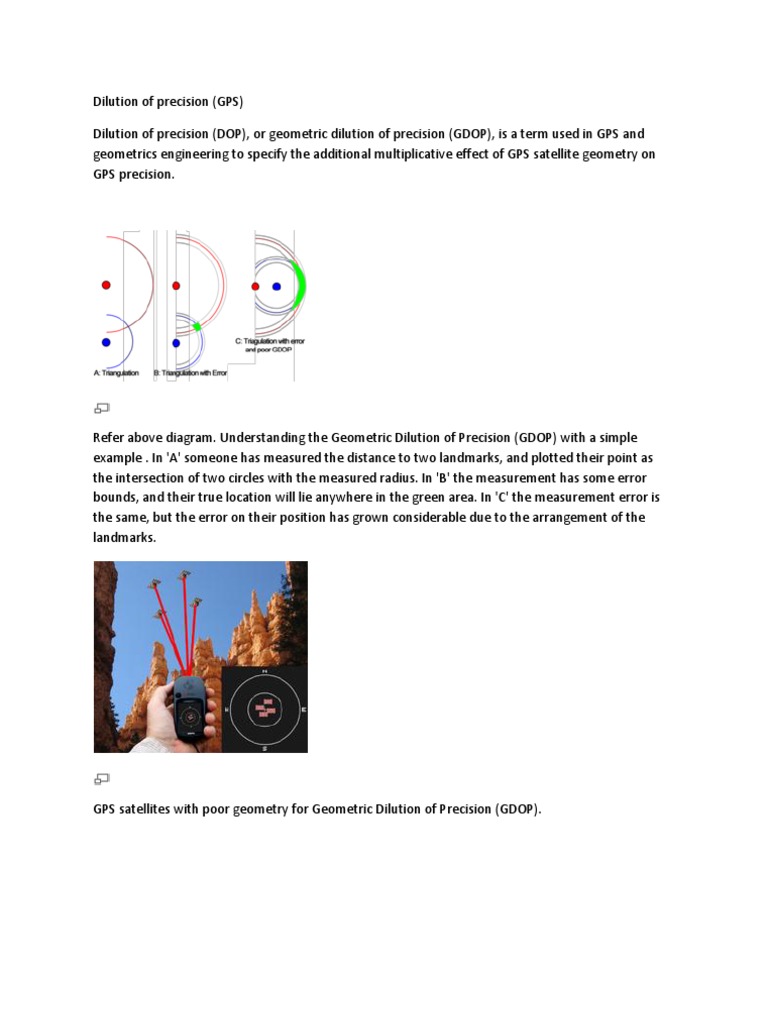

Dilution of precision (GPS) Dilution of precision (DOP), or geometric dilution of precision (GDOP), is a term used in GPS and geometrics
engineering to specify the additional multiplicative effect of GPS satellite geometry on GPS precision.
Refer above diagram. Understanding the Geometric Dilution of Precision (GDOP) with a simple example . In 'A' someone has measured the distance to two landmarks, and plotted their point as the intersection of two circles with the measured radius. In 'B' the measurement has some error bounds, and their true location will lie anywhere in the green area. In 'C' the measurement error is the same, but the error on their position has grown considerable due to the arrangement of the landmarks.
GPS satellites with poor geometry for Geometric Dilution of Precision (GDOP).
GPS satellites good geometry for Geometric Dilution of Precision (GDOP). The concept of dilution of precision (DOP) originated with users of the Loran-C navigation system.[1] The idea of Geometric DOP is to state how errors in the measurement will affect the final state estimation. This can be defined as: More recently, the term has come into much wider usage with the development and adoption of GPS. Neglecting ionospheric and tropospheric effects, the signal from GPS satellites has a fixed precision. Therefore, the relative satellite-receiver geometry plays a major role in determining the precision of estimated positions and times. Due to the relative geometry of any given satellite to a receiver, the precision in the pseudo range of the satellite translates to a corresponding component in each of the four dimensions of position measured by the receiver (i.e. x, y, z, and t). The precision of multiple satellites in view of a receiver combine according to the relative position of the satellites to determine the level of precision in each dimension of the receiver measurement. When visible GPS satellites are close together in the sky, the geometry is said to be weak and the DOP value is high; when far apart, the geometry is strong and the DOP value is low. Consider two overlapping rings, or annuli, of different centres. If they overlap at right angles, the greatest extent of the overlap is much smaller than if they overlap in near parallel. Thus a low DOP value represents a better GPS positional precision due to the wider angular separation between the satellites used to calculate a GPS unit's position. Other factors that can increase the effective DOP are obstructions such as nearby mountains or buildings. DOP can be expressed as a number of separate measurements. HDOP, VDOP, PDOP, and TDOP are respectively Horizontal, Vertical, Positional (3D), and Time Dilution of Precision. They follow mathematically from the positions of the usable satellites. GPS receivers allow the display of these positions (skyplot) as well as the DOP values. The effect of geometry of the satellites on position error is called geometric dilution of precision and it is roughly interpreted as ratio of position error to the range error. Imagine that a square pyramid is formed by lines joining four satellites with the receiver at the tip of the pyramid. The larger the volume of the pyramid, the better (lower) the value of GDOP; the smaller its volume, the worse (higher) the value of GDOP will be. Similarly, the greater the number of satellites, the better the value of GDOP.
DOP Value 1
Rating
Description This is the highest possible confidence level to be used for applications demanding the highest possible precision at all times. At this confidence level, positional measurements are considered accurate enough to meet all but the most sensitive applications. Represents a level that marks the minimum appropriate for making business decisions. Positional measurements could be used to make reliable in-route navigation suggestions to the user. Positional measurements could be used for calculations, but the fix quality could still be improved. A more open view of the sky is recommended. Represents a low confidence level. Positional measurements should be discarded or used only to indicate a very rough estimate of the current location. At this level, measurements are inaccurate by as much as 300 meters with a 6 meter accurate device (50 DOP 6 meters) and should be discarded.
Ideal
1-2
Excellent
2-5
Good
5-10
Moderate
10-20
Fair
>20
Poor
