  • Problem 002-mj: Truss Structure Analysis
  • Joint Force Analysis Continuation
  • Result Summary and Force Calculations

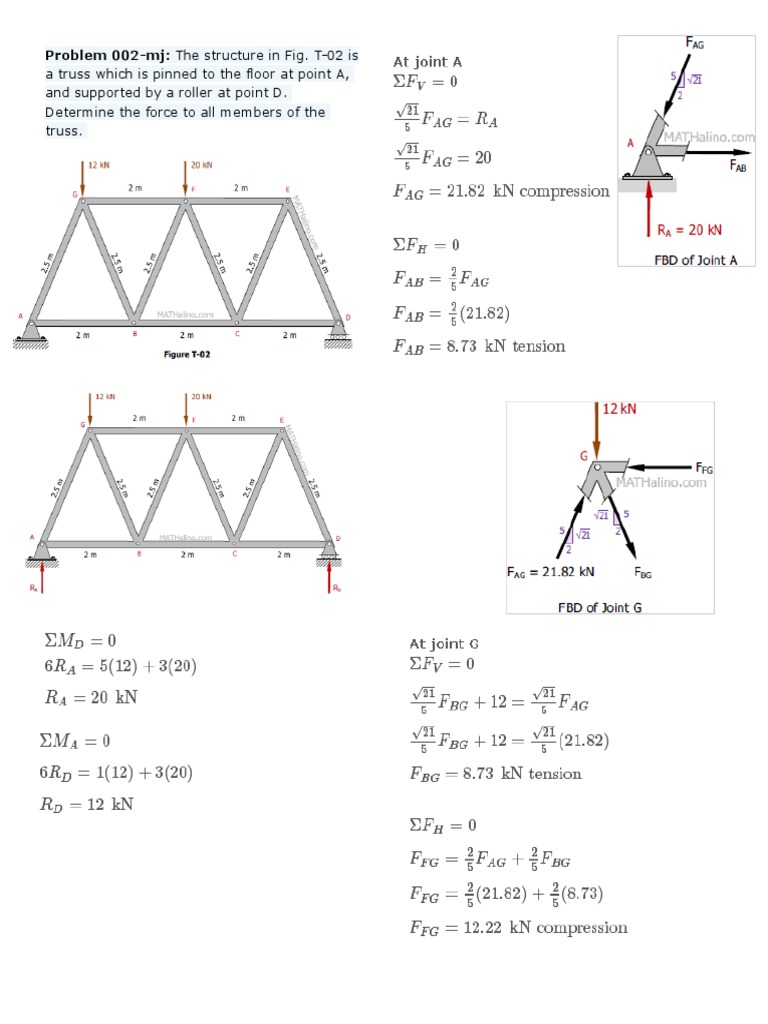

Problem 002-mj: The structure in Fig.

T-02 is
a truss which is pinned to the floor at point A,
and supported by a roller at point D.
Determine the force to all members of the
truss.
