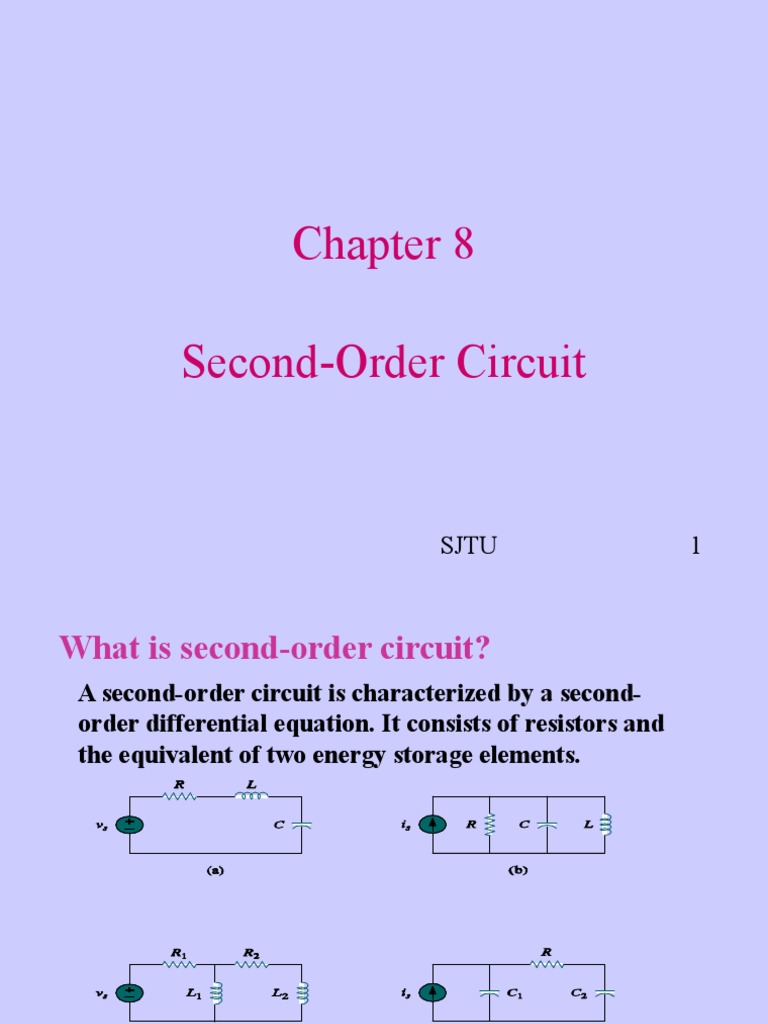

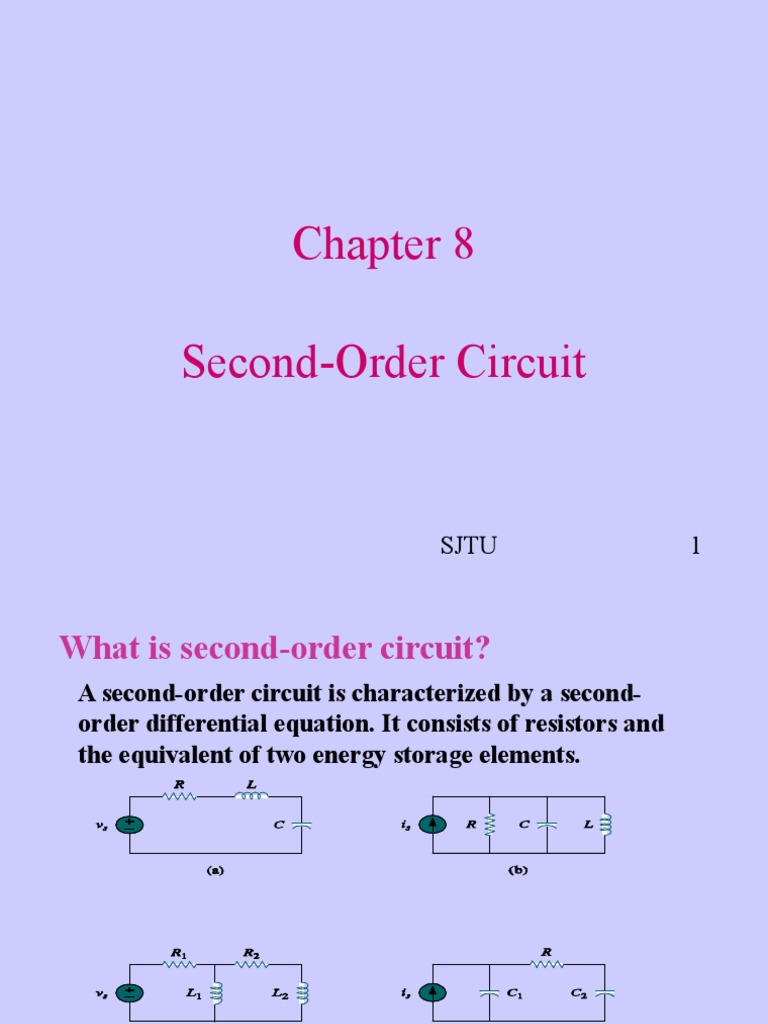

Chapter 8

Second-Order Circuit

SJTU

What is second-order circuit?

A second-order circuit is characterized by a secondorder differential equation. It consists of resistors and
the equivalent of two energy storage elements.

Typical examples of second-order circuits: a) series RLC circuit, b)

parallel RLC circuit, c) RL circuit, d) RC circuit

SJTU

1. The Series RLC Circuit

2. The Parallel RLC Circuit
3. Second-Order Circuit Complete Response

SJTU

1. The Series RLC Circuit

FORMULATING SERIES RLC
CIRCUIT EQUATIONS

Eq.(733)

SJTU

The initial conditions

To solve second-order equation, there must be two

initial values.

SJTU

ZERO-INPUT RESPONSE OF THE SERIES

RLC CIRCUIT
With VT=0(zero-input) Eq.(7-33) becomes
Eq.(3-37)

try a solution of the form

then
characteristic equation
Eq.(739)

SJTU

In general, a quadratic characteristic equation has two roots:

Eq.(7-40)

three distinct possibilities:

Case A: If

, there are two real, unequal roots

Case B: If

, there are two real, equal roots

Case C: If
roots

, there are two complex conjugate

SJTU

A source-free series RLC circuit

Special case: Vc(0)=V0, IL(0)=0
V0

V(t)
tM
I(t)

SJTU

tM>t>0

t > tM

What happens when R=0?

SJTU

Second Order Circuit with no Forcing Function

vc(0) = Vo , iL(0) = Io.

I. OVER DAMPED:
R=2 , L= 1/3 H, C=1.5F, Vo=1V, Io=2A
iL(t) = -0.7 e -0.354t +2.7 e -5.646t A
vc(t) = 1.318 e -0.354t -0.318 e -5.646t V

SJTU

10

SJTU

11

SJTU

12

II. CRITICALLY DAMPED:

R=0.943 , L= 1/3 H, C=1.5F, Vo=1V, Io=2A
iL(t) = 2e -1.414t -5.83t e -1.414t A
vc(t) = e -1.414t+ 2.75 t e -1.414t V

SJTU

13

SJTU

14

SJTU

15

III. UNDER DAMPED:

R=0.5 , L= 1/3 H, C=1.5F, Vo=1V, Io=2A
iL(t) =4.25 e -0.75t cos(1.2t + 1.081) A
vc(t) = 2 e -0.75t cos(1.2t - 1.047) V

SJTU

16

SJTU

17

SJTU

18

IV. UNDAMPED:
R=0 , L= 1/3 H, C=1.5F, Vo=1V, Io=2A
iL(t) =2.915 cos(1.414t + 0.815) A
vc(t) =1.374 cos(1.414t - 0.756) V

SJTU

19

SJTU

20

SJTU

21

EXAMPLE 7-14
A series RLC circuit has C=0.25uF and L=1H. Find the roots of
the characteristic equation for RT=8.5kohm, 4kohm and 1kohm
*

SOLUTION:
For RT=8.5kohm, the characteristic equation
is
whose roots are
These roots illustrate case A. The quantity under the
radical is positive, and there are two real, unequal
roots at S1=-500 and S2=-8000.
SJTU

22

* For RT=4kohm, the characteristic equation is

whose roots are
This is an example of case B. The quantity under the
radical is zero, and there are two real, equal roots at
S1=S2=-2000.
* For RT=1kohm the characteristic equation is
whose roots are
The quantity under the radical is negative, illustrating case
C.
In case C the two roots are complex conjugates.
SJTU
23

In case A the two roots are real and unequal

and the zero-input response is the
sum of two exponentials of the form
Eq.(7-48a)

In case B the two roots are real and equal

and
the zero-input response is the sum of an exponential and a
damped ramp.

VC (t ) K1e t K 2te t

Eq.(7-48b)

In case C the two roots are complex conjugates

and the zero-input response is the
sum of a damped cosine and a damped sine.
t

VC (t ) e ( K1Cosdt K 2 Sindt )
SJTU

Eq.(7-48c)

24

EXAMPLE 7-15
The circuit of Figure 7-31 has C=0.25uF and L=1H. The
switch has been open for a long time and is closed at t=0. Find
the capacitor voltage for t 0 for (a) R=8.5k ohm, (b) R=4k
ohm, and (c) R=1k ohm. The initial conditions are Io=0 and
Vo=15V.
SOLUTION:

Fig. 7-31

(a) In Example 7-14 the value

R=8.5kohm yields case A with
roots S1=-500 and S2=-8000. The
corresponding zero-input solution
takes the form in Eq.(7-48a).

SJTU

25

The initial conditions yield two equations in the constants

K1 and K2:

Solving these equations yields K1=16 and K2 =-1, so that the

zero-input response is

SJTU

26

(b) In Example 7-14 the value R=4kohm yields case B with

roots S1=S2=-2000. The corresponding zero-input response
takes the form in Eq.(7-48b):
The initial conditions yield two equations in the constants
K1 and K2:

Solving these equations yields K1=15 and K2= 2000 x 15,

so the zero-input response is
SJTU

27

c) In Example 7-14 the value R=1k ohm yields case C with

roots
. The corresponding zero-input
response takes the form in Eq.(7-48c):

VC (t ) e t ( K1Cosdt K 2 Sindt )
The initial conditions yield two equations in the constants K1
and K2:

Solving these equations yields K1=15 and K2=( ) , so the

zero-input response is

SJTU

28

Fig. 7-32
SJTU

29

In general, a quadratic characteristic equation has two roots:

Eq.(7-40)

three distinct possibilities:

Case A: If

, there are two real, unequal roots

Overdamped situation

Case B: If

, there are two real, equal roots

Ciritically damped situation

Case C: If
roots

, there are two complex conjugate

Underdamped situation
SJTU

30

2. The Parallel RLC Circuit

FORMULATING PARALLEL RLC
CIRCUIT EQUATIONS

Eq. 7-55

SJTU

31

Equation(7-55) is second-order linear differential equation

of the same form as the series RLC circuit equation in Eq.(733). In fact, if we interchange the following quantities:

we change one equation into the other. The two circuits are
duals, which means that the results developed for the series
case apply to the parallel circuit with the preceding duality
interchanges.
The initial conditions
iL(0)=Io and

SJTU

32

set iN=0 in Eq.(7-55) and obtain a homogeneous equation in the

inductor current:

A trial solution of the form IL=Kest leads to the characteristic

equation
Eq. 7-56

SJTU

33

There are three distinct cases:

Case A: If (GNL)2-4LC>0, there are two unequal real roots
and the zero-input response is the overdamped form

Case B: (GNL)2-4LC=0, there are two real equal roots and

the zero-input response is the critically damped form

Case C:(GNL)2-4LC<0, there are two complex, conjugate

roots and the zero-input response is the underdamped form

s1 , s2 j
t

iL (t ) e ( K1Cos t K 2 Sin t ) t 0
SJTU

34

EXAMPLE 7-16
In a parallel RLC circuit RT=1/GN=500ohm, C=1uF, L=0.2H.
The initial conditions are Io=50 mA and Vo=0. Find the zeroinput response of inductor current, resistor current, and
capacitor voltage
SOLUTION:
From Eq.(7-56) the circuit characteristic equation is

The roots of the characteristic equation are

SJTU

35

Evaluating this expression at t=0 yields

SJTU

36

SJTU

37

EXAMPLE 7-17

The switch in Figure 7-34 has been open for a long time and is
closed at t=0
(a) Find the initial conditions at t=0
(b) Find the inductor current for t0
(c) Find the capacitor voltage and current through the switch for t
0
SOLUTION:
(a) For t<0 the circuit is in the
dc steady state
Fig. 7-34

SJTU

38

(b) For t 0 the circuit is a zero-input parallel RLC circuit with

initial conditions found in (a). The circuit characteristic equation
is
The roots of this equation are

The circuit is overdamped (case A), The general form of the

inductor current zero-input response is
using the initial conditions

SJTU

39

The initial capacitor voltage establishes an initial condition on

the derivative of the inductor current since

The derivative of the inductor response at t=0 is

The initial conditions on inductor current and capacitor voltage

produce two equations in the unknown constants K1 and K2:

SJTU

40

Solving these equations yields K1=30.3 mA and K2=-0.309 ma

The zero-input response of the inductor current is

(c) Given the inductor current in (b), the capacitor voltage is

For t 0 the current isw(t) is the current through the 50 ohm

resistor plus the current through the 250 ohm resistor

SJTU

41

3. Second-order Circuit Complete

Response

The general second-order linear differential equation with a step

function input has the form
Eq. 7-60
The complete response can be found by partitioning y(t) into
forced and natural components:
Eq. 7-61
yN(t) --- general solution of the homogeneous equation (input set
to zero), yF(t) is a particular solution of the equation
yF=A/ao
SJTU

42

Combining the forced and natural responses

Eq. 7-67

EXAMPLE 7-18
The series RLC circuit in Figure 7-35 is driven by a step
function and is in the zero state at t=0. Find the capacitor
voltage for t 0.
SOLUTION:

Fig. 7-35
SJTU

43

By inspection, the forced response is vCF=10V. In standard

format the homogeneous equation is

the natural response is underdamped (case

C)

SJTU

44

The constants K1 and K2 are determined by the initial conditions.

These equations yield K1= -10 and K2= -2.58. The complete
response of the capacitor voltage step response is

SJTU

45

General second-order circuit

Steps:
1. Set a second-order differential equation
2. Find the natural response yN(t) from the homogeneous
equation (input set to zero)
3. Find a particular solution yF(t) of the equation
4. Determine K1 and K2 by the initial conditions
5. Yield the required response

SJTU

46

Summary

Circuits containing linear resistors and the equivalent of two

energy storage elements are described by second-order
differential equations in which the dependent variable is one of
the state variables. The initial conditions are the values of the
two state variables at t=0.
The zero-input response of a second-order circuit takes
different forms depending on the roots of the characteristic
equation. Unequal real roots produce the overdamped response,
equal real roots produce the critically damped response, and
complex conjugate roots produce underdamped responses.
Computer-aided circuit analysis programs can generate
numerical solutions for circuit transient responses. Some
knowledge of analytical methods and an estimate of the general
form of the expected response are necessary to use these
analysis tools.
