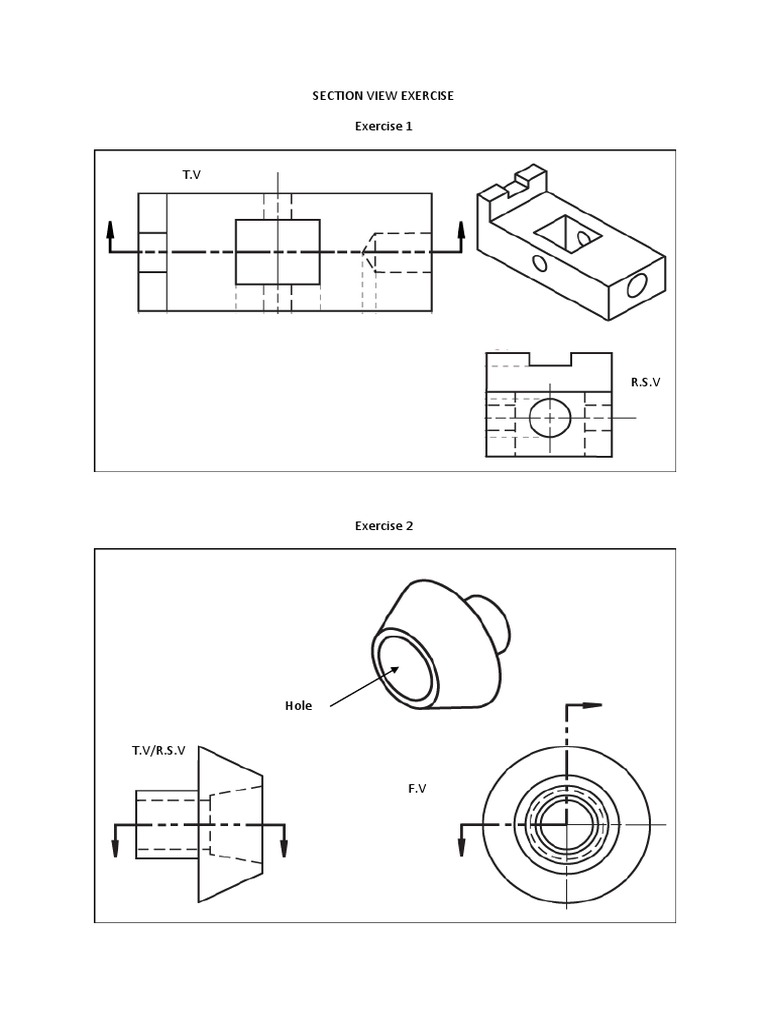

SECTION VIEW EXERCISE

Exercise 1

T.V

R.S.V

Exercise 2

Hole

T.V/R.S.V

F.V
 Exercise 3 Hole

T.V

Hole

R.S.V

Exercise 4

Hole

Exercise 5

R.S.V

F.V
Exercise 6

R.S.V
 TUTORIAL

Please choose ONE question below, and draw with the scale of 1:1(Unit:mm), you can use either A3
or A4 which are appropriate. Please write down your name and ID (NO title block), question number
at the top center of the paper and submit on Friday (2nd May 2013) before 12 pm.

Question 1: Draw the sectional front view looking from the direction X, the top view, and the right
side view of the Figure 1

Figure 1

Question 2: Looking from the direction of the arrow X, draw the sectional elevation of the section
AB, the right side view, and the sectional top view of the section CD

Figure 2
Question 3: Draw the section front view of the AB, the top view, and the right side view of the figure
shown below
