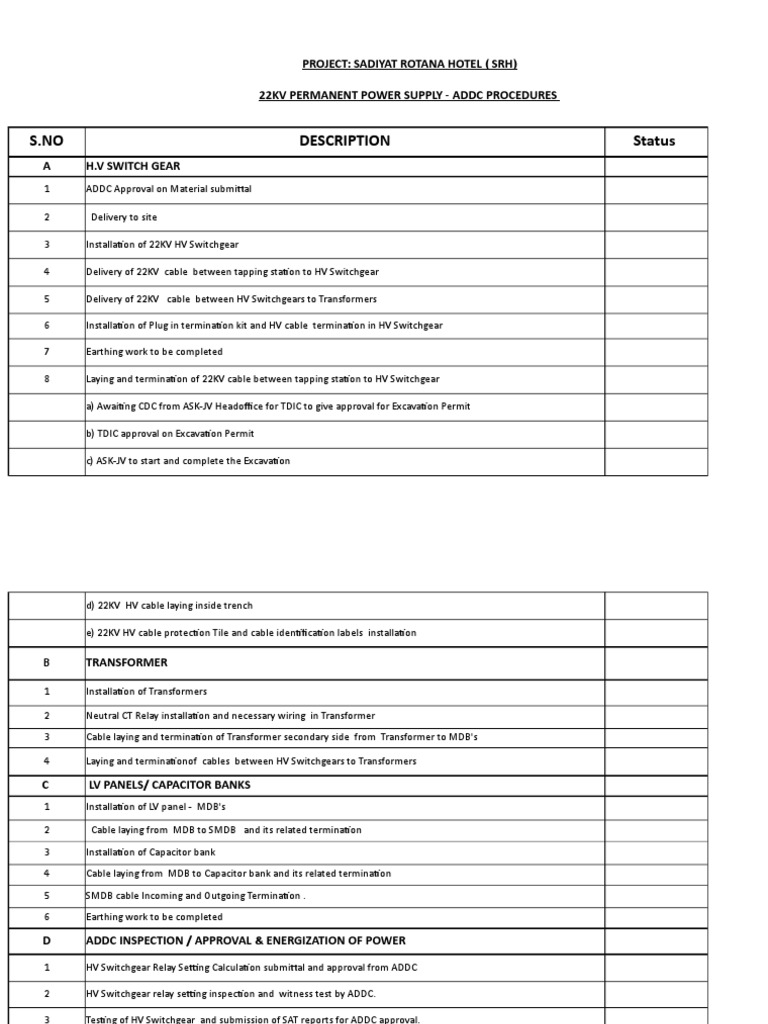

PROJECT: SADIYAT ROTANA HOTEL ( SRH)

22KV PERMANENT POWER SUPPLY - ADDC PROCEDURES

[Link] DESCRIPTION Status


A H.V SWITCH GEAR
1 ADDC Approval on Material submittal

2 Delivery to site

3 Installation of 22KV HV Switchgear

4 Delivery of 22KV cable between tapping station to HV Switchgear

5 Delivery of 22KV cable between HV Switchgears to Transformers

6 Installation of Plug in termination kit and HV cable termination in HV Switchgear

7 Earthing work to be completed

8 Laying and termination of 22KV cable between tapping station to HV Switchgear

a) Awaiting CDC from ASK-JV Headoffice for TDIC to give approval for Excavation Permit

b) TDIC approval on Excavation Permit

c) ASK-JV to start and complete the Excavation


d) 22KV HV cable laying inside trench

e) 22KV HV cable protection Tile and cable identification labels installation

B TRANSFORMER

1 Installation of Transformers

2 Neutral CT Relay installation and necessary wiring in Transformer


3 Cable laying and termination of Transformer secondary side from Transformer to MDB's

4 Laying and terminationof cables between HV Switchgears to Transformers

C LV PANELS/ CAPACITOR BANKS


1 Installation of LV panel - MDB's

2 Cable laying from MDB to SMDB and its related termination

3 Installation of Capacitor bank

4 Cable laying from MDB to Capacitor bank and its related termination
5 SMDB cable Incoming and Outgoing Termination .
6 Earthing work to be completed

D ADDC INSPECTION / APPROVAL & ENERGIZATION OF POWER

1 HV Switchgear Relay Setting Calculation submittal and approval from ADDC

2 HV Switchgear relay setting inspection and witness test by ADDC.

3 Testing of HV Switchgear and submission of SAT reports for ADDC approval.


4 Testing of Transformers and submission of SAT reports for ADDC approval.

5 Submission of Application for the Request of ADDC Inspection before energization of HV Switchgear .

6 Testing of Transformers and submission of SAT reports for ADDC approval.

7 ADDC inspection for 22KV cable installation / HV Switchgear / Transformer .

8 ADDC approval on item no: 7

9 Shut down request and approval from TIC / ADDC

10 Tapping Joint of 22KV HV cable

11 Energization upto HV panels and padlock by ADDC

12 Submission of Energy Meter application to ADDC ( Form 4)

13 Inspection and approval by ADDC Metering Department before supplying Meters .

14 Installation of Energy Meters by ADDC

15 Clearance from ADDC Metering section

16 Application for ADDC LV Inspection ( Form 5)

17 Building Inspection by ADDC LV section .

18 Approval by ADDC LV Inspection and provide Clearance to energize power from HV panel to LV Panel .
19 Connection Fees Estimation by ADDC

20 Payment of Connection fees to ADDC ( By ASK-JV)

21 Transfer of power from HV panel to LV panel by ADDC


Remarks
