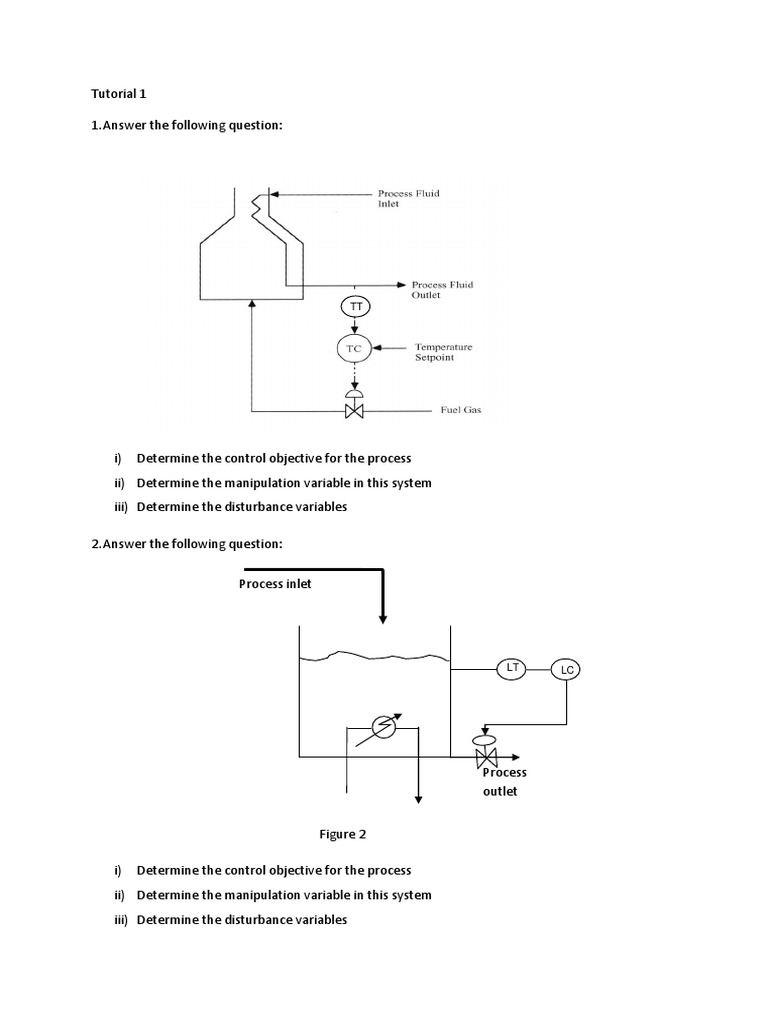

Tutorial 1

1. Answer the following question:

TT

i) Determine the control objective for the process

ii) Determine the manipulation variable in this system
iii) Determine the disturbance variables

2. Answer the following question:

Process inlet

LT LC

Process
outlet

Figure 2

i) Determine the control objective for the process

ii) Determine the manipulation variable in this system
iii) Determine the disturbance variables
3. Sketch the process and instrumentation diagram (P&ID) for an automatic control system to
control the temperature of the water from a common shower, that is a system that will
automatically do what you do when you adjust the temperature of the water when you take a
shower. Identify the measurement (M), decision (D) and action (A) devices of your control system.

4. Draw appropriate P&ID in the respective boxes based on ISA-5.1(1984).

-----------------------------------
