Pressurization LAB4

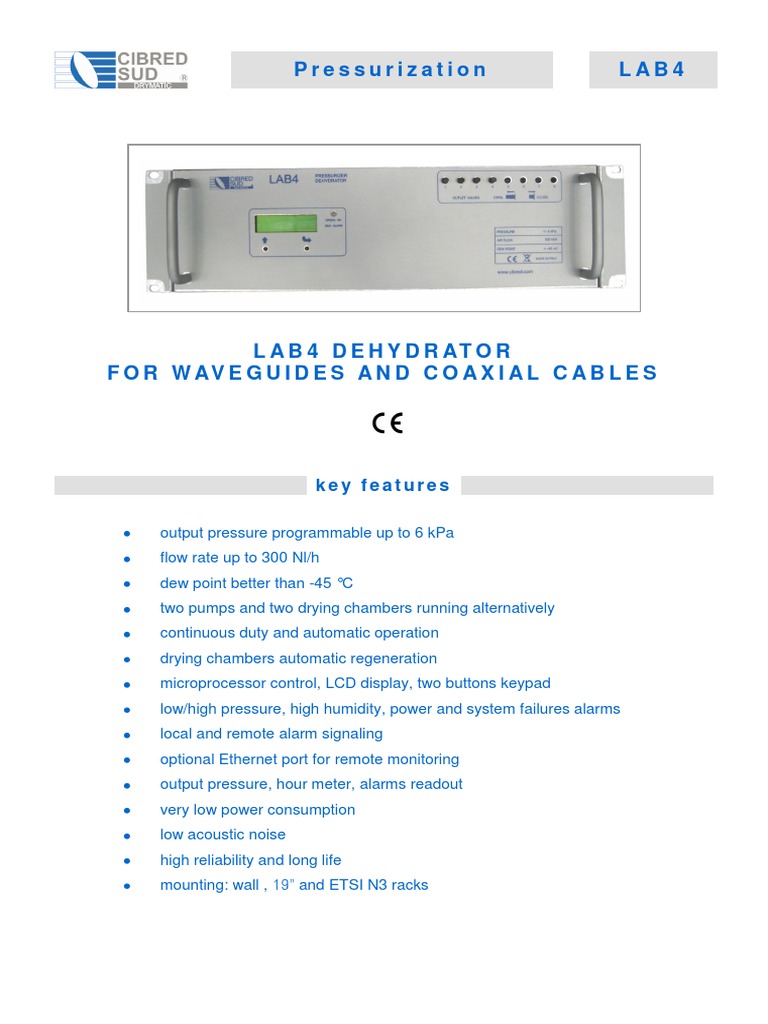

L A B 4 D E H Y D R AT O R
F O R W AV E G U I D E S A N D C O A X I A L C A B L E S

key features

output pressure programmable up to 6 kPa

flow rate up to 300 Nl/h
dew point better than -45 C
two pumps and two drying chambers running alternatively
continuous duty and automatic operation
drying chambers automatic regeneration
microprocessor control, LCD display, two buttons keypad
low/high pressure, high humidity, power and system failures alarms
local and remote alarm signaling
optional Ethernet port for remote monitoring
output pressure, hour meter, alarms readout
very low power consumption
low acoustic noise
high reliability and long life
mounting: wall , 19 and ETSI N3 racks
 description
The following devices are available on the front
The LAB4 dehydrator provides continuous dry air
panel:
flow up to 300 Nl/h with a dew point better than 2x16 LCD
two function keys
-45C. Output pressure can be set in the range from
bi-color led (power on, alarms)
1 kPa to 6 kPa. on/off outlet valves

The LAB4 achieves reduced mechanical wear and
noise and therefore a long lifetime by output
pressure measurement, microprocessor control and
a pump speed regulation. Pumps speed control
avoids mechanical pressure regulators eliminating
undesirable pressure losses and a worse response
to plant air flow regulation.
Two drying chambers contain the desiccant and dry
airstream by adsorption process. The chambers
operate on alternate cycles so while the first
chamber dries, the second one regenerates the
desiccant by heating and backwashing with a small
reverse dry air flow.
The dehydrator also adjusts the switching interval
between the two drying chambers according to the
amount of dry air supplied to the plant.
This technology reduces overall power consumption.
The LAB4 provides front access keys to set the
operating pressure at any time.
Output pressure measurement and hour meter
values are displayed on the LCD.
The basic version has low pressure, high pressure,
high humidity, power and system failures alarms. All
alarm messages are locally signaled by the display
and remotely signaled by one SPDT relay.
As option are available:
10/100 Mbit Ethernet interface for remote control,
variable area flowmeter, glass tube type, placed
on the front panel
electronic flowmeter with data showed on the
display
pump-rate measure showed on the display
Power supply and alarm remote connectors, outlets
with hose-tail fittings are available on the rear panel.
The LAB4 always includes wall, 19 and ETSI N3
rack mountings.

pneumatic scheme

DRYING CHAMBER

HEATER

PUMP

AIR BACKWASHING HOLE

HUMIDITY PROBE

DIGITAL PRESSURE GAUGE

SAFETY VALVE

SHUT OFF VALVE

DRY AIR OUTLET

FLOW METER (OPTIONAL)

 performance
Output pressure : programmable from 1 to 6 kPa
Maximum flow rate : 300 Nl/h
Safety valve : built in, factory set at 7 kPa
Output air dew point : better than -45C at 80% RH at 20C
Regeneration : automatic by heating
Regeneration phase interval : adaptive according to the amount of dry air supplied to the plant
Local alarms : power and system failures, low/high pressure, high humidity
Remote alarms : the summary alarm is remotely signaled by a SPDT relay
Optional remote monitoring interface : 10/100 Mbit Ethernet, auto-sensing
LED indications : power on, alarms
Standard readouts : pressure, low/high pressure alarm thresholds, hour meter
Optional measures : air flow by a variable area meter or by an electronic flowmeter,
pump rate
MTBF : higher than 165000 h, according to MIL HDBK 217F at Ground
Base conditions, 25C ambient temperature, 50% flow rate
Shock and vibration : transportation ETSI EN 300 019-1-2, Class 2.3
stationary use ETSI EN 300 019-1-3, Class 3.1E
Low Voltage Directive : 2006/95/EC
Electromagnetic Compatibility Directive : 2004/108/EC
Safety Normative : IEC/EN 60950-1
certified to CB, test ref. n SE-64590A1
Electromagnetic Compatibility Normative : EN 55022; EN 61000;
ETSI EN 301 489-1; ANSI CFR 47 part 15
Environmental compliance : 2011/65/EC (RoHS2)
1907/2006 (REACH)
Quality assurance standard : ISO 9001

electrical specifications
Power supply : 48/60 Vdc
100 - 240 Vac, 50/60 Hz, with kit code K14524
Power consumption operation : 2 W normal operation
< 55 W regeneration phase

mechanical and environmental characteristics

Operating temperature C (F) : -10 to + 50 (+14 to +122)
Storage temperature C (F) : -30 to + 70 (-22 to +158)
Acoustic noise : 50 dBA
Dimensions H, W, D, mm (in) : 19 rack mounting 132 (5.2), 482 (19), 238 (9.4)
ETSI N3 rack mounting 132 (5.2), 533 (21), 238 (9.4)
wall and floor mounting 132 (5.2), 482 (19), 278 (11)
Weight kg (lb) : 6,5 (14.3)
Standard outlets : 4 or 8 outlets, each with ON/OFF valve
Outlets fitting mm (in) : 9,5 (3/8) diameter, others on request
 LAB4

The equipment illustrated are fully equipped versions. CIBRED SUD reserves the right to modify without notice characteristics and data supplied herein.
