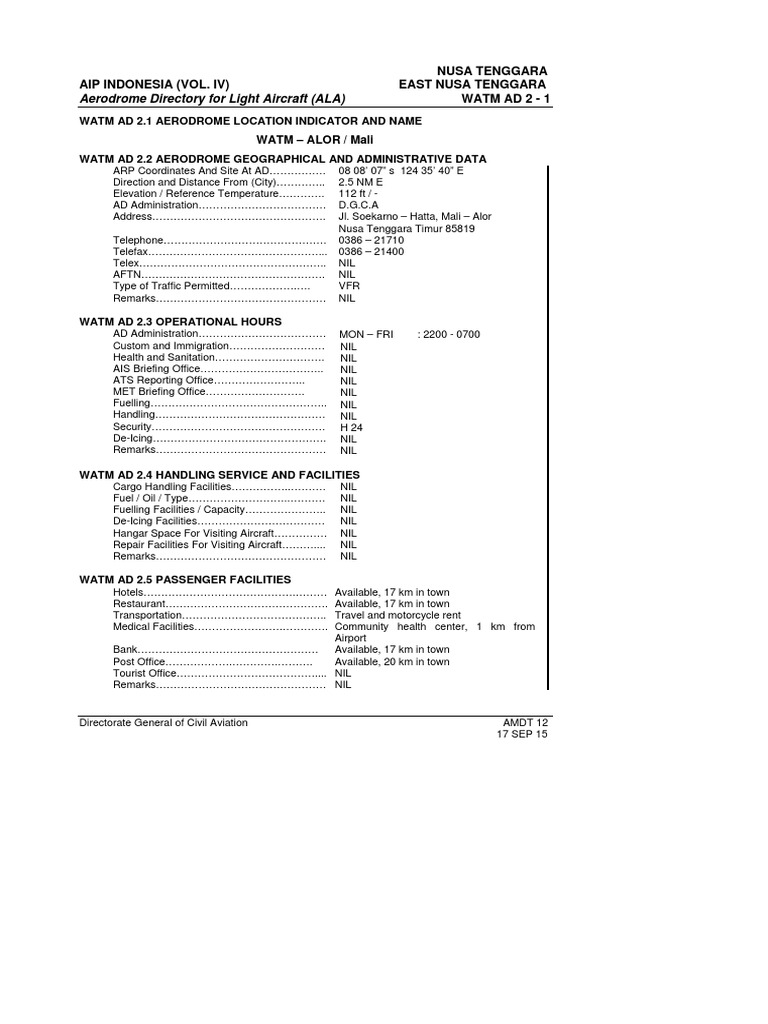

NUSA TENGGARA

AIP INDONESIA (VOL. IV) EAST NUSA TENGGARA

Aerodrome Directory for Light Aircraft (ALA) WATM AD 2 - 1
WATM AD 2.1 AERODROME LOCATION INDICATOR AND NAME
WATM – ALOR / Mali
WATM AD 2.2 AERODROME GEOGRAPHICAL AND ADMINISTRATIVE DATA
ARP Coordinates And Site At AD……………. 08 08’ 07” s 124 35’ 40” E
Direction and Distance From (City)………….. 2.5 NM E
Elevation / Reference Temperature…………. 112 ft / -
AD Administration……………………………… D.G.C.A
Address…………………………………………. Jl. Soekarno – Hatta, Mali – Alor
Nusa Tenggara Timur 85819
Telephone………………………………………. 0386 – 21710
Telefax…………………………………………... 0386 – 21400
Telex…………………………………………….. NIL
AFTN……………………………………………. NIL
Type of Traffic Permitted……………….…. VFR
Remarks………………………………………… NIL

WATM AD 2.3 OPERATIONAL HOURS

AD Administration……………………………… MON – FRI : 2200 - 0700
Custom and Immigration……………………… NIL
Health and Sanitation…………………………. NIL
AIS Briefing Office…………………………….. NIL
ATS Reporting Office…………………….. NIL
MET Briefing Office………………………. NIL
Fuelling………………………………………….. NIL
Handling………………………………………… NIL
Security…………………………………………. H 24
De-Icing…………………………………………. NIL
Remarks………………………………………… NIL

WATM AD 2.4 HANDLING SERVICE AND FACILITIES

Cargo Handling Facilities……………..………. NIL
Fuel / Oil / Type………………………..………. NIL
Fuelling Facilities / Capacity………………….. NIL
De-Icing Facilities……………………………… NIL
Hangar Space For Visiting Aircraft…………… NIL
Repair Facilities For Visiting Aircraft……….... NIL
Remarks………………………………………… NIL

WATM AD 2.5 PASSENGER FACILITIES

Hotels…………………………………….……… Available, 17 km in town
Restaurant………………………………………. Available, 17 km in town
Transportation………………………………….. Travel and motorcycle rent
Medical Facilities…………………….………….Community health center, 1 km from
Airport
Bank…………………………………………… Available, 17 km in town
Post Office……………….………….………. Available, 20 km in town
Tourist Office………………………………….... NIL
Remarks………………………………………… NIL

Directorate General of Civil Aviation AMDT 12

17 SEP 15
NUSA TENGGARA
EAST NUSA TENGGARA AIP INDONESIA (VOL. IV)
WATM AD 2 - 2 Aerodrome Directory for Light Aircraft (ALA)
WATM AD 2.6 RESCUE AND FIRE FIGHTING
AD Category for Fire Fighting………….…...... Category IV
Rescue Equipment…………………………….. - 2 Units Foam Tender (Type 5 and 6)
- 1 Unit Nose Tender
- 1 Unit Ambulance
Capability for Removal of Disabled Aircraft…. NIL
Remarks………………………………………… NIL

WATM AD 2.7 SEASONAL AVAILABILITY CLEARING

Type Of Clearing Equipment……………….… NIL
Clearance Priority……………………………... NIL
Remarks………………………………………… NIL

WATM AD 2.8 APRONS, TAXIWAYS AND CHECK LOCATION DATA

APRON SURFACE, STRENGTH AND DIMENSION
Surface = Asphalt
Strength = F-50
Dimension = 99 x 40 m
TAXIWAY SURFACE, STRENGTH AND DIMENSION
Surface = Asphalt
Strength = F-50
Dimension = 62 x 21 m
ACL Location and Elevation………….……. Conditional (in THR, RWY or Apron)
VOR / INS Checkpoints……..…………… .. Conditional (in THR, RWY or Apron)

WATM AD 2.9 SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM AND

MARKING
Use of Aircraft ID sign, TWY guide lines Available
and visual docking / parking guidance
system of Aircraft stands…………..………
RWY and TWY Marking and LGT…………. Available (TWY Not Available)
Stop Bars…………………………………….. NIL
Remarks……………………………………… NIL

WATM AD 2.10 AERODROME OBSTACLE

Reserved

WATM AD 2.11 METEOROLOGICAL INFORMATION PROVIDED

Associated MET Office……………………......... Available,
Meteorological Station Class III
Hours of service /MET office outside hours….. H 24
Office responsible for TAF preparation period of NIL
validity………………..…………….....................
TREND Forecasts & Interval of Issuance…...... QAM
Briefing / Consultation Provided…………..….... NIL
Flight Documentation – Language used…........ QAM / English
Charts and other information available for briefing NIL
or consultation………………………..................
Supplementary equipment available for providing NIL
Directorate General of Civil Aviation AMDT 12
17 SEP 15
 NUSA TENGGARA
AIP INDONESIA (VOL. IV) EAST NUSA TENGGARA
Aerodrome Directory for Light Aircraft (ALA) WATM AD 2 - 3
Information…………………………....................
ATS units provided with information…………... NIL
Additional information (Limitation Of Service NIL
etc.)………………………………………………....

WATM AD 2.12 RUNWAY PHYSICAL CHARACTERISTICS

1 2 3 4 5 6
THR Elevation
Strength
and Highest
True & Dimension of (ACN) and
Designations THR Elevation of
MAG RWY Surface of
RWY NR Coordinates TDZ of
BRG RWY and
Precision APP
SWY
RWY
08° 08’ 20” S
03 033° 112 ft
124° 35’ 35” E
F-50
1601 x 300 m
Asphalt
08° 07’ 36” S
21 213° 110 ft
124° 36’ 03” E
7 8 9 10 11 12
Slope of SWY CWY Strip
OFZ Remarks
RWY - NR Dimension Dimension Dimension
NIL RESA :
NIL NIL 1667 x 150 m NIL NIL
115 x 150 m (both of RWY)

WATM AD 2.13 DECLARED DISTANCES

1 2 3 4 5
RWY
TORA TODA ASDA LDA
Designator
03 1601 m 1601 m 1601 m 1601 m

21 1601 m 1716 m 1601 m 1601 m

WATM AD 2.14 APPROACH AND RUNWAY LIGHTING

1 2 3 4 5
RWY APCH LIGHT THR LGT Color VASIS
TDZ LGT LEN
Designator Type LEN WBAR (MEHT) PAPI
03 NIL
Available Red and Yellow NIL
21 PAPI

6 7 8 9 10
RWY Centerline RWY Edge LGT RWY
SWY LGT
LGT Length LEN Spacing End LGT Color Remarks
LEN (M) Color
Spacing Color Color WBAR
NIL White / Yellow White NIL NIL

Directorate General of Civil Aviation AMDT 12

17 SEP 15
NUSA TENGGARA
EAST NUSA TENGGARA AIP INDONESIA (VOL. IV)
WATM AD 2 - 4 Aerodrome Directory for Light Aircraft (ALA)
WATM AD 2.15 OTHER LIGHTING, SECONDARY POWER SUPPLY
ABN / lBN Location, Characteristic and Hours
1. NIL
Operation

2. LDI and LGT Anemometer Location Windshock 51 m from RWY Centerline

3. TWY Edge and Center Line LGT NIL
4. Secondary Power Supply / Switch Overtime Genset 50 KVA and 125 KVA
5. Remarks NIL

WATM AD 2.16 HELICOPTER LANDING AREA

1. Coordinates TLOF THR FATO NIL
2. TLOF and / or FATO Elevation (M / FT) NIL
3. TLOF and FATO Area Dimensions, Surface, Strength, Marking NIL
4. True Bearing and Magnetic Bearing of FATO NIL
5. Declared Distance Available NIL
6. APP and FATO Lighting NIL
7. Remarks NIL

WATM AD 2.17 ATS AIRSPACE

Designation and Lateral Limits NIL
1.
2. Vertical Limits NIL
3. Airspace Classification AFIS
ATS Unit Call Sign Mali Radio
4.
Language(s) English
5. Transition NIL
6. Remarks NIL

WATM AD 2.18 ATS COMMUNICATION FACILITIES

1 2 3 4 5
Service Hours of
Call sign Frequency Remarks
Designator Operation
AFIS Mali Radio 1300 MHz

4495 KHz, 2300 – 0800 NIL

9145 KHz,
SSB Alor 7825 KHz

Directorate General of Civil Aviation AMDT 12

17 SEP 15
 NUSA TENGGARA
AIP INDONESIA (VOL. IV) EAST NUSA TENGGARA
Aerodrome Directory for Light Aircraft (ALA) WATM AD 2 - 5
WATM AD 2.19 RADIO NAVIGATION AND LANDING AIDS
1 2 3 4 5 6 7
Site of Elevation of
Type of
Hours of Transmitting DME
Aid and ID Frequency Remark
Operation Antenna transmitting
Category
Coordinates Antenna
DVOR MLI 1449 MHz
2300-0800 NIL NIL
NIL
NDB MI 320 MHz

WATM AD 2.20 LOCAL TRAFFIC REGULATIONS

Reserved

WATM AD 2.21 NOISE ABATEMENT PROCEDURES

Reserved

WATM AD 2.22 FLIGHT PROCEDURES

Reserved

WATM AD 2.23 ADDITIONAL INFORMATION

Reserved

WATM AD 2.24 CHARTS RELATED TO THE AERODROME

Reserved

Directorate General of Civil Aviation AMDT 12

17 SEP 15
