3000TC0701

01/2008

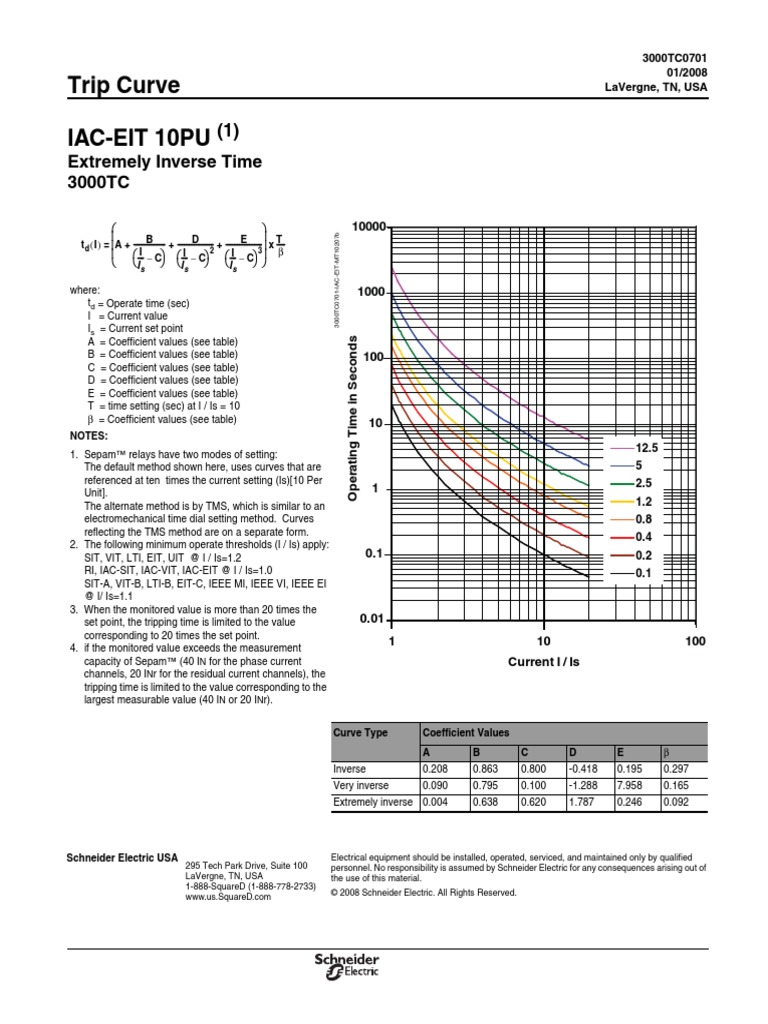

Trip Curve LaVergne, TN, USA

IAC-EIT 10PU (1)


Extremely Inverse Time
3000TC

⎛ ⎞ 10000
⎜ ⎟ T

3000TC0701-IAC-EIT-MT10207b
B D E
t d ( I ) = ⎜A + ------------------- + ---------------------- + ----------------------⎟ x -----
⎜ ⎛---I- – C⎞ ⎛---I- – C⎞ 2 ⎛---I- – C⎞ 3⎟ β
⎝ ⎝I ⎠ ⎝I ⎠ ⎝I ⎠ ⎠
s s s

where: 1000
td = Operate time (sec)
I = Current value
Is = Current set point

Operating Time in Seconds


A = Coefficient values (see table)
B = Coefficient values (see table) 100
C = Coefficient values (see table)
D = Coefficient values (see table)
E = Coefficient values (see table)
T = time setting (sec) at I / Is = 10
β = Coefficient values (see table) 10
NOTES:
1. Sepam™ relays have two modes of setting:
12.5
The default method shown here, uses curves that are 5
referenced at ten times the current setting (Is)[10 Per 2.5
Unit]. 1
The alternate method is by TMS, which is similar to an 1.2
electromechanical time dial setting method. Curves 0.8
reflecting the TMS method are on a separate form.
0.4
2. The following minimum operate thresholds (I / Is) apply:
SIT, VIT, LTI, EIT, UIT @ I / Is=1.2 0.1 0.2
RI, IAC-SIT, IAC-VIT, IAC-EIT @ I / Is=1.0 0.1
SIT-A, VIT-B, LTI-B, EIT-C, IEEE MI, IEEE VI, IEEE EI
@ I/ Is=1.1
3. When the monitored value is more than 20 times the
set point, the tripping time is limited to the value 0.01
corresponding to 20 times the set point.
1 10 100
4. if the monitored value exceeds the measurement
capacity of Sepam™ (40 IN for the phase current Current I / Is
channels, 20 INr for the residual current channels), the
tripping time is limited to the value corresponding to the
largest measurable value (40 IN or 20 INr).

Curve Type Coefficient Values


A B C D E β
Inverse 0.208 0.863 0.800 -0.418 0.195 0.297
Very inverse 0.090 0.795 0.100 -1.288 7.958 0.165
Extremely inverse 0.004 0.638 0.620 1.787 0.246 0.092

Schneider Electric USA Electrical equipment should be installed, operated, serviced, and maintained only by qualified
295 Tech Park Drive, Suite 100 personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of
LaVergne, TN, USA the use of this material.
1-888-SquareD (1-888-778-2733)
© 2008 Schneider Electric. All Rights Reserved.
www.us.SquareD.com
