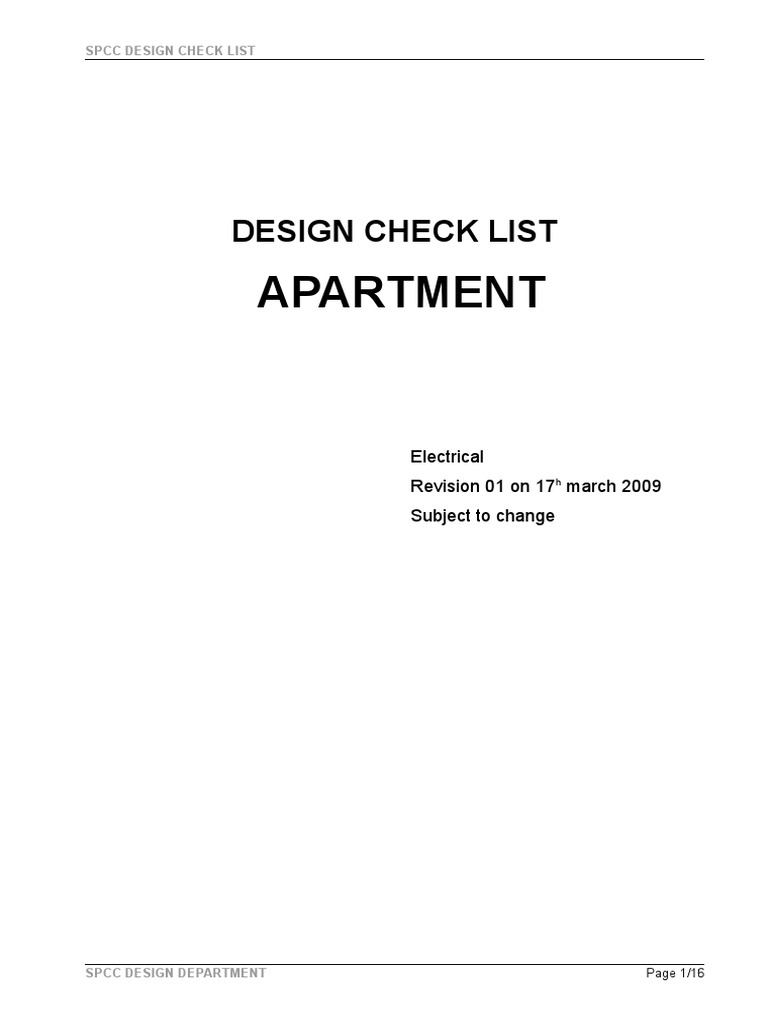

SPCC DESIGN CHECK LIST

DESIGN CHECK LIST

APARTMENT

Electrical
Revision 01 on 17h march 2009
Subject to change

SPCC DESIGN DEPARTMENT Page 1/16

SPCC DESIGN CHECK LIST

DESIGN CHECK LIST

APARTMENT

Electrical
Revision 01 on 17h march 2009
Subject to change

The Design check list draft by design department in accordance with Phu My Hung’s
design check list (refer to see the below attached)
The blue text is SPCC’s additional part

SPCC DESIGN DEPARTMENT Page 2/16

SPCC DESIGN CHECK LIST

Table of Contents

1. Exterior 2. Interior
+ General + General
+ Level + Entrance
+ Elevation + Living room
+ Exterior wall + Dinning room
+ Handicap access + Kitchen
+ Arcade + Staircase
+ Flower bed + Corridors
+ Fence + Master bedroom(phòng ngủ có WC)
+ Pavement + Bedroom(ko có WC)
+ Landscape + Storage
+ Resettlement joint + Bathroom
+ Gas tank housing + Loggia
+ A/C balcony
+ Laundry balcony
+ Door
+ Penthouse
+ Maid’s room
+ Roof
+ Basement
3. Public space 4. Shop
+ Entrance lobby + Shop front
+ Elevator lobby + Door
+ Elevator + Interior
+ Escape staircase + Toilet
+ Corridors + Exhaust
+ Terrace + A/C(cục nóng máy lạnh)
+ Roof + Parking
+ Driveway
+ Parking lot
+ Guard house
+ Water tank
+ Transformer room
+ Generator room
+ Others

SPCC DESIGN DEPARTMENT Page 3/16

SPCC DESIGN CHECK LIST

I. Exterior
Infrastructure: already Electrical Box, PABX, MDF, SCTV cable, speed of
1.
wind and moisture (to calculate IP of lighting and socket),
FAR:
2.
See detail : Vietnam Building Code QCXDVN 01 2008BXD
Building distance
3. Distance to: MV, HV line >= 1.5m (with cover), >= 2.5 (with no cover), Gas
depot >= 100m, Substation >= 3m, ..
No. of floors:
General Lightning: Traditional lightning protection (franklin air terminal) or Modern
4.
lightning protection (Early Streamer emission : ESE); Air – lamp for signal
plane,
All drawing must show: Earthing, MV&HV line, Lightning system,
communication system, Lighting system, Position of Transformer, how about
5.
cable under ground, how about distance between power cable with
communication cable, how about distance between finished floor with cable
Fit with 1/2000:
6. All drawing must show: Earthing, MV&HV line, Lightning system,
communication system, Lighting system, Position of Transformer,
1. Show level of project, protective level, age, …
Level What is Design based on Standard: VIETNAM, IEC, BS EN, NFPA, CIBSE,
2.
NEC, ASHRAE, AS, CP, NF C…
Scope of work, limited design, new design, modify, prepared design,
3.
connecting design, continue design, improve design, destroy design, ….
Elevation 1. Transformer, generator lay on the ground around 10 years no flood
2. Power line system on sky or under ground must safety with person. For
example: cable under ground

SPCC DESIGN DEPARTMENT Page 4/16

SPCC DESIGN CHECK LIST

3. Lighting system: socket, outlet of communication

Intercom, security system, CCTV monitoring fence: lay at the suitable
1.
Exterior Wall position to easy monitor.
Lighting for landscape, road, water, statue, traffic lighting technical….: this
2.
mean create the list to enough the item not all. Depend on architect layout
Handicap 1. Lighting and sign for emergency, older, children
Access 2. Connection between end of ramp and sidewalk: traffic lighting technical
1. Use steel, tole: earthing
Lighting: with lamp IP 55 (International protection)

Arcade
2.

SPCC DESIGN DEPARTMENT Page 5/16

SPCC DESIGN CHECK LIST

Flower Bed 1. Lighting for statue, tree, …IP 55 (or water proof)
1. Lighting for road, security, lux = 15cd/m2
Fence 2. CCTV: camera
3. Anti-Theft protection
Pavement 1. Lighting for road, landscape,
2. Lay out to suitable among systems: pipe line, cable, …

SPCC DESIGN DEPARTMENT Page 6/16

SPCC DESIGN CHECK LIST

Manhole:

3.

1. Lighting for art,

Landscape 2. Supply power for pump, motor
3. Electrical Box: with IP 55 for spare part: cut glass, dirty, artificial mountain…

Resettlement 1. Lighting for Sign panel, emergency

Joint 2. Public alarm, camera
1. Earthing: LEB, MEB…

Gas tank 2. Fire alarm: gas detector

housing 3. Lighting with IP 67 hang on wall
4. Monitoring and control system
II. Interior
2
1 Lighting: wire = 1.5 ÷ 2.5mm
2 Socket: 16A, wire = 2.5 ÷ 4.0mm2
3 Communication: data, telephone, TV, intercom
General
4 Power: 30 ÷ 35 W/m2
5 Fire alarm:
6 Utilities:
1 Anti-Theft protection
Intercom close to entrance
a. Intercom close to entrance, height at 1400 mm
Entrance 2
b. Main CB box, data/telecom box close to entrance, height at 1500 mm
c. Doorbell needed, prefer to be combined with intercom system
3 Socket: height 300mm for clean machine

SPCC DESIGN DEPARTMENT Page 7/16

SPCC DESIGN CHECK LIST

Living room Lighting: normal and art (wall, ceiling)

Socket: normally height = 300mm, position depend on furniture,

Outlet: Tel and data, TV depend on furniture:

a. Tel and data connections on sofa side, TV connection on the opposite
3 side
b. 2 double socket required by TV outlet
c. 1 double socket required by tel/data outlet
4 Ventilation connect to lamp line,
5 Intercom: height = 1500mm
6 Anti-Theft protection if necessary

SPCC DESIGN DEPARTMENT Page 8/16

SPCC DESIGN CHECK LIST

Fire alarm: use smoke detector

1 Lighting: normal and art (wall, ceiling)

Dining room 2 Socket: depend on furniture, height = 300mm
3 Outlet: Tel, TV depend on furniture, TV socket behind center of TV

SPCC DESIGN DEPARTMENT Page 9/16

SPCC DESIGN CHECK LIST

Socket: depend on furniture: for ventilation, cooking, cooker, refrigerator

d. Minimum 2 double sockets required, at 1200 mm, height for utilities,

even distribution

1
Kitchen

e. 1 double socket required under stove, at 300mm height from ceiling for
water heater
f. 1 socket required under sink, at 300mm height for water heater
g. 1 socket required above stove, offset 300mm, at 2200mm height for
cooker hood.
h. Hot water supply needed at the sink.
i. If the kitchen is near WC, no need socket for heater.
j. If the kitchen is separated from WC, socket for the water heater need
install on high level (in corner).
2 Lighting: guarantee Lux = 500 cd/m2 for cooking
3 Local Earthing: LEB
Staircase 1 Lighting: for emergency and exit.
Corridors 1 Lighting: normal, auto control and from control center room
2 Socket: h = 300mm

SPCC DESIGN DEPARTMENT Page 10/16

SPCC DESIGN CHECK LIST

Horn button: fire alarm bell: for example

Socket: for TV, Telephone, sleeping Lamp, ventilation, air-conditioner,

1
depend on furniture.
Lighting: normal, sleeping lamp and art (wall, ceiling): using the gang plate-2
2
way switch.
Outlet: Tel and data, TV depend on furniture and height = 300mm behind
equipment

Master
Bedroom
3

4 Sub-Intercom: pressure switch for emergency

Socket: for TV, communication, Lamp, ventilation, air-conditioner, depend on
1
furniture.
Bedroom 2 Lighting: normal and sleeping lamp: using the gang plate-2 way switch.
3 Outlet: Tel and data, TV depend on furniture and height = 300mm
4 Sub-Intercom: pressure switch for emergency
1 Lighting: 1 lamp hang on wall
Storage
2 Socket height = 1200mm
Bathroom 1 Lighting: wall,. Ceiling and glass, with IP 55

SPCC DESIGN DEPARTMENT Page 11/16

SPCC DESIGN CHECK LIST

Socket: for heater, moustache, dry-hand, exhaust,

2
- Water heater connection is above the toilet bowl,
Distance ceiling 300mm,
- In front of mirror
3 Tel socket
4 Local Earthing: LEB
1 waterproof socket required if area is over 3sqm, on the same side as the
floor drain

1
Loggia

2 Lighting: enough for quick looking

Power for Air-conditioner: power supply from socket beside cooling unit
A/C Balcony 1
(indoor unit) then via gas line to A/C (outdoor unit)
Laundry 1 Lighting enough for observation
Balcony 2 Socket for washing machines, height = 1500mm
1 Power supply for rolling door
Door
2 Power supply for advertising (possible)
1 Fire alarm: use heat detector
2 Socket for maintenance equipment
3 Power for Fan, exhaust,
Penthouse
4 Power for Technical room (earthing for equipment)
5 Outlet: Tel for maintenance equipment
6 Intercom connection at the roof garden
1 Lighting normal
Maid’s room 2 Socket for fan, iron…
3 Tel socket
Roof Lightning is based on building shape: the kind of classical (Franklin) or
modern (ESE) and Surge protector
1. All metal things above roof should be electrically connected with
1
lightning protection system reliably by galvanized steel.
2. All light awning and their metal components should be electrically
connected with lightning protection belt reliably by galvanized steel.
Earthing: less than 1Ohm and connect to the earthing system of whole
2
building. (MEB)
3 Air-lamp: Aviation obstacle warning lamp, lamps' type is up to professional
company, please also follow relative local authority requirements.

SPCC DESIGN DEPARTMENT Page 12/16

SPCC DESIGN CHECK LIST

4 Lighting for advertisement

1 Lighting: normal and emergency

Basement
2 Socket:
3 Power for motor of fire door
4 Power for Pump
5 Power for Control Panel
6 Power for Utilities
Communication: Tel for emergency, parking lots management system, public
7
alarm…
Fire alarm: if car-motor park or equipment using heat detector, normal use
8
smoke detector.
9 Power for ventilation
III. Public Space
Entrance 1 Main electrical box position
Lobby CCTV: camera control from Main security room

3 Card reader location

Intercom location: Intercom system connects to lobby reception counter and
4
guard house, height = 1500mm.
5 Lighting for art, normal

SPCC DESIGN DEPARTMENT Page 13/16

SPCC DESIGN CHECK LIST

Lighting for Information board location and design, emergency … control in

6
Main security room
7 Magnetic locks
8 Fire alarm: use smoke detector
Public alarm

10 Power for door

1 Fire alarm: use smoke detector lay in ceiling
Elevator
2 Lighting normal, art, escape and sign panel
Lobby
3 Camera for monitoring, speaker for emergency
1 Power for control panel
2 Lighting for shaft
3 Socket for shaft
Elevator
4 Earthing: connect to MEB
5 Fire Alarm for shaft use smoke detector
6 Camera outlet.
Escape 1 Lighting for emergency, Infrared sensor for the lighting
Staircase 2 Public alarm
Lighting: normal, emergency: control at local (contact 2 way or infrared ) and
1
center control room
Corridor
2 Fire alarm: use smoke detector
3 Socket: height = 300mm for clean machine
1 Lighting enough for observation or advertisement
Terrace
2 Electrical box: spare part power for in the future
Lightning is based on building shape: the kind of classical (Franklin) or
modern (ESE) and Surge protector
1. All metal things above roof should be electrically connected with
1
lightning protection system reliably by galvanized steel.
2. All light awning and their metal components should be electrically
Roof connected with lightning protection belt reliably by galvanized steel.
Earthing: less than 1Ohm and connect to the earthing system of whole
2
building. (MEB)
Air-lamp: Aviation obstacle warning lamp, lamps' type is up to professional
3
company, please also follow relative local authority requirements.
4 Power for The fan room above elevator well to make the air pressure system.

SPCC DESIGN DEPARTMENT Page 14/16

SPCC DESIGN CHECK LIST

Driveway 1 Traffic lighting technical:

1 Lighting for road, sign emergency with IP 55 (Note: Traffic lighting technical)
2 Socket height 1200mm
Parking Lot 3 Public alarm hang on wall distance ceiling 300mm
4 CCTV: monitoring and control
5 Fire alarm: using heat detector
1 Electrical Box, Control box
Power for equipment: Amplifier, CCTV, FAS, control, pump, communication,
2
intercom, security..
Guard House
3 Lighting: normal
4 Socket: normal
5 Tel and data, TV..
1 Earthing: LEB
Water Tank 2 Power for Pump
3 Water level alarm
1 Lighting normal and emergency IP 55 hang on the wall
2 Main distribution board (MDB)
3 Cable race-way: fire-proof cables between transformer with generator
Transformer
4 Fire alarm: use heat detector
Room
5 Socket normal and Socket height 1200mm (for preparing Control box)
6 Oil colleting pit (if we use oil transformer to save money)
7 Power for ventilation (indoor type)
1 Lighting IP 67 hang on wall
2 Main distribution board (MDB)
3 Cable race-way
Generator
4 Fire alarm: heat detector
Room
5 Socket normal and Socket height 1200mm (for preparing Control box)
6 Oil tank and Oil colleting pit
7 Power for exhaust fan
1 Design the load guarantee cos > 0.9
2 Design must safety to person, animals
Others 3 Design show economy and flexible
4 Power for spare-pare guarantee 10 ÷ 15%
5 Design just show direction and suitable with architect
IV. Shop
Shop Front 1 Lighting for normal, art, advertising, signal panel
Door 1 Power for motor of door
1 Lighting for sell: lux (cd/m2): 500 ÷ 750
2 Socket need 3 phase isolator connection
3 Power need 3 phase
Interior
4 Fire alarm: smoke detector
Communication: tel, data height = 300mm, Note TV hang on wall so socket
5
lay behind suitable
Toilet 1 Lighting: normal, mirror
SPCC DESIGN DEPARTMENT Page 15/16
SPCC DESIGN CHECK LIST

2 Socket: IP 55 or water-proof
3 Power for heater water, note connect LEB.
Exhaust 1 Power for fan
Signage 1 Power Location need to work suitable with panel
1 Traffic lighting technical
Parking 2 Access control
3 Fire alarm: indoor use heat detector, outdoor not use

SPCC DESIGN DEPARTMENT Page 16/16
