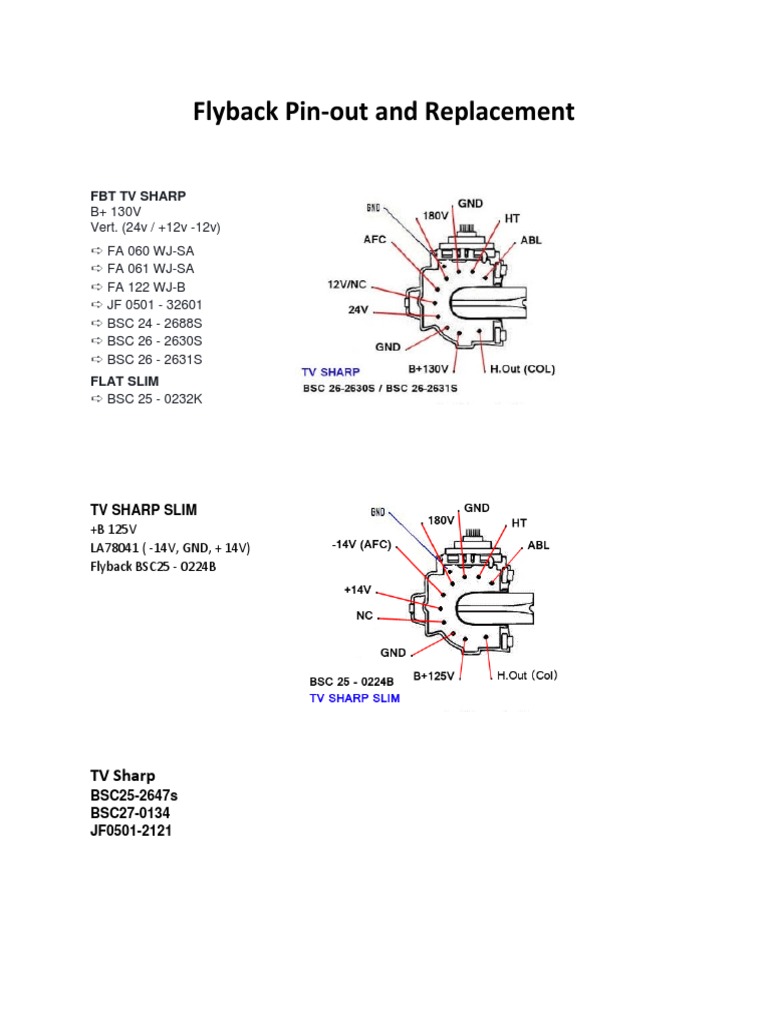

    Flyback Pin-out and Replacement

    FBT TV SHARP
    B+ 130V
    Vert. (24v / +12v -12v)
    ➪ FA 060 WJ-SA
    ➪ FA 061 WJ-SA
    ➪ FA 122 WJ-B
    ➪ JF 0501 - 32601
    ➪ BSC 24 - 2688S
    ➪ BSC 26 - 2630S
    ➪ BSC 26 - 2631S
    FLAT SLIM
    ➪ BSC 25 - 0232K

    TV SHARP SLIM
    +B 125V
    LA78041 ( -14V, GND, + 14V)
    Flyback BSC25 - 0224B

    TV Sharp
    BSC25-2647s
    BSC27-0134
    JF0501-2121
