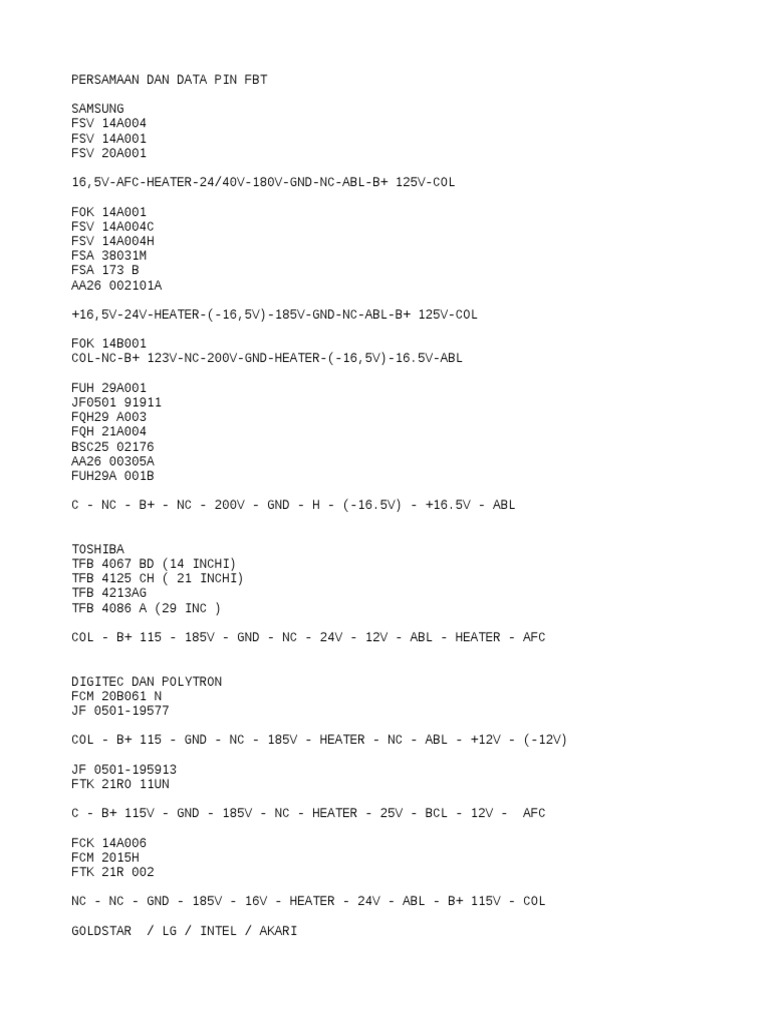

PERSAMAAN DAN DATA PIN FBT

SAMSUNG
FSV 14A004
FSV 14A001
FSV 20A001

16,5V-AFC-HEATER-24/40V-180V-GND-NC-ABL-B+ 125V-COL

FOK 14A001
FSV 14A004C
FSV 14A004H
FSA 38031M
FSA 173 B
AA26 002101A

+16,5V-24V-HEATER-(-16,5V)-185V-GND-NC-ABL-B+ 125V-COL

FOK 14B001
COL-NC-B+ 123V-NC-200V-GND-HEATER-(-16,5V)-16.5V-ABL

FUH 29A001
JF0501 91911
FQH29 A003
FQH 21A004
BSC25 02176
AA26 00305A
FUH29A 001B

C - NC - B+ - NC - 200V - GND - H - (-16.5V) - +16.5V - ABL

TOSHIBA
TFB 4067 BD (14 INCHI)
TFB 4125 CH ( 21 INCHI)
TFB 4213AG
TFB 4086 A (29 INC )

COL - B+ 115 - 185V - GND - NC - 24V - 12V - ABL - HEATER - AFC

DIGITEC DAN POLYTRON

FCM 20B061 N
JF 0501-19577

COL - B+ 115 - GND - NC - 185V - HEATER - NC - ABL - +12V - (-12V)

JF 0501-195913
FTK 21RO 11UN

C - B+ 115V - GND - 185V - NC - HEATER - 25V - BCL - 12V -  AFC

FCK 14A006
FCM 2015H
FTK 21R 002

NC - NC - GND - 185V - 16V - HEATER - 24V - ABL - B+ 115V - COL

GOLDSTAR  / LG / INTEL / AKARI

154 - 177B
154 - 064P
6174 - 8004 A ( 16V / 12V TERKADANG TIDAK ADA)
6174Z - 6040 X
MF - 6549

COL - 185V - B+ 115 - GND - 16V - 24V - 40V - ABL -  HEATER - AFC.

154 - 177 E

COL - 185V - B+ 90V - BOOST UP - 25V - 12V - GND - ABL - HEATER - AFC.

FUJITEC
BSC22- 2314H
JF0501-1903
FCM14A-032
KFS-60844

C - B+ 115 - 180V - 16V - 24V - HEATER - GND - ABL - AFC - NC

HITACHI / FUJIAN
BSC25-0820

C - B+ 115 - NC - NC - 25V - 12V - ABL - HEATER - GND - 180V

SHARP
14"   F0067PE
20"   F60069PE

C - B+ 115V - 24V - 16V - NC - AFC - GND - HEATER - 185V - ABL

F0147PE

C - B+ 115 - GND - 24V - 12V - AFC - 185V - GND - H - ABL

F0193
F0194

C - B+ 115 - GND - 40V - 12V - AFC - 185V - GND - H - ABL

BSC26-26315
FA060WJ-SA
JF0501 - 32601
A071WJ - A
BSC25 - 0232A
FA104WJ - ZZ

C - B+ 125V - GND - 24V - 12V - AFC - 185V - GND - HEATER - ABL

FA100 WJ
FA116 WJ
C - B+ 125V - GND -NC- (+14V) - (-14V) - 180V - GND - H - ABL

JVC
BSC25 - 0262

C - B+ 115 - AFC - NC - 24V - GND - HEATER - ABL - 185V - GND

SANSUI
BSC22 - 68F03
BSC25 - N0449

C - B+ 115V - 24V - AFC - GND - H - ABL - 180V

JF0501 - 1206
JF0501 - 1204

C - B+ 115 - 185V - 16V - 24V - H - GND - ABL - AFC - NC

TV CHINA
BSC25 -2603F
BSC25-4813A
BSC25-N1003A
BSC25-N0608

TP1 - C - TP2 - B+ 115V - TP3 - TP4 - GND - HEATER - ABL - NC/180V

BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
BSC25-F1125A

TP1 - C - TP2 - B+ 115V - TP3 - TP4 - GND - H - ABL - AFC

BSC25-2004 PR

C - B+ 115V - NC - AFC - GND - H - ABL - NC - TP1 - TP2

BSC24 - 01N4014 K
BSC25 - T1010A

TP1 - C - TP2 - B+ 115V - TP3 - TP4 - GND - H - ABL - 180V

BSC26 - 3606A

C - B+ 115V - NC - AFC - GND - H - ABL - TP1 - TP2 - TP3

BSC28 - N2329

C - TP2 - B+ 115V - GND - 185V - NC - NC - ABL - H - AFC

BSC27-F1429A
BSC26-05N2509

Fungsi pin  1.TP1  2.COLEKTOR  3.TP2  4.B+115 Volt  5.TP3  6.TP4  7.Ground
8.Heater  9.ABL  10.AFC.

SANYO
JFO501  32639
JFO501 32611
L 40B 15300
L40B 17100
C - B+ 115 - NC - 185 - AFC - ABL - NC - LOW B - H - GND

BSC26 2629
L40B 07500
C - B+140 - NC - 185V - AFC - ABL - NC - LOW B - H - GND.

TCL
BSC25 0299D
JF0501 1914
BSC25 0231
BSC25 0284C
BSC66G 124 3810
BSC25 0211
JFO5O1 1909A
JF0501 1214

185V - C - AFC - B+ 115 - 12V - 24V - ABL - GND - NC - H

KONKA
BSC25 2023S
BSC25 0106
BSC25 2666S
BSC25 0111

C - 185V - B+ 115 - GND - AFC - 14V  - ABL - H - NC - NC

BSC25 0146
C - 185V - B+ - GND - NC - NC - ABL - H - GND - AFC

SONY
8 598 858 00
8 598 831 00
8 598 811
1 435 284 11
C - B+ - 200V - H - GND - (-13V) - GND -(+13V) - NC -  ABL

1 439 423 32 ( TRINITRON)

H1 - H2 - 180V - B+ - C - 14V - ABL - NC - 26V - NC - GND

PHILIP
JF0501 0185
BSC25 N2319
BSC25 N2911
C - B+ 125 - 180 - AFC - H -  8V - 12V - ABL - 45V - GND

SANKEN
BSC24 01N4004 U
JF0501 19959
BSC25 0235A
BSC25 N0103
C - B+ 115 - (+14) - (-14V) - GND  - H - AFC - ABL - NC - 180V

 BSC25 - N1089D (Untuk tv Asatron 21" SLIM )

 C - B+ - (+17V) - AFC - GND - H - ABL - 180V - (-17V)

84 L83 - 606 01
FTK 14B 011
C - B+ 115 - 24V - GND - 185V - H - ABL - GND - AFC - 12V
154 -164 F
154 165 D
JF0501 1212
24V - (-24V) - B+115 - H - AFC - ABL - GND - 185V - NC - COL

JF0501 - 3241
C - B+ - AFC - (-12V) - (+12V) - GND - H - ABL - 185V - GND

FBT  UNTUK TV PANASONIC

TLF 14695F
TLF 15610F
TLF 15611F
KFS 60844

C + B+- GND - PS S (-) - 25V - H - 185V - ABL - NC - PS S(+)

TLF 4N052
C - B+115 - NC - 24V - H - 180V - GND - GND(R 2W 1 ohm) - 16V - ABL

2TF N82014B
C - B+140 - NC - (+16V) - GND - H - GND - ABL - (-16V) - 180V

FBT untuk TV LG
6174 - 6006E
C - B+115 - GND - (-14V) - (+14V) - GND - ABL - H - AFC

6174V - 6006H
BSC24 - 3366J
C - 185V - B+115 - GND - NC - 24V - NC - ABL - H - AFC

6174 - 5003A
BSC28 - N2334
C - B+115V - (+14V) - (-14V) - 200V - GND - NC - 28V - ABL - H

BSC25 - N0363
BSC26 - N2138
C - B+115V - (+14V) - (-14V) - 200V - GND - INNER - 26V - ABL - H

AKARI
FUY-20C009
COL _ 180V _ B+ _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC

AKARI
FSV - 20A001
FCK - 14A033
FSV - 14A001
C _ B+ _ 125V _ ABL _ NC _ GND _ 185V _ 46V _ H _ NC _ 16,5V

AKARI
FUY-20C009
C _ 180 _ B+ _ gnd _ nc _ 24 _ nc _ abl _ Ht _ afc

AKARI FUJITEC
14" BSC22 - 01N401
20" BSC24 - 01N40TA
14" BSC25 - 1194
21" BSC25 - 4803T
14" BSC22 - 2007 (B+125)
20" BSC25-N0803A
COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ NC

AKIRA
14" JF0501 - 1901
21" BSC23 - N0114
COL _ B+115V _ GND _ 185V _ H _ ABL _ GND _ 16V _ NC _ 24V

AKIRA
21" JF0501 - 19959
21" BSC25 - 0235A
BSC25-4004A
BSC25-N 0103
BSC24-01N4004U
COL _ B+115V _ +14V _ -14V _ GND _ H _ AFC _ ABL _ NC _ 185V

AKIRA
CT-29TK9Ae
JF0501-2202
Col _ B+125v _ Afc/Nc _ -12v _ +12v _ Gnd _ H _ Abl _ Gnd _ 180v

AKIRA SLIM
29" BSC29-N2477
Col _ 180v _ B+130v _ Gnd _ Nc(14v) _ 25v _ Nc(Gnd) _ Abl _ H _ Inner

AKIRA FUJITEC
IC 8893CPBNG
21" BSC25 - 05N2135H
21" BSC25 - N0379
21" BSC25 - 3604V
COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ 180V

AKIRA FUJITEC
BSC22-68F03
BSC25-N0449
COL _ B+115V _ 24v _ AFC _ GND _ H _ ABL _ 180V

FUJITEC
BSC22 - 2314H
JF0501-1903
FCM14A032
KFS 60844
COL _ B+115V _ 180V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC

CHINA
BSC 25 Z 603F
BSC 25 - 4813A
BSC 25 - N1003A
BSC25 - N0608
TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ NC(180V)

CHINA
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
BSC25-F1125A
TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ AFC

CHINA
BSC 25 - 2004PR
COL _ B+115v _ NC _ AFC _ GND _ H _ ABL _ NC _ TP1 _ TP2
CHINA
BSC24-01N4014K
BSC25-T1010A
T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V

CHINA
29" BSC26 - 3606A
Col _ B+115V _ NC _ AFC _ GND _ H _ ABL _ T1 _ T2 _ T3

CHINA
BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc

CHINA
BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v

CHINA
29" BSC28 - N2329
Col _ TP2 _ B+115V _ GND _ 185V _ NC _ NC _ ABL _ H _ AFC

KONKA CHINA
14" BSC25-2023S
14" BSC25 - 0106
21" BSC25-2666S
20" BSC25-0111
COL _ 185V _ B+115V _ GND _ AFC _ 14V _ ABL _ H _ NC _ NC

KONKA CHINA
21" BSC25-0146
Col _ 185v _ B+115 _ Gnd _ Nc _ Nc _ Abl _ Ht _ Gnd _ Afc

SANKEN
21" BSC24-01N4004U
JF0501 - 19959
BSC25 - 0235A
BSC25-N 0103
Col _ B+115 _ +14V _ -14V _ Gnd _ Ht _ Afc _ Abl _ Nc _ 180v

AIWA
84-L83-606-01
FTK 14B011
COL _ B+115V _ 24V _ GND _ 185V _ H _ ABL _ GND _ AFC _ 12V
ASATRON SLIM
21" BSC25-N1089D
Col _ B+115v _ +17v _ Afc _ Gnd _ H _ Abl _ Nc _ 180v _ -17v

DETRON
14" 154 - 164F
20" 154 - 165D
20" JF0501-1212
24v _ 14v _ B+115V _ H _ AFC _ ABL _ GND _ 185V _ NC _ COL

SANSUI
JF0501 -1206
JF0501-1204
COL _ B+115V _ 185V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC
TCL
21" BSC25 - 0299D
21" BSC25 - 0273F
21" JF0501-1914V1
BSC25 - 0231
21" BSC25-0284C
BSC 66G (124-3810)
BSC25-0211
JF0501-1909A
JF0501-1214
185V _ COL _ AFC _ B+115V _ 12V _ 24V _ ABL _ GND _ NC _ H

SONY
8-598-858-00
8-598-831-00
8-598-811
1-453-284-11
COL _ B+200V _ H _ GND _ -13V _ GND _ +13V _ NC _ ABL

SONY TRINITRON
29" 1-439-423-32
H1 _ H2 _ 180v _ B+ _ Col _ 14V _ Abl _ Nc _ 26v _ Nc _ Gnd
RCA
14" 6174Z - 8006A
B+110 _ Col _ 6.5V _ Gnd _ H _Abl _ -12V _ Gnd _ 180v _+12V

PHILIPS
29" JF0501 - 9185
BSC25 - N2319
BSC25 - N2911
Col_B+125v_180v_Afc_H_8v_12v_ABL_45v_Gnd

HITACHI FUJIAN
BSC25 - 0820
Col _ B+115 _ Nc _ Nc _ 25v _ 12v _ Abl _ Ht _ Gnd _ 180v

GOLDSTAR
154-177B
154-064P
6174-8004A (kadang 12V/16V gak ada)
6174Z-6040X
MF6549
COL _ 185V _ B+115V _ GND _ 16V _ 24V _ 40V _ ABL _ H _ AFC
GOLDSTAR
154-177E
COL _ 185V _ B+90v _ BOOST UP _ 25V _ 12V _ GND _ ABL _ H _ AFC
JVC
21" BSC25 - 0262
COL _ B+115V _ AFC _ NC _ 24V _ GND _ H _ ABL _ 185V _ GND
JVC AV20NX
21" JF0501 - 3241 / QQ0189 - 001
Col _ B+115v _ AFC _ -12V _ +12V _ Gnd _ HT _ ABL _ 185v _ GnD

TOSHIBA
14" TFB 4067 BD
21" TFB 4125CH
21" TFB 4213AG (Flat)
29" TFB 4086A
COL _ B+115V _ 185V _ GND _ NC _ 24V _ 12V _ ABL _ H _ AFC

TOSHIBA
TFB 4125 DY
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc

POLYTRON
FCM-20B061N
Col _ B+ _ gnd _ 185 _ nc _ Ht _ Nc _ abl _ +12 _ -12

POLYTRON
JF0601-19577
Col _ B+ _ gnd _ 200v _ nc _ Ht _ nc _ abl _ +12 _ -12

POLYTRON DIGITEC
20" FCM 20 B 061N
21"JF 0501- 19577
Col _ B+115V _ Gnd _ NC _ 185V _ H _ NC _ ABL _ +12V _-12V

POLYTRON DIGITEC
21" JF0501-195913
21" FTK-21R011UN
Col _ B+115V _ Gnd _ 185v _ Nc _ H _ 25v _ Bcl _ 12v _ Afc

POLYTRON LAMA
14" FCK 14A006
20" FCM2015H
20" FTK21R002
Nc _ Nc _ GND _ 185V _ 16V _ H _ 24V _ ABL _ B+115V _ COL

SANYO
21" L 40 B 15300 / L40B17100
JF0501-32639 (SANYO SLIM 21")
Col _ B+115V _ Nc _ 185V _ AFC _ ABL _ Nc _ LOW B _ H _ GND

SANYO SLIM FLAT 29"

BSC26-2629S part no: ILB4L40B07500
Col_B+140v_Nc_Video 185v_Afc_Abl_Nc_Low B_H_Gnd
Tr Hor D2634

SAMSUNG FLAT SLIM 29"

JF0501 - 91911 (FQH29A003) (B+125v)
21" SLIM FQH21A004 / BSC25-0217G / AA26-00305A / FUH29A001B (S) (B+120/125V)
Col _ Nc _ B+125V _ Nc _ 200V _ Gnd _ H _ -16,5V _ +16,5V _ ABL

SAMSUNG
FSV 14A004
FSV14A001
FSV20A001
16,5V _ AFC _ H _ 24/40V _ 180V _ GND _ NC _ ABL _ B+125V _ COL

SAMSUNG
FTK-14A004P
C _ B+125v _ ABL _ Nc _ Gnd _ 180v _ 24v _ Ht _ AFC _ 16,5

SAMSUNG
FOK14A001
FSV-14A004C
FSV-14A004H
FSA-38031M
FSA 173 B
AA26-002101A
+16,5V _ 24V _ H _ -16V,5 _ 185V _ GND _ NC _ ABL _ B+125V _ COL

SAMSUNG Flat
FOK14B001
FOK14B001
Col _ NC _ B+123V _ NC _ 200V _ Gnd _ H _ -16,5V _ +16,5V _ ABL

SHARP
14" F0067PE
20" F0069PE
Col _ B+115V _ 24V _ 16V _ NC _ AFC _ GND _ H _ 185V _ ABL

SHARP
21" F0147PE
Col _ B+115V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ H _ ABL

SHARP
14" F0193 / 21"F0194
Col _ B+115V _ GND _ 40V _ 12V _ AFC _ 185V _ GND _ H _ ABL

SHARP PICOLLO
14" BSC26 - 2631S / FA060 WJ - SA
21" JF0501-32601 / FA071WJ - A
21" BSC25-0232A / FA104WJZZ
Col _ B+125V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ H _ ABL

SHARP
29" FA100WJ / FA116WJ
Col _ B+125v _ Gnd _ +14v _ -14v _ Nc _ 180v _ Gnd _ H _ Abl

LG
20": 6174 - 6006E
Col _ 185v _ B+115V _ Gnd _ -14v _ +14v _ Gnd _ ABL _ H _ AFC


LG
21" 6174V-6006H (Flat & Super Slim)
21" BSC24-3366J (Super Slim)
COL _ 185V _ B+115V _ GND _ Nc _ 24V _ Nc _ ABL _ H _ AFC

LG
29" 6174Z - 5003A
29" BSC28 - N2334
Col _ B+115v _ +14v _ -14v _ 200v _ Gnd _ Nc _ 28v _ ABL _ H

LG ULTRA SLIM
21" BSC25-N0363
29" BSC26-N2138
Col_B+115V_+14V_-14V_200V(Video)_Gnd_Inner_26V_Abl_H

LG SUPER SLIM
6174913002A
BSC24-3366J
COL _ 185V _ B+115V _ GND _ Nc _ 24V _ Nc _ ABL _ H _ AFC

PANASONIC
TLF14695F/Alpha Gold
TLF 15610 F
TLF 15611 F
KFS60844
Col _ B+ _ Gnd _ PS sink - _ 25v _ Ht _ 185v _ Abl _ Nc _ PS sink+

PANASONIC
20" TLF 4N052
Col _ B+115v _ Nc _ 24v _ H _ 180v _ Gnd _ Gnd (R2W 1 ohm)_16v_ABL

PANASONIC
ZTF N82014B
Col _ B+140v _ Nc _ +16v _ Gnd _ H _ Gnd _ ABL _ -16v _ 180v


PANASONIC
21" G4GAM3F2
Col _ B+90v _ 180v _ Nc _ Nc _ Nc _ Nc _ Abl _ Gnd _ Ht

154-064P
154-177B
FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
154 - 132A
154 - 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
154 189H
154 277C
FCM 20B027
Col _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
8-598-858--00
8-598-811
Col _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _
Nc _ Abl
DCF 2217J
Col _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater
F 0101KM-SA
F 0141 PE-M
Col _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
FCK 14A006
FCM 2015HE
FCM 14A032
Col _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
FCK 1411 L 01
FCM 14A025
Col _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
FCG 2045 BL
Afc - 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ Col _ Abl _ 175v _ 24v
FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
Col - B+ - Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
FSV - 20A001
FCK - 14A033
FSV - 14A001
Col _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
JF 0501-1206
Col _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC - FBC-015
LCE CF0854
Col _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
K 148 TC
Col - 180v _ B+ - Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc

Data Flyback
Kode Koneksi : 12-3467-589-10
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _
Gns_ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp

Data Travo Flyback 154-138L, FA061WJ-SA

Kode Koneksi : 135-2-468910-7
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ NC _ Col _ AFC _ B+110 _ 45 _ ABL _ GND _ 12 _ HT
Digunakan Pada TV : Solitron
Data Travo Flyback BSC24-01N4019L
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC
Digunakan Pada TV : China Brand

Data Travo Flyback JF0501-1901

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col B+110 _ GND _ 180 _ HT _ ABL _ GND _ 16 _ NC _ 26
Digunakan Pada TV : Akira


Data Travo Flyback BSC24-N40G1

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Digunakan Pada TV : China Brand
Persamaan :
BSC24-01N4006EV
BSC25-09N20E
BSC25-T1010A
BSC25-Z603F
BSC24-01N4006EVRBCS28-2198

Data Travo Flyback BSC25-3504V

No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ 180
Digunakan Pada TV : China Brand
Persamaan :
BSC22-0106
BSC25-05N1418
BSC25-05N2135C

Data Travo Flyback BSC24-09G

No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC
Digunakan Pada TV : China Brand

Data Travo Flyback BSC25-N0449

No. Pin 1 2 3 4 5 6 7 8
Fungsi Col _ B+110 _ 26 _ AFC _ GND _ HT _ ABL _ 180
Digunakan Pada TV : China Brand
Persamaan :
BSC22-68F03

Data Travo Flyback BSC22-68F03

No. Pin 1 2 3 4 5 6 7 8
Fungsi Col _ B+110 _ 26 _ AFC _ GND _ HT _ ABL _ 180
Digunakan Pada TV : China Brand
Persamaan :
BSC25-N0449

Data Travo Flyback FCM2014FL

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16 _ AFC _ HT _ 24 _ 180 _ GND _ BOST _ ABL _ B+110 _ Col
Digunakan Pada TV : Samsung
Persamaan :
FCM14A025

Data Travo Flyback FCM14A025

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16 _ AFC _ HT _ 24 _ 180 _ GND _ BOST _ ABL _ B+110 H
Digunakan Pada TV : Samsung
Persamaan :
FCM2014FL

Data Travo Flyback JF0501-1914

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ Col _ AFC _ B+110 _ 12 _ 24 _ ABL _ GND _ NC _ HT
Digunakan Pada TV : TCL
Persamaan :
BSC25-0231

Data Travo Flyback BSC25-0231

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ Col _ AFC _ B+110 _ 12 _ 24 _ ABL _ GND _ NC _ HT
Digunakan Pada TV : TCL
Persamaan :
JF0501-1914

Data Travo Flyback BSC25-F1125A

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Digunakan Pada TV : China Brand
Persamaan :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313

Data Travo Flyback BSC25-N0313

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Digunakan Pada TV : China Brand
Persamaan :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-F1125A

Data Travo Flyback BSC25-2678S

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Digunakan Pada TV : Konka
Persamaan :
BCS25-N1603
BSC25-0113
BSC25-023D

Data Travo Flyback BSC25-023D

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Digunakan Pada TV : Konka
Persamaan :
BCS25-N1603
BSC25-0113
BSC25-2678S

Data Travo Flyback BSC25-0113

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Digunakan Pada TV : Konka
Persamaan :
BCS25-N1603
BSC25-023D
BSC25-2678S

Data Travo Flyback BSC25-N0211

No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ H1 _ AFC _ GND _ HT _ ABL _ H2 _ H3
Digunakan Pada TV : China Brand
Persamaan :
BSC25-05N2120R

Data Travo Flyback TFB4125CH

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 185 _ GND _ NC _ 26 _ 12 _ ABL _ HT _ AFC
Digunakan Pada TV : Toshiba
Persamaan :
TFB4122BD

Data Travo Flyback BSC25-05N2135C

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 16 _ AFC _ GND _ HT _ ABL _ NP _ 180 _ NP
Digunakan Pada TV : Akira
Persamaan :
BSC22-0106
BSC25-05N1418
BSC25-3504V

Data Travo Flyback FCM-20B061N

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ 180 _ NC _ HT _ NC _ ABL _ 12 _ -12
Digunakan Pada TV : Polytron
Persamaan :
JF0601-19577

Data Travo Flyback JF0601-19577

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ 180 _ NC _ HT _ NC _ ABL _ 12 _ -12
Digunakan Pada TV : Polytron
Persamaan :
FCM-20B061N

Data Travo Flyback DST2010-D91

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ NC _ 180 _ HT _ NC _ ABL _ 12 _ -12
Digunakan Pada TV : Polytron

Data Travo Flyback BCS28-2198

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ 180
Digunakan Pada TV : China
Persamaan :
BSC24-01N4006EV
BSC25-09N20E
BSC25-T1010A
BSC25-Z603F
BSC24-01N4006EVRBSC24-N40G1

Data Travo Flyback 6174Z-6238L

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 200 _ B+140 _ GND _ 13 _ -13 _ 28 _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
154-177B 154-064P
FCK-14B047
JF0501-1206
JF0501-91802

Data Travo Flyback 6174Z-6005U

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+120 _ 14 _ -14 _ 204 _ 28 _ NC _ ABL _ HT _ NC
Digunakan Pada TV : LG
Data Travo Flyback 6174V-6006V
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ NC _ 24 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG

Data Travo Flyback 154-374A

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 200 _ B+125 _ GND _ 16 _ 26 _ 45 _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
154-177B
154-064P FCK-14B047
JF0501-1206
JF0501-91802
6174Z-6238L

Data Travo Flyback JF0501-91802

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+130 _ GND _ NC _ 24 _ NC _ ABL _ HT _ NC
Digunakan Pada TV : China
Persamaan :
154-177B
154-064P
FCK-14B047
JF0501-1206
154-374A
6174Z-6238L

Data Travo Flyback BCS25-4004U

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ H1 _ H2 _ GND _ NC _ 12.5 _ B+140 _ ABL _ HT _ AFC
Digunakan Pada TV : China

Data Travo Flyback BCS25-N1603

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi C _ 180 _ B+108 _ GND _ AFC _ 12.5 _ ABL _ HT _ NP _ NP
Digunakan Pada TV : Konka
Persamaan :
BSC25-0113
BSC25-023D
BSC25-2678S

Data Travo Flyback FCM-21A004

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ 195 _ AFC _ ABL _ GND _ 14 _ NC _ 24
Digunakan Pada TV : China

Data Travo Flyback BSC23-N0121

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
6174V-6006H
6174V-6006E

Data Travo Flyback 6174V-6006E

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
6174V-6006H
BSC23-N0121

Data Travo Flyback 6174V-6006H

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
6174V-6006E
BSC23-N0121

Data Travo Flyback FA137WJZZ

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ GND _ 24 _ NC _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
BSC25-0217B

Data Travo Flyback BSC25-0217B

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ GND _ 24 _ NC _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
FA137WJZZ

Data Travo Flyback L40B9001

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ NC _ AFC _ GND _ HT _ GND _ ABL _ NC _ 180
Digunakan Pada TV : Sanyo
Persamaan :
L40B05500

Data Travo Flyback L40B05500

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ NC _ AFC _ GND _ HT _ GND _ ABL _ NC _ 180
Digunakan Pada TV : Sanyo
Persamaan :
L40B9001

Data Travo Flyback FCM14A032

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Digunakan Pada TV : Polytron
Persamaan :
FCK14A006
FCM2015HE

Data Travo Flyback FCM2015HE

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Digunakan Pada TV : Polytron
Persamaan :
FCK14A006
FCM14A032

Data Travo Flyback FCK14A006

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Digunakan Pada TV : Polytron
Persamaan :
FCM2015HE
FCM14A032

Data Travo Flyback JF0501-1206

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 180 _ 16 _ 24 _ HT _ GND _ ABL _ AFC _ NC
Digunakan Pada TV : Sansui
Persamaan :
154-177B
154-064P
FCK-14B047
JF0501-91802
154-374A
6174Z-6238L

Data Travo Flyback FSA16012M

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan :
DCF-2077D
DCF-2077A
DCF-1577

Data Travo Flyback DCF-1577

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan :
DCF-2077D
DCF-2077A
FSA16012M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Digunakan Pada TV : Solitron
Persamaan :
DCF-2077A
DCF-1577
FSA16012M

Data Travo Flyback F0141PE-M

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F0102KMF02299PE-B

Data Travo Flyback FCK-14B047

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 24 _ 40 _ ABL _ HT _ AFC
Digunakan Pada TV :
Persamaan :
154-177B
154-064P
JF0501-1206
JF0501-91802
154-374A
6174Z-6238L

Data Travo Flyback TFB4122BD

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 185 _ GND _ NC _ 26 _ 12 _ ABL _ HT _ AFT
Digunakan Pada TV : Toshiba
Persamaan :
TFB4125CH


Data Travo Flyback BSC24-01N40K

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ NC _ B+110 _ GND _ AFC _ NC _ ABL _ HT _ NC _ NC
Digunakan Pada TV : China Brand

Data Travo Flyback 2435521

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ GND _ 25 _ 200 _ B+110 _ HT _ ABL _ 14 _ NC _ NC
Digunakan Pada TV : Hitachi

Data Travo Flyback BSC25-N3604

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ H1 _ H2
Digunakan Pada TV : China Brand

Data Travo Flyback TLF4G503F

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+90 _ NC _ 24 _ HT _ 185 _ GND _ AFC _ 16 _ ABL
Digunakan Pada TV : Panasonic
Persamaan :
TLF15644F1
TLF4N052

Data Travo Flyback TLF4N052

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+90 _ NC _ 24 _ HT _ 180 _ GND _ AFC _ 16 _ ABL
Digunakan Pada TV : Panasonic
Persamaan :
TLF15644F1
TLF4G503F

Data Travo Flyback F02299PE-B

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ NC _ 24 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F0102KM
F0141PE-M

Data Travo Flyback F0102KM

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F02299PE-B
F0141PE-M

Data Travo Flyback F0101KM-SA

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0102KM
F02299PE-B
F0141PE-M

Data Travo Flyback BSC24-08B

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-4803T
BSC25-N1617
BSC25-Z601F
BSC24-01N4019L

Data Travo Flyback BSC25-Z601F

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-4803T
BSC25-N1617
BSC24-08B
BSC24-01N4019L

Data Travo Flyback BSC25-N1617

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-4803T
BSC25-Z601F
BSC24-08B
BSC24-01N4019L

Data Travo Flyback BSC25-4803T

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-N1617
BSC25-Z601F
BSC24-08B
BSC24-01N4019L

Data Travo Flyback FSV-14A004C

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16.5 _ NC _ HT _ -16.5 _ 185 _ GND _ NC _ ABL _ B+125 _ Col
Digunakan Pada TV : Samsung
Persamaan :
FOK14A001
AA26-002101A

Data Travo Flyback FSV20A099

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 15 _ 24 _ HT _ 45 _ 180 _ GND _ NC _ ABL _ B+125 _ H
Digunakan Pada TV : Sanken


Data Travo Flyback F0147PE-M

No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
BCS21-2647
F0101KM-SA
F0102KM
F02299PE-B
F0141PE-M

SHARP F0193PEN1-SA
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H B+115 GND 45 12 AFC 180 GND HT ABL
Persamaan :
F0194PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F0102KM
F02299PE-B
F0141PE-M
SAMSUNG FOK14A001
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16.5 NC HT -16.5 200 GND NC ABL B+130 H
Persamaan :
AA26-002101A
FSV-14A004C

GOLDSTAR 154-177B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H 180 B+110 GND 12 24 40 ABL HT AFC
Persamaan :
154-064P
FCK-14B047
JF0501-1206
JF0501-91802 154-374A 6174Z-6238L

PANASONIC TLF15644F1
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H B+90 NC 24 HT 185 GND GND 16 ABL
Persamaan :
TLF4N052
TLF4G503F
