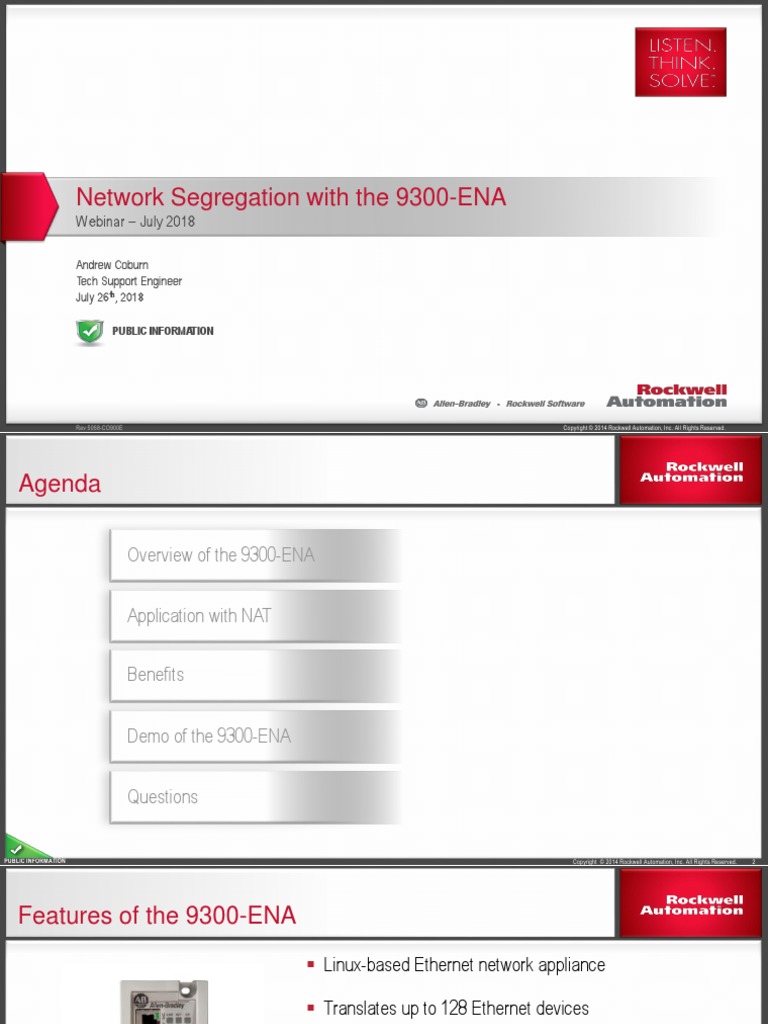

Network Segregation with the 9300-ENA
Webinar – July 2018
Andrew Coburn
Tech Support Engineer
July 26th, 2018
PUBLIC INFORMATION
Rev 5058-CO900E Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.
Agenda
Overview of the 9300-ENA
Application with NAT
Benefits
Demo of the 9300-ENA
Questions
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. 2
Features of the 9300-ENA
Linux-based Ethernet network appliance
Translates up to 128 Ethernet devices
Supports 1:1 NAT and range NAT
Supports RSLinx Classic Ethernet/IP driver
SD card for easy configuration
Ability to view all devices on the network
Translates all protocols
VPN availability
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. 3
What is NAT?
Network Address Translation is a service which can translate a packet
from one IP address to another IP address.
Can be a Layer 2 or Layer 3 device Outside Subnet
Has two forms: (ex. 10.0.0.x)
One to Many (1:n) – a.k.a. TCP/UDP Port Address
Many Outside IP addresses
Translation (PAT). Allows Multiple devices to share (One per device wishing to be accessible from the Outside Subnet
one “Outside” address
One to One (1:1) – Allows for the assignment NAT Enabled Device
of a unique outside IP address to a specific
Many Inside IP addresses
inside IP address (One per connected device)
Inside Subnet
(ex. 192.168.1.x)
Inside
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation,
4 Inc. All Rights Reserved.
Why Use NAT?
Allows a single device to act as an agent between the Plant (Outside) network and the Machine
(Inside) network
Helps simplify integration of IP address mapping from a machine level IP addresses to the plant
network
Allows Machine Builders to develop standard machines and eliminate the need for unique IP
addressing and code modifications
Allows End Users to more easily integrate machines into their larger plant network without
extensive coordination with machine builders
Provides better maintainability at the machines as they remain standard
Allows for reuse of IP addresses allowing for more connected devices in a limited address pool.
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation,
5 Inc. All Rights Reserved.
Application – Identical Machines
Identical Machines installed connecting to the Plant Wide Network
Plant Wide Network
Machine A Machine B Machine C
9300-ENA 9300-ENA 9300-ENA
with NAT with NAT with NAT
Application Application Application
PanelView™ Controller PanelView™ Controller PanelView™ Controller
[Link] [Link] [Link] [Link] [Link] [Link]
Network Network Network
Switch Switch Switch
Kinetix® Kinetix® Kinetix®
[Link] [Link] [Link]
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. 6
Application
9300-ENA
with NAT Application
PanelView Controller
[Link] [Link]
Network
Switch
Kinetix
[Link]
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.
Application
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.
Benefits
Precision
Make network configuration changes on identical machines.
Machine A Machine B Machine C
Private Public Private Public Private Public
Controller [Link] [Link] [Link] [Link] [Link] [Link]
PanelView [Link] [Link] [Link] [Link] [Link] [Link]
Kinetix [Link] [Link] [Link] [Link] [Link] [Link]
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. 9
Benefits
Flexibility
Free up IP addresses on the Public side
Machine A Machine B Machine C
Private Public Private Public Private Public
Controller [Link] [Link] [Link] [Link] [Link] [Link]
PanelView [Link] [Link] [Link]
Kinetix [Link] [Link] [Link]
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. 10
Benefits
Segregation
IP addresses that are not in the translations will not flood to the other side of the
network.
Plant Network
9300-ENA with
NAT Application
PanelView™
[Link] Controller
[Link]
Kinetix®
[Link]
PUBLIC INFORMATION Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved. 11
Demo
PUBLIC INFORMATION
Rev 5058-CO900E Copyright © 2014 Rockwell Automation,12Inc. All Rights Reserved.
Questions
