This document introduces the topic of steady-state error in control systems. It defines steady-state error as the difference between the input and output of a system as time becomes large. The type of input signal used, such as a step, ramp, or parabolic input, depends on the target application. The steady-state error can be calculated using the final value theorem and depends on the number of integrators in the system and whether it is an unity or non-unity feedback system. Examples are provided to demonstrate calculating the steady-state error for different system types and input signals.
This document introduces the topic of steady-state error in control systems. It defines steady-state error as the difference between the input and output of a system as time becomes large. The type of input signal used, such as a step, ramp, or parabolic input, depends on the target application. The steady-state error can be calculated using the final value theorem and depends on the number of integrators in the system and whether it is an unity or non-unity feedback system. Examples are provided to demonstrate calculating the steady-state error for different system types and input signals.
This document introduces the topic of steady-state error in control systems. It defines steady-state error as the difference between the input and output of a system as time becomes large. The type of input signal used, such as a step, ramp, or parabolic input, depends on the target application. The steady-state error can be calculated using the final value theorem and depends on the number of integrators in the system and whether it is an unity or non-unity feedback system. Examples are provided to demonstrate calculating the steady-state error for different system types and input signals.

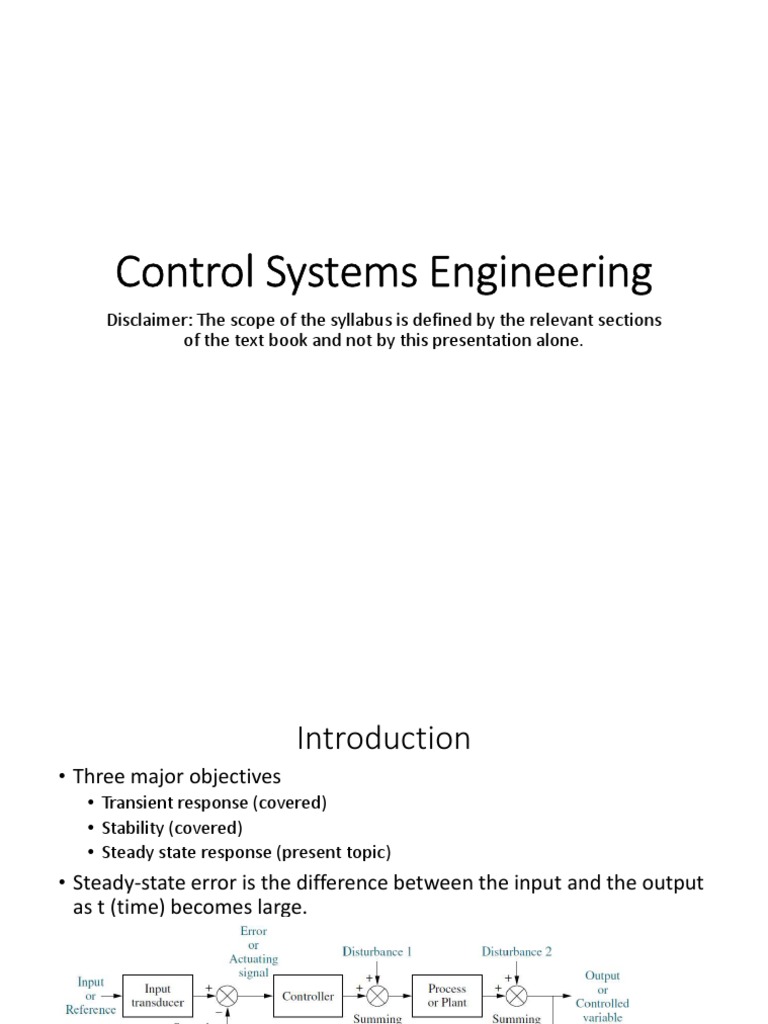

Disclaimer: The scope of the syllabus is defined by the relevant sections
of the text book and not by this presentation alone. Introduction • Three major objectives • Transient response (covered) • Stability (covered) • Steady state response (present topic) • Steady-state error is the difference between the input and the output as t (time) becomes large. Introduction • e(t)= r(t)-c(t) as t tends to infinity
• This can be written as sE(s)=s(R(s)-C(s)) with limit s tending to zero
• The above is a consequence of final value theorem. (Note: there are
conditions under which this theorem has to be used)
• So steady state error for a closed loop system is
sE(s)=s(R(s)-C(s)) with limit s tending to zero Introduction • We apply test inputs to evaluate SS error. Different Test input signals used are for different applications (target types) • the step input is used for antenna tracking a geostationary satellite (stationary target). • Ramp input is used for testing antennas that are tracking satellites moving with constant velocity • Parabolic input are used for antennas tracking objects having constant acceleration like missiles. • The point to be realized is that this discussion is for systems that are stable, because for unstable systems there is no steady state. So test for stability before calculating SS error other wise one may obtain wrong answers Introduction • Steady state error can be calculated considering the formula given. • Example • A more powerful way is to first consider unity feedback system develop specifications and then generalizing to non-unity feedback systems • The steady state errors arise from the following factors • 1)Inherent non-linearities—are not considered as we are dealing with linear systems • 2)the type of applied input and • 3)the configuration of the system itself The type of applied input Type of system • The configuration of the system itself can be classified based on the number of forward path integrators in an unity feedback system type 0,1,2 and so on • So for an unity feedback system we can prove that the steady state error is Errors for different type of inputs Summary Benefit of using static error constants Non-unity feedback system Non-unity feedback system Problem Problem Problem Problem Problem Problem Problem 4 Problem 6 Problem 8
