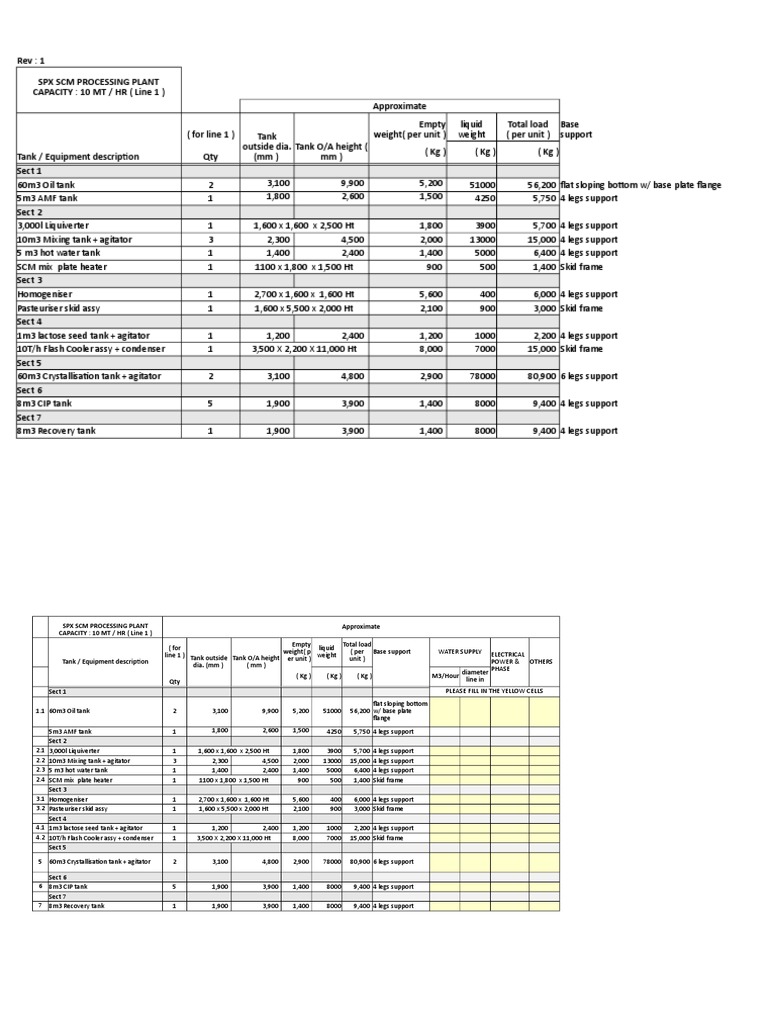

Rev : 1

SPX SCM PROCESSING PLANT

CAPACITY : 10 MT / HR ( Line 1 )
Approximate
Empty liquid Total load Base
( for line 1 ) Tank weight( per unit ) weight ( per unit ) support
outside dia. Tank O/A height ( ( Kg ) ( Kg ) ( Kg )
Tank / Equipment description Qty (mm ) mm )
Sect 1
60m3 Oil tank 2 3,100 9,900 5,200 51000 56,200 flat sloping bottom w/ base plate flange
5m3 AMF tank 1 1,800 2,600 1,500 4250 5,750 4 legs support
Sect 2
3,000l Liquiverter 1 1,600 x 1,600 x 2,500 Ht 1,800 3900 5,700 4 legs support
10m3 Mixing tank + agitator 3 2,300 4,500 2,000 13000 15,000 4 legs support
5 m3 hot water tank 1 1,400 2,400 1,400 5000 6,400 4 legs support
SCM mix plate heater 1 1100 x 1,800 x 1,500 Ht 900 500 1,400 Skid frame
Sect 3
Homogeniser 1 2,700 x 1,600 x 1,600 Ht 5,600 400 6,000 4 legs support
Pasteuriser skid assy 1 1,600 x 5,500 x 2,000 Ht 2,100 900 3,000 Skid frame
Sect 4
1m3 lactose seed tank + agitator 1 1,200 2,400 1,200 1000 2,200 4 legs support
10T/h Flash Cooler assy + condenser 1 3,500 X 2,200 X 11,000 Ht 8,000 7000 15,000 Skid frame
Sect 5
60m3 Crystallisation tank + agitator 2 3,100 4,800 2,900 78000 80,900 6 legs support
Sect 6
8m3 CIP tank 5 1,900 3,900 1,400 8000 9,400 4 legs support
Sect 7
8m3 Recovery tank 1 1,900 3,900 1,400 8000 9,400 4 legs support
 SPX SCM PROCESSING PLANT Approximate
CAPACITY : 10 MT / HR ( Line 1 )
Empty liquid Total load
( for
line 1 ) Tank outside Tank O/A height er unitp) weight
weight( ( per Base support WATER SUPPLY ELECTRICAL
Tank / Equipment description unit ) POWER & OTHERS
dia. (mm ) ( mm ) PHASE
( Kg ) ( Kg ) ( Kg ) M3/Hour diameter
Qty line in
Sect 1 PLEASE FILL IN THE YELLOW CELLS
flat sloping bottom
1.1 60m3 Oil tank 2 3,100 9,900 5,200 51000 56,200 w/ base plate
flange
5m3 AMF tank 1 1,800 2,600 1,500 4250 5,750 4 legs support
Sect 2
2.1 3,000l Liquiverter 1 1,600 x 1,600 x 2,500 Ht 1,800 3900 5,700 4 legs support
2.2 10m3 Mixing tank + agitator 3 2,300 4,500 2,000 13000 15,000 4 legs support
2.3 5 m3 hot water tank 1 1,400 2,400 1,400 5000 6,400 4 legs support
2.4 SCM mix plate heater 1 1100 x 1,800 x 1,500 Ht 900 500 1,400 Skid frame
Sect 3
3.1 Homogeniser 1 2,700 x 1,600 x 1,600 Ht 5,600 400 6,000 4 legs support
3.2 Pasteuriser skid assy 1 1,600 x 5,500 x 2,000 Ht 2,100 900 3,000 Skid frame
Sect 4
4.1 1m3 lactose seed tank + agitator 1 1,200 2,400 1,200 1000 2,200 4 legs support
4.2 10T/h Flash Cooler assy + condenser 1 3,500 X 2,200 X 11,000 Ht 8,000 7000 15,000 Skid frame
Sect 5
5 60m3 Crystallisation tank + agitator 2 3,100 4,800 2,900 78000 80,900 6 legs support

Sect 6
6 8m3 CIP tank 5 1,900 3,900 1,400 8000 9,400 4 legs support
Sect 7
7 8m3 Recovery tank 1 1,900 3,900 1,400 8000 9,400 4 legs support
