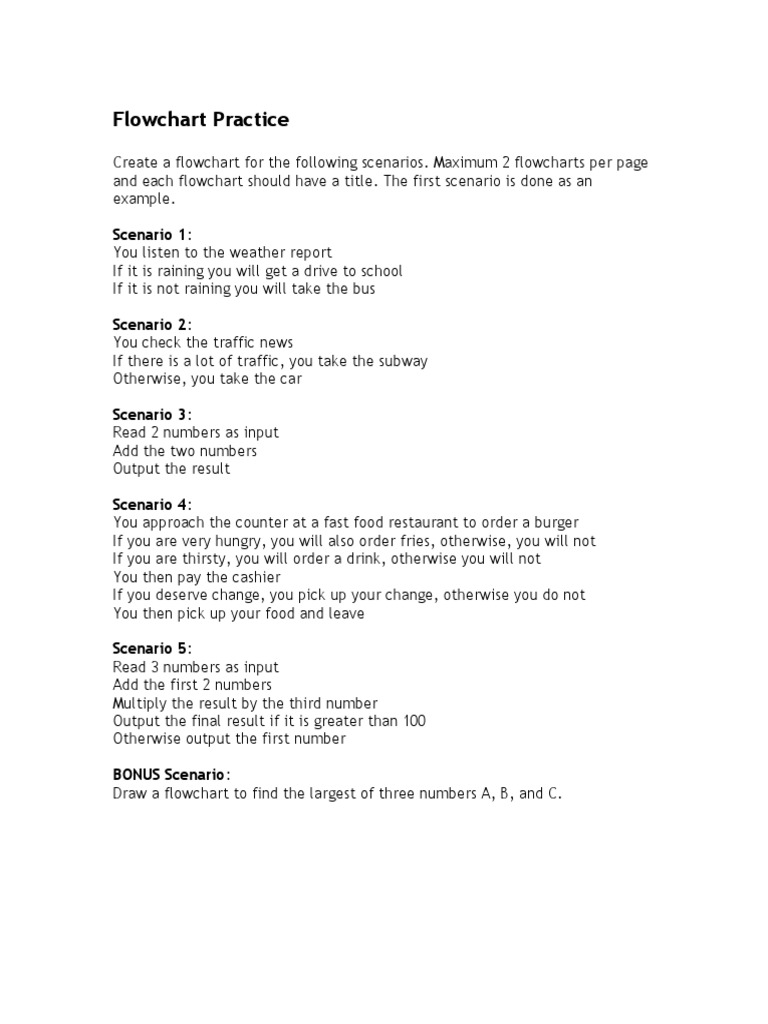

Flowchart Practice

Create a flowchart for the following scenarios. Maximum 2 flowcharts per page
and each flowchart should have a title. The first scenario is done as an
example.

Scenario 1:
You listen to the weather report
If it is raining you will get a drive to school
If it is not raining you will take the bus

Scenario 2:
You check the traffic news
If there is a lot of traffic, you take the subway
Otherwise, you take the car

Scenario 3:
Read 2 numbers as input
Add the two numbers
Output the result

Scenario 4:
You approach the counter at a fast food restaurant to order a burger
If you are very hungry, you will also order fries, otherwise, you will not
If you are thirsty, you will order a drink, otherwise you will not
You then pay the cashier
If you deserve change, you pick up your change, otherwise you do not
You then pick up your food and leave

Scenario 5:
Read 3 numbers as input
Add the first 2 numbers
Multiply the result by the third number
Output the final result if it is greater than 100
Otherwise output the first number

BONUS Scenario:
Draw a flowchart to find the largest of three numbers A, B, and C.
Scenario 1:
You listen to the weather report
If it is raining you will get a drive to school
If it is not raining you will take the bus

Solution: How to get to school

START

Listen to weather
report

Raining? yes

Get a Drive to
no School

Take Bus

END
 Scenario 2
You check the traffic news
If there is a lot of traffic, you take the subway
Otherwise, you take the car

START

Check Traffic
News

Heavy yes
Traffic?

Take the subway

no

Drive in a car

END
 Scenario 3
Read 2 numbers as input
Add the two numbers
Output the result

START

First Second
Number Number

Read Numbers

Add the
Numbers

Sum of First
and second
number

END
 Scenario 4
Scenario 4:
You approach the counter at a fast food restaurant to order a burger
If you are very hungry, you will also order fries, otherwise, you will not
If you are thirsty, you will order a drink, otherwise you will not
You then pay the cashier
If you deserve change, you pick up your change, otherwise you do not
You then pick up your food and leave

START

Order a
Burger

Hungry? Thirsty?

No No Yes
Yes

Order Fries Pay Cashier Order a Drink

Yes
Deserve Take Change
Change?

No

Take food and

leave

END
 Scenario 5
Read 3 numbers as input
Add the first 2 numbers
Multiply the result by the third number
Output the final result if it is greater than 100
Otherwise output the first number

START

Input 3 Numbers

Add 1st & 2nd

Numbers

Multiply
previous result
by 3rd number

Is result
bigger than
100?

Display
Display 1st
Final
Number Result

END
 Bonus
Draw a flowchart to find the largest of
three numbers A, B, and C.

START

Input A, B, C

Yes No Yes Yes

Display Is Is Is Display
B B > C? A > B? A > C? A

No No

Display Display
C C

END
