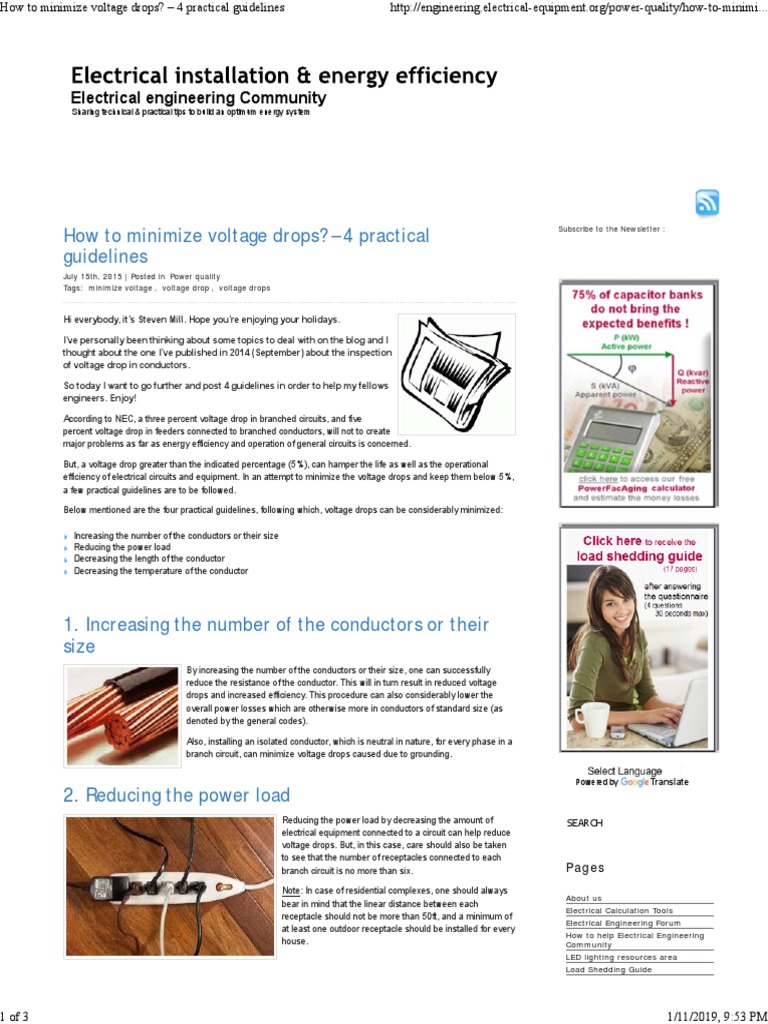

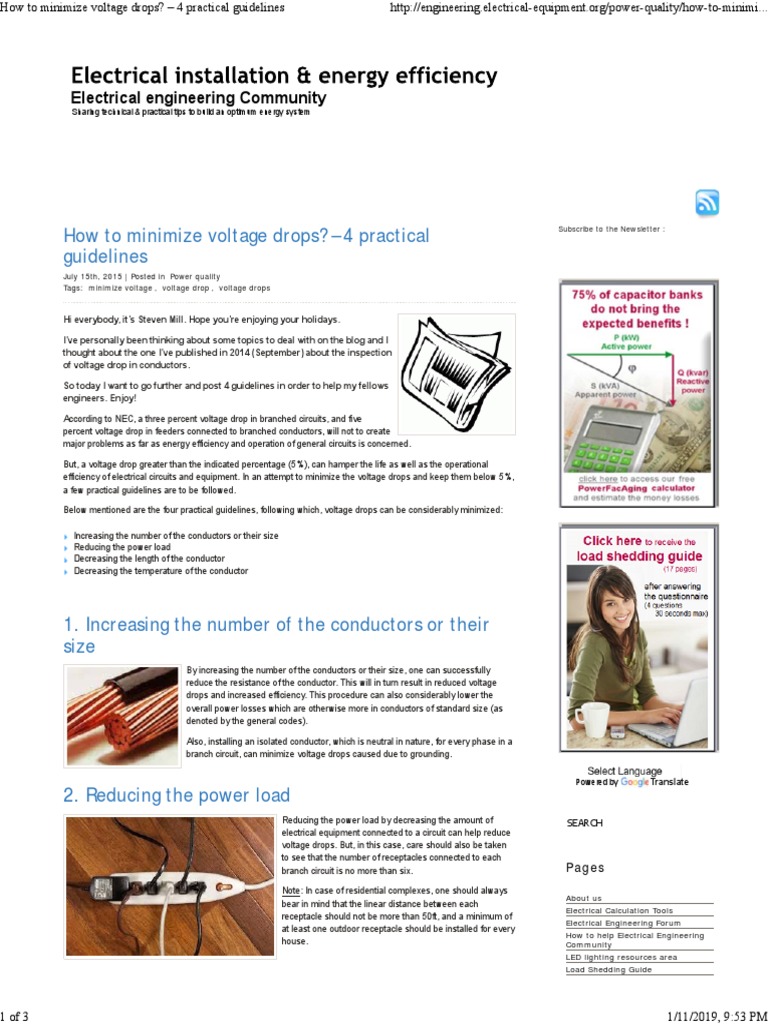

How to minimize voltage drops? – 4 practical
guidelines
July 15th, 2015 | Posted in Power quality
Tags: minimize voltage , voltage drop , voltage drops

Hi everybody, it’s Steven Mill. Hope you’re enjoying your holidays.

I’ve personally been thinking about some topics to deal with on the blog and I
thought about the one I’ve published in 2014 (September) about the inspection
of voltage drop in conductors.

So today I want to go further and post 4 guidelines in order to help my fellows

engineers. Enjoy!

According to NEC, a three percent voltage drop in branched circuits, and five
percent voltage drop in feeders connected to branched conductors, will not to create
major problems as far as energy efficiency and operation of general circuits is concerned.

But, a voltage drop greater than the indicated percentage (5%), can hamper the life as well as the operational
efficiency of electrical circuits and equipment. In an attempt to minimize the voltage drops and keep them below 5%,
a few practical guidelines are to be followed.

Below mentioned are the four practical guidelines, following which, voltage drops can be considerably minimized:

Increasing the number of the conductors or their size

Reducing the power load
Decreasing the length of the conductor
Decreasing the temperature of the conductor

1. Increasing the number of the conductors or their

size
By increasing the number of the conductors or their size, one can successfully
reduce the resistance of the conductor. This will in turn result in reduced voltage
drops and increased efficiency. This procedure can also considerably lower the
overall power losses which are otherwise more in conductors of standard size (as
denoted by the general codes).

Also, installing an isolated conductor, which is neutral in nature, for every phase in a
branch circuit, can minimize voltage drops caused due to grounding.

Powered by Translate
2. Reducing the power load
Reducing the power load by decreasing the amount of SEARCH
electrical equipment connected to a circuit can help reduce
voltage drops. But, in this case, care should also be taken
to see that the number of receptacles connected to each
branch circuit is no more than six. Pages
Note: In case of residential complexes, one should always
About us
bear in mind that the linear distance between each
Electrical Calculation Tools
receptacle should not be more than 50ft, and a minimum of
Electrical Engineering Forum
at least one outdoor receptacle should be installed for every
How to help Electrical Engineering
house. Community
LED lighting resources area
Load Shedding Guide

1 of 3 1/11/2019, 9:53 PM
How to minimize voltage drops? – 4 practical guidelines http://engineering.electrical-equipment.org/power-quality/how-to-minimi...

Make a Comment, write a Post

It should also be noted that each of these receptacles should be connected to an individual circuit that has a Newsletters, archives
minimum capacity of 12 AWG. This type of arrangement can minimize voltage drops to a greater extent. Special thanks

Categories
Decreasing the length of the conductor
Electrical distribution
Electrical Safety
Decreasing the length of the conductor is yet another alternative to
Electrical software
minimize voltage drops. We all know that the length of a conductor is
Energy Efficiency – building
directly proportional to the resistance offered.
Energy Efficiency – kvar
Thus, when the length of a conductor is reduced, its resistance to Energy Efficiency – lighting
carry power will also reduce, lowering the voltage drops. But the Energy Efficiency – motors
practical problem here is that the circuit lengths are always fixed. Energy Efficiency – news
Then, how to reduce the length of a conductor? Energy Efficiency – solar
Engineering Web tips
One can overcome this problem by reducing the length of the iec standard
conductor (and instead, increasing its diameter) at the design stage Last month main subjects
of the panel itself One can also overcome this problem by reducing Others
the length of the conductor by installing panels and sub-panels next Panel Building
to the external loads. Power quality
your need? your contribution?
This type of panel design is highly recommended, especially, when the electronic equipment to which it is connected
is highly sensitive (to sudden voltage drops).
Recent Comments

Decreasing the temperature of the conductor gautam on What is a Transformer?

Musa Ali on Step Up and Step Down
Transformers
High temperatures in conductors resist the flow of power, Rich Markley on Making
measurements with an LCR Meter
leading to voltage drops. Hence, by decreasing the
Electrical Design. on What is
temperature of the conductor, artificially, one can minimize industrial automation?
these voltage drops. admin on Effects of Room
Temperature Vulcanization coating
It should be noted that, for every one degree raise in on MV and HV porcelain insulators
temperature, the resistance is increased by 0.3%. It can be
measured using the formula:

R2 = R1 [1 + α • (T2 – T1)]

Where,
R1 = Resistance to power flow at Temperature T1
R2 = Resistance to power flow at Temperature T2
And α = co-efficient of electrical resistance of Copper

As the difference between T2 and T1 decreases, the resistance to power ‘α ‘ will also cease to decrease.

Note: By following the above mentioned three guidelines, one can automatically adjust the temperature of the
conductor to a desired level.

Conclusion
In order to achieve maximum protection for the electrical equipment as well as domestic electronic appliances,
power suppliers need to follow the above mentioned four guidelines as precisely as possible.
This is because, minimizing voltage drops by following above guidelines will not only benefit power suppliers, but
will also benefit every common man who is dependent on various kinds of electronic appliances (by increasing their
life) for his daily survival.

Thanks for reading,

Steven Mill.
