Manufacturing Program: LAND APPLICATIONS

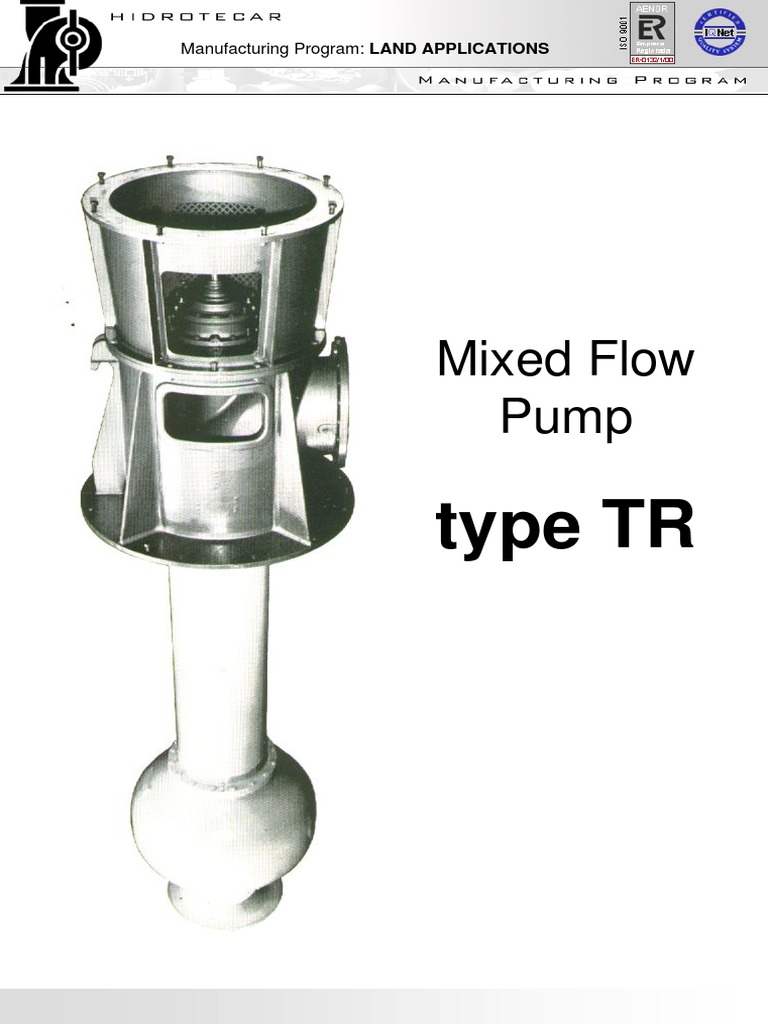

Mixed Flow
Pump
type TR
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
Constructional Features
Vertical single and multi-stage mixed flow pumps for wet pit installation. Standardised asembly
groups: suction, casing, column pipe, discharge bend, rotor and driver support.
Optimum adaption to individual installation and working conditions by means of standard dised
column lenghts. (sea assembly arrangements).
Range of application
The mixed flow pump TR is suitable for pumping clean and treated liquids such as:
Cooling water pumps
For power stations, refineries, industrial and chemical plants.
Raw water pumps
For irrigation and drainage plants (i.e. water pumping stations, high water pumping stations,
irrigation plants, sluice pumpling stations, dry docks).
Rain water pumps
For sewage plants.
Fire pumps
For fire pumps installations.
Performance range
Capacity Q = up to 10.000 m3/h
Head H = up to 150 m
Speed n = up to 1.500 r.p.m.
.: P. 1 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
TECHNICAL DATA
Impeller Radial and thrust bearings in the driver
pedestal
Semi axial single inlet opened or closed design
according to specific speed with helicoidal The weight of the pump rotor and the hydraulic
vanes. thrust is supported by axial antifriction bearing
Hidraulically balanced by means of holes in the amply dimensioned.
impeller hub.
The closed type can be optionally equiped with Next to this bearing another ball bearing is
impeller wear rings. installed as support to the radial stress in this
size of the pump.
Both bearing are oil lubricated tilting pad type.
Depending on the axial thrust the bearings
housing will be supplied with cooling.
In normal working conditions the bearings
lifetime is at least 30.000 hours.
Plain bearings
Pump rotor is radially supported by plain
Pump casing
bearings located in the pump casing and in the
spider between the column piping.
Casing consists of suction bellmouth, and
diffusor vane casing, with replaceable casing
Two plain bearing can be applied:
wear rings.
a) Grease lubricated bronze bearings
b) Water lubricated rubber bearings
Transmission shaft
Coupling
Designed for working below the first critical
velocity.
Standard three part flexible coupling are
installed, with this coupling type pumps and
The shafts are conected with the radial
motor can be uncoupled without needing to
bearings and stuffing box, the shafts are
remove the motor of its emplacement.
protected with sleeves.
Driver and direction of rotation
Shaft sealing is assured by an easily accesible
stuffing boxes in the discharge bend.
The dirve can be obtained equally by means of
an electrical motor, turbine or explosion
engine.
Direction of rotation clockwise when viewed
from the driver end.
.: P. 2 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
RATING CHARTS
Executions
.: P. 3 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
SECTIONAL DRAWINGS
Bronze bearings lubricate by
grease.
Bearings housing with or
without cooling.
Thrust roller antifriction
bearing.
.: P. 4 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
SECTIONAL DRAWINGS
Rubber bearings lubricated
by the pumping medium.
Foundation angles.
Thrust ball antifriction
bearings.
.: P. 5 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
PART LIST
Re Description Ref Description Re Description Re Description
f . f f
1 Suction bellmouth 14 Shaft protecting tub 27 O’ ring 40 Adjusting nuts
2 Casing wear ring 15 Column pipe 28 Stuffing box 41 Theaded ring
3 Impeller nut 16 Shaft sleeve 29 Greaser 42 Bearing cover
4 Impeller 17 Plain bearing 30 Lantern ring 43 Centering bush
5 Casing wear ring 18 Grease tube 31 Packing rings 44 Thrust bearing
6 Diffusor casing 19 Bearing spider 32 Packing gland 45 Bearing housing
7 Adjusting ring 20 Muff coupling 33 Funnel 46 Oil level gauge
8 Radial shaft seal 21 Shaft protecting tub 34 Thrower 47 Oil retainer tube
9 Bearing housing 22 Column pipe 35 Trapezoid belt 48 Radial bearing
10 Plain bearing 23 Angel or ring foundation 36 Grease pump 49 Thower
11 Grease tube 24 Drive shaft 37 Motor stool 50 Cooling coil
12 Shaft sleeve 25 Discharge bend 38 Coupling
13 Pump shaft 26 Shaft sleeve 39 Clamping ring
MATERIALS
Description Clean water Sea water
Neutral Slightly abrasive
Slightly abrasive Slightly aggressive
Suction bellmouth Stainless steel Stainless steel
Carbon Bronze
Diffusor casing Cast iron Alloy cast iron
Impeller Cast iron Stainless steel Stainless steel Bronze
Cast iron Ni-hard Cast iron
Column pie Carbon steel Carbon steel
Stainless steel Stainless steel
Shaft protecting tube Carbon steel Carbon steel Stainless steel Stainless steel
Shaft Carbon steel Carbon steel Stainless steel Stainless steel
Muff coupling Carbon steel Carbon steel Stainless steel Stainless steel
Shaft sleeves Stainless steel Stainless steel Stainless steel Stainless steel
Bronze bearings Bronze Bronze Bronze Bronze
Rubber bearings Rubber + Phen. resin Rubber + Phen. resin Rubber + Stain. st. Rubber + Stain. st.
Lubrication tube Copper Copper Copper Stainless steel
Discharge bend Cast iron Cast iron Cast iron Cast iron
Screws Carbon steel Carbon steel Carbon steel Stainless steel
Packing Graphited cotton
O’ rings Rubber
.: P. 6 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
DIMENSIONS
Automatic pump, bronze bearing lubrication.
Funnues for rubber bearings lubrication.
Minimum water level, variable with the hidraulic characteristics.
Column lengths according to individual installation.
Pump lenghts for one impeller pump, for multicellular pumps multiply for the impeller
number.
.: P. 7 :.
Mixed Flow Pump type TR
Manufacturing Program: LAND APPLICATIONS
DIMENSIONS
Type a B C NW De Dg F F1 g1 g2 Hc h L1 K
100/11/190 150 330 200 100 275 285 680 140 275 300 140 460
125/10/210 150 390 200 125 300 319 740 140 300 360 150 390
200/11/270 150 450 200 200 310 395 800 140 350 400 200 450
250/8/260 510 430 430 900 450 560
210 220 250 900 140 450 230
250/11/301 630 500 560 X 520 530
900
300/8/325 200 420 565 650
300/9/340 240 470 620 1100 680
300/10/375 420 630 630
410 250
300 180 500 550 250
210
300/11/375 665 1100 475
X
1100
300/11/440 220 800 432 744 575
350/6/320 280 680 350 570 570 1100 180 540 600 300 900
400/8/400 250 510 685 800
830 250 1250 180
400/9/410 570 756 1040
400 600 675 330
280 1250
400/10/440 950 560 800 X 200 950
1250
500/5/400 300 615 800 1070
500/8/500 800
750 500 200 1100 650 100 600 1700
400 896 1350
500/8/501
600/5/555 475 940 888 1100 1350 1700
600 200 700 1175 700
600/8/720 450 880 1310 1360 1550 1900
700/4/580 450 885 1150 1540
1100 800 1300 800 1700
700/5/555 475 700 940 888 200 1350
700/8/720 450 880 1310 1360 900 1350 900 1550 1900
117
800/9/815 580 800 1430 200 1490 1100 1450 900 1800 2050
0
