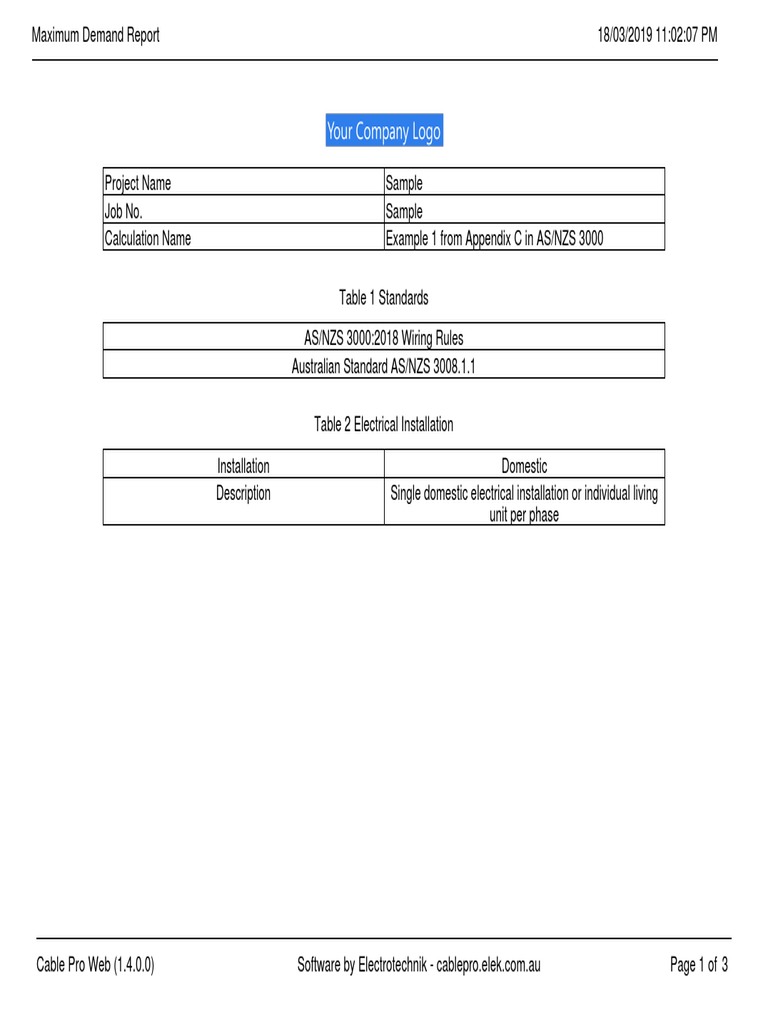

Maximum Demand Report 18/03/2019 11:02:07 PM

Project Name Sample


Job No. Sample
Calculation Name Example 1 from Appendix C in AS/NZS 3000

Table 1 Standards

AS/NZS 3000:2018 Wiring Rules


Australian Standard AS/NZS 3008.1.1

Table 2 Electrical Installation

Installation Domestic
Description Single domestic electrical installation or individual living
unit per phase

Cable Pro Web (1.4.0.0) Software by Electrotechnik - cablepro.elek.com.au Page 1 of 3


Maximum Demand Report 18/03/2019 11:02:07 PM

Table 3 Load Details

Description Load Group Subgroup Phases Rating Power Points Diversity Factor
Factor R, W, B
1 lighting points A - Lighting (i) Indoor. Except load 1-Phase 60 W 1 45, 0, 0 Auto -
group H (communal).
6 tennis court A - Lighting (ii) Outdoor. Exceeding 1-Phase 3000 W 1 1, 0, 0 Auto -
lights total of 1000 W.
2 10A outlets B - Socket-outlets (i) <=10 A. Permanently 1-Phase 10 A 1 26, 0, 0 Auto -
connected equipment
<=10 A.
3 15A sockets B - Socket-outlets (ii) 15 A. Other than for 1-Phase 15 A 1 1, 0, 0 Auto -
equipment set out in load
groups C,D,E,F,G,L.
4 ranges C - Ranges Ranges, cooking 1-Phase 10000 1 1, 0, 0 Auto -
appliances, laundry W
equipment or socket-
outlets > 10 A for the
connection therof.
5 water heater F - Water heaters - 1-Phase 4800 W 1 1, 0, 0 Auto -
(Storage)

Cable Pro Web (1.4.0.0) Software by Electrotechnik - cablepro.elek.com.au Page 2 of 3


Maximum Demand Report 18/03/2019 11:02:07 PM

Table 4 Total Maximum Demand

Red (A) White (A) Blue (A) Highest Phase (A)


81.69 0.00 0.00 81.69

Table 5 Maximum Demand Summary

Load Group Subgroup Diversity Red (A) White (A) Blue (A)
A - Lighting (i) Indoor. Except load group H (communal). Auto 7.00 0.00 0.00
A - Lighting (ii) Outdoor. Exceeding total of 1000 W. Auto 9.28 0.00 0.00
B - Socket-outlets (i) <=10 A. Permanently connected equipment Auto 15.00 0.00 0.00
<=10 A.
B - Socket-outlets (ii) 15 A. Other than for equipment set out in Auto 10.00 0.00 0.00
load groups C,D,E,F,G,L.
C - Ranges Ranges, cooking appliances, laundry Auto 20.62 0.00 0.00
equipment or socket-outlets > 10 A for the
connection therof.
F - Water heaters - Auto 19.79 0.00 0.00
(Storage)

Cable Pro Web (1.4.0.0) Software by Electrotechnik - cablepro.elek.com.au Page 3 of 3
