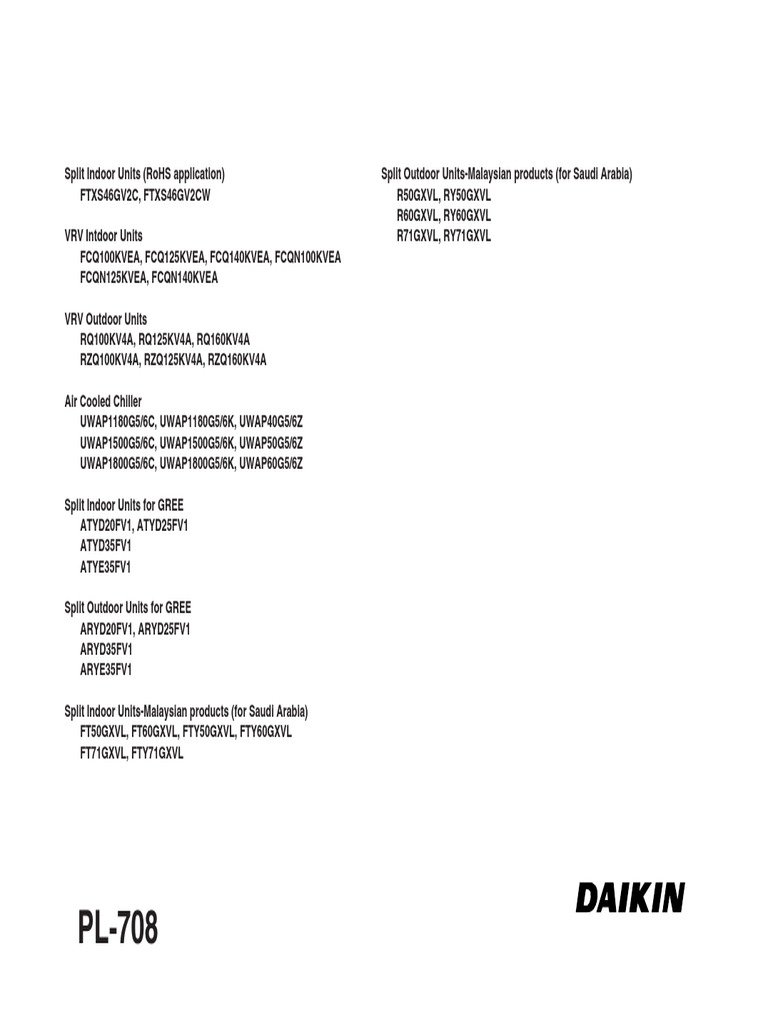

Split Indoor Units (RoHS application) Split Outdoor Units-Malaysian products (for Saudi Arabia)

FTXS46GV2C, FTXS46GV2CW R50GXVL, RY50GXVL

R60GXVL, RY60GXVL
VRV Intdoor Units R71GXVL, RY71GXVL
FCQ100KVEA, FCQ125KVEA, FCQ140KVEA, FCQN100KVEA
FCQN125KVEA, FCQN140KVEA

VRV Outdoor Units

RQ100KV4A, RQ125KV4A, RQ160KV4A
RZQ100KV4A, RZQ125KV4A, RZQ160KV4A

Air Cooled Chiller

UWAP1180G5/6C, UWAP1180G5/6K, UWAP40G5/6Z
UWAP1500G5/6C, UWAP1500G5/6K, UWAP50G5/6Z
UWAP1800G5/6C, UWAP1800G5/6K, UWAP60G5/6Z

Split Indoor Units for GREE

ATYD20FV1, ATYD25FV1
ATYD35FV1
ATYE35FV1

Split Outdoor Units for GREE

ARYD20FV1, ARYD25FV1
ARYD35FV1
ARYE35FV1

Split Indoor Units-Malaysian products (for Saudi Arabia)

FT50GXVL, FT60GXVL, FTY50GXVL, FTY60GXVL
FT71GXVL, FTY71GXVL

PL-708
The part lists are used for spare parts of the Daikin Air Conditioners and Compressors.
Carefully read the following notes before using.

1) In case you order parts, indicate Model No., Part item and Parts No.
2) If the part you received differs slightly from the one you ordered, please read installation and operation manuals enclosed.
3) The parts list can not be used for assembly or dismounting of the products.
4) Specifications of parts shall be subject to change without notice while alternate parts will be supplied in place of the original parts.

Explanation of Index Symbols:

A. Most important spare parts
1. The parts whose damage causes fatal damage to the unit.
2. The parts with high rate of breakdown.
3. The parts that are worn out after a long use.
B. Spare parts as important as A, but rate of breakdown is not so high.
C. The parts with low rate of breakdown, but they are indispensable as spare parts.
No mark. The parts whose necessity is not so high under normal operation.
Contents

Split Indoor Units (RoHS application)

FTXS46GV2C, FTXS46GV2CW .............................................................................................................................................................................. 2

VRV Intdoor Units

FCQ100KVEA, FCQ125KVEA, FCQ140KVEA, FCQN100KVEA, FCQN125KVEA, FCQN140KVEA .................................................................... 7

VRV Outdoor Units

RQ100KV4A, RQ125KV4A, RQ160KV4A .............................................................................................................................................................. 12
RZQ100KV4A, RZQ125KV4A, RZQ160KV4A ....................................................................................................................................................... 18

Air Cooled Chiller

UWAP1180G5/6C, UWAP1180G5/6K, UWAP40G5/6Z ........................................................................................................................................ 24
UWAP1500G5/6C, UWAP1500G5/6K, UWAP50G5/6Z ........................................................................................................................................ 32
UWAP1800G5/6C, UWAP1800G5/6K, UWAP60G5/6Z ........................................................................................................................................ 40

Split Indoor Units for GREE

ATYD20FV1, ATYD25FV1 ..................................................................................................................................................................................... 48
ATYD35FV1 ........................................................................................................................................................................................................... 51
ATYE35FV1 ........................................................................................................................................................................................................... 54

Split Outdoor Units for GREE

ARYD20FV1, ARYD25FV1 .................................................................................................................................................................................... 57
ARYD35FV1 ........................................................................................................................................................................................................... 60
ARYE35FV1 ........................................................................................................................................................................................................... 62

Split Indoor Units-Malaysian products (for Saudi Arabia)

FT50GXVL, FT60GXVL, FTY50GXVL, FTY60GXVL ............................................................................................................................................. 64
FT71GXVL, FTY71GXVL ....................................................................................................................................................................................... 66

Split Outdoor Units-Malaysian products (for Saudi Arabia)

R50GXVL, RY50GXVL ........................................................................................................................................................................................... 68
R60GXVL, RY60GXVL ........................................................................................................................................................................................... 70
R71GXVL, RY71GXVL ........................................................................................................................................................................................... 72

–1–
 –2–

FTXS46GV2C / FTXS46GV2CW (RoHS application)

FTXS46GV2C / FTXS46GV2CW Wiring Diagram
FTXS46GV2C / FTXS46GV2CW (RoHS application)

–3–
 –4–

FTXS46GV2C / FTXS46GV2CW (RoHS application)

Q’ty/Unit

Index
Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification FTXS FTXS Notes
Symbol
46GV2C 46GV2CW
B1 1766303 EVAPORATOR ASSY. 3P146901-8 1 1
B1-1 110211J UNION JOINT/ LIQUID LINE 4SB20033-3 1/4B D6.4CuT 1 1
B1-2 096177J UNION JOINT/ GAS LINE 4SB20033-2 3/8B D9.5CuT 1 1
B1-3 1723546 FLARE NUT 4SK23012-1 FNSF2 U7/16 D6.4CuT 1 1
B1-4 0939052 BLIND CAP/ FLARE NUT 3SA23001-1 1/4B D6.4CuT 1 1
B1-5 149576J FLARE NUT 4SB20076-3 FNSF3 3/8B D9.5CuT 1 1
B1-6 0914161 BLIND CAP/ FLARE NUT 3SA23001-2 3/8B D9.5CuT 1 1
B1-10 159682J PUTTY 4P103628-19 65x50xt3 1 1
B1-13 159683J PUTTY 4P142759-1 95x83xt3 1 1
B1-14 131038J RUSTPROOF MATERIAL 4P027386-3 1 1
B3 113783J GROUNDING TIP (W/WASHER) 4PA47980-12 M4x12 1 1
B4 380120 FITTING SPRING/ THERMISTOR R4610281-1 1 1
C1 1726103 CROSS FLOW FAN ASSY. 2P138747-3 1 1
C1-1 051605J HEX. SOCKET SCREW 4SB00019-2 M4x6 1 1
C2 156867J VIBRATION ISOLATOR 4P102621-2 1 1
C3 160247J DRAIN PAN ASSY. 1P141557-5 1 1
C3-1 160248J STABILIZER/ DRAIN PAN 1P136128-1 1 1
C3-2 1590652 DISCH. GRILLE VERT. BLADE 1P136132-1 2 2
C3-3 1596869 SHAFT 4P141265-1 1 1
C3-3-1 1731864 SHAFT LINK (CONNECTION BAR) 4P136135-1 1 1
C3-3-2 1731871 SHAFT LINK (UPPER) 3P136133-1 B-168 1 1
C3-3-3 1731888 SHAFT LINK (LOWER) 3P136134-1 B-168 1 1
C3-4 1596876 COVER (LINK) 2P136314-1 1 1
C3-5 A 064634J STEPPING MOTOR 3SB40333-1 MP24Z 1 1 M1S
C3-6 1596883 WIRE HARNESS ASSY. (FOR S/M) 4P139454-1 1 1
C3-8 066228J DRAIN PLUG 3PB34652-1 1 1
C3-9 1597280 SPACER 4P151872-1 1 1
C3-10 159724J DRAIN HOSE 3P150595-1 ADAPT TO THE F-GAS REGULATION 1 1
C3-11 1596852 DRAIN PAN 1P136127-1 GREY(B-168) 1 1
C4 159063J DISCH. GRILLE HORIZONTAL BLADE 3P141205-1 1 1
C4-1 1225011 ROD/ HORIZONTAL VANE 4P065501-1 2 2
C5 1590645 DISCH. GRILLE HORIZONTAL BLADE 3P141206-1 1 1
C5-1 1225011 ROD/ HORIZONTAL VANE 4P065501-1 2 2
E1 1726110 SWITCH BOX ASSY. 1P136154-2 1 1
E2 1726127 COVER/ SWITCH BOX 1P136155-2 1 1
E3 A 1832147 PRINTED CIRCUIT ASSY. (CONTROL) 3F004752-28 EEPROM 3P181936-5 1 1 PCB1-4
FTXS46GV2C / FTXS46GV2CW (RoHS application)
Q’ty/Unit

Index
Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification FTXS FTXS Notes
Symbol
46GV2C 46GV2CW
E3-1 A 131316J FUSE 3EB82015-1 2153.15MF022 250V 3.15A 1 1 F1U
E3-2 A 113954J VARISTOR 3EB71012-1 470NR-14D-204 1 1 V1
E3-3 B 1766334 THERMISTOR ASSY. 3EB70082-3 L=400 1 1 R2T
E3-4 A 159696J PRINTED CIRCUIT ASSY. (SENSOR) 3P144505-1 1 1 PCB4
E3-5 A 159697J PRINTED CIRCUIT ASSY. (DISPLAY) 3P145629-1 1 1 PCB3
E3-6 033485J FUSE COVER 4EB80006-1 SB-3565 1 1
E4 159698J SHIELD PLATE 2P136156-1 1 1
E5 1596991 INDICATION LAMP COVER 2P136157-1 1 1
E6 137568J THERMAL FUSE 3SB45495-1 1 1 X1M
E7 0812847 WIRE CLAMP 3PB38539-1 1 1
E9 A 1726158 FAN MOTOR 3SB40565-2 KFD-280-40-8B 1 1 M1F
E10 159700J WIRE HARNESS ASSY. (FOR F/M) 4P139451-1 1 1
E13 1597026 SHIELD PLATE (INTELLIGENT EYE) 3P136158-1 1 1
E15 160253J POWER CABLE ASSY. (FOR CHINA) 3P151115-1 250V 16A 1 1
E16 0508162 CLAMP (PLASTIC) NE41015-3 NK-5N 1 1
E20 1748886 PAN HEAD TAPPING SCREW HA4114-04-25 (2) 1 1
E21 121650J GROUNDING TERMINAL HA4113-04-16 M4x16 1 1
F1 159084J BOTTOM FRAME ASSY. 2P141484-1 1 1
F3 1766341 FRONT PANEL ASSY. 2P140956-17 1
F3 1832154 FRONT PANEL ASSY. 2P140956-18 1
F4 1766358 FRONT GRILLE ASSY. 1P141075-18 1 1
F4-1 1828535 FRONT GRILLE 1P136150-1 COLOR:WHITE 1 1
F4-2 1766365 CONTROL PANEL (INDICATOR COVER) 3P141191-4 1 1
F4-2-1 1828542 CONTROL PANEL 3P140791-2 1 1
F4-2-2 1597071 OPERATION SIGN COVER 3P137618-1 TRANSPARENT AND WHITE 1 1
F4-2-3 1597088 INDICATION LAMP COVER 4P136144-1 TRANSPARENT AND WHITECOLOR 1 1
F4-3 1766372 DECORATIVE PLATE (RIGHT) 3P140636-2 1 1
F4-4 1766389 DECORATIVE PLATE (LEFT) 3P140637-2 1 1
F4-5 A 160256J AIR FILTER 1P136152-2 2 2
F4-6 159713J FLOCKED PLATE (FRONT GRILLE R) 3P141892-1 1 1
F4-7 159714J FLOCKED PLATE (FRONT GRILLE L) 3P141892-2 1 1
F4-8 1597158 FRONT PANEL (DECORATION) 3P137621-1 COLOR:WHITE 1 1
F4-9 160445J FLOCKED PLATE (FRONT GRILLE) 4P152442-1 2 2
F5 1597165 SERVICE LID 1P136159-1 1 1
F6 1597172 MOTOR COVER (UPPER) 3P136124-1 1 1
F7 1597189 MOTOR MOUNTING PLATE (LOWER) 3P136125-1 1 1

–5–
 –6–

FTXS46GV2C / FTXS46GV2CW (RoHS application)

Q’ty/Unit

Index
Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification FTXS FTXS Notes
Symbol
46GV2C 46GV2CW
F8 1590537 SIDE PANEL (RIGHT) 1P136122-1 1 1
F9 1590544 SIDE PANEL (LEFT) 2P136123-1 1 1
F10 1597196 PIPING FIXTURE 3P136120-1 1 1
F11 1597204 DRIP PROOF COVER 2P136118-1 1 1
F12 1597211 COVER (SCREW COVER) 3P136151-1 COLOR:WHITE 2 2
F13 1597228 SEALING PLATE (TOP) 1P136119-1 1 1
F17 121650J GROUNDING TERMINAL HA4113-04-16 M4x16 11 11
K1 1828559 OPERATION MANUAL 3P206490-1 1 1
K2 A 1766396 REMOTE CONTROLLER ASSY. 2P190697-4 ARC433A84 1 1
K2-1 110102J COVER/ REMOTE CONTROLLER 2P040662-1-KA 1 1
K3 1100989 HOLDER/ REMOTE CONTROLLER 2P011004-2 CWMRD930001 1 1
K4 1696017 BATTERY PACK ASSY. 4PB12850-4 1 1
K5 165086J SCREW KIT 3SB73031-23 1 1
K6 065448J HOLDING TAPE 4PB33477-1 W19xL5000 1 1
K7 159058J AIR FILTER ASSY. 3P142546-1 1 1
K7-1 1597259 DUST COLLECTING ELEMENT FRAME 3P143551-1 2 2
K7-2 A 1597266 PHOTOCATALYST FILTER 4P130949-3 APATITE mesh type 2 2
K8 1726172 INSTALLATION PLATE 1P136126-3 1 1
FCQ100KVEA / FCQ125KVEA / FCQ140KVEA / FCQN100KVEA / FCQN125KVEA / FCQN140KVEA
FCQ100KVEA / FCQ125KVEA / FCQ140KVEA / FCQN100KVEA / FCQN125KVEA / FCQN140KVEA Wiring Diagram

–7–
 –8–

FCQ100KVEA / FCQ125KVEA / FCQ140KVEA / FCQN100KVEA / FCQN125KVEA / FCQN140KVEA

FCQ100KVEA / FCQ125KVEA / FCQ140KVEA / FCQN100KVEA / FCQN125KVEA / FCQN140KVEA
Q’ty/Unit

Index
No. Parts No. Parts Name Drwg. No. Parts Model & Specification FCQ FCQ FCQ FCQN FCQN FCQN Wiring Notes
100K 125K 140K 100K 125K 140K Symbol
VEA VEA VEA VEA VEA VEA
B1 1686298 EVAPORATOR ASSY. 2P173223-1 1 1 1 1 1 1
B1-1 0198433 UNION JOINT/ LIQUID LINE 4SB20008-2 3/8B D9.5CuT 1 1 1 1 1 1
B1-2 257589 UNION JOINT/ GAS LINE NI42019-4 5/8B D15.9CuT 1 1 1 1 1 1
B1-3 1198481 FLARE NUT 4SK23012-3 FNS3 3/8B D9.5CuT 1 1 1 1 1 1
B1-4 250202 BLIND CAP/ FLARE NUT NI43041-2 FSB3 3/8B D9.5CuT 1 1 1 1 1 1
B1-5 1702936 DISTRIBUTOR 4P172183-1 1 1 1 1 1 1
B1-6 1702943 SEALING MATERIAL 4P137717-1 380x10xt5 1 1 1 1 1 1
B1-7 1702950 PUTTY 4P176012-1 200x170xt3 1 1 1 1 1 1
B2 1198506 FLARE NUT 4SK23012-5 FNS5 5/8B D15.9CuT 1 1 1 1 1 1
B3 1686654 PACKING/ FLARE CAP 3P169518-2 Plastic color:natural 1 1 1 1 1 1
C1 1686731 TURBO FAN ROTOR 3P173069-1 1 1 1 1 1 1
C1-1 1430976 FLAT HEAD SCREW 4P098158-1 PLATING THICKNESS 5 m 3 3 3 3 3 3
C2 0662167 LOCK WASHER 4PA54378-1 1 1 1 1 1 1
C3 0157742 LOCK NUT/ FAN ROTOR 4SA03040-1 M6 1 1 1 1 1 1
C4 1702967 PROTECTION NET 3P166221-1 COLOR:NATURAL 1 1 1 1 1 1
E1 1702974 SWITCH BOX 2P164523-1 t0.6 1 1 1 1 1 1
E4 A 1823035 PRINTED CIRCUIT ASSY. 2P173682-6 EC0725 Without ADAPTOR 1 1 1 1 1 1 A1P
E4-1 A 0653372 CAPACITY SETTING ADAPTOR 4PA54367-10 J112 9.1kohm 1 1
E4-1 A 0653389 CAPACITY SETTING ADAPTOR 4PA54367-12 J140 13kohm 1 1
E4-1 A 0653396 CAPACITY SETTING ADAPTOR 4PA54367-13 J160 16kohm 1 1
E5 A 1702998 HUMIDITY SENSOR 4P159171-1 HSU-03-39D-N 1 1 1 1 1 1 A2P/R1T
E6 1703009 PLASTIC CASE 1P167746-1 1 1 1 1 1 1
E7 1703016 COVER/ PLASTIC CASE 3P167067-1 1 1 1 1 1 1
E8 1534753 PLASTIC CASE (2) 3P129709-1 1 1 1 1 1 1
E9 1558470 TERMINAL BLOCK 3SB45429-4 TB-ETD-4P-D5 1 1 1 1 1 1 X2M
E10 1703023 TERMINAL BLOCK ASSY. 4PA61000-6 1 1 1 1 1 1
E10-1 1706387 TERMINAL BLOCK 3P081716-3 1 1 1 1 1 1 X1M
E11 1703030 WIRE HARNESS (SWING) 4P169597-1 1 1 1 1 1 1
E11-1 1830468 RELAY CONNECTOR PLUG 3EA85054-5-KA XMP-05V-N 1 1 1 1 1 1
E11-2 1830475 SOCKET CONTACT 4EA85057-1 SXA-001T-P0.6 5 5 5 5 5 5
E12 1703047 WIRE HARNESS ASSY. 4P169594-1 1 1 1 1 1 1
E13 1703054 WIRE HARNESS ASSY. 4P169591-1 1 1 1 1 1 1
E14 1703061 WIRE HARNESS (HUMIDITY SENSOR) 4P169595-1 1 1 1 1 1 1
E15 1703078 EARTH WIRE 4P130812-1 1 1 1 1 1 1
E16 1703085 COVER/ SWITCH BOX 3P164489-1 1 1 1 1 1 1
E21 DRAIN PUMP ASSY. 3P170284-2 1 1 1 1 1 1

–9–
 – 10 –

FCQ100KVEA / FCQ125KVEA / FCQ140KVEA / FCQN100KVEA / FCQN125KVEA / FCQN140KVEA

Q’ty/Unit

Index
No. Parts No. Parts Name Drwg. No. Parts Model & Specification FCQ FCQ FCQ FCQN FCQN FCQN Wiring Notes
100K 125K 140K 100K 125K 140K Symbol
VEA VEA VEA VEA VEA VEA
E21-1 A 1823561 DRAIN PUMP 3P187334-1 PLD-12230DM-24 1 1 1 1 1 1 M1P
E21-2 1703092 MOUNTING PLATE/ DRAIN PUMP 2P167641-1 1 1 1 1 1 1
E21-3 1117639 FITTING BOLT/ DRAIN PUMP 4P041440-1 3 3 3 3 3 3
E21-4 1395004 CUSHION RUBBER 4P041394-2 HARDNESS 3 3 3 3 3 3
E21-5 388339 LOCK METAL 4PA11782-1 M4x8 1 1 1 1 1 1
E21-6 1713100 SEALING MATERIAL 4P170531-1 26x16xt8 1 1 1 1 1 1
E22 1686678 FLOAT SWITCH ASSY. 3P170286-1 1 1 1 1 1 1
E22-1 A 1587834 FLOAT SWITCH 3P079543-2 FS-0211B-104 1 1 1 1 1 1
E22-2 1703117 SET PLATE/ FLOAT SWITCH 3P163146-1 COLOR:NATURAL 1 1 1 1 1 1
E22-3 388339 LOCK METAL 4PA11782-1 M4x8 1 1 1 1 1 1
E22-4 1703124 SEALING MATERIAL 4P170531-2 22x17xt8 1 1 1 1 1 1
E22-5 1703131 SEALING MATERIAL 4P175974-1 40x40xt2 1 1 1 1 1 1
E23 A 1686755 DC FAN MOTOR 3P173873-1 EHDS10D120DK DC320V 8P 120W 1 1 1 1 1 1 M1F
E24 0532033 CUSHION RUBBER/ FAN MOTOR 4PA46311-1 3 3 3 3 3 3
E25 A 1706394 THERMISTOR ASSY. 4P172917-1 L=1000 1 1 1 1 1 1
E25-1 B 1686849 THERMISTOR (LIQUID) 3SA48002-15 ST8602A-15 L=1000 1 1 1 1 1 1 R2T
E25-2 0521754 FIXTURE/ FEELER BULB 4PA36395-1 SUS304-CSP-4 1 1 1 1 1 1
E25-3 1703148 THERMAL INSULATION 1 4P171772-1 1 1 1 1 1 1
E25-4 1703155 THERMAL INSULATION 2 4P172903-1 2 2 2 2 2 2
E26 1686940 WIRE HARNESS ASSY. 4P169598-1 1 1 1 1 1 1
E26-1 1830482 CONNECTOR 4EA85044-2 110SERIES 2 2 2 2 2 2
E26-2 C 1701445 FERRITE CORE 4EA05049-1 E04RA140064280 1 1 1 1 1 1 Z1C
F1 1686717 CASING FRAME ASSY. 3P172759-2 1 1 1 1 1 1
F1-1 1089897 SET BOLT/ FAN MOTOR 4PA46393-2 3 3 3 3 3 3
F2 1686034 BELL MOUTH 1P163538-1 COLOR:NATURAL 1 1 1 1 1 1
F3 1549623 SET PLATE/ HEAT EXCHANGER 3P139752-1 3 3 3 3 3 3
F4 1703162 RETAINER/ REF. PIPING 3P176380-1 1 1 1 1 1 1
F5 1686995 TOP FLAT PLATE ASSY. 4P174211-1 1 1 1 1 1 1
F6 1703179 STRAIGHTENING PLATE 3P166371-2 t0.6 1 1 1 1 1 1
F7 1703186 DRAIN PAN ASSY. 3P170204-2 1 1 1 1 1 1
F7-1 1534885 CAP/ DRAIN SOCKET 4P126634-1 RAGIDITY 1 1 1 1 1 1
F7-2 1830499 DRAIN PAN 1P163271-1 1 1 1 1 1 1
F7-2-1 0819660 SET PLATE/ BELL MOUTH 4PA52826-1 3 3 3 3 3 3
F7-3 1830507 SEALING MATERIAL 4P190144-1 1220x15xt5 1 1 1 1 1 1
F7-4 1710153 ANTIBACTERIAL AGENTS ASSY. 4P172100-1 1 1 1 1 1 1
F8 1703193 INNER THERMAL INSULATION ASSY. 3P169948-3 1 1 1 1 1 1
FCQ100KVEA / FCQ125KVEA / FCQ140KVEA / FCQN100KVEA / FCQN125KVEA / FCQN140KVEA
Q’ty/Unit

Index
No. Parts No. Parts Name Drwg. No. Parts Model & Specification FCQ FCQ FCQ FCQN FCQN FCQN Wiring Notes
100K 125K 140K 100K 125K 140K Symbol
VEA VEA VEA VEA VEA VEA
F10 1686560 MOUNTING PLATE/ EVAPORATOR 3P163539-3 1 1 1 1 1 1
F14 0541998 FLANGE NUT 4PA46983-1 3 3 3 3 3 3
G1 1686902 DRAIN HOSE ASSY. 4P164414-1 1 1 1 1 1 1
G1-1 DRAIN HOSE 4P164398-1 STIFFNESS 1 1 1 1 1 1
G1-2 1703201 DRAIN SOCKET 4P163894-1 COLOR:CLEAR 1 1 1 1 1 1
G1-3 1703218 DRAIN HOSE SEALING MATERIAL 4P164554-1 t5+-0.5 1 1 1 1 1 1
K1 0322849 SEALER/ DRAIN HOSE 4PA35340-1 300x166xt5 1 1 1 1 1 1
K2 1703232 SEALING MATERIAL 4P174623-2 1 1 1 1 1 1
K3 0381879 INSULATION TUBE/ LIQUID LINE 4PA37221-1 OD46xID26xL190 1 1 1 1 1 1
K4 1703249 INSULATION TUBE 4P174622-1 OD48xID32xL190 1 1 1 1 1 1
K5 1521346 DRAIN HOSE 3P134477-1 1 1 1 1 1 1
K6 558117 HOSE BAND NE43031-8 D40 1 1 1 1 1 1
K7 1431924 HEAT INSULATION COVER 4PA47421-1 1 1 1 1 1 1
K8 1687006 WASHER/ FIXING MATERIAL 4P174731-1 CHIP BOARD 21.5K 1 1 1 1 1 1
K9 1755497 PLAIN WASHER 4P183326-1 M10 8 8 8 8 8 8
K10 980723 WIRE CLAMP HK4017-3 6 6 6 6 6 6
K11 0014395 SEALER/ DRAIN HOSE 3PA16505-13 300x50xt5 1 1 1 1 1 1
K12 OPERATION MANUAL 3P177429-3 1 1 1 1 1 1

– 11 –
 – 12 –

RQ100KV4A / RQ125KV4A / RQ160KV4A

RQ100KV4A / RQ125KV4A / RQ160KV4A Wiring Diagram
RQ100KV4A / RQ125KV4A / RQ160KV4A

– 13 –
 – 14 –

RQ100KV4A / RQ125KV4A / RQ160KV4A

Q’ty/Unit

Index
RQ RQ RQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
A1 A 1678918 SCROLL COMPRESSOR JT100G-VD@T3 JT100G-VD@T3 1 1 1 M1C
A1-1 1547254 TERMINAL COVER 2PT00073-1 1 1 1
A2 1278109 VIBRATION ISOLATOR 4P082917-1 3 3 3
A3 0650234 SET BOLT/ COMPRESSOR 4PA55686-1 ELECTROPLATED COATINGS OF ZINC 4 4 4
A4 390204 NUT WITH WASHER R4911377-1 M8 3 3 3
A5 1503261 SOUND INSULATION/ COMPRESSOR 3P126735-1 1 1 1
A6 A 1824689 CRANK CASE HEATER 3P130357-8 1 1 1 E1HC
B1 1831454 HEAT EXCHANGER ASSY. 2P170879-6 1 1 1
B1-1 1701515 DISTRIBUTOR ASSY. 3P176131-1 1 1 1
B2 1705106 ACCUMULATOR ASSY. 3P166548-3 1 1 1
B2-1 1627648 SEALER (FRONT PLATE 1) 4P103791-2 40x20xt5 1 1 1
B3 FOUR-WAY VALVE ASSY. 2PN08256-1 1 1 1
B3-1 1599743 SERVICING PORT 3SA58068-1 1 1 1
B3-2 1831461 STOP VALVE ASSY. (GAS LINE) 4PN07359-1 1 1 1
B3-3 292637 GAUGE JOINT WITH CHECK VALVE 3SA58023-1 VCG2SA 1/4B D6.4xL55 1 1 1
B3-4 A 1686414 PRESSURE SENSOR 3P108703-5 1 1 1 S1NPH
B3-8 B 1526101 BODY/ FOUR-WAY VALVE (HEAT EXC. 1) 3SA52065-2 VHV-0404 1 1 1 Y1S
B4 MOTOR OPERATED VALVE ASSY. 3P164190-1 1 1 1
B4-1 1483259 STOP VALVE 3P112597-1 VSAMH3SFC D9.5CuT 1 1 1
B4-2 C 232025 REFRIGERANT FILTER R3269031-7 FI-233 3/8B D9.5CuT 2 2 2
B4-3 B 1686856 BODY/ MOTOR OPERATED VALVE 3SA50072-1 1 1 1 Y1E
B5 DISCHARGE PIPE ASSY. (2) 3PN08258-1 1 1 1
B5-1 1701539 MUFFLER ASSY. 4P103383-6 1 1 1
B5-2 0970123 MUFFLER 4PA59222-1 1 1 1
B5-3 DISCHARGE PIPE (2) 4P170444-1 1 1 1
B5-4 A 1511077 HIGH PRESSURE SWITCH 3P128341-1 ACB-4UB10 OFF/ON:4.0/3.0MPa 1 1 1 S1PH
B6 REFRIGERANT PIPE ASSY. 4P194753-1 1 1 1
B6-1 1831478 WEIGHT 3P173295-1 1 1 1
B7 250202 BLIND CAP/ FLARE NUT NI43041-2 FSB3 3/8B D9.5CuT 1 1 1
B8 250204 BLIND CAP/ FLARE NUT NI43041-4 FSB-5/8B D15.9CuT 1 1 1
B9 0454328 VALVE CAP 4SB58036-2 D15.91 1 1 1
B10 1395718 VALVE CAP 4P103142-1 1 1 1
B11 0080347 FLARE NUT 4SK23011-3 FNS3 3/8B D9.5CuT 1 1 1
B12 250004A FLARE NUT 4SK23011-5 FNS5 5/8B D15.9CuT 1 1 1
C1 1701546 FAN BLADE 3P102653-3 P47N11F 2 2 2
C2 847003 LOCK NUT/ FAN HA4039-4 M8 2 2 2
RQ100KV4A / RQ125KV4A / RQ160KV4A
Q’ty/Unit

Index
RQ RQ RQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
C3 1381872 AIR SUCTION GRILLE 2P096661-3 1 1 1
C4 1517710 AIR DISCHARGE GRILLE 1PN05309-1 IVORY WHITE 2 2 2
C5 1736667 BELL MOUTH 2P106472-3 IVORY WHITE 2 2 2
E1 1721300 MOUNTING PLATE/ ELECTRIC DEVICES 2P163287-1 STANDARD SPECIFICATIONS 1 1 1
E2 1701584 MOUNTING PLATE/ REACTOR 3P163288-1 t0.8 1 1 1
E3 1701616 MOUNTING PLATE/ TERMINAL BLOCK 3P174508-1 1 1 1
E4 A 1831485 PRINTED CIRCUIT ASSY. (CONTROL) 3P195471-3 EC0641 Without ADAPTOR 1 1 1 A1P
E4-1 A 1783702 FUSE 3EA89007-4 21806.3MXP 250V 6.3A 1 1 1 F4U
E4-2 A 1758674 FUSE 3EB82016-3 215005.MXP 250A 5A 1 1 1 F6U
E4-3 A 0653372 CAPACITY SETTING ADAPTOR 4PA54367-10 J112 9.1kohm 1
E4-3 A 0653389 CAPACITY SETTING ADAPTOR 4PA54367-12 J140 13kohm 1
E4-3 A 1396014 CAPACITY SETTING ADAPTOR 4PA54367-14 J180 22kohm 1
E4-4 1721317 MOUNTING PLATE/ PCB 1P174821-1 1 1 1
E4-5 B 1701560 FIN THERMISTOR 3PA61998-4 PTP-46D-D1-6 X11A 1 1 1 R10T
E5 A 1831492 PRINTED CIRCUIT ASSY. (DISPLAY) 2P193801-1 EC0542-2(A) 1 1 1 A2P
E6 A 1831500 PRINTED CIRCUIT ASSY. (FILTER) 2P193800-1 EC0678(A) 1 1 1 A3P
E6-1 A 1783702 FUSE 3EA89007-4 21806.3MXP 250V 6.3A 1 1 1 F1U
E7 A 1831517 PRINTED CIRCUIT ASSY. 3P185554-5 EC0667(A) 1 1 1 A4P
E7-1 A 1783702 FUSE 3EA89007-4 21806.3MXP 250V 6.3A 1 1 1 F3U
E8 1701591 MOUNTING PLATE/ TERMINAL BLOCK 4P163292-1 1 1 1
E9 1701609 COVER/ SWITCH BOX 1P163290-1 1 1 1
E10 A 1831524 THERMISTOR ASSY. 4P194160-1 1set=4pcs. 1 1 1 R2/3/4/5T
E11 B 1823585 REACTOR 3P193802-1 1 1 1 L1R
E12 1050301 TERMINAL BOARD 3SA44006-3-KA TERMINAL ONLY 1 1 1 X1M
E13 B 1701623 THERMISTOR (AIR) 3PA50504-10 1 1 1 R1T
E14 A 1718025 CAPACITOR 3EA60009-1 1 1 1 C4
E15 B 1701731 THERMISTOR (LIQUID) 3SA48004-11 L=1250 1 1 1 R6T
E16 1721355 FIXING BAND/ CAPACITOR 4P171335-1 1 1 1
E17 1831531 WIRE HARNESS ASSY. (COMP.) 3P192745-1 1 1 1
E17-1 C 0645270 LINE FILTER 3PA56685-1 R47/27/15A-D 1 1 1 Z1C
E18 1831548 WIRE HARNESS ASSY. 4P167224-2 1 1 1
E18-1 C 1302831 FERRITE CORE 4P084712-1 1 1 1 Z2C
E20 1831555 WIRE HARNESS ASSY. (EARTH) 4P197452-1 1 1 1
E20-1 C 1167184 FERRITE CORE 3EB76041-1 1 1 1 Z3C
E21 A 1511091 COIL/ MOTORIZED VALVE 3SA50047-4 L=1300mm 1 1 1 Y1E
E22 1137835 GROUNDING TIP (W/WASHER) 4PA47980-12 M4x12 2 2 2

– 15 –
 – 16 –

RQ100KV4A / RQ125KV4A / RQ160KV4A

Q’ty/Unit

Index
RQ RQ RQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
E24 A 1823578 COIL/ FOUR-WAY VALVE 3SA52073-19 L=490+-20 1 1 1 Y1S
E26 0622905 CUP WASHER 4PA50120-4 for earth M4 1 1 1
E29 1708439 WIRE HARNESS ASSY. 4P167304-1 (A1P)X5A-X205A 1 1 1
E30 1831562 WIRE HARNESS ASSY. (HPS) 4P169661-2 1 1 1
E31 1831579 WIRE HARNESS ASSY. 4P197457-1 1 1 1
E32 1831586 WIRE HARNESS ASSY. 4P197457-2 1 1 1
E35 1831593 WIRE HARNESS ASSY. 4P110218-4 1 1 1
E36 1831601 WIRE HARNESS ASSY. 4P185089-1 1 1 1
E40 1721425 INSULATION SHEET (UPPER) 3P173167-1 UL94-V0/ TRANSPARENCY 1 1 1
E41 1721432 SEALING MATERIAL 4P180838-2 55x55xt1 1 1 1
E45 A 1686685 DC FAN MOTOR 3P171341-1 KFD-325-70-8C DC325V 8P 70W 2 2 2 M1F/M2F
F1 1706611 BOTTOM FRAME 2P094701-16 1 1 1
F2 1571156 FRONT PLATE (2) 3PN05315-2 STANDARD,t=0.7 1 1 1
F3 1571163 SIDE PLATE (RIGHT) 3PN05314-2 1 1 1
F4 1571473 FRONT PLATE (1) 3PN05318-1 1 1 1
F5 1831618 PARTITION PLATE 2P163293-4 STANDARD SPECIFICATIONS 1 1 1
F6 1513321 MOTOR BASE 3P125319-1 1 1 1
F6-1 SEALING MATERIAL 4P112961-1 70x30xt5 2 2 2
F7 1446584 SEALER (FRONT PLATE 2) 4P103565-2 890x30xt5 1 1 1
F8 1831625 MOUNTING PLATE (REACTOR) 3P186398-1 1 1 1
F9 0920452 HANDLE 3PN00353-1 2 2 2
F10 1517734 COVER/ PIPING (FRONT) 3PN05304-1 1 1 1
F11 1517741 COVER/ PIPING (REAR) 3PN05310-1 1 1 1
F12 1517727 ANCHOR PLATE 4P132036-1 2 2 2
F17 1517671 TOP PLATE 3PN05308-2 STANDARD 1 1 1
F18 1705113 PLATE/ STOP VALVE MOUNTING 2P163294-1 STANDARD 1 1 1
F20 1571327 THERMISTOR FIXING PLATE 3P136732-1 COLOR:IVOLY WHITE 1 1 1
F21 1701700 MOUNTING PLATE/ ACCUMULATOR 4P166468-1 1 1 1
F22 0423968 FITTING SPRING/ THERMISTOR 4PA38890-1 3 3 3
F23 0692531 RETAINER/ THERMISTOR 4PA59769-1 1 1 1
F24 0119050 RETAINER/ THERMISTOR 4PA18309-1 1 1 1
F26 1403804 TAPPING SCREW 4P094245-1 Ep-Fe/Zn(3CM1-B) 8 8 8
F29 1627484 SEALER (SIDE PLATE) 4P105373-1 440x15xt1 3 3 3
F30 1627624 SEALER 4P012654-1 45x22.5xt20 1 1 1
F32 1704242 SEALER (SIDE PLATE) 4P180311-1 70x35xt5 1 1 1
F33 1704259 SEALER (SIDE PLATE 1) 4P180312-1 70x10xt10 1 1 1
RQ100KV4A / RQ125KV4A / RQ160KV4A
Q’ty/Unit

Index
RQ RQ RQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
F34 0495949 HEX. HEAD TAPPING SCREW 4SA01124-12 M5x12 34 34 34
F35 1314531 TAPPING SCREW 4SB00029-12 15 15 15
F36 1627530 SCREW/ C TIGHT CUP 4SA01125-16 M5x16 4 4 4
F37 1465059 REINFORCEMENT PLATE 4P115630-1 1 1 1
F38 1627648 SEALER (FRONT PLATE 1) 4P103791-2 40x20xt5 1 1 1
F39 1739565 CUSHION RUBBER 4P113602-1 HERDNESS 1 1 1
F40 1831632 TOP PLATE SEALING MATERIAL (1) 4P175911-1-KA DIFFICULT COMBUSITION 1 1 1
F41 1831649 TOP PLATE SEALING MATERIAL (2) 4P175911-1-KI DIFFICULT COMBUSITION 1 1 1
F42 1831656 SEALER 4PN05723-1 t5.0 1 1 1
F43 1730777 SEALING MATERIAL (FRONT PLATE) 4PN05724-1 t8 1 1 1
K1 0920483 NAMEPLATE DAIKIN 3SA61018-5 1 1 1
K2 1461444 DECORATION LABEL 3P107198-1 UNDER TABEL A 1 1 1

– 17 –
 – 18 –

RZQ100KV4A / RZQ125KV4A / RZQ160KV4A

RZQ100KV4A / RZQ125KV4A / RZQ160KV4A Wiring Diagram
RZQ100KV4A / RZQ125KV4A / RZQ160KV4A

– 19 –
 – 20 –

RZQ100KV4A / RZQ125KV4A / RZQ160KV4A

Q’ty/Unit

Index
RZQ RZQ RZQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
A1 A 1678918 SCROLL COMPRESSOR JT100G-VD@T3 JT100G-VD@T3 1 1 1 M1C
A1-1 1547254 TERMINAL COVER 2PT00073-1 JT100G-VD 1 1 1
A2 1278109 VIBRATION ISOLATOR 4P082917-1 3 3 3
A3 0650234 SET BOLT/ COMPRESSOR 4PA55686-1 ELECTROPLATED COATINGS OF ZINC 4 4 4
A4 390204 NUT WITH WASHER R4911377-1 M8 3 3 3
A5 1503261 SOUND INSULATION/ COMPRESSOR 3P126735-1 1 1 1
A6 A 1824689 CRANKCASE HEATER 3P130357-8 1 1 1 E1HC
B1 1831454 HEAT EXCHANGER ASSY. 2P170879-6 1 1 1
B1-1 1701515 DISTRIBUTOR ASSY. 3P176131-1 1 1 1
B2 1705106 ACCUMULATOR ASSY. 3P166548-3 1 1 1
B2-1 1627648 SEALER (FRONT PLATE 1) 4P103791-2 40x20xt5 1 1 1
B3 FOUR-WAY VALVE ASSY. 2PN08256-1 1 1 1
B3-1 1599743 SERVICING PORT 3SA58068-1 1 1 1
B3-2 1831461 STOP VALVE ASSY. (GAS LINE) 4PN07359-1 1 1 1
B3-3 292637 GAUGE JOINT WITH CHECK VALVE 3SA58023-1 VCG2SA 1/4B D6.4xL55 1 1 1
B3-4 A 1686414 PRESSURE SENSOR 3P108703-5 1 1 1 S1NPH
B3-8 B 1526101 BODY/ FOUR-WAY VALVE (PIPE) 3SA52065-2 VHV-0404 1 1 1
B4 MOTOR OPERATED VALVE ASSY. 3P164190-1 1 1 1
B4-1 1483259 STOP VALVE 3P112597-1 VSAMH3SFC D9.5CuT 1 1 1
B4-2 C 232025 REFRIGERANT FILTER R3269031-7 FI-233 3/8B D9.5CuT 2 2 2
B4-3 B 1686856 BODY/ MOTOR OPERATED VALVE 3SA50072-1 1 1 1 Y1E
B5 DISCHARGE PIPE ASSY. (2) 3PN08258-1 1 1 1
B5-1 1701539 MUFFLER ASSY. 4P103383-6 1 1 1
B5-2 0970123 MUFFLER 4PA59222-1 1 1 1
B5-3 DISCHARGE PIPE (2) 4P170444-1 1 1 1
B5-4 A 1511077 HIGH PRESSURE SWITCH 3P128341-1 ACB-4UB10 OFF/ON:4.0/3.0MPa 1 1 1 S1PH
B6 REFRIGERANT PIPE ASSY. 4P194753-1 1 1 1
B6-1 1831478 WEIGHT 3P173295-1 1 1 1
B7 250202 BLIND CAP/ FLARE NUT NI43041-2 FSB3 3/8B D9.5CuT 1 1 1
B8 250204 BLIND CAP/ FLARE NUT NI43041-4 FSB-5/8B D15.9CuT 1 1 1
B9 0454328 VALVE CAP 4SB58036-2 D15.91 1 1 1
B10 1395718 VALVE CAP 4P103142-1 1 1 1
B11 0080347 FLARE NUT 4SK23011-3 FNS3 3/8B D9.5CuT 1 1 1
B12 250004A FLARE NUT 4SK23011-5 FNS5 5/8B D15.9CuT 1 1 1
C1 1701546 FAN BLADE 3P102653-3 P47N11F 2 2 2
C2 847003 LOCK NUT/ FAN HA4039-4 M8 2 2 2
RZQ100KV4A / RZQ125KV4A / RZQ160KV4A
Q’ty/Unit

Index
RZQ RZQ RZQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
C3 1381872 AIR SUCTION GRILLE 2P096661-3 1 1 1
C4 1517710 AIR DISCHARGE GRILLE 1PN05309-1 IVORY WHITE 2 2 2
C5 1736667 BELL MOUTH 2P106472-3 IVORY WHITE 2 2 2
E1 1721300 MOUNTING PLATE/ ELECTRIC DEVICES 2P163287-1 STANDARD SPECIFICATIONS 1 1 1
E2 1701584 MOUNTING PLATE/ REACTOR 3P163288-1 t0.8 1 1 1
E3 1701616 MOUNTING PLATE/ TERMINAL BLOCK 3P174508-1 1 1 1
E4 A 1831663 PRINTED CIRCUIT ASSY. (CONTROL) 3P195471-1 EC0641 Without ADAPTOR 1 1 1 A1P
E4-1 A 1783702 FUSE 3EA89007-4 21806.3MXP 250V 6.3A 1 1 1 F4U
E4-2 A 1758674 FUSE 3EB82016-3 215005.MXP 250A 5A 1 1 1 F6U
E4-3 A 0653372 CAPACITY SETTING ADAPTOR 4PA54367-10 J112 9.1kohm 1
E4-3 A 0653389 CAPACITY SETTING ADAPTOR 4PA54367-12 J140 13kohm 1
E4-3 A 1396014 CAPACITY SETTING ADAPTOR 4PA54367-14 J180 22kohm 1
E4-4 1721317 MOUNTING PLATE/ PCB 1P174821-1 1 1 1
E4-5 B 1701560 FIN THERMISTOR 3PA61998-4 PTP-46D-D1-6 X11A 1 1 1 R10T
E5 A 1831492 PRINTED CIRCUIT ASSY. (DISPLAY) 2P193801-1 EC0542-2(A) 1 1 1 A2P
E6 A 1831500 PRINTED CIRCUIT ASSY. (FILTER) 2P193800-1 EC0678(A) 1 1 1 A3P
E6-1 A 1783702 FUSE 3EA89007-4 21806.3MXP 250V 6.3A 1 1 1 F1U
E7 A 1831517 PRINTED CIRCUIT ASSY. 3P185554-5 EC0667(A) 1 1 1 A4P
E7-1 A 1783702 FUSE 3EA89007-4 21806.3MXP 250V 6.3A 1 1 1 F3U
E8 1701591 MOUNTING PLATE/ TERMINAL BLOCK 4P163292-1 1 1 1
E9 1701609 COVER/ SWITCH BOX 1P163290-1 1 1 1
E10 A 1831524 THERMISTOR ASSY. 4P194160-1 1set=4pcs. 1 1 1 R2/3/4/5T
E11 B 1823585 REACTOR 3P193802-1 1 1 1 L1R
E12 1050301 TERMINAL BOARD 3SA44006-3-KA TERMINAL ONLY 1 1 1 X1M
E13 B 1701623 THERMISTOR (AIR) 3PA50504-10 1 1 1 R1T
E14 A 1718025 CAPACITOR 3EA60009-1 1 1 1 C4
E15 B 1701731 THERMISTOR (LIQUID) 3SA48004-11 L=1250 1 1 1 R6T
E16 1721355 FIXING BAND/ CAPACITOR 4P171335-1 1 1 1
E17 1831531 WIRE HARNESS ASSY. (COMP.) 3P192745-1 1 1 1
E17-1 C 0645270 LINE FILTER 3PA56685-1 R47/27/15A-D 1 1 1 Z1C
E18 1831548 WIRE HARNESS ASSY. 4P167224-2 1 1 1
E18-1 C 1302831 FERRITE CORE 4P084712-1 1 1 1 Z2C
E20 1831555 WIRE HARNESS ASSY. (EARTH) 4P197452-1 1 1 1
E20-1 C 1167184 FERRITE CORE 3EB76041-1 1 1 1 Z3C
E21 A 1511091 COIL/ MOTORIZED VALVE 3SA50047-4 L=1300mm 1 1 1 Y1E
E22 1137835 GROUNDING TIP (W/WASHER) 4PA47980-12 M4x12 2 2 2

– 21 –
 – 22 –

RZQ100KV4A / RZQ125KV4A / RZQ160KV4A

Q’ty/Unit

Index
RZQ RZQ RZQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
E24 A 1823578 COIL/ FOUR-WAY VALVE 3SA52073-19 L=490+-20 1 1 1 Y1S
E26 0622905 CUP WASHER 4PA50120-4 for earth M4 1 1 1
E29 1708439 WIRE HARNESS ASSY. 4P167304-1 (A1P)X5A-X205A 1 1 1
E30 1831562 WIRE HARNESS ASSY. (HPS) 4P169661-2 1 1 1
E31 1831579 WIRE HARNESS ASSY. 4P197457-1 1 1 1
E32 1831586 WIRE HARNESS ASSY. 4P197457-2 1 1 1
E35 1831593 WIRE HARNESS ASSY. 4P110218-4 1 1 1
E36 1831601 WIRE HARNESS ASSY. 4P185089-1 1 1 1
E40 1721425 INSULATION SHEET (UPPER) 3P173167-1 UL94-V0/ TRANSPARENCY 1 1 1
E41 1721432 SEALING MATERIAL 4P180838-2 55x55xt1 1 1 1
E45 A 1686685 DC FAN MOTOR 3P171341-1 KFD-325-70-8C DC325V 8P 70W 2 2 2 M1F/M2F
F1 1706611 BOTTOM FRAME 2P094701-16 1 1 1
F2 1571156 FRONT PLATE (2) 3PN05315-2 STANDARD t=0.7 1 1 1
F3 1571163 SIDE PLATE (RIGHT) 3PN05314-2 1 1 1
F4 1571473 FRONT PLATE (1) 3PN05318-1 1 1 1
F5 1831618 PARTITION PLATE 2P163293-4 STANDARD SPECIFICATIONS 1 1 1
F6 1513321 MOTOR BASE 3P125319-1 1 1 1
F6-1 SEALING MATERIAL 4P112961-1 70x30xt5 2 2 2
F7 1446584 SEALER (FRONT PLATE 2) 4P103565-2 890x30xt5 1 1 1
F8 1831625 MOUNTING PLATE (REACTOR) 3P186398-1 STANDARD SPECIFICATIONS 1 1 1
F9 0920452 HANDLE 3PN00353-1 2 2 2
F10 1517734 COVER/ PIPING (FRONT) 3PN05304-1 1 1 1
F11 1517741 COVER/ PIPING (REAR) 3PN05310-1 1 1 1
F12 1517727 ANCHOR PLATE 4P132036-1 2 2 2
F17 1517671 TOP PLATE 3PN05308-2 STANDARD 1 1 1
F18 1705113 PLATE/ STOP VALVE MOUNTING 2P163294-1 STANDARD 1 1 1
F20 1571327 THERMISTOR FIXING PLATE 3P136732-1 COLOR:IVOLY WHITE 1 1 1
F21 1701700 MOUNTING PLATE/ ACCUMULATOR 4P166468-1 1 1 1
F22 0423968 FITTING SPRING/ THERMISTOR 4PA38890-1 3 3 3
F23 0692531 RETAINER/ THERMISTOR 4PA59769-1 1 1 1
F24 0119050 RETAINER/ THERMISTOR 4PA18309-1 1 1 1
F26 1403804 TAPPING SCREW 4P094245-1 Ep-Fe/Zn(3CM1-B) 8 8 8
F29 1627484 SEALER (SIDE PLATE) 4P105373-1 440x15xt1 3 3 3
F30 1627624 SEALER 4P012654-1 45x22.5xt20 1 1 1
F32 1704242 SEALER (SIDE PLATE) 4P180311-1 70x35xt5 1 1 1
F33 1704259 SEALER (SIDE PLATE 1) 4P180312-1 70x10xt10 1 1 1
RZQ100KV4A / RZQ125KV4A / RZQ160KV4A
Q’ty/Unit

Index
RZQ RZQ RZQ Wiring
No. Parts No. Parts Name Drwg. No. Parts Model & Specification Notes
100K 125K 160K Symbol
V4A V4A V4A
F33 1704259 SEALER (SIDE PLATE 1) 4P180312-1 70x10xt10 1 1 1
F34 0495949 HEX. HEAD TAPPING SCREW 4SA01124-12 M5x12 34 34 34
F35 1314531 TAPPING SCREW 4SB00029-12 4 4 4
F35 1314531 TAPPING SCREW 4SB00029-12 15 15 15
F36 1627530 SCREW/ C TIGHT CUP 4SA01125-16 M5x16 4 4 4
F37 1465059 REINFORCEMENT PLATE 4P115630-1 1 1 1
F38 1627648 SEALER (FRONT PLATE 1) 4P103791-2 40x20xt5 1 1 1
F39 1739565 CUSHION RUBBER 4P113602-1 HERDNESS 1 1 1
F40 1831632 TOP PLATE SEALING MATERIAL (1) 4P175911-1-KA DIFFICULT COMBUSITION 1 1 1
F41 1831649 TOP PLATE SEALING MATERIAL (2) 4P175911-1-KI DIFFICULT COMBUSITION 1 1 1
F42 1831656 SEALER 4PN05723-1 t5.0 1 1 1
F43 1730777 SEALING MATERIAL (FRONT PLATE) 4PN05724-1 t8 1 1 1
K1 1733853 BRAND NAME LABEL 2P188064-1 (t0.05+0.025) 1 1 1

– 23 –
