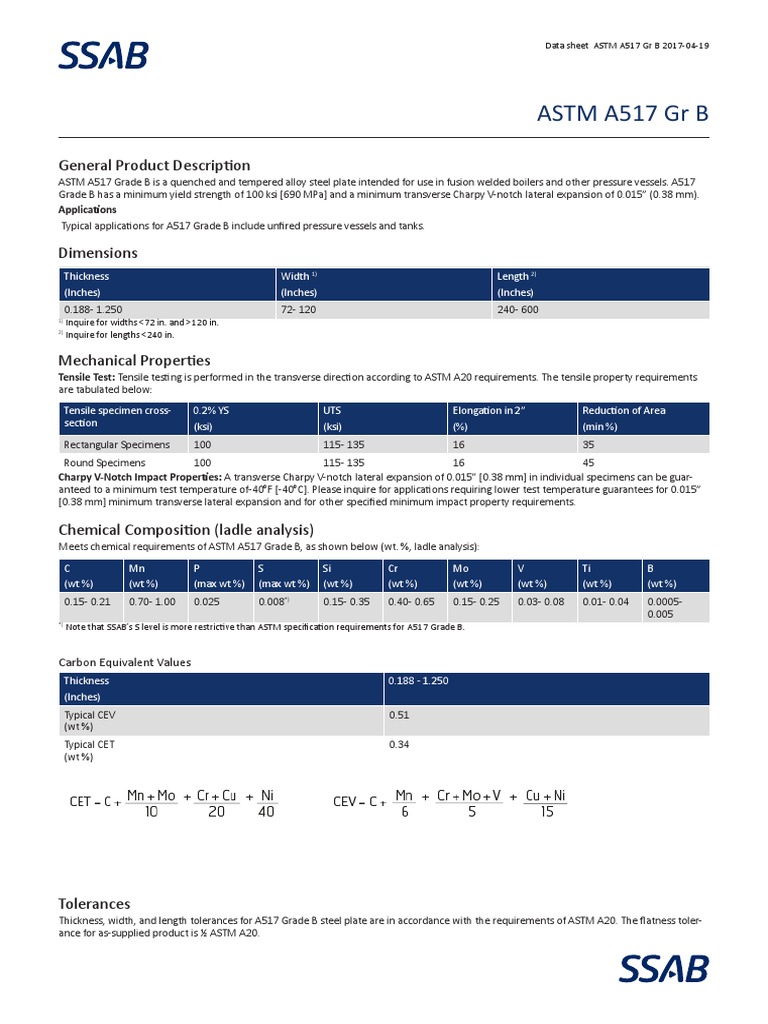

Data sheet ASTM A517 Gr B 2017-04-19

ASTM A517 Gr B

General Product Description

ASTM A517 Grade B is a quenched and tempered alloy steel plate intended for use in fusion welded boilers and other pressure vessels. A517
Grade B has a minimum yield strength of 100 ksi [690 MPa] and a minimum transverse Charpy V-notch lateral expansion of 0.015” (0.38 mm).
Applications
Typical applications for A517 Grade B include unfired pressure vessels and tanks.

Dimensions
Thickness Width 1) Length 2)
(Inches) (Inches) (Inches)
0.188- 1.250 72- 120 240- 600
1)
Inquire for widths <72 in. and >120 in.
2)
Inquire for lengths <240 in.

Mechanical Properties
Tensile Test: Tensile testing is performed in the transverse direction according to ASTM A20 requirements. The tensile property requirements
are tabulated below:
Tensile specimen cross- 0.2% YS UTS Elongation in 2” Reduction of Area
section (ksi) (ksi) (%) (min %)
Rectangular Specimens 100 115- 135 16 35
Round Specimens 100 115- 135 16 45
Charpy V-Notch Impact Properties: A transverse Charpy V-notch lateral expansion of 0.015” [0.38 mm] in individual specimens can be guar-
anteed to a minimum test temperature of-40°F [-40°C]. Please inquire for applications requiring lower test temperature guarantees for 0.015”
[0.38 mm] minimum transverse lateral expansion and for other specified minimum impact property requirements.

Chemical Composition (ladle analysis)

Meets chemical requirements of ASTM A517 Grade B, as shown below (wt. %, ladle analysis):


C Mn P S Si Cr Mo V Ti B
(wt %) (wt %) (max wt %) (max wt %) (wt %) (wt %) (wt %) (wt %) (wt %) (wt %)
0.15- 0.21 0.70- 1.00 0.025 0.008*) 0.15- 0.35 0.40- 0.65 0.15- 0.25 0.03- 0.08 0.01- 0.04 0.0005-
0.005
*)
Note that SSAB’s S level is more restrictive than ASTM specification requirements for A517 Grade B.

Carbon Equivalent Values
Thickness 0.188 - 1.250
(Inches)
Typical CEV 0.51
(wt %)
Typical CET 0.34
(wt %)

Tolerances
Thickness, width, and length tolerances for A517 Grade B steel plate are in accordance with the requirements of ASTM A20. The flatness toler-
ance for as-supplied product is ½ ASTM A20.
 Data sheet ASTM A517 Gr B 2017-04-19

Delivery Conditions
ASTM A517 Grade B is supplied in the quenched and tempered condition.

Formability Properties
A517 Grade B material exhibits good cold forming characteristics. Shear burrs and heat-affected zones of thermal cut edges on or near the
bend axis as well as sharp corners on edges and on gas cut or punched holes located on or adjacent to the bend axis should be removed by
grinding prior cold forming. The following recommended minimum inside bend radius, R, and die width opening, W, as a function of bending
orientation are provided:
Thickness Bend axis perpendicu- Bend axis perpendicular Bend axis parallel to Bend axis parallel to
(in. [mm]) lar to rolling direction. to rolling direction. Die rolling direction. Inside rolling direction. Die
Inside radius, R, (min.) width, W. radius, R, (min.) width, W.
0.1875 – 0.75 [4.8 – 19] 1.75t 7t 2.625t 9t
>0.75 – 1.00 [>19 – 25.4] 2.25t 8t 3.375t 10t
>1.00 – 1.25 [>25.4 – 4.5t 12t 6.75t 16t
31.8]

Weldability
Welding of A517 Grade B shall be performed in accordance with the applicable welding code. In the absence of a specified welding code, the
following suggested minimum preheat and interpass temperatures and welding consumables are provided. Special welding consumables and
welding procedures may be required to avoid detrimental effects on the mechanical properties of the base metal. Low hydrogen practices are
strongly recommended, including the removal of surface moisture. A517 Grade B may be susceptible to reheat cracking in the heat-affected
zone of welds during stress relieving or postweld heat treatment. As a result, SSAB recommends that a qualified welding engineer consider this
potential before stress relieving weldments of this product.
Welding Process Thickness Minimum Preheat and Interpass Consumables
(in. [mm]) Temperature
(°F [°C])
Shielded Metal Arc (SMAW) < 0.375 [< 9.5] 65 [18] AWS E10015-X, E10016-X,
E10018-X, E10018-M
Shielded Metal Arc (SMAW) 0.375 to < 0.75 [9.5 to < 19] 175 [79] AWS E10015-X, E10016-X,
E10018-X, E10018-M
Shielded Metal Arc (SMAW) 0.75 to 1.25 [19 to 31.8] 230 [110] AWS E10015-X, E10016-X,
E10018-X, E10018-M
Gas Metal Arc (GMAW) < 0.375 [< 9.5] 65 [18] AWS ER110S-XXX-XX


Gas Metal Arc (GMAW) 0.375 to < 0.75 [9.5 to < 19] 175 [79] AWS ER110S-XXX-XX
Gas Metal Arc (GMAW) 0.75 to 1.25 [19 to 31.8] 230 [110] AWS ER110S-XXX-XX
Submerged Arc (SAW) < 0.375 [< 9.5] 65 [18] AWS F11XX-EXXX-XX, F11XX-
ECXXX-XX
Submerged Arc (SAW) 0.375 to < 0.75 [9.5 to < 19] 175 [79] AWS F11XX-EXXX-XX, F11XX-
ECXXX-XX
Submerged Arc (SAW) 0.75 to 1.25 [19 to 31.8] 230 [110] AWS F11XX-EXXX-XX, F11XX-
ECXXX-XX
Flux Cored Arc (FCAW) < 0.375 [< 9.5] 65 [18] AWS E11XTX-X, E11XTX-XM
Flux Cored Arc (FCAW) 0.375 to < 0.75 [9.5 to < 19] 175 [79] AWS E11XTX-X, E11XTX-XM
Flux Cored Arc (FCAW) 0.75 to 1.25 [19 to 31.8] 230 [110] AWS E11XTX-X, E11XTX-XM
