VLSIGURU DFT TRAINING SCAN INSERTION LAB OBSERVATIONS

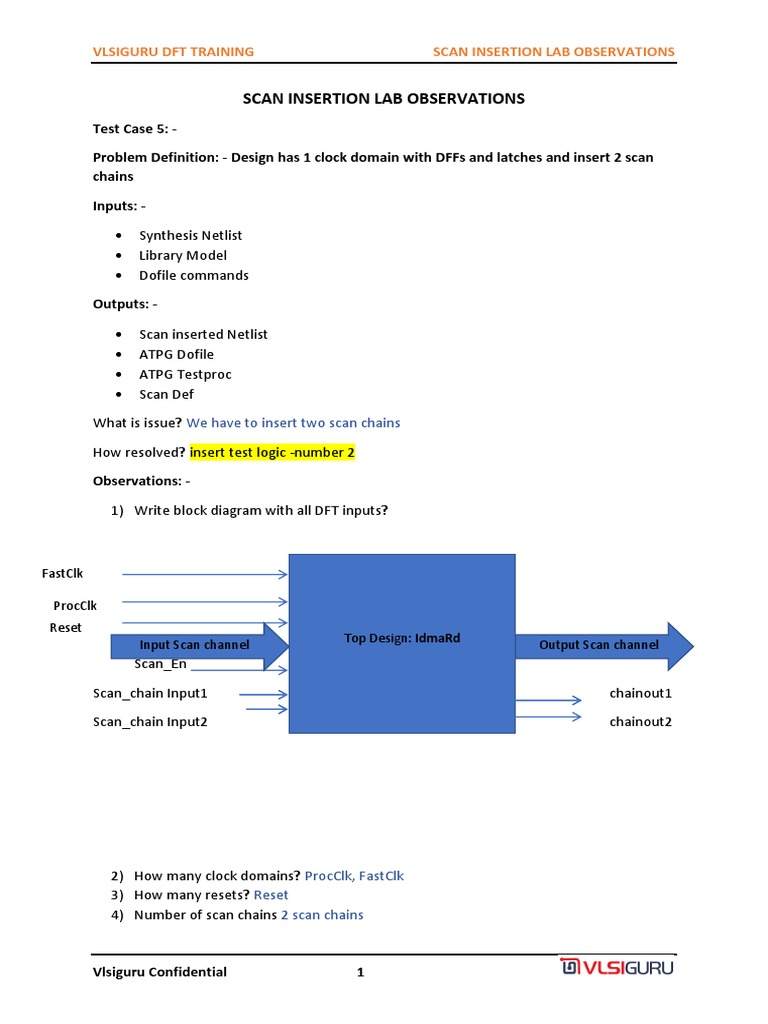

SCAN INSERTION LAB OBSERVATIONS

Test Case 5: -
Problem Definition: - Design has 1 clock domain with DFFs and latches and insert 2 scan
chains
Inputs: -

 Synthesis Netlist
 Library Model
 Dofile commands
Outputs: -

 Scan inserted Netlist

 ATPG Dofile
 ATPG Testproc
 Scan Def
What is issue? We have to insert two scan chains
How resolved? insert test logic -number 2
Observations: -
1) Write block diagram with all DFT inputs?

FastClk

ProcClk
Reset
Top Design: IdmaRd
Input Scan channel Output Scan channel
Scan_En
Scan_chain Input1 chainout1
Scan_chain Input2 chainout2

2) How many clock domains? ProcClk, FastClk

3) How many resets? Reset
4) Number of scan chains 2 scan chains

Vlsiguru Confidential 1
VLSIGURU DFT TRAINING SCAN INSERTION LAB OBSERVATIONS

5) Clock mixing or not clock mixing? Not clock mixing

6) How many Lockup-latches are added during scan insertion? zero
7) Is it top-down or bottom up approach? Top-down approach
8) How many terminal lockup latches are added? zero
9) Number of scan flops and non-scan flops in the design? 54 scanable flops and 2 non-
scan elements as latch
10) Chain length? 2(total 54 memory elements)
domain[0] #cells:26, #chains:1
domain[1] #cells:28, #chains:2
11)Number of DRC violations? C8,C9,D5

12) Log file: - please note your observations from the log file
Top module is IdmaRd
Number of shift registers =0
Number of INV inserted =0
Number of MUX inserted =0
No of no scan memory element =56
No of non scan memory element converted to scanable =54
Number of new Pins inserted= 5 (2 scan inputs, 2 scan outputs, scan_en )

Vlsiguru Confidential 2
