VLSIGURU DFT TRAINING SCAN INSERTION LAB OBSERVATIONS

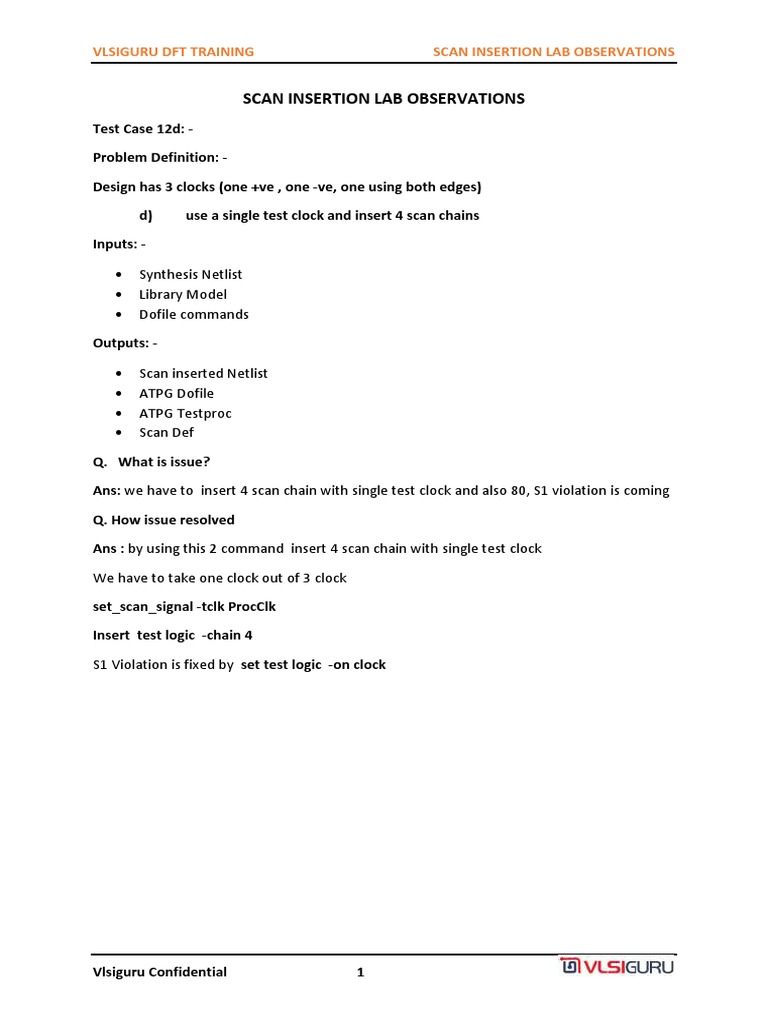

SCAN INSERTION LAB OBSERVATIONS

Test Case 12d: -
Problem Definition: -
Design has 3 clocks (one +ve , one -ve, one using both edges)
d) use a single test clock and insert 4 scan chains
Inputs: -

 Synthesis Netlist
 Library Model
 Dofile commands
Outputs: -

 Scan inserted Netlist

 ATPG Dofile
 ATPG Testproc
 Scan Def
Q. What is issue?
Ans: we have to insert 4 scan chain with single test clock and also 80, S1 violation is coming
Q. How issue resolved
Ans : by using this 2 command insert 4 scan chain with single test clock
We have to take one clock out of 3 clock
set_scan_signal -tclk ProcClk
Insert test logic -chain 4
S1 Violation is fixed by set test logic -on clock

Vlsiguru Confidential 1
 VLSIGURU DFT TRAINING SCAN INSERTION LAB OBSERVATIONS

Observations: -

1) Write block diagram with all DFT inputs?

ProcClk

Test_en

Input Scan channel Output Scan channel

Top Design: Idma
Scan_en
Scan_chain Input1 sca
Scan_out1
Scan_chain Input2 Scan_out2
Scan_out3
Scan_chain input3
Sacn_out4
Scan_chain input4

2) How many clock domains? ProcClk

3) How many resets? Reset
4) Number of scan chains 4 scan chains
5) Clock mixing or not clock mixing? No clockmixing
6) How many Lockup-latches are added during scan insertion? 0
7) Is it top-down or bottom up approach? Top Down approach
8) How many terminal lockup latches are added? 0
9) Number of scan flops and non-scan flops in the design? 128 scanable flops and 2 non-
scan elements
10) Chain length? 2 (total 128 memory elements)
#chains: 1 , 7
#chain 2, 41
#chain 3,40
#chain 4,40

11)Number of DRC violations? C8,C9,D5,D7,S1

Vlsiguru Confidential 2
VLSIGURU DFT TRAINING SCAN INSERTION LAB OBSERVATIONS

11) Write diagram with issue

Q.12) write solve issue

Q.13 Log file: - please note your observations from the log file
Top module is Idma
Number of shift registers =0
Number of INV inserted =0
Number of lockup latch =0
Number of MUX inserted =2
Number of terminal Lockup latch added =0
No of scan memory element =130
No of non scan memory element converted to scanable =128
Number of new Pins inserted= 10 ( 4 scan inputs,4 scan_output, test_en,scan_en )
