Project:

Project no:
Author:

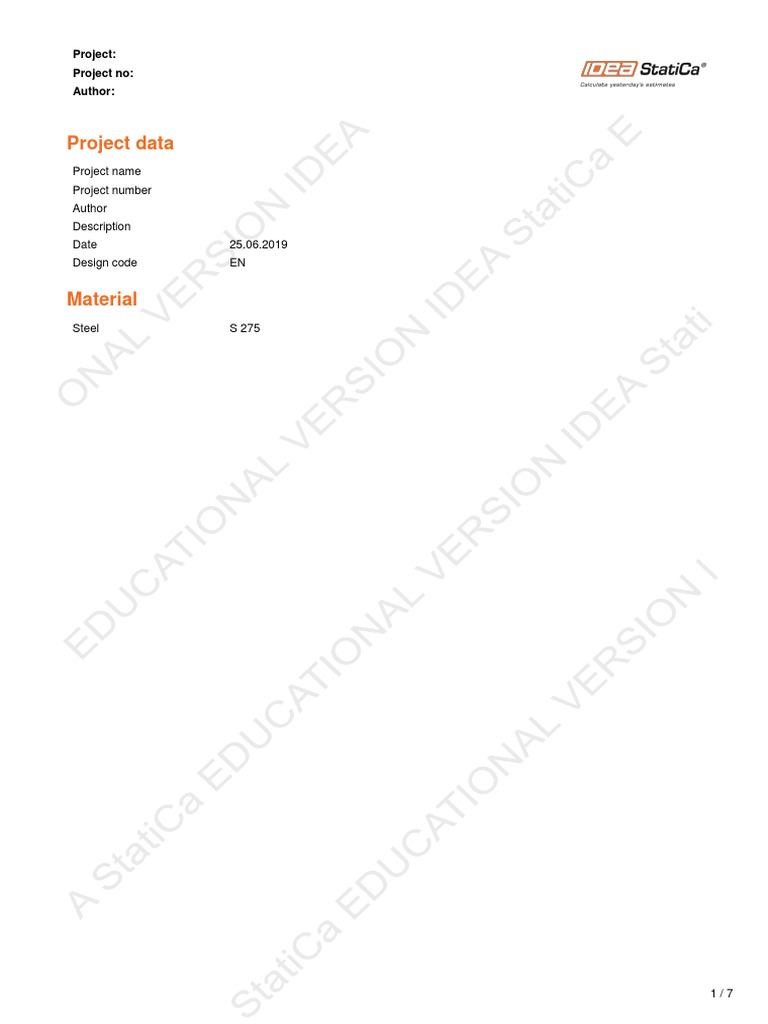

Project data
Project name
Project number
Author
Description
Date 25.06.2019
Design code EN

Material
Steel S 275

1/7
Project:
Project no:
Author:

Project item CON1

Design
Name CON1
Description
Analysis Stress, strain/ simplified loading

Beams and columns

β – Direction γ - Pitch α - Rotation Offset ex Offset ey Offset ez X
Name Cross-section Forces in
[°] [°] [°] [mm] [mm] [mm] [mm]
C 1 - HEB180 0.0 90.0 0.0 0 0 0 Node 0
B 2 - IPE240 0.0 -10.0 0.0 0 0 0 Node 0

Cross-sections
Name Material
1 - HEB180 S 275
2 - IPE240 S 275

Bolts
Diameter fu Gross area
Name Bolt assembly
[mm] [MPa] [mm2]
M16 8.8 M16 8.8 16 800.0 201

Load effects (equilibrium not required)

N Vy Vz Mx My Mz
Name Member
[kN] [kN] [kN] [kNm] [kNm] [kNm]
LE1 B 0.0 0.0 -80.0 0.0 60.0 0.0
2/7
Project:
Project no:
Author:

Check

Summary
Name Value Status
Analysis 100.0% OK
Plates 2.0 < 5% OK
Bolts 108.6 > 100% Not OK!
Welds 100.0 < 100% OK
Buckling Not calculated

Plates
Thickness σEd εPl
Name Loads Status
[mm] [MPa] [1e-4]
C-bfl 1 14.0 LE1 276.0 45.4 OK
C-tfl 1 14.0 LE1 278.1 146.4 OK
C-w 1 8.5 LE1 279.2 201.3 OK
B-bfl 1 9.8 LE1 275.5 24.3 OK
B-tfl 1 9.8 LE1 275.1 3.9 OK
B-w 1 6.2 LE1 273.1 7.5 OK
STIFF1a 10.0 LE1 275.7 35.3 OK
STIFF1b 10.0 LE1 275.7 33.4 OK
STIFF1c 10.0 LE1 266.8 7.0 OK
STIFF1d 10.0 LE1 266.4 6.8 OK
EP1 16.0 LE1 276.1 51.5 OK

Design data

fy εlim
Material
[MPa] [1e-4]
S 275 275.0 500.0

Symbol explanation
εPl Strain
σEd Eq. stress

3/7
 Project:
Project no:
Author:

Overall check, LE1

Strain check, LE1

4/7
 Project:
Project no:
Author:

Equivalent stress, LE1

Bolts
Ft,Ed V Utt Fb,Rd Uts Utts
Name Loads Status
[kN] [kN] [%] [kN] [%] [%]
B1 LE1 98.1 6.3 108.5 130.2 10.4 87.9 Not OK!
B2 LE1 98.2 6.3 108.6 130.2 10.4 88.0 Not OK!
B3 LE1 57.7 16.7 63.8 148.8 27.7 73.2 OK
B4 LE1 57.3 16.7 63.4 148.8 27.7 72.9 OK
B5 LE1 10.0 16.6 11.1 192.6 27.5 35.4 OK
B6 LE1 10.5 16.6 11.6 192.6 27.5 35.8 OK

Design data
Ft,Rd Bp,Rd Fv,Rd
Name
[kN] [kN] [kN]
M16 8.8 - 1 90.4 226.9 60.3

Symbol explanation
Ft,Rd Bolt tension resistance EN 1993-1-8 tab. 3.4
Ft,Ed Tension force
Bp,Rd Punching shear resistance
V Resultant of shear forces Vy, Vz in bolt
Fv,Rd Bolt shear resistance EN_1993-1-8 table 3.4
Fb,Rd Plate bearing resistance EN 1993-1-8 tab. 3.4
Utt Utilization in tension
Uts Utilization in shear
Utts Utilization in tension and shear EN 1993-1-8 table 3.4

5/7
Project:
Project no:
Author:

Welds (Plastic redistribution)

Throat th. Length σw,Ed εPl σ⏊ τ|| τ⏊ Ut Utc
Item Edge Loads [MPa] [MPa] Status
[mm] [mm] [MPa] [%] [MPa] [%] [%]
C-bfl 1 STIFF1a ◢ 5.0◣ 71 LE1 166.5 0.0 76.5 -34.5 78.1 41.1 27.0 OK
◢ 5.0◣ 71 LE1 263.6 0.0 -145.9 11.0 126.3 65.1 40.1 OK
C-w 1 STIFF1a ◢ 4.3◣ 123 LE1 255.8 0.0 192.9 51.9 82.0 63.2 26.4 OK
◢ 4.3◣ 123 LE1 121.9 0.0 -99.5 -39.0 -11.4 32.2 15.5 OK
C-tfl 1 STIFF1a ◢ 5.0◣ 71 LE1 397.5 0.5 -248.2 -12.8 -178.8 98.2 68.2 OK
◢ 5.0◣ 71 LE1 213.4 0.0 165.1 21.5 -75.1 53.3 36.6 OK
C-bfl 1 STIFF1b ◢ 5.0◣ 71 LE1 262.1 0.0 -145.3 -7.2 -125.7 64.8 39.8 OK
◢ 5.0◣ 71 LE1 169.2 0.0 78.4 34.3 -79.5 41.8 27.2 OK
C-w 1 STIFF1b ◢ 4.3◣ 123 LE1 113.8 0.0 -103.5 26.8 5.8 33.4 14.7 OK
◢ 4.3◣ 123 LE1 230.2 0.0 180.7 -41.0 -71.5 58.3 25.6 OK
C-tfl 1 STIFF1b ◢ 5.0◣ 71 LE1 277.5 0.0 177.1 -24.5 120.9 68.6 41.6 OK
◢ 5.0◣ 71 LE1 397.0 0.3 -248.6 40.2 174.2 98.1 66.5 OK
C-bfl 1 STIFF1c ◢ 5.0◣ 71 LE1 257.6 0.0 109.2 -1.6 134.7 63.7 37.9 OK
◢ 5.0◣ 71 LE1 221.7 0.0 -56.9 -109.1 58.3 54.8 36.9 OK
C-w 1 STIFF1c ◢ 4.3◣ 123 LE1 199.5 0.0 10.3 -90.3 -71.2 49.3 29.1 OK
◢ 4.3◣ 123 LE1 188.0 0.0 94.5 88.5 -31.0 46.5 34.6 OK
C-tfl 1 STIFF1c ◢ 5.0◣ 71 LE1 396.7 0.0 185.6 55.4 194.7 98.0 51.3 OK
◢ 5.0◣ 71 LE1 88.5 0.0 6.7 19.8 -46.9 21.9 11.4 OK
C-bfl 1 STIFF1d ◢ 5.0◣ 71 LE1 221.1 0.0 -57.0 108.7 -58.3 54.6 36.9 OK
◢ 5.0◣ 71 LE1 257.5 0.0 109.2 1.7 -134.6 63.6 37.9 OK
C-w 1 STIFF1d ◢ 4.3◣ 123 LE1 187.6 0.0 94.4 -88.3 31.1 46.4 34.5 OK
◢ 4.3◣ 123 LE1 199.1 0.0 10.1 89.9 71.4 49.2 29.1 OK
C-tfl 1 STIFF1d ◢ 5.0◣ 71 LE1 89.0 0.0 6.4 -20.8 46.8 22.0 11.3 OK
◢ 5.0◣ 71 LE1 396.6 0.0 184.9 -56.1 -194.7 98.0 51.0 OK
EP1 B-bfl 1 ◢ 4.9◣ 120 LE1 400.5 2.4 -71.5 -5.2 -227.5 99.0 98.6 OK
◢ 4.9◣ 120 LE1 401.3 2.9 -258.7 4.9 177.0 99.2 98.8 OK
EP1 B-tfl 1 ◢ 4.9◣ 120 LE1 345.9 0.0 -253.5 -0.3 -135.9 85.5 46.4 OK
◢ 4.9◣ 120 LE1 310.1 0.0 160.4 -111.8 -104.8 76.6 65.4 OK
EP1 B-w 1 ◢ 3.1◣ 234 LE1 404.5 4.9 201.2 -23.3 201.3 100.0 83.5 OK
◢ 3.1◣ 234 LE1 404.5 4.9 201.3 23.3 -201.3 100.0 83.1 OK

Design data

βw σw,Rd 0.9 σ
[-] [MPa] [MPa]
S 275 0.85 404.7 309.6

6/7
 Project:
Project no:
Author:

Symbol explanation
εPl Strain
σw,Ed Equivalent stress
σw,Rd Equivalent stress resistance
σ⏊ Perpendicular stress
τ|| Shear stress parallel to weld axis
τ⏊ Shear stress perpendicular to weld axis
0.9 σ Perpendicular stress resistance - 0.9*fu/γM2
βw Corelation factor EN 1993-1-8 tab. 4.1
Ut Utilization
Utc Weld capacity utilization

Buckling
Buckling analysis was not calculated.

Code settings
Item Value Unit Reference
γM0 1.00 - EN 1993-1-1: 6.1
γM1 1.00 - EN 1993-1-1: 6.1
γM2 1.25 - EN 1993-1-1: 6.1
γM3 1.25 - EN 1993-1-8: 2.2
γC 1.50 - EN 1992-1-1: 2.4.2.4
γInst 1.20 - ETAG 001-C: 3.2.1
Joint coefficient βj 0.67 - EN 1993-1-8: 6.2.5
Effective area - influence of mesh size 0.10 -
Friction coefficient - concrete 0.25 - EN 1993-1-8
Friction coefficient in slip-resistance 0.30 - EN 1993-1-8 tab 3.7
Limit plastic strain 0.05 - EN 1993-1-5
Weld stress evaluation Plastic redistribution
Detailing No
Distance between bolts [d] 2.20 - EN 1993-1-8: tab 3.3
Distance between bolts and edge [d] 1.20 - EN 1993-1-8: tab 3.3
Concrete breakout resistance Yes ETAG 001-C
Use calculated αb in bearing check. Yes EN 1993-1-8: tab 3.4

7/7
