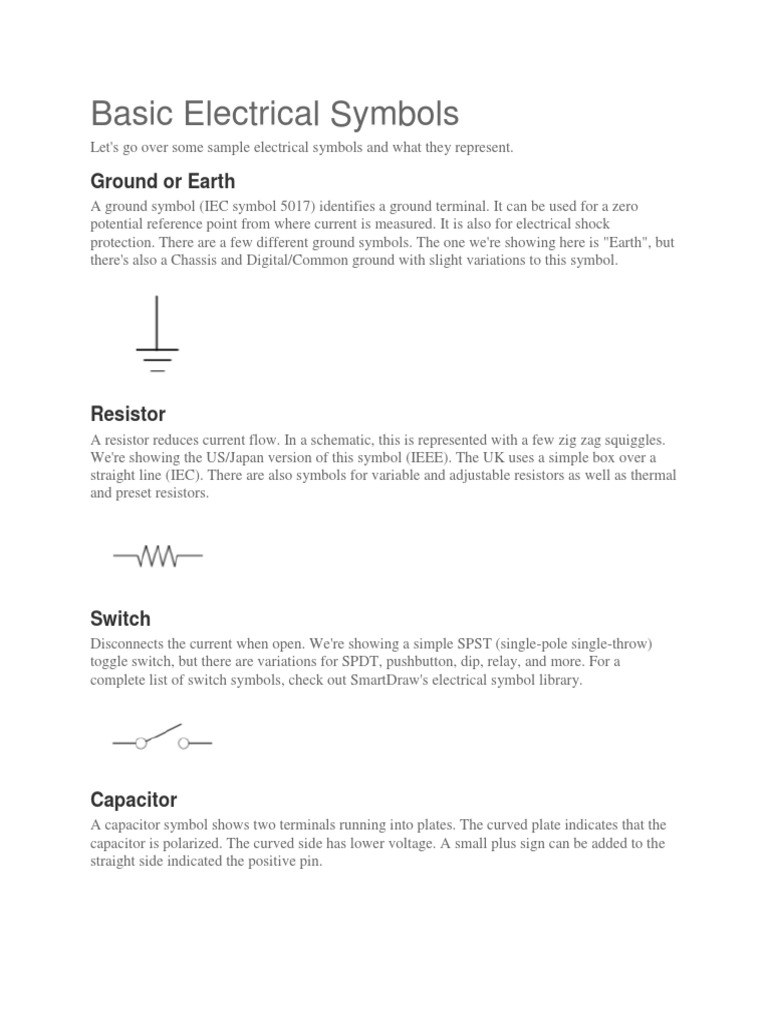

Basic Electrical Symbols

Let's go over some sample electrical symbols and what they represent.

Ground or Earth
A ground symbol (IEC symbol 5017) identifies a ground terminal. It can be used for a zero
potential reference point from where current is measured. It is also for electrical shock
protection. There are a few different ground symbols. The one we're showing here is "Earth", but
there's also a Chassis and Digital/Common ground with slight variations to this symbol.

Resistor
A resistor reduces current flow. In a schematic, this is represented with a few zig zag squiggles.
We're showing the US/Japan version of this symbol (IEEE). The UK uses a simple box over a
straight line (IEC). There are also symbols for variable and adjustable resistors as well as thermal
and preset resistors.

Switch
Disconnects the current when open. We're showing a simple SPST (single-pole single-throw)
toggle switch, but there are variations for SPDT, pushbutton, dip, relay, and more. For a
complete list of switch symbols, check out SmartDraw's electrical symbol library.

Capacitor
A capacitor symbol shows two terminals running into plates. The curved plate indicates that the
capacitor is polarized. The curved side has lower voltage. A small plus sign can be added to the
straight side indicated the positive pin.
Fuse
A fuse protects electrical circuits by stopping the flow of current when the intensity of current
exceed a set value. It does this by melting a special wire.

Antenna
Marks a device, rod, or wire designed to capture radio and electromagnetic waves into electrical
signals and vice versa.

Inductor
An inductor is also called a coil or reactor. The coils store energy in a magnetic field or flux. An
inductor symbol looks like a series of looped coils.

Transformer
A transformer is two or more coils coupled by magnetic induction. It helps keep the frequency
and reduce tension in an AC circuit.
Motor
A motor is a device that can transform electric energy into mechanical energy.

Source
Represents the power source for your electronics. This symbol represent a direct current (DC).
To represent AC current, you'd replace the plus and minus sign with a wave.

Battery
Batteries are represented on a schematic with a pair of disproportionate, parallel lines. The
number of lines indicates the number of series cells in the battery.

Diode
A diode only allows current to flow in one direction. It's always polarized with an anode (A,
positive) and cathode side (C, negative).

Diode LED
A diede LED is a standard diode symbol with two small arrows showing the emission of light.
