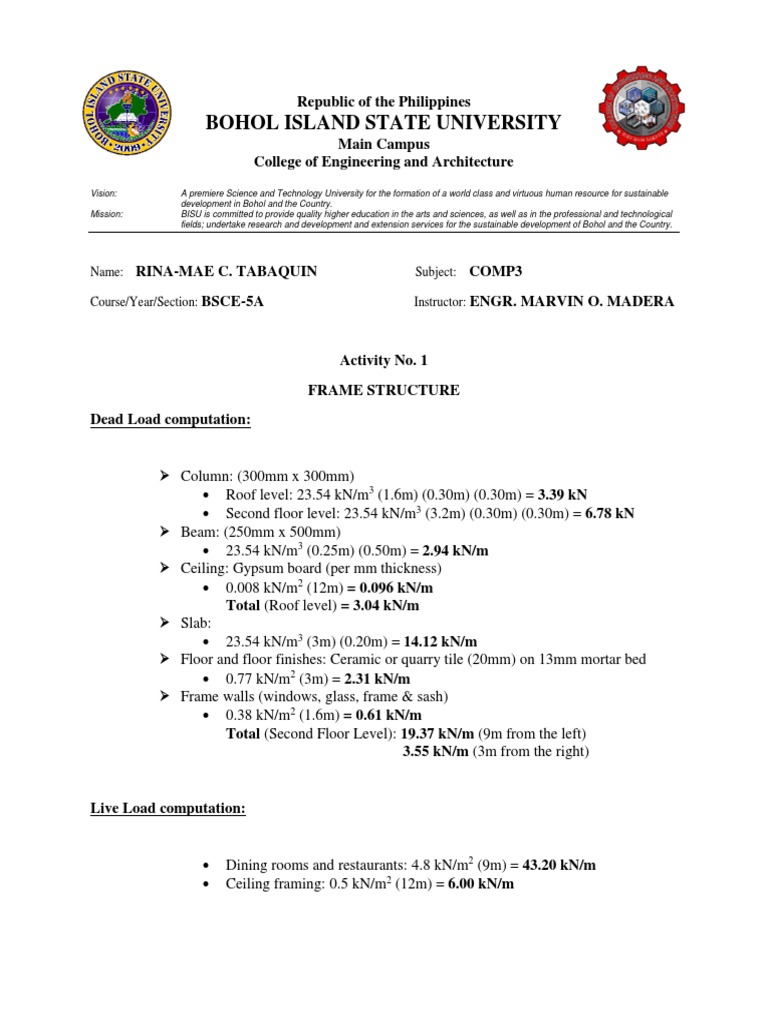

Activity No. 1
FRAME STRUCTURE
Dead Load computation:

 Column: (300mm x 300mm)

 Roof level: 23.54 kN/m3 (1.6m) (0.30m) (0.30m) = 3.39 kN
 Second floor level: 23.54 kN/m3 (3.2m) (0.30m) (0.30m) = 6.78 kN
 Beam: (250mm x 500mm)
 23.54 kN/m3 (0.25m) (0.50m) = 2.94 kN/m
 Ceiling: Gypsum board (per mm thickness)
 0.008 kN/m2 (12m) = 0.096 kN/m
Total (Roof level) = 3.04 kN/m
 Slab:
 23.54 kN/m3 (3m) (0.20m) = 14.12 kN/m
 Floor and floor finishes: Ceramic or quarry tile (20mm) on 13mm mortar bed
 0.77 kN/m2 (3m) = 2.31 kN/m
 Frame walls (windows, glass, frame & sash)
 0.38 kN/m2 (1.6m) = 0.61 kN/m
Total (Second Floor Level): 19.37 kN/m (9m from the left)
3.55 kN/m (3m from the right)

Live Load computation:

 Dining rooms and restaurants: 4.8 kN/m2 (9m) = 43.20 kN/m

 Ceiling framing: 0.5 kN/m2 (12m) = 6.00 kN/m
 Dead Load

 Live Load
 Ultimate Load Diagrams

 Support Reactions

 Axial Force
 Shear Force

 Bending Moment
