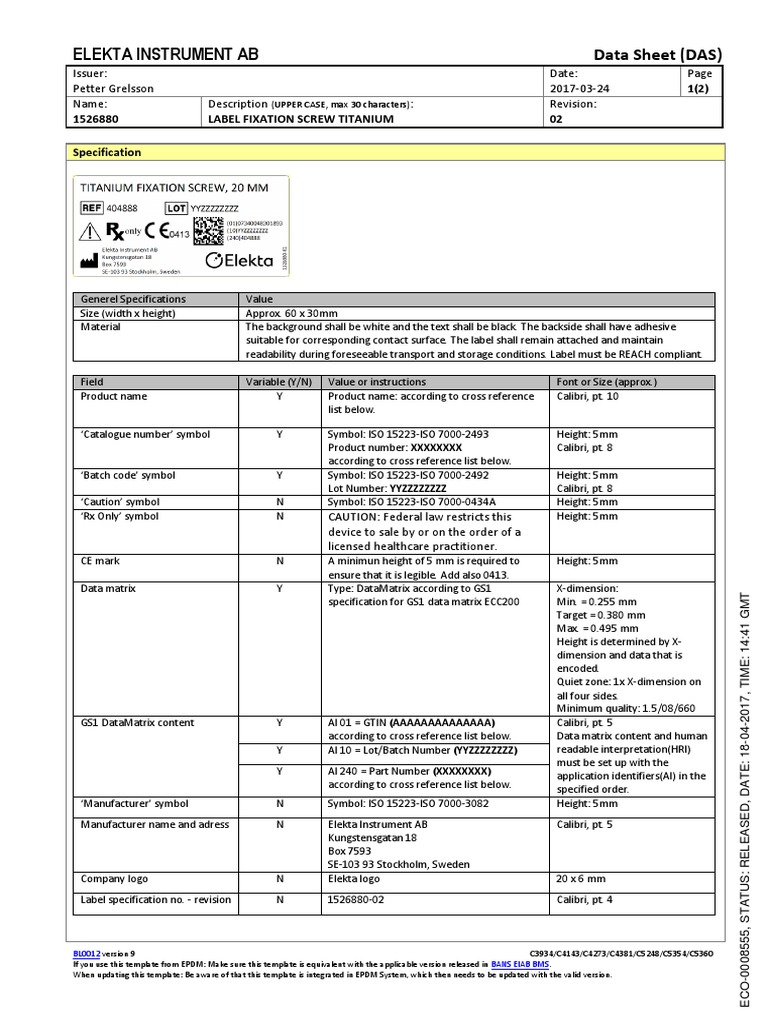

Size (width x height) Approx. 60 x 30mm Material The background shall be white and the text shall be black. The backside shall have adhesive suitable for corresponding contact surface. The label shall remain attached and maintain readability during foreseeable transport and storage conditions. Label must be REACH compliant.
Field Variable (Y/N) Value or instructions Font or Size (approx.)
Product name Y Product name: according to cross reference Calibri, pt. 10 list below.
‘Catalogue number’ symbol Y Symbol: ISO 15223-ISO 7000-2493 Height: 5mm
Product number: XXXXXXXX Calibri, pt. 8 according to cross reference list below. ‘Batch code’ symbol Y Symbol: ISO 15223-ISO 7000-2492 Height: 5mm Lot Number: YYZZZZZZZZ Calibri, pt. 8 ‘Caution’ symbol N Symbol: ISO 15223-ISO 7000-0434A Height: 5mm ‘Rx Only’ symbol N CAUTION: Federal law restricts this Height: 5mm device to sale by or on the order of a licensed healthcare practitioner. CE mark N A minimun height of 5 mm is required to Height: 5mm ensure that it is legible. Add also 0413. Data matrix Y Type: DataMatrix according to GS1 X-dimension:
specification for GS1 data matrix ECC200 Min. = 0.255 mm Target = 0.380 mm Max. = 0.495 mm Height is determined by X- dimension and data that is encoded. Quiet zone: 1x X-dimension on all four sides. Minimum quality: 1.5/08/660 GS1 DataMatrix content Y AI 01 = GTIN (AAAAAAAAAAAAAA) Calibri, pt. 5 according to cross reference list below. Data matrix content and human Y AI 10 = Lot/Batch Number (YYZZZZZZZZ) readable interpretation(HRI) must be set up with the Y AI 240 = Part Number (XXXXXXXX) application identifiers(AI) in the according to cross reference list below. specified order. ‘Manufacturer’ symbol N Symbol: ISO 15223-ISO 7000-3082 Height: 5mm Manufacturer name and adress N Elekta Instrument AB Calibri, pt. 5 Kungstensgatan 18 Box 7593 SE-103 93 Stockholm, Sweden Company logo N Elekta logo 20 x 6 mm Label specification no. - revision N 1526880-02 Calibri, pt. 4
BL0012 version 9 C3934/C4143/C4273/C4381/C5248/C5354/C5360
If you use this template from EPDM: Make sure this template is equivalent with the applicable version released in BANS EIAB BMS. When updating this template: Be aware of that this template is integrated in EPDM System, which then needs to be updated with the valid version. ELEKTA INSTRUMENT AB Data Sheet (DAS) Issuer: Date: Page Petter Grelsson 2017-03-24 2(2) Name: Description (UPPER CASE, max 30 characters): Revision: 1526880 LABEL FIXATION SCREW TITANIUM 02
Specification
Product number Product name GTIN
404888 TITANIUM FIXATION SCREW, 20 MM 07340048301893 404889 TITANIUM FIXATION SCREW, 22.5 MM 07340048301909 404890 TITANIUM FIXATION SCREW, 25 MM 07340048301916 707478 TITANIUM FIXATION SCREW, 30 MM 07340048301930 707479 TITANIUM FIXATION SCREW, 35 MM 07340048301954 707480 TITANIUM FIXATION SCREW, 40 MM 07340048301978 707481 TITANIUM FIXATION SCREW, 45 MM 07340048301992 707482 TITANIUM FIXATION SCREW, 50 MM 07340048302005 707483 TITANIUM FIXATION SCREW, 55 MM 07340048302012 707484 TITANIUM FIXATION SCREW, 60 MM 07340048302029 709667 TITANIUM FIXATION SCREW, 27.5 MM 07340048301923 709668 TITANIUM FIXATION SCREW, 32.5 MM 07340048301947 709669 TITANIUM FIXATION SCREW, 37.5 MM 07340048301961 709670 TITANIUM FIXATION SCREW, 42.5 MM 07340048301985 709671 TITANIUM FIXATION SCREW, 65 MM 07340048302036 709672 TITANIUM FIXATION SCREW, 70 MM 07340048302043 709673 TITANIUM FIXATION SCREW, 75 MM 07340048302050 709674 TITANIUM FIXATION SCREW, 80 MM 07340048302067 709675 TITANIUM FIXATION SCREW, 90 MM 07340048302074 709676 TITANIUM FIXATION SCREW, 110 MM 07340048302081 Export Control requirements for computing & networking items: Given the scope, risks and complications created by US reexport controls, it is generally desirable to avoid US origin, or if possible keep the US content below 10% and therefore outside of US jurisdiction. Elekta will require suppliers to provide information on export control information; Export Control Classification Number (ECCN), country of manufacture and US content on in order to summarize export control restrictions on top sales levels. This has large impact on spares, e.g. a motor from US can be ok to export as a part of a system but not as a spare part.
Manufacturer/Supplier specification Selected manufacturer and manufacturer´s part number:
Possible suppliers and supplier’s part number:
Remarks
Note: To Elekta’s supplier: Supplier is not allowed to make changes to product without informing Elekta.
