Schematic diagrams

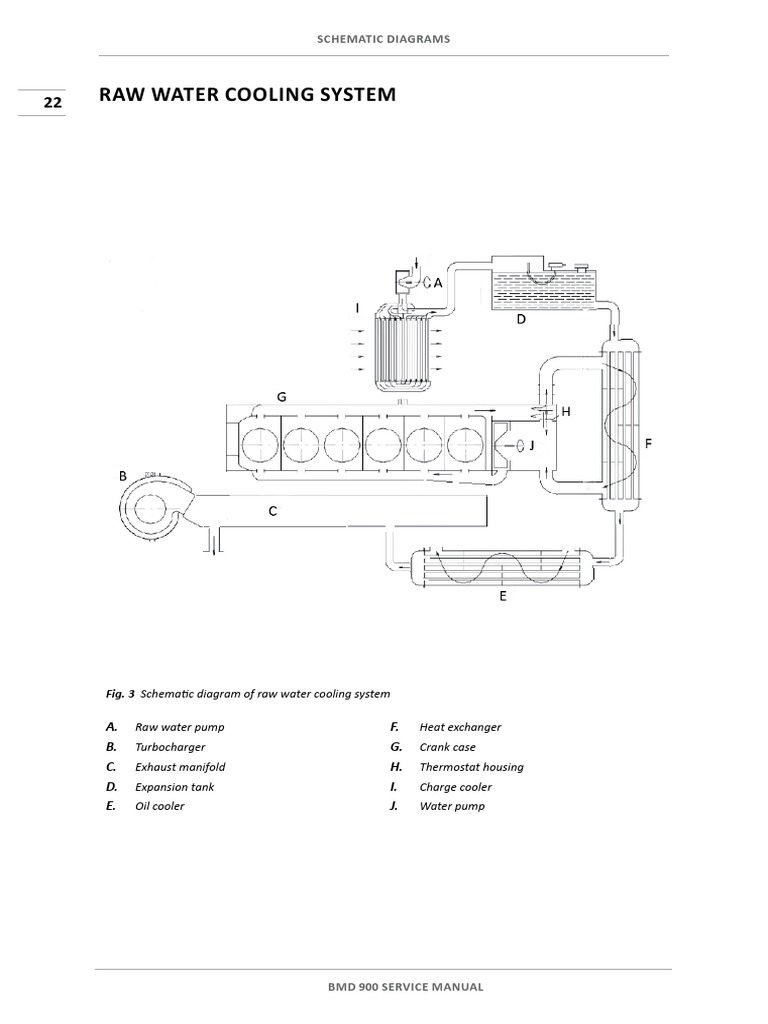

22 Raw water cooling system

Fig. 3 Schematic diagram of raw water cooling system

A. Raw water pump F. Heat exchanger

B. Turbocharger G. Crank case
C. Exhaust manifold H. Thermostat housing
D. Expansion tank I. Charge cooler
E. Oil cooler J. Water pump

BMD 900 service manual

 Schematic diagrams

Engine lubrication 23

E D C B

Fig. 4 Schematic diagram of engine lubrication

A. Relief valve F. Oil cooler

B. Oil pump G. Bypass valve
C. Oil injection nozzle H. Oil filter
D. Distributor pipe I. Exhaust turbocharger
E. Oil suction pipe

BMD 900 service manual

 Schematic diagrams

24 Engine timing

E
D

Fig. 5 Schematic diagram of engine timing

A. Intermediate gear
B. Camshaft drive gear
C. Crankshaft gear
D. Oil pump supply gear
E. Oil pump drive gear

BMD 900 service manual

 fuel System

Fuel system—overview 25

A
G

C
D

EF B

Fig. 6 Fuel system

A. Manual feed pump E. Water separator

B. Fuel pump F. Drain valve
C. Fuel filter G. Unit pump
D. Fuel prefilter H. Injection nozzle

BMD 900 service manual
