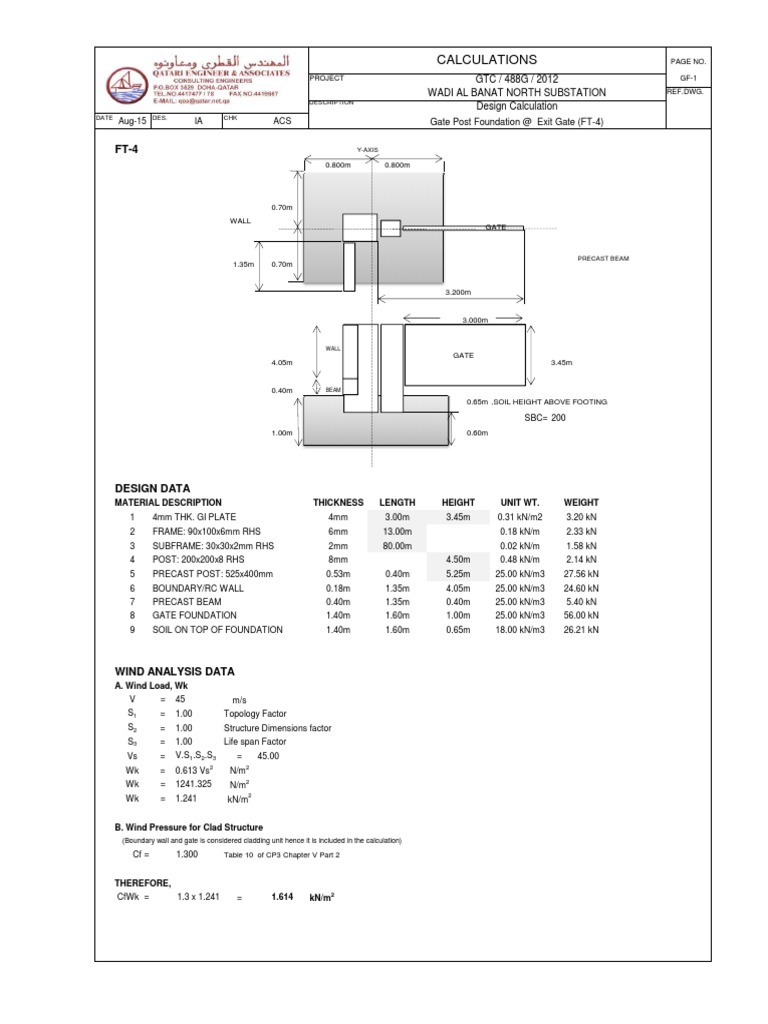

CALCULATIONS PAGE NO.

PROJECT GTC / 488G / 2012 GF-1

WADI AL BANAT NORTH SUBSTATION REF.DWG.

DESCRIPTION
Design Calculation
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

FT-4 Y-AXIS

0.800m 0.800m

0.70m
WALL
GATE

PRECAST BEAM
1.35m 0.70m

3.200m

3.000m

WALL
GATE
4.05m 3.45m

0.40m BEAM

0.65m ,SOIL HEIGHT ABOVE FOOTING

SBC= 200
1.00m 0.60m

DESIGN DATA
MATERIAL DESCRIPTION THICKNESS LENGTH HEIGHT UNIT WT. WEIGHT
1 4mm THK. GI PLATE 4mm 3.00m 3.45m 0.31 kN/m2 3.20 kN
2 FRAME: 90x100x6mm RHS 6mm 13.00m 0.18 kN/m 2.33 kN
3 SUBFRAME: 30x30x2mm RHS 2mm 80.00m 0.02 kN/m 1.58 kN
4 POST: 200x200x8 RHS 8mm 4.50m 0.48 kN/m 2.14 kN
5 PRECAST POST: 525x400mm 0.53m 0.40m 5.25m 25.00 kN/m3 27.56 kN
6 BOUNDARY/RC WALL 0.18m 1.35m 4.05m 25.00 kN/m3 24.60 kN
7 PRECAST BEAM 0.40m 1.35m 0.40m 25.00 kN/m3 5.40 kN
8 GATE FOUNDATION 1.40m 1.60m 1.00m 25.00 kN/m3 56.00 kN
9 SOIL ON TOP OF FOUNDATION 1.40m 1.60m 0.65m 18.00 kN/m3 26.21 kN

WIND ANALYSIS DATA

A. Wind Load, Wk
V = 45 m/s
S1 = 1.00 Topology Factor
S2 = 1.00 Structure Dimensions factor
S3 = 1.00 Life span Factor
Vs = V.S1.S2.S3 = 45.00
Wk = 0.613 Vs2 N/m2
2
Wk = 1241.325 N/m
Wk = 1.241 kN/m2

B. Wind Pressure for Clad Structure

(Boundary wall and gate is considered cladding unit hence it is included in the calculation)

Cf = 1.300 Table 10 of CP3 Chapter V Part 2

THEREFORE,
2
CfWk = 1.3 x 1.241 = 1.614 kN/m
 CALCULATIONS PAGE NO.

PROJECT GF-2
GTC / 488G / 2012
REF.DWG.
WADI AL BANAT NORTH SUBSTATION
DESCRIPTION
Design Calculation
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

CASE 1 GATE IS PARALLEL TO THE HORIZONTAL AXIS.

WIND IS ACTING PERPENDICULAR TO THE HORIZONTAL AXIS.

Wind

WALL GATE

OVERTURNING
X-AXIS

RESISTING MOMENT
ABOUT X-AXIS ABOUT Y-AXIS
DUE TO DEAD LOAD WEIGHT
Moment Arm Moment Moment Arm Moment
W1, Due to GATE 7.10 kN 0.70m 4.97 0.000m 0.00
W2, Due to POST 29.70 kN 0.70m 20.79 0.800m 23.76
W3, Due to WALL 30.00 kN 0.18m 5.25 0.950m 28.50
W4, Due to FOUNDATION 82.21 kN 0.70m 57.55 0.800m 65.77
TOTAL RESISTING MOMENT = 88.56 kN.m. 118.03 kN.m.

OVERTURNING MOMENT
DUE TO WIND LOAD LENGTH HEIGHT CfWk WIND LOAD
W5, Wind acting on GATE 3.20m 3.45m 1.61 kN/m2 17.82 kN

ABOUT HORIZONTAL Moment CASE 1

X - AXIS Arm Wy1 Moment
W5, Wind acting on GATE 3.38m 17.82 kN 60.13
TOTAL OVERTURNING MOMENT = 60.13 kN.m.

ABOUT VERTICAL Moment CASE 1

Y - AXIS Arm Wx1 Moment
W1, Due to GATE 1.13m 7.10 kN 8.02
TOTAL OVERTURNING MOMENT = 8.02 kN.m.
 PAGE NO.
CALCULATIONS
PROJECT GF-3
GTC / 488G / 2012
REF.DWG.
WADI AL BANAT NORTH SUBSTATION
DESCRIPTION
Design Calculation
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

CASE 2 GATE IS OPEN 45 DEGREES FROM HORIZONTAL AXIS.

WIND IS ACTING PERPENDICULAR TO THE HORIZONTAL AXIS.

Wind

GATE

45o

OVERTURNING
X-AXIS (A-A)

WALL

RESISTING MOMENT
ABOUT X-AXIS ABOUT Y-AXIS
DESCRIPTION WEIGHT
Moment Arm Moment Moment Arm Moment
W1, Due to GATE 7.10 kN 0.70m 4.97 0.000m 0.00
W2, Due to POST 29.70 kN 0.70m 20.79 0.800m 23.76
W3, Due to WALL 30.00 kN 0.18m 5.25 0.950m 28.50
W4, Due to FOUNDATION 82.21 kN 0.70m 57.55 0.800m 65.77
TOTAL RESISTING MOMENT = 88.56 kN.m. 118.03 kN.m.

OVERTURNING MOMENT
DUE TO WIND LOAD LENGTH HEIGHT CfWk WIND LOAD
W5, Wind acting on GATE 3.20m 3.45m 1.61 kN/m2 17.82 kN

ABOUT HORIZONTAL Moment CASE 2

X - AXIS Arm Wy1 Moment
W5, Wind acting on GATE 3.38m 8.91 kN 30.06
TOTAL OVERTURNING MOMENT = 30.06 kN.m.

ABOUT VERTICAL Moment CASE 2

Y - AXIS Arm Wx1 Moment
W1, Due to GATE WEIGHT 0.69m 7.10 kN 4.90
TOTAL OVERTURNING MOMENT = 4.90 kN.m.
 CALCULATIONS PAGE NO.

PROJECT GF-4
GTC / 488G / 2012
REF.DWG.
WADI AL BANAT NORTH SUBSTATION
DESCRIPTION
DESIGN CALCULATION
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

CASE 3 GATE IS OPEN 45 DEGREES FROM HORIZONTAL AXIS.

WIND IS ACTING 45 DEGREES FROM THE HORIZONTAL AXIS.

Wind
GATE

45o

OVERTURNING
AXIS
Wind

WALL
RESISTING MOMENT
ABOUT X-AXIS ABOUT Y-AXIS
DUE TO DEAD LOAD WEIGHT
Moment Arm Moment Moment Arm Moment
W1, Due to GATE 7.10 kN 0.70m 4.97 0.000m 0.00
W2, Due to POST 29.70 kN 0.70m 20.79 0.800m 23.76
W3, Due to WALL 30.00 kN 0.18m 5.25 0.950m 28.50
W4, Due to FOUNDATION 82.21 kN 0.70m 57.55 0.800m 65.77
TOTAL RESISTING MOMENT = 88.56 kN.m. 118.03 kN.m.

OVERTURNING MOMENT
DUE TO WIND LOAD LENGTH HEIGHT CfWk WIND LOAD
W5, Wind acting on GATE 3.20m 3.45m 1.61 kN/m2 17.82 kN
W6, Wind acting on WALL 1.35m 4.05m 1.61 kN/m2 8.82 kN

ABOUT HORIZONTAL Moment CASE 2

X - AXIS Arm Wy1 Moment
W5, Wind acting on GATE 3.38m 12.60 kN 42.52
W6, Wind acting on WALL 3.83m 6.24 kN 23.86
TOTAL OVERTURNING MOMENT = 66.38 kN.m.

ABOUT VERTICAL Moment CASE 2

Y - AXIS Arm Wx1 Moment
W5, Wind acting on GATE 3.38m 12.60 kN 42.52
W6, Wind acting on WALL 3.83m 6.24 kN 23.86
W1, Due to GATE WEIGHT 0.69m 7.10 kN 4.90
TOTAL OVERTURNING MOMENT = 71.28 kN.m.
 PAGE NO.
CALCULATIONS
PROJECT GF-5
GTC / 488G / 2012
REF.DWG.
WADI AL BANAT NORTH SUBSTATION
DESCRIPTION
DESIGN CALCULATION
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

SUMMARY OF MOMENTS

ABOUT HORIZONTAL CASE 1 CASE 2 CASE 3

X - AXIS MOMENT (kN.m) MOMENT (kN.m) MOMENT (kN.m)
RESISTING MOMENT 88.56 88.56 88.56
OVERTURNING MOMENT 60.13 30.06 66.38

USING MAXIMUM MOMENT,

RESISTING MOMENT 88.56
FS = = = 1.33
OVERTURNING MOMENT 66.38

ABOUT VERTICAL CASE 1 CASE 2 CASE 3

Y - AXIS MOMENT (kN.m) MOMENT (kN.m) MOMENT (kN.m)
RESISTING MOMENT 118.03 118.03 118.03
OVERTURNING MOMENT 8.02 4.90 71.28

USING MAXIMUM MOMENT,

RESISTING MOMENT 118.03
FS = = = 1.66
OVERTURNING MOMENT 71.28
 PAGE NO.
CALCULATIONS
PROJECT GF-6
GTC / 488G / 2012
REF.DWG.
WADI AL BANAT NORTH SUBSTATION
DESCRIPTION
DESIGN CALCULATION
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

CHECKING OF BEARING CAPACITY

P
All vertical loads shall be transferred to center of footing and be considered as axial load, P.
Corresponding moments from transferred vertical loads will be considered as moment, M. Mx
All horizontal loads such as wind load will be considered as moment, M.
FOUNDATION SECTION
Moment arms are horizontal distances from vertical load to center of footing.
1.60m
e

MOMENT ABOUT P, eY, Mx = Pey, R

HORIZONTAL X-AXIS Axial Load Moment Arm Moment 0.80m 0.80m
W1, Due to GATE 7.10 kN 0.00 m 0.00 kNm
W2, Due to POST 29.70 kN 0.00 m 0.00 kNm
W3, Due to WALL 30.00 kN 0.00 m 0.00 kNm Mx
ey
W4, Due to FOUNDATION 82.21 kN 0.00 m 0.00 kNm X-AXIS 1.40m
W5, Wind acting on GATE 60.13 kNm
W6, Wind acting on WALL #REF!
TOTAL = 149.02 kN #REF! FOUNDATION PLAN

Y-AXIS
q = ( R / Aeff ) ± ( M c / Ieff )
ΣP = R = 149.017 kN
ΣM = #REF! kN.m
e = #REF! m
Aeff = #REF! m3
c = #REF!
Ieff = #REF! m4

qmax = #REF! kN/m 2 #REF!

qmin = #REF! kN/m 2

MOMENT ABOUT P, eX, MY = PeX, P

VERTICAL Y-AXIS Axial Load Moment Arm Moment
My
W1, Due to GATE 7.10 kN 1.80 m 12.78 kNm
W2, Due to POST 29.70 kN 0.00 m 0.00 kNm FOUNDATION SECTION
W3, Due to WALL 30.00 kN 0.30 m 9.00 kNm
W4, Due to FOUNDATION 82.21 kN 0.00 m 0.00 kNm 1.60m
e
W5, Wind acting on GATE #REF!
W6, Wind acting on WALL #REF! R

TOTAL = 149.02 kN #REF!

q = ( R / Aeff ) ± ( M c / Ieff ) 0.7

ΣP = R = 149.017 kN My
X-AXIS
ΣM = #REF! kN.m
e = #REF! m ey
2
Aeff = #REF! m 0.7
c FOUNDATION PLAN
= #REF!
4
Ieff = #REF! m Y-AXIS

2
qmax = #REF! kN/m #REF!
qmin = #REF! kN/m 2
 PAGE NO.
CALCULATIONS
PROJECT GF-7
GTC / 488G / 2012
REF.DWG.
WADI AL BANAT NORTH SUBSTATION
DESCRIPTION
DESIGN CALCULATION
DATE DES. CHK
Aug-15 IA ACS Gate Post Foundation @ Exit Gate (FT-4)

DESIGN DATA FOR FOOTING BASE

Ultimate Moment = 106.926 kN.m
2
Conc.cube strenght fcu = 35 N/mm
Steel Yield Strength fy = = 460 N/mm2
Depth of slab considered (D) = 1050.000 mm
Width considered = 1000.000 mm

DESIGN APPROACH:
Trial main bar diameter = 16
Concrete Cover = 75
Effective Depth (d) = 967
Compression reinf. Depth (d') = 83
Link diameter = 10
% Redistribution = 0

Design Reinforcement
K' = 0.156
M
K =
fcu.b.d2
K = 0.0033
If K' > K compression reinforcement is not required
If K' < K compression reinforcement is required
z = d[ 0.50+ ( 0.25 - ( K/0.9))¹'²]
LET: a = ( 0.25 - ( K'/0.9))¹'²
a = 0.496
z = 0.996 d but < 0.95 d
but, z < 0.95 d
z = 918.650
(d - z)
x = = 107.444
0.45

Determine Required As for Footing:

M
As =
0.87.fy.z
AsREQ = 290.840 mm2
2
Asmin = 1450.500 mm , Minimum As
Determine Required Number of reinforcement
Bar diameter = 16 mm
2
Area of bar = 201.062 mm
Min. number of bars = 8 pcs / m
Spacing = 125 mm
Check minimum steel requirement for footing
2
As minimum = 0.0015(area of concrete) mm
ρ= 0.0015 mm2
2
Area of concrete = 1050000 mm
As minimum = 1575 mm2
Bar diameter = 16 mm
2
Area of bar = 201.06 mm
Min. number of bars = 8.00 pcs / m
Spacing = 125 mm
Therefore provide: T 16 - 125 mm top & bottom bars
T 16 - 125 mm transverse bars
