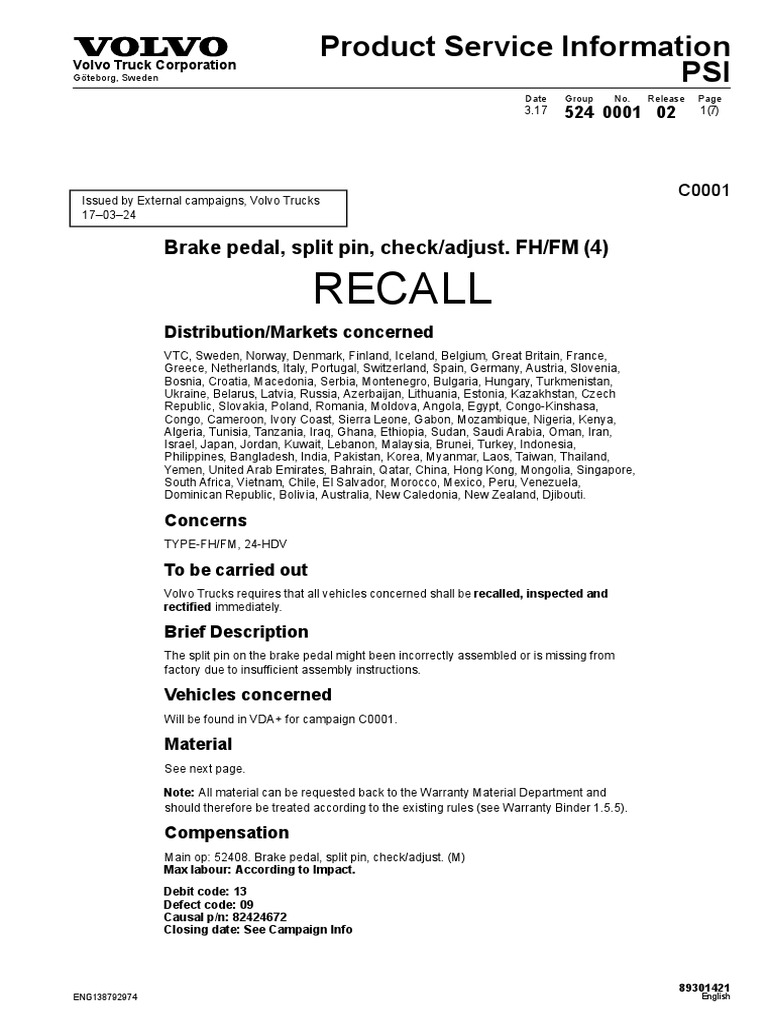

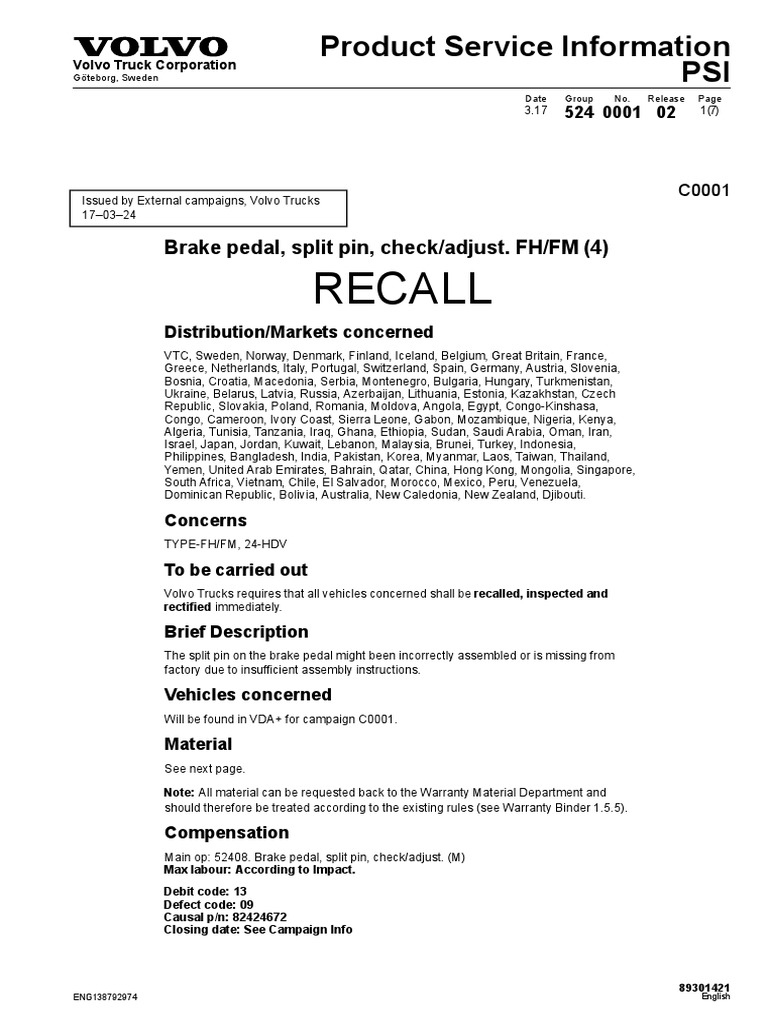

Volvo Truck Corporation

Product Service Information

Göteborg, Sweden PSI
Date Group No. Release Page
3.17 524 0001 02 1(7)

C0001
Issued by External campaigns, Volvo Trucks
17–03–24

Brake pedal, split pin, check/adjust. FH/FM (4)

RECALL
Distribution/Markets concerned
VTC, Sweden, Norway, Denmark, Finland, Iceland, Belgium, Great Britain, France,
Greece, Netherlands, Italy, Portugal, Switzerland, Spain, Germany, Austria, Slovenia,
Bosnia, Croatia, Macedonia, Serbia, Montenegro, Bulgaria, Hungary, Turkmenistan,
Ukraine, Belarus, Latvia, Russia, Azerbaijan, Lithuania, Estonia, Kazakhstan, Czech
Republic, Slovakia, Poland, Romania, Moldova, Angola, Egypt, Congo-Kinshasa,
Congo, Cameroon, Ivory Coast, Sierra Leone, Gabon, Mozambique, Nigeria, Kenya,
Algeria, Tunisia, Tanzania, Iraq, Ghana, Ethiopia, Sudan, Saudi Arabia, Oman, Iran,
Israel, Japan, Jordan, Kuwait, Lebanon, Malaysia, Brunei, Turkey, Indonesia,
Philippines, Bangladesh, India, Pakistan, Korea, Myanmar, Laos, Taiwan, Thailand,
Yemen, United Arab Emirates, Bahrain, Qatar, China, Hong Kong, Mongolia, Singapore,
South Africa, Vietnam, Chile, El Salvador, Morocco, Mexico, Peru, Venezuela,
Dominican Republic, Bolivia, Australia, New Caledonia, New Zealand, Djibouti.

Concerns
TYPE-FH/FM, 24-HDV

To be carried out
Volvo Trucks requires that all vehicles concerned shall be recalled, inspected and
rectified immediately.

Brief Description
The split pin on the brake pedal might been incorrectly assembled or is missing from
factory due to insufficient assembly instructions.

Vehicles concerned
Will be found in VDA+ for campaign C0001.

Material
See next page.

Note: All material can be requested back to the Warranty Material Department and
should therefore be treated according to the existing rules (see Warranty Binder 1.5.5).

Compensation
Main op: 52408. Brake pedal, split pin, check/adjust. (M)
Max labour: According to Impact.
Debit code: 13
Defect code: 09
Causal p/n: 82424672
Closing date: See Campaign Info

89301421
ENG138792974 English
Volvo Truck Corporation Date Group No. Release Page
Product Service Information 3.17 524 0001 02 2(7)

Material
Part No Description Max M/O Notes
qty
82424672 Shaft retainer (split pin) 1 O Only if missing

Method for left hand driven vehicles

1 Remove the plastic cover, screws and the sill moulding.
Note: For FH vehicles the lower screw for the B-pillar handle also needs to be
removed.

T5118031

2 Remove the lower outboard panel.

Floor mat needs to be folded away before removing lower nuts.

T5118032
Volvo Truck Corporation Date Group No. Release Page
Product Service Information 3.17 524 0001 02 3(7)

3 Inspect the split pin on the pedal shaft.

• Make sure the shaft is fully inserted into the pedal plate.
• If the split pin is visible, check if bent. If not it needs to be bent enough to secure the
pedal shaft.

T5118040 T5118033

• If the split pin is missing or if the shaft is mounted in the opposite direction the lower
inner panel needs to be removed in order to inspect the shaft or mount a new split pin.

T5118035
Volvo Truck Corporation Date Group No. Release Page
Product Service Information 3.17 524 0001 02 4(7)

• If the split pin is missing insert a split pin into the hole and bend it enough to secure
the shaft.

T5118034

4 Reassemble all panels.

Volvo Truck Corporation Date Group No. Release Page
Product Service Information 3.17 524 0001 02 5(7)

Method for right hand driven vehicles

1 Remove the plastic cover, screws and the sill moulding.
Note: For FH vehicles the lower screw for the B-pillar handle also needs to be
removed.

T5118036

2 Remove the lower outboard and inboard panels.

Floor mat needs to be folded away before removing lower nuts.

T5118038
T5118037
Volvo Truck Corporation Date Group No. Release Page
Product Service Information 3.17 524 0001 02 6(7)

3 Remove the lower steering column cover.

T5118039

4 Inspect the split pin on the pedal shaft.

• Make sure the shaft is fully inserted into the pedal plate.
• If the split pin is visible, check if bent. If not it needs to be bent enough to secure the
pedal shaft.

T5118040 T5118033
Volvo Truck Corporation Date Group No. Release Page
Product Service Information 3.17 524 0001 02 7(7)

• If the split pin is missing insert a split pin into the hole and bend it enough to secure
the shaft.

T5118034

5 Reassemble all panels.
