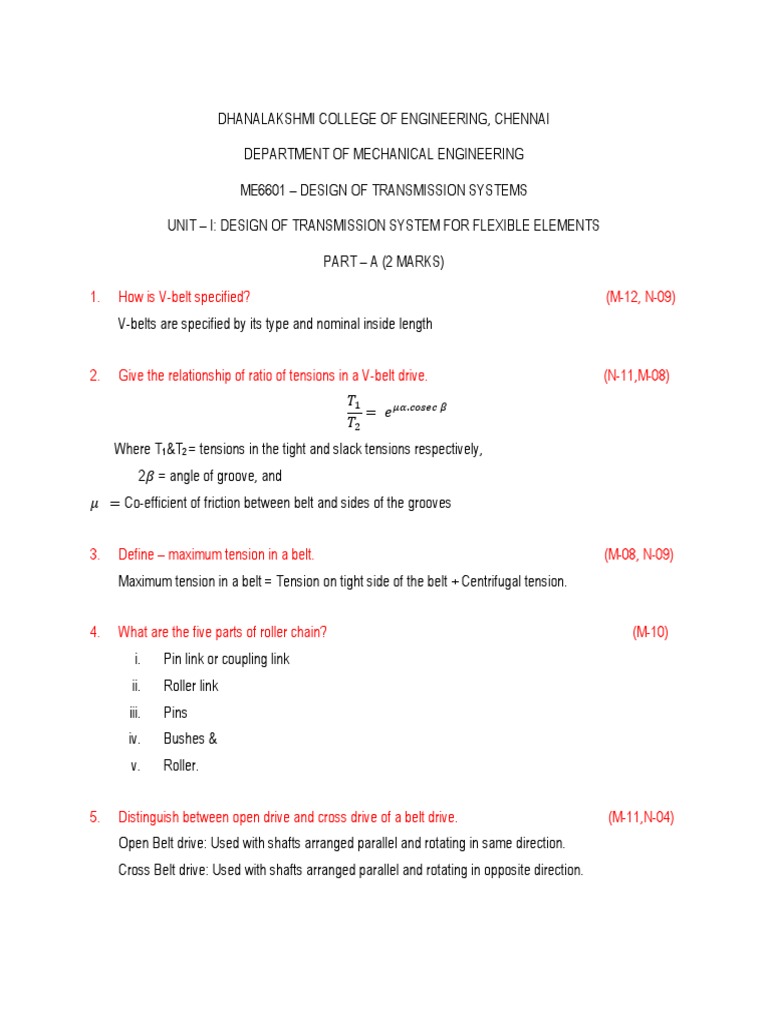

DHANALAKSHMI COLLEGE OF ENGINEERING, CHENNAI

DEPARTMENT OF MECHANICAL ENGINEERING

ME6601 – DESIGN OF TRANSMISSION SYSTEMS

UNIT – I: DESIGN OF TRANSMISSION SYSTEM FOR FLEXIBLE ELEMENTS

PART – A (2 MARKS)

1. How is V-belt specified? (M-12, N-09)

V-belts are specified by its type and nominal inside length

2. Give the relationship of ratio of tensions in a V-belt drive. (N-11,M-08)

Where T1&T2 = tensions in the tight and slack tensions respectively,

2 = angle of groove, and
Co-efficient of friction between belt and sides of the grooves

3. Define – maximum tension in a belt. (M-08, N-09)

Maximum tension in a belt = Tension on tight side of the belt + Centrifugal tension.

4. What are the five parts of roller chain? (M-10)

i. Pin link or coupling link
ii. Roller link
iii. Pins
iv. Bushes &
v. Roller.

5. Distinguish between open drive and cross drive of a belt drive. (M-11,N-04)
Open Belt drive: Used with shafts arranged parallel and rotating in same direction.
Cross Belt drive: Used with shafts arranged parallel and rotating in opposite direction.
6. Give any three applications of chain drive. What are their limitations? (M-11)
Chain drives are widely used in transportation industry, agricultural industry, metal and wood working
machines.
Limitations: Chain drives cannot be used for velocity ratio more than 10.

7. Mention the materials used for making belts. (N-11,M-13)

i. Leather
ii. Fabric and cotton
iii. Rubber
iv. Balata and
v. Nylon

8. Give the advantages of chain drives over belt drives. (M-12)

Chain drives can be used for long as well as short Centre distances.
They are more compact than belt drive.
There is no slip between chain and sprocket. So they provide positive drive.

9. Explain the term “crowing of pulley”. (M-11,N-09,M-12)

The pulley rims are tapered slightly towards the edges. This slight convexity is known as Crowning.

10. In what way silent chain is better than ordinary driving chain? (M-11)
Silent chains are preferred for high-power, high-speed, and smooth operation.

11. In what ways the timing belts are superior to ordinary V-belts? (M-15)
Flat belt and V-belt drives cannot provide a precise speed ratio, because slippage occurs at
the sheaves. But certain applications required an exact output to input speed ratio. In such
situations, timing belts are used.
12. What is meant by „chordal action of chain‟? Also name a company that produces
driving chains. (M -15)
When chain passes over a sprocket, it moves as a series of chords instead of a continuous
are as in the case of a belt drive. It results in varying speed of the chain drive. This
phenomenon is known as chordal action.
Some of the company names producing chains are: Rotomechanicalequipments, Chennai;
Monal chains limited, Mumbai; Innotechengineers ltd., New Delhi.

13. What do you understand by 6 × 19 construction in wire ropes? (N- 14)

A 6 × 19 wire rope means a rope is made from 6 strands with 19 wires in each strand.

14. Mention the losses in belt drives. (N-14)

The losses in a belt drive are due to:
I. Slip and creep of the belt on the pulleys,
II. Windage or air resistance to the movement of belt and pulleys,
III. Bending of the belt over the pulleys, and
IV. Friction in the bearings of pulley.

15. What are the factors upon which the coefficient of friction between the belt and pulley
depends? (M-14)
I. Material of belt
II. Material of pulley
III. Slip of belt
IV. Speed of belt
 PART – B

Problem 1:

Design a flat belt to transmit 12 kw at 450 rpm for an engine to a shaft running at 1200 rpm the
diameter of engine pulley is 600 mm and centre distance 2 m. (M-12)

Problem 2:
In electric motor drives the exhaust fan using flat belt design the belt drive as per the following
specification a center distance between the pulley is 2.5 m. The permissible stress on the belt is
2.5 n/mm 2 the thickness of the belt is 5 mm and its able to transmit 22.5 kw check the width of the
belt using standard formula. (N-13, M-08)

Problem 3:
Design a flat belt to transmit 12 kW 450 rpm for an engine to a shaft running at 1200 rpm the diameter of
engine pulley is 600 mm centre distance is 2 m (M-13, N-11, N-04, M-09)

Problem 4:
A Stone crushing machine receives power from motor rated at 50 kw at 1800 rpm by means of a
flat belt pulley dia are 200 mm and 700 mm distance between pulley is 4 m design the belt drive
the direction or rotation of 2 pulley opposite to each other. (M-11, N-08)

Problem 5:
Desisgn a V- belt drive to the following specifications:
Power to be transmitted = 7.5 kW
Speed of driving wheel = 1440 rpm
Speed of driven wheel = 400 rpm
Diameter of driving wheel = 300 mm
Centre distance = 1000mm
Service = 16 hours/ day. (M-12, N-09)
PROBLEM- 6:
A V- Belt having a lap of 180°has a cross section area of 2.5 cm 2 and groove angle as 45°. The
density of a belt is 0.0015 kg/cm3and maximum stress is limited to 400×104 N/ m2. If µ = 0.15, find the
power that can be transmitted, if the wheel has a mean diameter of 300 mm and runs at 1000 rpm.
 UNIT – III : SPUR GEARS AND PARALLEL AXIS HELICAL GEARS
PART – A

1 What is a herringbone gear? Where it is used? (N-09, M-12)

Herring Bone Gear :
The double helical gears connecting two parallel shafts are known as herringbone gears. They are
used in heavy machinery and gear boxes.

1. What is backlash in gears? (M -08)

Backlash is the difference between the tooth space and the tooth thickness along the pitch circle.

2. What is the advantage of helical gear over spur gear? (M -08)

 Helical gears produce less noise than spur gears.
 Helical gears have a greater load capacity than equivalent spur gears.

3. What are the common forms of gear tooth profile? (M -10)

i) Involute tooth profile, and
ii) Cycloidal tooth profile.

4. Define – module. (M-11)

Module:
It is the ratio of pitch circle diameter to the number of teeth.

5. How does failure pitting happen in gears? (N-11,M-04)

Pitting is the process during which small pits are formed on the activate surfaces of gear tooth. It is a
surface fatigue failure which occurs when the load on the gear tooth exceeds the surface endurance
strength of the material.

6. What is the effect of increasing the pressure angle in gears? (N-11)

The increase of the pressure angle results in a stronger tooth, because the tooth acting as a
beam is wider at the base.
7.Define – Law of gearing (M-12)
The law of gearing states that for obtaining a constant velocity ratio, at any instant of teeth the
common normal at each point of contact should always pass through a pitch point (fixed point),
situated on the line joining the centre‟s of rotation of the pair mating gears.

9 Define – pitch circle with reference to spur gears. (M-11)

Pitch circle:
Pitch circle is an imaginary circle which by pure rolling action, would give the same motion as the
actual gear.

10 What are the materials used for gear manufacturing? (M- 11, M-09)
Metallic gears: Steel, cast iron, and bronze.
Non-metallic gears: Wood, rowhide, compressed paper and synthetic resins.

11. Why is gear tooth subjected to dynamic load? (N-14, M-09)

i) Inaccuracies of tooth spacing
ii) Elasticity of parts
iii) Deflection of teeth under load
iv) Irregularities in tooth profiles
v) Misalignment between bearings
vi) Dynamic unbalance of rotating masses.

12. Differentiate between circular pitch and diametral pitch. (N-13,N-08,M-11)

i. Circular pitch, pc = π×m
ii. Diametral pitch, pd = π/pc = 1/m

13. Where do we use spiral gears? (N-13)

Skew gears are used to connect and transmit motion between two non-parallel and non
intersecting shafts.

14. What are the main types of gear tooth failure? (M-13)
i. Tooth breakage (due to static and dynamic loads)
ii. Tooth wear (or surface deterioration): a. Abrasion, b. Pitting and c. Scoring or seizure.
15. What are the generally used gear profiles? (M-12)
i. Involute tooth profile
ii. Cycloidal tooth profile
 PART – B (16 MARKS)

PROBLEM- 1
Design a spur gear drive to transmit 45 kw at a pinion of 800 rpm the velocity ration is 3.5 both the pinion
and wheel is made up of steel use beam strength to check the validity of your
design. (M-10)

PROBLEM- 2
Design a spur gear drive required to transmit 45 kW at a pinion speed of 800 rpm. The velocity ratio is
3.5:1. The teeth are 20º full depth involute with 18 teeth on the pinion. Both the pinion and gear are made
of steel with a maximum safe static stress of 180 N/mm2. Assume medium shock
conditions. (M-11, N-09, N-07)

PROBLEM- 3
Design a helical gear to transmit 15 kW at 1400 rpm to the following specifications: Speed reduction is 3;
Pressure angle is 20º; Helix angle is 15º; The material of both the gears is C45 steel. Allowable static stress
180 N/mm2; Surface endurance limit is 800 N/mm2; Young‟s modulus of material =2×105N/mm2. (M-10)

PROBLEM-4
A Bronze Spur gear Pinion rotating at 600 rpm drives a C.I gear at a transmissioin ratioi of 4:1 allowable
static stress for pinion and gear are 85 and 105 N/mm2 respectively. The pinion has 22 standard 20º full
depth involute teeth. The power transmitted is 32 KW .The surface endurance limit for the gear pair is 520
N/mm2 E for gear is 100 Mpa , E for pinion is 120 Mpa. If the starting torque is 25% more than the meanb
torque, design the gear drive completely. (M-13, N-04)

PROBLEM-5
A compressor running at 360 rpm is driven by a 140 KW, 1440 rpm motor through a pair of 20º full depth
helical gears of 250 centre distance is approximately 400 mm. The motor pinion is to be forged steel and
the driven gear is to be cast steel. Assume medium shock conditions .Design a gear pair. (N-10)
 UNIT – III : BEVEL, WORM AND HELICAL GEARS
PART – A (2 MARKS)

1. What is reference angle? How is it related to speed ratio of bevel gear ratio? (M-12)
The pitch angle of the bevel gear is known as reference angle.
Speed ratio, i = tan 2. 1= 90° - 2for speed ratios as high as 300:1.

2. What is the effect of increasing the pressure angle in gears? (N-11)

The increase of the pressure angle results in a stronger tooth, because the tooth acting as a beam is
wider at the base.

3. What is working depth of a gear-tooth? (M-11)

Working depth is the radial distance from the addendum circle to the clearance circle. It is equal to the
some of the addendum of the two meshing gears.

4. Name few gear materials. (M-11,M-12)

The materials used in the gear are

i. Steel,
ii. Cast iron and
iii. Bronze.

5. Mention the characteristics of hypoid gear. (M -10)

Hypoid gears are similar in appearance to spiral-bevel gears. They differ from spiral gears in that the
axis of pinion is offset from the axis of gear. The other difference is that their pitch surfaces are
hyperboloids rather than cones.
In general, hypoid gears are most desirable for those application involving large speed reduction
ratios. They operate more smoothly and quietly than spiral bevel gears.

6. What are the various forces acting on a bevel gear? (N-09, M-04)
The various forces acting on bevel gears are
1. Tangential or useful component (Ft), and
2. Separating forces (Fs): It is resolved into two components. They are:
i. Axial force (Fa), and
ii. Radial force (Fr).
7. Calculate the angle between the shafts of a crossed helical gears made of two right handed helical gears
of 15º helix angle each. (M-09)
Shaft angle, 1+ 2= 2 = 2 (15°) = 30°

8. When is bevel gear preferred? (M-09,M-11)

Bevel gears are used to transmit power between two intersecting shafts.

9. How can you specify a pair of worm gears? (M -08,M-09)

A pair of worm gears is specified as: (z1/ z2 / q / mx)
Where z1=Number of starts on the worm,
z2 = Number of teeth on the worm wheel,
q = Diameter factor = d1/ mx, and
mx = Axial module.

10. Give the advantage of worm gear drive in weight lifting machines. (M-08)
The worm gear drives are irreversible. It means that the motion cannot be transmitted from worm
wheel to the worm. This property of irreversible is advantageous in load hoisting application like
cranes and lifts.

11. State the advantages of herringbone gear. (M -15, N-08)

Herringbone gears eliminate the existence of axial thrust load in the helical gears. Because, in
herringbone gears, the thrust force of the right hand is balanced by that of the left hand helix.

12. What is a zerol bevel gear? (M -15, N-07)

Spiral bevel gear with curved teeth but with a zero degree spiral angle is known as zerol bevel gear.

13. What is virtual number of teeth in bevel gears? (M-14, N-14)

An imaginary spur gear considered in a plane perpendicular to the tooth of the bevel gear at the larger
end is known as virtual spur gear.
The number of teeth zv on this imaginary spur gear is called virtual number of teeth in bevel gear.
zv = z/cosδ
where z = actual number of teeth on the bevel gear and δ = pitch angle.
14. Define the following terms: a. Cone distance, b. Face angle. (M-14)
Back cone distance is the length of the back cone. Back cone is an imaginary cone, perpendicular to
the pitch cone at the end of the tooth.
Face angle is the angle subtended by the face of the tooth at the cone centre.

15. What is the difference between an angular gear and a miter gear? (N-13)
When the bevel gears connect two shafts whose axes intersect at an angle other than a right angle,
then they are known as angular bevel gears.
When equal bevel gears (having equal teeth and equal pitch angles) connect two shafts whose axes
intersect at right angle, then they are known as mitre gears.
 PART – B (16 MARKS)

PROBLEM- 1
Design a bevel gear drive to transmit 7.5 KW at 1500 rpm. Gear ratio is 3.5 . Material for pinion and gear is
C45 Steel. Minimum number of teeth is to be 25. (M-12, N-10)

PROBLEM- 2
Design a worm gear drive and determine the power loss by the heat generation. The hardened Steel worm
rotates at 1500 rpm and transmits 10 KW to a Phospor bronze with gear ratio of 16. (M-12, N-13)

PROBLEM- 3
Design a bevel gear to transmit 3.5 KW, speed ratio 4, driving shaft speed 200 rpm. The drive is non –
reversible. Pinion is of Steel and wheel of CI. Assume a life of 25,000 Hrs. (N-11, N-07)

PROBLEM- 4
Design a worm gear drive to transmit 22.5 KW at a worm speed of 1440 rpm . Velocity ratio is 24:1 .An
efficiency of atleast 85% is desired. The temperature rise should be restricted to 40 0 C. Determine the
required cooling area.

(N-11)

PROBLEM- 5
The input of worm shaft is 18 KW and 600 rpm ,speed ratio 20. The worm is to be hardened steel and
wheel is to be made of cholled Phospor bronze considering wear strength, design a worm and worm
wheel. (M-11)
 UNIT – IV : DESIGN OF GEAR BOX
PART – A (2 MARKS)

1. What is step ratio in a gear box? (M-12,N-09)

When the spindle speeds are arranged in geometric progression, then the ratio between the two
adjacent speeds is known as step ratio.

2. What does the ray-diagram indicate? (M-11)

The ray diagram is a graphical representation of the drive arrangement in general form. It serves to
determine the specific values of all the transmission ratios and speeds of all the shafts in the drive.

3. Specify four types of gear boxes. (N-14,M-11)

i. Sliding mesh gear box
ii. Constant mesh gear box
iii. Synchromesh gear box
iv. Planetary gear box

4. What are the possible arrangements to achieve 12 speeds from a gear box? (M-11)
The possible arrangements to achieve 12 speeds from a gear box are
i. 3 2 2 scheme,
ii. 2 3 2 scheme and
iii. 2 3 3scheme.
5. What are the points to be considered while designing a sliding-mesh type of multi-speed gear
box? (M-10)
The basic rules to be followed while designing the gear boxes are as follows:
i. The transmission ratio (i) in a gear box is limited by
i 2

ii. For stable operation, the speed ratio at any stage not be greater than 8.
In other words, 8

iii. In all stages except in the first stage, .

iv. The sum of teeth of mating gears in a given stage must be the same for same module in a
sliding gear set.
v. The minimum number of teeth on smallest gear in drives should be greater than or equal to
17.

6. List the ways by which the number of intermediate steps may be arranged in a gear box.
(M-10,M-12)
S.No. Number of speeds Preferred structural formula
1. 6 speeds i. 3 (1) 2 (3)
ii. 2 (1) 3 (2)
2. 8 speeds i. 2 (1) 2 (2) 2 (4)
ii. 4 (1) 2 (4)
3. 9 speeds i. 3 (1) 3 (3)
4. 12 speeds i. 3 (1) 2 (3) 2 (6)
ii. 2 (1) 3 (2) 2 (6)
iii. 2 (1) 2 (2) 3 (4)

7. Which type of gear is used in constant mesh gear box? Justify. (N-09,M-11)
Helical gears are used in constant mesh type gear boxes tp provide quieter and smooth operation.
8. What is speed reducer? (N-08,M-10)
Speed reducer is a gear mechanism with a constant speed ratio, to reduce the angular speed of
output shaft as compared with that of input shaft.

9. What are preferred numbers? (N-14,M-13)

Preferred number are the conventionally rounded off values derived from geometric series. There are
five basis series, denoted as R 5, R 10, R 20, R 40 and R 80 series.

10. Name any two methods used for changing speeds in gear boxes. (M-13)
The two methods used for changing speeds in gear boxes are
i. Silding mesh gear box and
ii. Constant mesh gear box.

11. What is step ratio? Name the series in which speeds of multi-speed gear box are
arranged. (M-14)
When the spindle speeds are arranged in geometric progression, then the ratio between the two
adjacent speeds is known as step ratio or progression ratio.
R20 and R40 series are used in the design of multi-speed gear boxes.

12. Distinguish between structural diagram and speed diagram. (N-11,M-13)

The structural diagram is a kinematic layout that shows the arrangement of gears in a gear box.
The speed diagram, also known as ray diagram, is a graphical representation of the structural formula.

13. What are the methods of lubrication in speed reducers? (N-11)

i. Splash or spray lubrication method
ii. Pressure lubrication method
14. What is the function of spacers in a gear box? (M-12,N-04)
The function of spacers is to provide the necessary distance between the gears and the bearings.

15. What are the possible arrangements to achieve 12 speeds from a gear box? (M-13,M-14)
The possible arrangement are:
iii. 3×2×2 scheme
iv. 2×3×2 scheme
v. 2×2×3 scheme
 PART – B (16 MARKS)

PROBLEM- 1
Design a nine speed gear box for a minimum speed of 35 rpm and maximum speed of 560 rpm. Draw the
speed diagram and kinematic arrangement showing the number of teeth in all gears. Check whether all the
speeds obtained through the selected gears are within 3% (M-09, N-11)

PROBLEM- 2
Design a 12 speed gear box for all geared headstock of a lathe by drawing speed diagram. Show the
details in a kinematic layout. The maximum and minimum speed are to be 1440 and 112 rpm .Take the
input drive speed is 1400 rpm. (M-09)

PROBLEM- 3
The minimum and maximum speed of a six speed gear box are to be 160 and 500 rpm. Construct the
kinematic arrangement and aray diagram and find the number of teeth in all gears. (M-11, N-10)

PROBLEM- 4
Design a 14 speed gear box for amaximum and minimum speed of 900 and 25 rpm ,the drive is from an
electric motor giving 2.25 KW at 1440 rpm. (M-11, N-08)

PROBLEM- 5
A gear box is to be designed with power 14.72 KW ,number of speed 18 are obtained as 2x3x3, minimum
speed 16 rpm, motor speed 1400 rpm, step ratio 1.25. Draw the layout and speed diagram. (N-11, M-07)
 UNIT – V : DESIGN OF CAM, CLUTCHES AND BRAKES
PART – A

1. State about the profile of cam that gives no jerk and mention how jerk is eliminated. (M-12)
4-5-6-7 polynomial cam profile gives zero jerks. Profile smoothing techniques can remove the excessive
jerks in a cam profile.

2. Why is it necessary to dissipate the heat generated during clutch operation? (M-13, N-11)
When clutch engages, most of the work done will be liberated as heat at the interface. Consequently the

temperature of the rubbing surface will increase. This increased temperature may destroy the clutch. So

heat dissipation is necessary in clutches.

3. What is self-locking in a brake? (N-11,M-13)

When a frictional force is sufficient enough to apply the brake with no external force, then the brake is
said to be self-locking brake.

4. What are the factors upon which the torque capacity of a clutch depends? (M-11, N-10)
Torque capacity of a clutch depends on
i. Number of pair of contact surfaces,
ii. Coefficient of friction,
iii. Axial thrust exerted by the spring, and
iv. Mean radius of friction surface.

5. When do we use multiple disk clutches? (M -10)

A multiple clutch is used when large amount of torque is to be transmitted. In a multi plate clutch, the
number frictional linings and the metal plates are increased which increases the capacity of the clutch
to transmit torque.
6. What is the disadvantage of block brake with one short shoe? What is the remedy? (M-11)
If only one block is used for braking, then there will be side thrust on the bearing of wheels shaft. This
drawback can be removed by providing two blocks on the two sides of the drum. This also doubles the
braking torque.

7. Under what condition of a clutch, uniform rate of wear assumption is more valid? (M-09)
If the clutch is an old clutch, then uniform rate of wear assumption is more valid.

8. Name four profiles normally used in cams. (M-10)

The four profiles normally used in cams are
i. Uniform velocity,
ii. Simple harmonic motion,
iii. Uniform acceleration and retardation and
iv. Cycloidal motion.

9. How the „uniform rate of wear‟ assumption is valid for clutches? (M-08)
In clutches, the value of normal pressure, axial load for the given clutch is limited by the rate of wear
that can be tolerated in the brake linings. Moreover, the assumption of uniform wear rate gives a lower
calculated clutch capacity than the assumption of uniform pressure. Hence clutches are usually designed
on the basis of uniform wear.

10. What are the significances of pressure angle in cam design? (N-07)
The pressure angle is very important in cam design as it represents steepness of the cam profile. If
the pressure angle is too large, a reciprocating follower will jam in its bearing.

11 .If a multidisc clutch has 6 discs in driving shaft and 7 discs in driven shaft then how many number of
contact surfaces it will have? (M -15)
n1 = 6, n2 = 7
Number of pair of contact surface, n = n1+n2-1
= 6+7-1 = 12
12. Why in automobiles, braking action when traveling in reverse is not as effective as when moving
forward? (M -15)
When an automobile moves forward, the braking force acts in the opposite direction to the direction of
motion of the vehicle. Whereas in reverse travelling the braking force acts in the same direction to the
direction of motion of the vehicle. So it requires more braking force to apply brake.

13. Differentiate between uniform pressure and uniform wear theories adopted in the design of
clutches. (N-14)
In clutches, the value of normal pressure, axial load for the given clutch is limited by the rate of wear
that can be tolerated in the brake linings. Moreover, the assumption of uniform wear rate gives a lower
calculated clutch capacity than assumption of uniform pressure. Hence clutches are usually designed
on the basis of uniform wear.

14. Classify clutches based on the coupling methods. (M-14)

i. Positive contact clutches
ii. Frictional clutches
iii. Overrunning clutches
iv. Magnetic clutches
v. Fluid couplings

15. What is meant by a self-energizing brake? (M-13)

When the moment of applied force (F.l) and the moment of the frictional force (μ.R N.C) are in the
same direction, then frictional force helps in applying the brake. This type of brake is known as a self-
energizing brake.

16. Define pitch point in cam. (N-13)

The pitch point is the point on the pitch curve of the cam having maximum pressure angle.

17. Differentiate between clutch and a brake. (N-13)

A clutch connects two moving members of a machine, whereas a brake connects a moving member to
a stationary member.
 PART – B (16 MARKS)

PROBLEM- 1
A dry single plate clutch is to be designed to transmit 112 KW at 2000 rpm ,the outer radius of the friction
plate is 1.25 times the inner radius , the intensity of pressure is not to exceed 0.07 N/mm2 ,the coefficient of
friction is 0.3. The helical springs required by this clutch to provide axial force necessary to engage clutch
are 8. If the spring has a stiffness 40 N/mm .Determine the dimensions of a friction plate and intial
compression of the springs. (M-05, M-12)

PROBLEM- 2
Design a cam for operating the exhaust valve of an oil engine. It is required to give equal uniform
acceleration and retardation during opening and closing of the valve with corresponding 60 0 rotation. The
valve should remain in the fully open position for 20 0 cam rotation. The lift of the valve is 32 mm and least
radius is 50 mm. The follower is provided with a roller of 30 mm diameter and its line of the stroke passes
through the axis of the cam. (M-07, M-12)

PROBLEM- 3
A power of 20 KW is to be transmitted through a cone clutch at 500 rpm for uniform wear condition find the
main dimensions of the clutch and the axial force to engage the clutch. Assume coefficient of friction is 0.25
and maximum normal pressure is 0.08 Mpa , design stress is 40 Mpa. (M-06, N-11)

PROBLEM- 4
A band brake is to be designed for a winch to lift a load of 20 KN through a 15 m height by a rope wire
wound on a barrel of 450 mm diameter. The hoisting cycle is 3 min outbof actual braking time 60 seconds.
The angle of contact between band and brake drum is 20 0. The brake drum may be keyed the same shaft .
Give complete design (N-05, M-11)

PROBLEM- 5
A multiple disc wet clutch is to be designed for a machine tool driven by a motor of 12.5 KW at 1220 rpm.
Outside diameter of the disc is 100 mm ,find the inside diameter and clamping force (M-11, M-04)
PROBLEM- 6
A diffential band brake is to be designed for a winch lifting load of 45 KN through a rope of 500 mm
diameter . The diameter and angle of lap for the brake drum is 600 mm and 250 0 approximately.
Determine width of the band. (Operating arms of the brake are 40 mm and 200 mm , lever
length 1.5 m) (M-06, N-10)
