CIN No.

U74899DL1995PTC073704
GST No. 03AAACG6466B1Z2

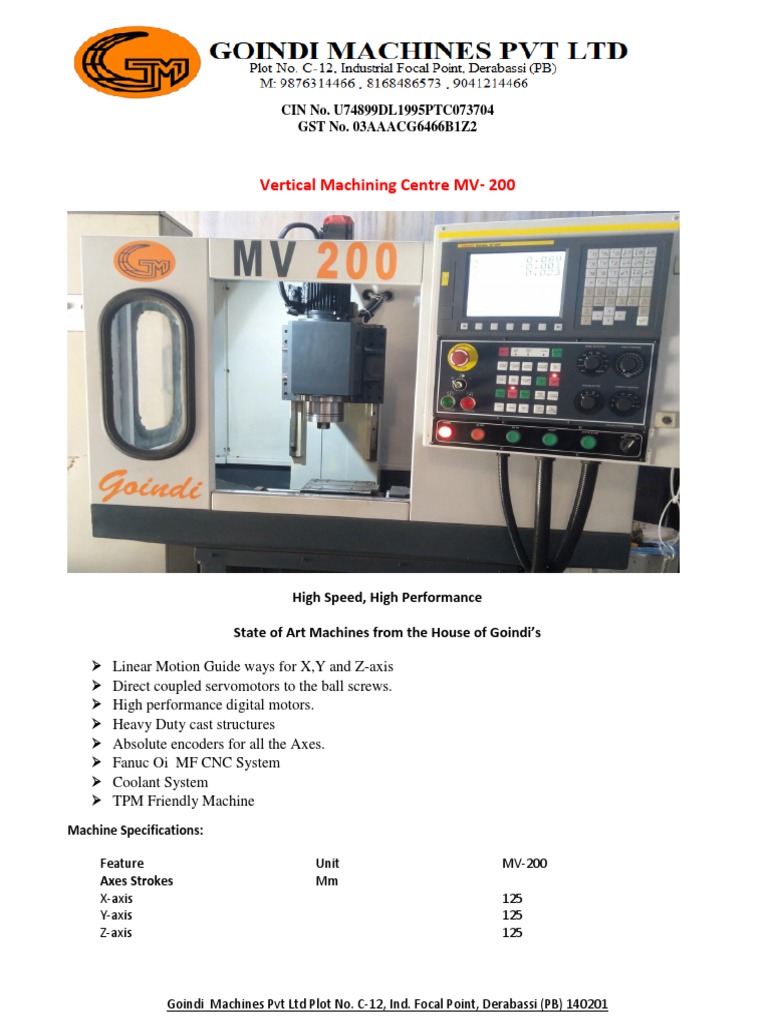

Vertical Machining Centre MV- 200

High Speed, High Performance

State of Art Machines from the House of Goindi’s

 Linear Motion Guide ways for X,Y and Z-axis


 Direct coupled servomotors to the ball screws.
 High performance digital motors.
 Heavy Duty cast structures
 Absolute encoders for all the Axes.
 Fanuc Oi MF CNC System
 Coolant System
 TPM Friendly Machine
Machine Specifications:

Feature Unit MV-200


Axes Strokes Mm
X-axis 125
Y-axis 125
Z-axis 125

Goindi Machines Pvt Ltd Plot No. C-12, Ind. Focal Point, Derabassi (PB) 140201
CIN No. U74899DL1995PTC073704
GST No. 03AAACG6466B1Z2
Table/Pallet
Working Surface Mm 200x170

Max Load on the Table Kg 10


Distance from floor to table Mm 850
Spindle
Spindle Taper ER 32 Collet Chuck
Spindle Power KW 0.37
Spindle Speed RPM 50-2800
Spindle Bearing Dia Mm 100
Feed
Rapid M/Min 10
Cutting Feed Rate mm/Min 10000

Accuracies (As per JIS)


Positioning Mm +/-0.006
Repeatability Mm +/-0.003
CNC Fanuc 0i MF
Machine Weight Kg 150
Machine Dimension (WxLxH) Mt. 1.5mtx1.5mtx1.5mt
Power Supply 415V, 3 Phase, 50 Hz.
Power Requirement KVA 2.5

Salient Features of the Vertical Machining Centres:


High Speed Spindle Unit for Higher Precision and higher productivity:

 Coupling Driven Spindle


 Bearing Dia.100 mm for ER Collet Chuck 32 mm.
 Grease Packed Bearings
 Front Labyrinth to avoid entry of coolant and chips

High performance Feed drives:

 Direct coupled Servo-motors


 Double Anchored ball screws for X-axis
 Absolute encoders for all the axes.
 Digital motors for all the axes.
 No referencing required in case of power off.

Goindi Machines Pvt Ltd Plot No. C-12, Ind. Focal Point, Derabassi (PB) 140201
