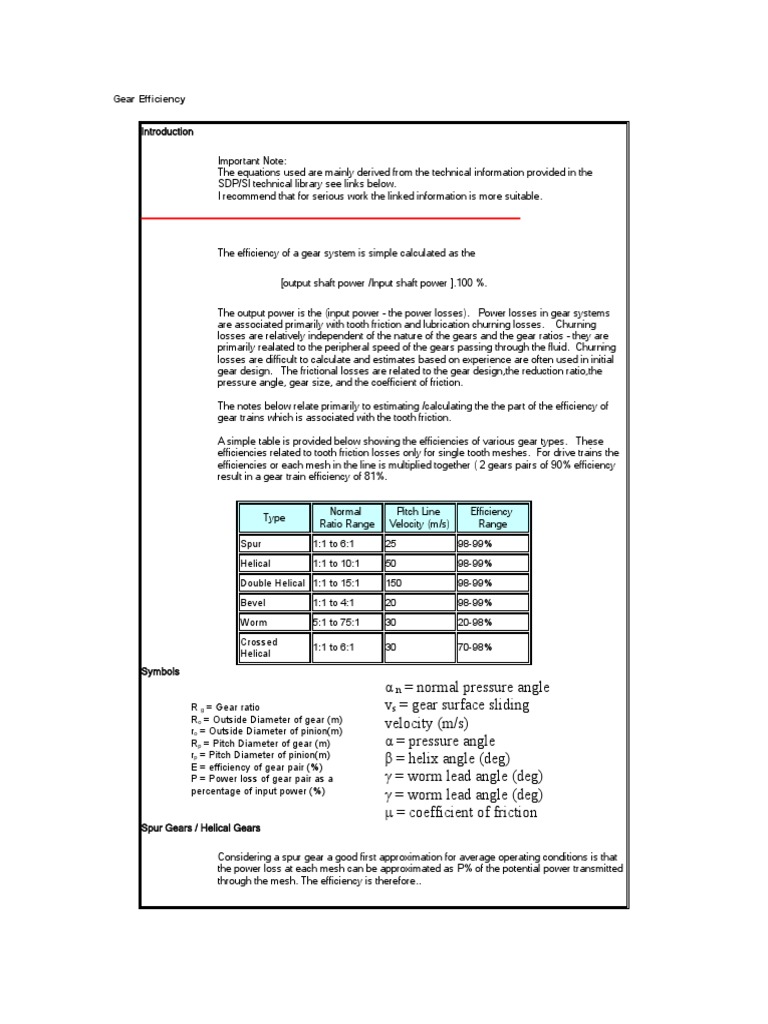

Gear Efficiency
Introduction
Important Note:
The equations used are mainly derived from the technical information provided in the
SDP/SI technical library see links below.
I recommend that for serious work the linked information is more suitable.
The efficiency of a gear system is simple calculated as the
[output shaft power /Input shaft power ].100 %.
The output power is the (input power - the power losses). Power losses in gear systems
are associated primarily with tooth friction and lubrication churning losses. Churning
losses are relatively independent of the nature of the gears and the gear ratios - they are
primarily realated to the peripheral speed of the gears passing through the fluid. Churning
losses are difficult to calculate and estimates based on experience are often used in initial
gear design. The frictional losses are related to the gear design,the reduction ratio,the
pressure angle, gear size, and the coefficient of friction.
The notes below relate primarily to estimating /calculating the the part of the efficiency of
gear trains which is associated with the tooth friction.
A simple table is provided below showing the efficiencies of various gear types. These
efficiencies related to tooth friction losses only for single tooth meshes. For drive trains the
efficiencies or each mesh in the line is multiplied together ( 2 gears pairs of 90% efficiency
result in a gear train efficiency of 81%.
Normal Pitch Line Efficiency
Type
Ratio Range Velocity (m/s) Range
Spur 1:1 to 6:1 25 98-99%
Helical 1:1 to 10:1 50 98-99%
Double Helical 1:1 to 15:1 150 98-99%
Bevel 1:1 to 4:1 20 98-99%
Worm 5:1 to 75:1 30 20-98%
Crossed
1:1 to 6:1 30 70-98%
Helical
Symbols
α n = normal pressure angle
R g = Gear ratio vs = gear surface sliding
Ro = Outside Diameter of gear (m) velocity (m/s)
ro = Outside Diameter of pinion(m)
Rp = Pitch Diameter of gear (m) α = pressure angle
rp = Pitch Diameter of pinion(m) β = helix angle (deg)
E = efficiency of gear pair (%)
P = Power loss of gear pair as a γ = worm lead angle (deg)
percentage of input power (%) γ = worm lead angle (deg)
μ = coefficient of friction
Spur Gears / Helical Gears
Considering a spur gear a good first approximation for average operating conditions is that
the power loss at each mesh can be approximated as P% of the potential power transmitted
through the mesh. The efficiency is therefore..
Clarification of formula terms.
Gear Type F sign of Rg term
External spur cos α (Rg+1)
Internal Spur α (Rg-1)
cos φn / cos 2 β
tan φn = tan α.cos
Single Helical β (Rg+1)
β = helix
angle
Worm Gears
The theoretical efficiency of a worm gear is provided on page worm gears and is shown
again below as.
Chart of Worm Gear Efficiency
The graph below shows a worm gear efficiencies plotted against the lead angle for different
coefficient of friction
Notes:
This chart agrees with the equation for worm gears having a normal pressure angle of 20
degrees...
An approximation for the friction coefficient for worm gears (Bronze -steel) is
μ = 0,04 vs-0,25
vs = sliding velocity (m/s)
Epicyclic Gears
Consider the two meshing gears below which are part of an epicyclic gear train. This is
provided as and example of a typical component in an epicyclic gear. The two gears and
the arms are rotating as shown .
Now it the arm was stationary the contact point P would have a instantaneous velocity = - ω2
R2. (velocities to the right are positive ). Now if the whole system was rotating as a rigid
assembly with the velocity of the arm the instantaneous velocity -ω3 R2. Combining these
two motions together, the linear velocity of the tooth engagement (gear 2 -> gear 1)is
therefore
v12 = - ( ω2 R2 - ω3 R2) = - (ω2 - ω 3)R 2
Now the magnitude of the transmitted tangential force F12 x the tooth engagement velocity
v12 is called the potential power and the power loss due to tooth friction is proportional to this
power. Generally for spur gears ( and helical gears) it is sufficient to estimate the power
loss as 1% of the potential power. For more accurate estimations the equations above can
be used.
P = 0,01 F12v12
The potential power is not the actual power but is the but is the power transmitted by the
same gears operating on fixed centres at angular velocities of ( ω2 - ω3 ) for gear 2 and ( ω1
- ω3 ) for gear 2.
The actual pitch line velocity of the gear mesh is -(ω2) and therefore the ration of the
potential power to the actual power is
Now in cases where the arm is rotating faster than the gear the potential power can be
greater than the actual power and the losses proportionally greater.
Example Epicyclic Gear efficiency calculation.
Consider the epicyclic gear chain shown below. The input speed = 250 RPM (ACW) and
the input torque = 2.5 Nm
ω 2 = (250.2.π)/60 = 26,18rads/s. and ω1 = 0
The power into the gear = Tω2 = 2,5.26,18 = 65 Watts. Calculating forces
The torque on the arm 2 = M2 = 2.5Nm
The force (F2) at Radius R2 (= R1 + R3) : = -(M2/R2) : F2 = -2.5 /(0,1m+.025m) = -20 N
(forces to right are positive)
Now all forces and torques on the link between Arm(2) and gears (3) & (4) are in equilibrium
therefore
For the gear mesh between gear 3 and the fixed sun 2 the velocity of tooth engagement is
calculated by the product of the angular velocity of the arm 2 at pitch radius of R2. = ω2R1 =
26,18.0,075 = 1,96m/s
The potential power relates to the gear pair operated in isolation -
in this case for gear 3 to be in equilibrium (With forces and moments)
F2.R3 + F3.R3 = 0 and F2.R3 + F3R3 = 0 therefore F3 = -F2 = 20N
The potential power of the mesh between the sun gear 1 and the planet gear 3
= the gear engagement velocity(1,96m/s) x the tangential force (F3= 20N) = 1,96.20 =3,92W
Allowing 1% loss on a typical spur gear engagement the power loss at this engagement =
0,39W.
For the gear engagement between the gears 4 and 5 the angular velocity of gear five =
The velocity of tooth engagement between gear (4) and gear (5) =
R5 (ω5 - ω2) = 0,068(-5,95- 26,18)=-2.18 m/s
The potential power at this tooth engagement =
the gear engagement velocity (2,18 m/s). x the tangential force (F4 = -167N) = 2,18.167 =
364 W
Assuming 1% power loss then the loss at this tooth engagement = 3,64 W
The power input to the epicyclic gear = 65 W therefore the Gear efficiency = 100(1 - (3,64 +
0,39) /65 ) = 94%
