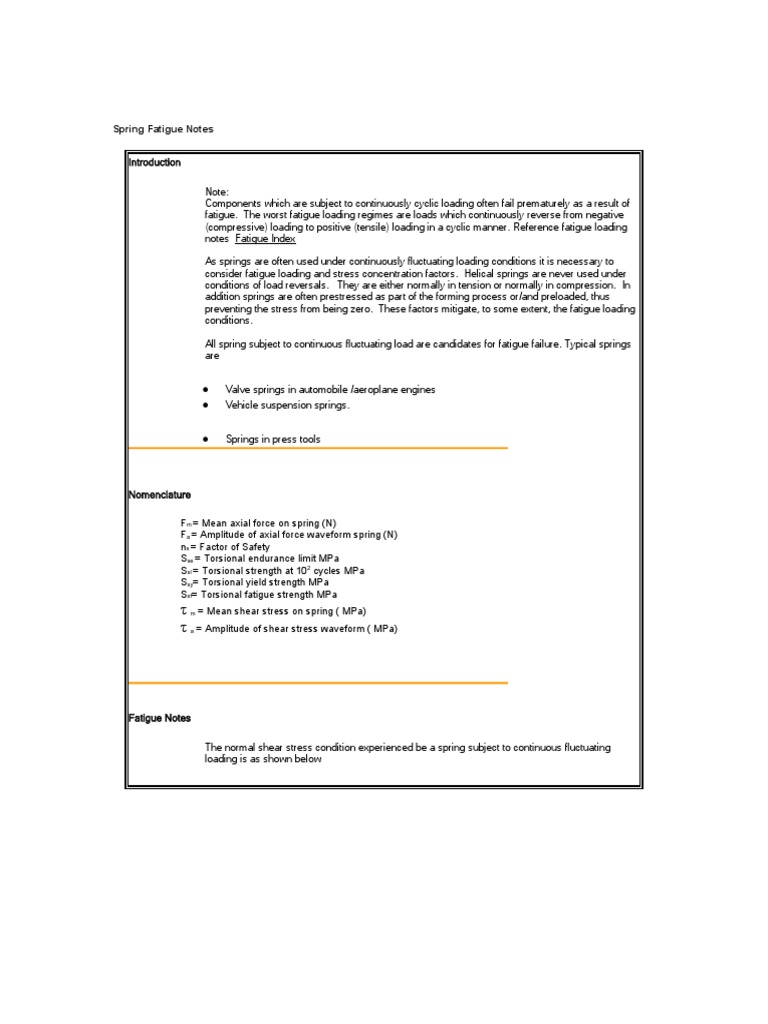

Spring Fatigue Notes

Introduction

Note:
Components which are subject to continuously cyclic loading often fail prematurely as a result of
fatigue.  The worst fatigue loading regimes are loads which continuously reverse from negative
(compressive) loading to positive (tensile) loading in a cyclic manner. Reference fatigue loading
notes  Fatigue Index

As springs are often used under continuously fluctuating loading conditions it is necessary to
consider fatigue loading and stress concentration factors.  Helical springs are never used under
conditions of load reversals.   They are either normally in tension or normally in compression.  In
addition springs are often prestressed as part of the forming process or/and preloaded, thus
preventing the stress from being zero.  These factors mitigate, to some extent, the fatigue loading
conditions.

All spring subject to continuous fluctuating load are candidates for fatigue failure. Typical springs
are

 Valve springs in automobile /aeroplane engines

 Vehicle suspension springs.

 Springs in press tools

Nomenclature

Fm = Mean axial force on spring (N)

Fa = Amplitude of axial force waveform spring (N)
ns = Factor of Safety
Sse = Torsional endurance limit MPa
Ssl = Torsional strength at 102 cycles MPa
Ssy= Torsional yield strength MPa
Ssf= Torsional fatigue strength MPa
τ m = Mean shear stress on spring ( MPa)
τ a = Amplitude of shear stress waveform ( MPa)

Fatigue Notes

The normal shear stress condition experienced be a spring subject to continuous fluctuating
loading is as shown below
The force amplitude and mean value are calculated as

The resulting alternating and mean stresses are

For springs the safety factor for torsional endurance life is

Experimental results have proved that for spring steel the torsional endurance limit is not directly
related to size, tensile strength, or material for wires under 10mm diameter.   The resulting value
from experiments has been determined as

S'se = 310 MPa for unpeened springs and 465 MPa for peened springs

S'sa = 241 MPa for unpeened springs and 398 MPa for peened springs

S'sm = 379 MPa for unpeened springs and 534 MPa for peened springs

These values include all modifying factors except for the reliability factor. ref Fatigue modifying
factors That is Se = CrS'e

For springs subject to low cyclic /static loading the safety factor for torsional yielding is

It is generally safe to use a torsional yield strength of 40% of the ultimate tensile strength i.e S syof
0,4Sut ref notes Spring Materials

If the spring applications between 103 and 106 cycles of variation a modified torsional shear
strength ( Sfs )can be used to determine the safety margin.
 Ssf is the modified shear fatigue strength. This can be determined approximately if the endurance
limit( S'se ) and the fatigue strength at 103 cycles ( S'sl ) are available ref High cycle fatigue strength

Goodmans failure criterion..

The fatigue design of springs generally involves one of a number of failure criterions, as shown
below.

Goodmans failure criterion..

The intersect equation for the Goodmans criterion is

The relevant factor of safety is calculated as follows
