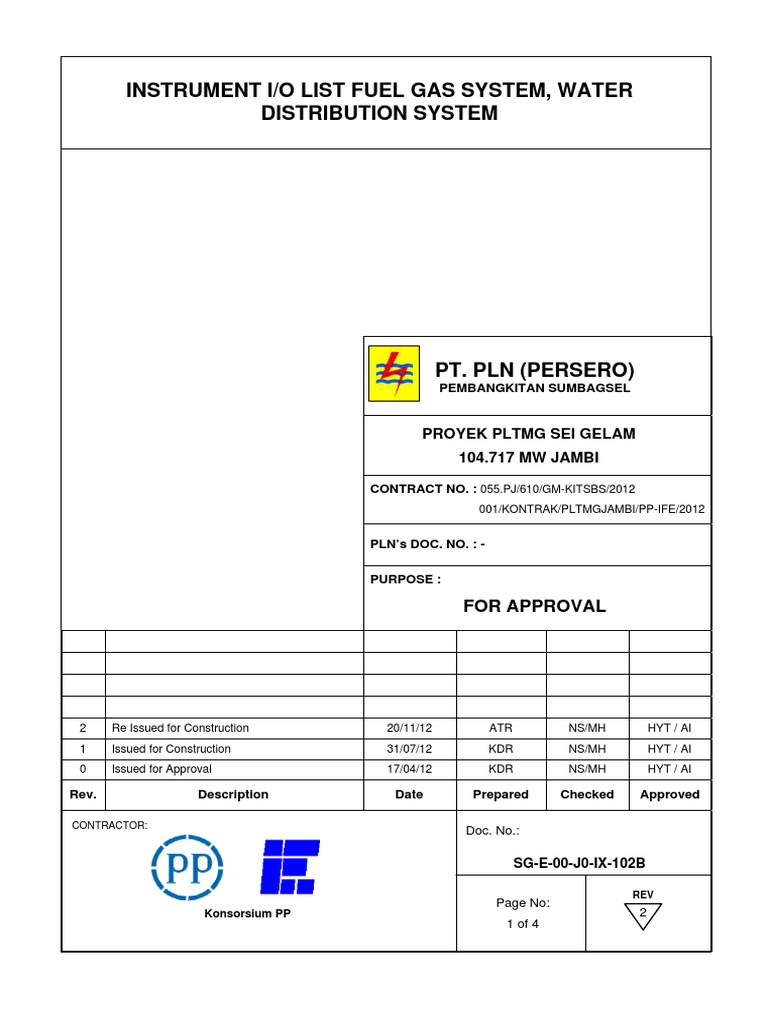

INSTRUMENT I/O LIST FUEL GAS SYSTEM, WATER

DISTRIBUTION SYSTEM

PT. PLN (PERSERO)

PEMBANGKITAN SUMBAGSEL

PROYEK PLTMG SEI GELAM

104.717 MW JAMBI

CONTRACT NO. : 055.PJ/610/GM-KITSBS/2012

001/KONTRAK/PLTMGJAMBI/PP-IFE/2012

PLN’s DOC. NO. : -

PURPOSE :

FOR APPROVAL

2 Re Issued for Construction 20/11/12 ATR NS/MH HYT / AI

1 Issued for Construction 31/07/12 KDR NS/MH HYT / AI
0 Issued for Approval 17/04/12 KDR NS/MH HYT / AI

Rev. Description Date Prepared Checked Approved

CONTRACTOR:
Doc. No.:

SG-E-00-J0-IX-102B

REV
Page No:
Konsorsium PP 2
1 of 4
 SHEET 2 OF 4

REV
DOC. NO. :
SG-E-00-J0-IX-102B 2
INSTRUMENT I/O LIST FUEL
GAS SYSTEM, WATER
DATE BY CHKD APVD
Konsorsium PP DISTRIBUTION SYSTEM
20/11/12 ATR NS/MH HYT/AI

REVISION HISTORICAL SHEET

Rev No Date Description

0 17/04/12 Issued for Approval
1 31/07/12 Issued for Construction

2 20/11/12 Re Issued for Construction

 PAGE 3 OF 4

LEGEND I/O LIST

No SERVICE ALARM & SET POINT

Serial Number Reference Process in the Project Alarm and Set Point on System
LL : Low Low Alarm
L : Low Alarm
SP : Set Point
H : High Alarm
TAG Number INPUT / OUTPUT (I/O) SIGNAL HH : High High Alarm
- Field/Outer Instrument TAG Number Engineering Signal Input/Output
AI : Analog Input
AO : Analog Output
DI : Digital Input
DO : Digital Output Eng. Unit
P&ID DRAWING Engineering Unit of Project
Description of Field Instrument or System 220VAC : Wet Contact 220VAC
24VDC : Wet Contact 24VDC
DRY : Dry Contact

LOCATION FROM / TO
Location of Signal Coming from / Going to
DCS : Process Control System Range L & H
MCC : Motor Control Center For Analog I/O Signal
FIELD : In the Field L : Low range (0%)
H : High range (100%)
 PAGE 4 OF 4

INSTRUMENT I/O LIST

FUEL GAS SYSTEM AND WATER DISTRIBUTION SYSTEM

Konsorsium PP REV 2
PROJECT : PROYEK PLTMG SEI GELAM 104.717 MW JAMBI DATE 20-Nov-12
DOC NO. : SG-E-00-J0-IX-102B BY ATR
JOB NO. : - CHK NS/MH
CLIENT : PT. PLN (PERSERO) PEMBANGKIT SUMBAGSEL APV HYT/AI

Location I/O Range Alarm and Set Point

P&ID NO.
NO. TAG NUMBER INSTRUMENT DESCRPTION Eng. Unit Remark
DRAWING NO. From To SERVICE Signal Type L H LL L SP H HH

FUEL GAS SYSTEM

1 PT- 03 SG-E-01-P1-EF-001A Pressure Transmitter Field DCS Fuel Gas From CNG/Gas Filter to Gas regulator AI 4-20 mA - - - - - - - Kg/cm2 Metering System
2 FT-01 SG-E-01-P1-EF-001A Flow Transmiter Field DCS Fuel Gas From CNG/Gas Filter to Gas regulator AI 4-20 mA - - - - - - - M3/hr Metering System
3 TT-01 SG-E-01-P1-EF-001A Temperature Transmitter Field DCS Fuel Gas From CNG/Gas Filter to Gas regulator AI 4-20 mA - - - - - - - Deg C Metering System
4 PT-08 SG-E-01-P1-EF-001A Pressure Transmitter Field DCS Fuel Gas From CNG/Gas Filter to Gas regulator AI 4-20 mA 0 10 - - - - - Kg/cm2
5 PT-02 SG-E-01-P1-EF-001A Pressure Transmitter Field DCS Fuel Gas From CNG/Gas Filter to Gas regulator AI 4-20 mA 0 10 - - 7.03 - - Kg/cm2
6 PY-02 SG-E-01-P1-EF-001A I/P Converter DCS Field Fuel Gas From CNG/Gas Filter to Gas regulator A0 4-20 mA - - - - - - -
WATER DISTRIBUTION SYSTEM
7 LS-03 SG-E-01-P1-EF-003 Level switch High/Low Field DCS Level at Tank Fresh Water Tank at SG-T-001 DI DRY - - - 500 - 2000 -
8 PSHH-03A SG-E-01-P1-EF-003 Pressure Switch High High Field DCS Pressure discharge SG-P-01A DI DRY - - - - - - 4.3 Kg/cm2
9 PSHH-03B SG-E-01-P1-EF-003 Pressure Switch High High Field DCS Pressure discharge SG-P-01B DI DRY - - - - - - 4.3 Kg/cm2
10 LSHH-XXX SG-E-01-P1-EF-004 Level Switch High High Field DCS Level at Fire Water Tank DI DRY - - - - - - - by Wartsila
11 LSL-XXX SG-E-01-P1-EF-004 Level Switch Low Field DCS Level at Fire Water Tank DI DRY - - - - - - - by Wartsila
12 LSL-04 SG-E-01-P1-EF-004 Level Switch Low Field DCS Level at deep well pump DI DRY - - - - - - -

PCS
Analog Input 5
Analog Output 1
Digital Input 6
Digital Output 0
