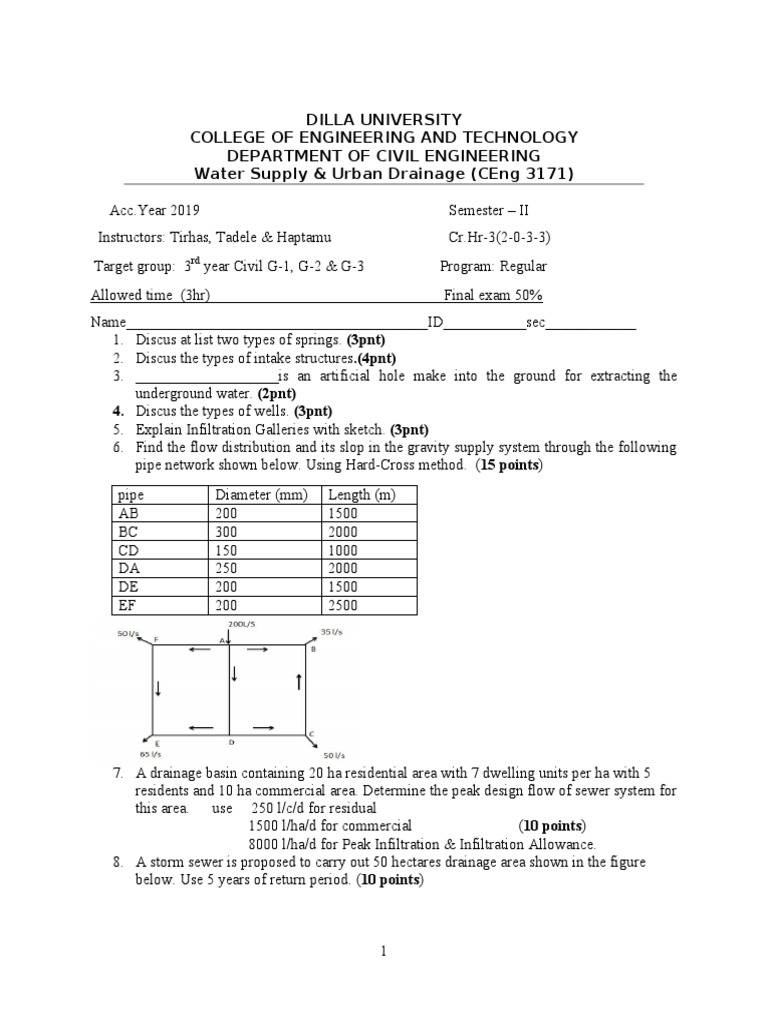

DILLA UNIVERSITY

COLLEGE OF ENGINEERING AND TECHNOLOGY

DEPARTMENT OF CIVIL ENGINEERING
Water Supply & Urban Drainage (CEng 3171)

Acc.Year 2019 Semester – II

Instructors: Tirhas, Tadele & Haptamu Cr.Hr-3(2-0-3-3)
Target group: 3rd year Civil G-1, G-2 & G-3 Program: Regular
Allowed time (3hr)_____ Final exam 50%
Name________________________________________ID___________sec____________
1. Discus at list two types of springs. (3pnt)
2. Discus the types of intake structures.(4pnt)
3. ___________________is an artificial hole make into the ground for extracting the
underground water. (2pnt)
4. Discus the types of wells. (3pnt)
5. Explain Infiltration Galleries with sketch. (3pnt)
6. Find the flow distribution and its slop in the gravity supply system through the following
pipe network shown below. Using Hard-Cross method. (15 points)
pipe Diameter (mm) Length (m)
AB 200 1500
BC 300 2000
CD 150 1000
DA 250 2000
DE 200 1500
EF 200 2500

7. A drainage basin containing 20 ha residential area with 7 dwelling units per ha with 5
residents and 10 ha commercial area. Determine the peak design flow of sewer system for
this area. use 250 l/c/d for residual
1500 l/ha/d for commercial (10 points)
8000 l/ha/d for Peak Infiltration & Infiltration Allowance.
8. A storm sewer is proposed to carry out 50 hectares drainage area shown in the figure
below. Use 5 years of return period. (10 points)

1
 site Area C Entranc
(ha) e time
(te)
(min)
A 15 0.8 10
B 25 0.5 20
C 10 0.9 35

!
2
