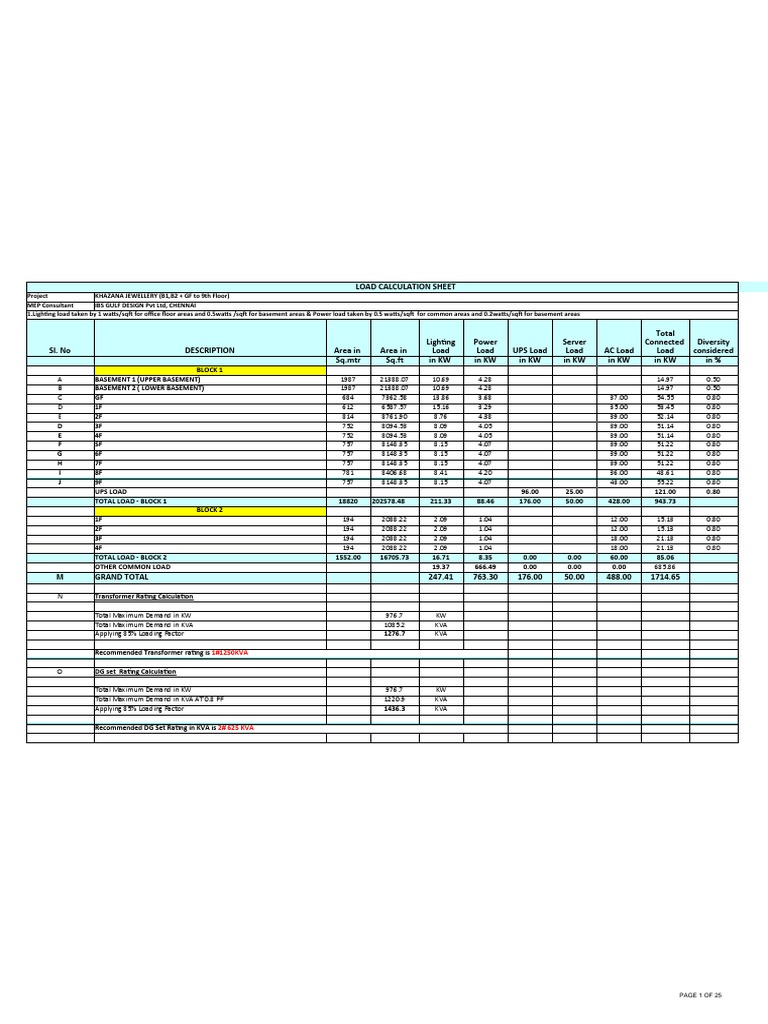

LOAD CALCULATION SHEET

Project KHAZANA JEWELLERY (B1,B2 + GF to 9th Floor)

MEP Consultant IBS GULF DESIGN Pvt Ltd, CHENNAI
1.Lighting load taken by 1 watts/sqft for office floor areas and 0.5watts /sqft for basement areas & Power load taken by 0.5 watts/sqft for common areas and 0.2watts/sqft for basement areas

Total
Lighting Power Server Connected Diversity
Sl. No DESCRIPTION Area in Area in Load Load UPS Load Load AC Load Load considered
Sq.mtr Sq.ft in KW in KW in KW in KW in KW in KW in %
BLOCK 1
A BASEMENT 1 (UPPER BASEMENT) 1987 21388.07 10.69 4.28 14.97 0.50
B BASEMENT 2 ( LOWER BASEMENT) 1987 21388.07 10.69 4.28 14.97 0.50
C GF 684 7362.58 13.86 3.68 37.00 54.55 0.80
D 1F 612 6587.57 15.16 3.29 35.00 53.45 0.80
E 2F 814 8761.90 8.76 4.38 39.00 52.14 0.80
D 3F 752 8094.53 8.09 4.05 39.00 51.14 0.80
E 4F 752 8094.53 8.09 4.05 39.00 51.14 0.80
F 5F 757 8148.35 8.15 4.07 39.00 51.22 0.80
G 6F 757 8148.35 8.15 4.07 39.00 51.22 0.80
H 7F 757 8148.35 8.15 4.07 39.00 51.22 0.80
I 8F 781 8406.68 8.41 4.20 36.00 48.61 0.80
J 9F 757 8148.35 8.15 4.07 43.00 55.22 0.80
UPS LOAD 96.00 25.00 121.00 0.80
TOTAL LOAD - BLOCK 1 18820 202578.48 211.33 88.46 176.00 50.00 428.00 943.73
BLOCK 2
1F 194 2088.22 2.09 1.04 12.00 15.13 0.80
2F 194 2088.22 2.09 1.04 12.00 15.13 0.80
3F 194 2088.22 2.09 1.04 18.00 21.13 0.80
4F 194 2088.22 2.09 1.04 18.00 21.13 0.80
TOTAL LOAD - BLOCK 2 1552.00 16705.73 16.71 8.35 0.00 0.00 60.00 85.06
OTHER COMMON LOAD 19.37 666.49 0.00 0.00 0.00 685.86
M GRAND TOTAL 247.41 763.30 176.00 50.00 488.00 1714.65

N Transformer Rating Calculation

Total Maximum Demand in KW 976.7 KW

Total Maximum Demand in KVA 1085.2 KVA
Applying 85% Loading Factor 1276.7 KVA

Recommended Transformer rating is 1#1250KVA

O DG set Rating Calculation

Total Maximum Demand in KW 976.7 KW

Total Maximum Demand in KVA AT 0.8 PF 1220.9 KVA
Applying 85% Loading Factor 1436.3 KVA

Recommended DG Set Rating in KVA is 2# 625 KVA

PAGE 1 OF 25
CALCULATION SHEET

5 watts/sqft for common areas and 0.2watts/sqft for basement areas

Maximum
Demand
in KW

7.49
7.49
43.64
42.76
41.71
40.91
40.91
40.98
40.98
40.98
38.89
44.18
96.80
733.51

12.11
12.11
16.91
16.91
66.79
176.40
976.70

PAGE 2 OF 25
 KHAZANA JEWELLERY

Subject: SERVER / HUB UPS Load Calculation Sheet - R1

Rack Load details provided by Client with 80% usage factor.

SERVER LOAD CALCULATION SHEET

No.of PC /Rack Power Total Load

Sl. No. Description of Area
/Printer In watts (kW)

1 Server racks LOAD 1 12000 12.00

Total Connected Load 12.00

Apply UPS Loading Factor @ 85%

Considering 0.8 as Power Factor

Total UPS load in KVA

MODULAR UPS Selection : 1x20KVA (1x20KVA(W) ) with 30 minutes battery back-up each
KHAZANA JEWELLERY

Workstation UPS Load Calculation Sheet - R1

UPS LOAD CALCULATION SHEET

No.of PC Power Total Load Usage Load after

Sl. No. Description of Area
/Rack /Printer In watts (kW) Factor Usage Factor

A GROUND FLOOR WKS UPS LOADS

1 F& B Counter 2 100 0.20 0.9 0.18

2 Reciption 2 100 0.20 0.8 0.16

3 Waiting area 2 100 0.20 0.4 0.08

4 Lobby lounge 2 100 0.20 0.4 0.08

5 Projector -1 Nos 1 750 0.75 0.3 0.225

6 TV -2 Nos 2 60 0.12 1 0.12

7 Printer -2 Nos 2 350 0.70 0.3 0.21

B FIRST FLOOR WKS UPS LOADS

1 Workstation 0 100 0.00 0.8 0

2 4Seater Meeting Room -6Nos 12 100 1.20 0.4 0.48

3 10Seater Meeting Room - 2Nos 10 100 1.00 0.4 0.4

4 12Seater Meeting Room - 1Nos 6 100 0.60 0.4 0.24

5 30Seater Conference Room - 1Nos 15 100 1.50 0.3 0.45

6 88Seater Training Room - 1Nos 88 100 8.80 0.3 2.64

7 Projector -6 Nos 6 750 4.50 0.3 1.35

8 TV -5 Nos 6 60 0.36 0.5 0.18

9 Printer -2 Nos 6 350 2.10 0.3 0.63

C SECOND FLOOR WKS UPS LOADS

1 Workstation 64 100 6.40 0.8 5.12

2 Vendor Discussion- 19Nos 19 100 1.90 0.4 0.76

3 VIP Discussion- 2Nos 2 100 0.20 0.4 0.08

4 Store room 1 100 0.10 0.4 0.04

5 Printer -3 Nos 3 350 1.05 0.3 0.315

D THIRD FLOOR WKS UPS LOADS

1 Workstation 98 100 9.80 0.8 7.84

2 Vendor Discussion- 8Nos 8 100 0.80 0.4 0.32

3 4Seater Meeting Room -1 Nos 2 100 0.20 0.4 0.08

4 6Seater Meeting Room -1 Nos 2 100 0.20 0.4 0.08

5 Store room 1 100 0.10 0.4 0.04

6 Printer -2 Nos 2 350 0.70 0.3 0.21

7 Waiting area 2 100 0.20 0.3 0.06

8 Fulfillment Delivery Counter 12 100 1.20 0.3 0.36

9 Projector -1 Nos 1 750 0.75 0.3 0.225

KHAZANA JEWELLERY

Workstation UPS Load Calculation Sheet - R1

UPS LOAD CALCULATION SHEET

No.of PC Power Total Load Usage Load after

Sl. No. Description of Area
/Rack /Printer In watts (kW) Factor Usage Factor
KHAZANA JEWELLERY

Workstation UPS Load Calculation Sheet - R1

UPS LOAD CALCULATION SHEET

No.of PC Power Total Load Usage Load after

Sl. No. Description of Area
/Rack /Printer In watts (kW) Factor Usage Factor

E FOURTH FLOOR WKS UPS LOADS

1 Workstation 72 100 7.20 0.8 5.76

2 Vendor Discussion- 12Nos 12 100 1.20 0.4 0.48

3 HOD- 2Nos 2 100 0.20 0.4 0.08

4 Silver store-1 Nos 3 100 0.30 0.4 0.12

5 Corporate stock-1 Nos 4 100 0.40 0.4 0.16

6 Printer -2 Nos 2 350 0.70 0.3 0.21

7 Store room 1 100 0.10 0.4 0.04

8 6Seater Meeting Room -1 Nos 2 100 0.20 0.4 0.08

9 TV -2 Nos 2 60 0.12 0.5 0.06

10 Waiting area 2 100 0.20 0.3 0.06

F FIVTH FLOOR WKS UPS LOADS(ASSUMED-4th Floor)

1 Workstation 72 100 7.20 0.8 5.76

2 Vendor Discussion- 12Nos 12 100 1.20 0.4 0.48

3 HOD- 2Nos 2 100 0.20 0.4 0.08

4 Silver store-1 Nos 3 100 0.30 0.4 0.12

5 Corporate stock-1 Nos 4 100 0.40 0.4 0.16

6 Printer -2 Nos 2 100 0.20 0.3 0.06

7 Store room 1 100 0.10 0.4 0.04

8 6Seater Meeting Room -1 Nos 2 100 0.20 0.4 0.08

9 TV -2 Nos 2 60 0.12 1 0.12

10 Waiting area 2 100 0.20 0.3 0.06

G SIXTH FLOOR WKS UPS LOADS(ASSUMED-4th Floor)

1 Workstation 72 100 7.20 0.8 5.76

2 Vendor Discussion- 12Nos 12 100 1.20 0.4 0.48

3 HOD- 2Nos 2 100 0.20 0.4 0.08

4 Silver store-1 Nos 3 100 0.30 0.4 0.12

5 Corporate stock-1 Nos 4 100 0.40 0.4 0.16

6 Printer -2 Nos 2 350 0.70 0.3 0.21

7 Store room 1 100 0.10 0.4 0.04

8 6Seater Meeting Room -1 Nos 2 100 0.20 0.4 0.08

9 TV -2 Nos 2 60 0.12 1 0.12

10 Waiting area 2 100 0.20 0.3 0.06

KHAZANA JEWELLERY

Workstation UPS Load Calculation Sheet - R1

UPS LOAD CALCULATION SHEET

No.of PC Power Total Load Usage Load after

Sl. No. Description of Area
/Rack /Printer In watts (kW) Factor Usage Factor

H SEVENTH FLOOR WKS UPS LOADS

1 Workstation 48 100 4.80 0.8 3.84

2 Workstation 24 100 2.40 0.8 1.92

3 Vendor Discussion- 6Nos 6 100 0.60 0.4 0.24

4 4Seater Meeting Room -4 Nos 8 100 0.80 0.4 0.32

5 8Seater Meeting Room -2Nos 8 100 0.80 0.4 0.32

6 Printer -3 Nos 3 350 1.05 0.3 0.315

7 Store room 2 100 0.20 0.4 0.08

8 TV -2 Nos 2 60 0.12 0.5 0.06

9 Projector -2 Nos 2 750 1.50 0.3 0.45

I EIGHTH FLOOR WKS UPS LOADS

1 Workstation 66 100 6.60 0.8 5.28

2 Workstation 26 100 2.60 0.8 2.08

3 HOD- 3Nos 3 100 0.30 0.4 0.12

4 4Seater Meeting Room -2 Nos 4 100 0.40 0.4 0.16

5 6Seater Meeting Room -1Nos 3 100 0.30 0.4 0.12

6 8Seater Meeting Room -1Nos 4 100 0.40 0.4 0.16

7 Printer -4 Nos 4 350 1.40 0.3 0.42

8 Store room 1 100 0.10 0.4 0.04

9 TV -2 Nos 2 60 0.12 0.5 0.06

10 Projector -2 Nos 1 750 0.75 0.3 0.225

J NINETH FLOOR WKS UPS LOADS

1 Workstation 66 100 6.60 0.8 5.28

2 Workstation 26 100 2.60 0.8 2.08

3 HOD- 3Nos 3 100 0.30 0.4 0.12

4 4Seater Meeting Room -2 Nos 4 100 0.40 0.4 0.16

5 6Seater Meeting Room -1Nos 3 100 0.30 0.4 0.12

6 8Seater Meeting Room -1Nos 4 100 0.40 0.4 0.16

7 Printer -4 Nos 4 350 1.40 0.3 0.42

8 Store room 1 100 0.10 0.4 0.04

9 TV -2 Nos 2 60 0.12 0.5 0.06

10 Projector -2 Nos 1 750 0.75 0.3 0.225

11 Safety Security Loads

Fire panel, detector & Amplifier 1 500 0.50 1 0.5

KHAZANA JEWELLERY

Workstation UPS Load Calculation Sheet - R1

UPS LOAD CALCULATION SHEET

No.of PC Power Total Load Usage Load after

Sl. No. Description of Area
/Rack /Printer In watts (kW) Factor Usage Factor

CCTV @ 5 watts each, CPU + Monitor 1 500 0.50 1 0.5

Access control system - (20 watts & 200 watts each) 1 2000 2.00 1 2

Water leak detection system 5 10 0.05 1 0.05

Rodent repellent panel 5 100 0.50 1 0.5

Signage 1 400 0.40 1 0.4

12 Repro Stations-3nos 0 1000 0.00 0.2 0

13 TV at Open area 50 60 3.00 0.8 2.4

Total Connected Load in KW 122.55

Total Demand Load in KW 75.3

Consider Usage factor of 85% 64.0

Total Server Load in KW 12.0

Grand total 76.0

Consider UPS loading of 85% 89.4

Considering 0.80 as Power Factor 111.8

Total UPS load in KVA 111.8

MODULAR UPS Selection : 2 x 80 KVA (3x20KVA(W)+20KVA(S) ) UPS with 30 minutes battery back-up
 LOAD CALCULATION SHEET
Project KHAZANA JEWELLERY (B1,B2 + GF to 9th Floor)
MEP Consultant IBS GULF DESIGN Pvt Ltd, CHENNAI

BASIS OF DESIGN 1.Lighting load taken by 1 watts/sqft for office floor areas and 0.5watts /sqft for basement areas & Power load taken by 0.5 watts/sqft for common areas and 0.2watts/sqft for
basement areas

Total Diversity Maximum

Sl. No DESCRIPTION Area in Area in Lighting Load Power Load AC Load Connected considered Demand
Load

Sq.mtr Sq.ft in KW in KW in KW in KW in % in KW

BLOCK 1

A BASEMENT 1 (UPPER BASEMENT) 1987 21388.07 10.69 4.28 14.97 0.50 7.49

B BASEMENT 2 ( LOWER BASEMENT) 1987 21388.07 10.69 4.28 14.97 0.50 7.49

C GF
1 OFFICE 59 635.08 0.64 0.32 0.95 0.70 0.67
2 RECEPTION,VISTIOR ROOM,PASSENGER ELEV 180 1937.52 1.94 0.97 2.91 0.70 2.03
3 SECURITY ROOM 15 161.46 0.16 0.08 0.24 0.70 0.17
4 TRASH 27 290.63 0.29 0.15 0.44 0.70 0.31
5 ELEC ROOM 37 398.27 0.40 0.20 0.60 0.70 0.42
6 SERVICE ELEV LOBBY 55 592.02 0.59 0.30 0.89 0.70 0.62
7 BOH STORE 19 204.52 0.20 0.10 0.31 0.70 0.21
8 EXHIBITION SPACE 151 1625.36 8.13 0.81 8.94 0.70 6.26
9 STAIR CASE-1 LIFT 57 613.55 0.61 0.31 0.92 0.70 0.64
10 TOILET 18 193.75 0.19 0.10 0.29 0.70 0.20
11 ELEC ROOM NEAR TOILET 7 75.35 0.08 0.04 0.11 0.70 0.08
12 STAIR CASE-2 LIFT ,SE-1 39 419.80 0.42 0.21 0.63 0.70 0.44
13 STAIR CASE-3 20 215.28 0.22 0.11 0.32 0.70 0.23

D 1F
1 OFFICE 49 527.44 0.53 0.26 0.79 0.70 0.55
2 TRAINING 75 807.30 0.81 0.40 1.21 0.70 0.85
3 STAFF CANTEEN 89 958.00 0.96 0.48 1.44 0.70 1.01
4 PANTRY 9 96.88 0.10 0.05 0.15 0.70 0.10
5 EXHIBITION GALLERY 199 2142.04 10.71 1.07 11.78 0.70 8.25
6 STAIR CASE-1, LIFT 57 613.55 0.61 0.31 0.92 0.70 0.64
7 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
8 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
9 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
10 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
11 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

E 2F
1 OFFICE 623 6705.97 6.71 3.35 10.06 0.70 7.04
2 STAIR CASE-1, LIFT 57 613.55 0.61 0.31 0.92 0.70 0.64
3 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
4 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
5 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
6 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
7 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

F 3F
1 OFFICE 589 6340.00 6.34 3.17 9.51 0.70 6.66
2 STONG ROOM 29 312.16 0.31 0.16 0.47 0.70 0.33
3 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
4 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
5 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
6 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
7 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

G 4F
1 OFFICE 589 6340.00 6.34 3.17 9.51 0.70 6.66
2 STONG ROOM 29 312.16 0.31 0.16 0.47 0.70 0.33
3 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
4 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
5 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
6 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
7 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

H 5F
1 OFFICE 623 6705.97 6.71 3.35 10.06 0.70 7.04
2 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
3 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
4 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
5 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
6 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

I 6F
1 OFFICE 623 6705.97 6.71 3.35 10.06 0.70 7.04
2 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
3 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
4 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
5 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
6 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

J 7F
1 OFFICE 623 6705.97 6.71 3.35 10.06 0.70 7.04
2 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
3 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
4 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
5 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
6 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

K 8F
1 OFFICE 598 6436.87 6.44 3.22 9.66 0.70 6.76
2 DINING ROOM & MANAGEMENT KITCHEN 49 527.44 0.53 0.26 0.79 0.70 0.55
3 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
PAGE 9 OF 25
 Total Diversity Maximum
Sl. No DESCRIPTION Area in Area in Lighting Load Power Load AC Load Connected considered Demand
Load

Sq.mtr Sq.ft in KW in KW in KW in KW in % in KW
4 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
5 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
6 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
7 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

L 9F
1 OFFICE 623 6705.97 6.71 3.35 10.06 0.70 7.04
2 ELEC /LV ROOM 14 150.70 0.15 0.08 0.23 0.70 0.16
3 SERVICE ELEV LOBBY,SE-1 18 193.75 0.19 0.10 0.29 0.70 0.20
4 TOILET 25 269.10 0.27 0.13 0.40 0.70 0.28
5 TOILET PASSAGE 53 570.49 0.57 0.29 0.86 0.70 0.60
6 STAIR CASE-2 24 258.34 0.26 0.13 0.39 0.70 0.27

TOTAL LOAD - BLOCK 1 11397 122677.308 116.36 48.51 0.00 164.86 109.42

BLOCK 2
A 1F FOR AC LOAD REFER HVAC LOAD SHEET
1 Drivers area 42 452.09 0.45 0.23 0.68 0.70 0.47
2 ELEC ROOM 3 32.29 0.03 0.02 0.05 0.70 0.03
3 STAIR CASE 29 312.16 0.31 0.16 0.47 0.70 0.33
4 TOILET 35 376.74 0.38 0.19 0.57 0.70 0.40

B 2F
1 OFFICE 118 1270.15 1.27 0.64 1.91 0.70 1.33
2 STORE 4 43.06 0.04 0.02 0.06 0.70 0.05
3 ELEC ROOM 3 32.29 0.03 0.02 0.05 0.70 0.03
4 STAIR CASE 29 312.16 0.31 0.16 0.47 0.70 0.33
5 TOILET 35 376.74 0.38 0.19 0.57 0.70 0.40

C 3F
1 OFFICE 118 1270.15 1.27 0.64 1.91 0.70 1.33
2 STORE 4 43.06 0.04 0.02 0.06 0.70 0.05
3 ELEC ROOM 3 32.29 0.03 0.02 0.05 0.70 0.03
4 STAIR CASE 29 312.16 0.31 0.16 0.47 0.70 0.33
5 TOILET 35 376.74 0.38 0.19 0.57 0.70 0.40

D 4F
1 OFFICE 118 1270.15 1.27 0.64 1.91 0.70 1.33
2 STORE 4 43.06 0.04 0.02 0.06 0.70 0.05
3 ELEC ROOM 3 32.29 0.03 0.02 0.05 0.70 0.03
4 STAIR CASE 29 312.16 0.31 0.16 0.47 0.70 0.33
5 TOILET 35 376.74 0.38 0.19 0.57 0.70 0.40

TOTAL LOAD - BLOCK 2 676.00 7276.46 7.28 3.64 0.00 10.91 7.64

Common load - Block 1

E Terrace area lighting load (Block 1 & 2) 10500.00 5.25 2.10 7.35 0.40 2.94
TOTAL 5.25 2.10 0.00 7.35 2.94

GRAND TOTAL 128.89 54.24 0.00 183.13 120.00

PAGE 10 OF 25
SL NO

1
2
3

SL NO

1
2
3
4

5
6
7
8

SL NO

1
2
3
4
5

SL NO

1
2
3
4
5
 6
7
8
9
10
11
12

SL NO
1
2
3
4
5
6
7
8
9

SL NO

1
2
3

SL NO
1

2
3
4
5
6
7
8
9
 10
11
12
13
14
15
16
17

SL NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

TOTAL LOAD
1

2
Power Factor Control
Demand load
Demand load
Average non corrected PF
Corrected PF
Factor of Correction
Required kVAR
Design kVAr
 RISING MAIN CL DIV

BLOCK 1 LIGHTING & POWER LOAD (1F TO 9th FLOOR) 90.75 0.70
BLOCK 1 AC LOAD DB(1F TO 9th FLOOR) 44.00 0.70
TERRACE PANEL 145.75
TOTAL 280.49

UPS LOAD
WS UPS LOAD 122.55
SERVER UPS LOAD 12.00
TOTAL 134.55

SERVICE Block 2 Main panel CL DIV

SERVICE Block 2 Terrace panel 75.60

LIFT WELL PRESSURISATION FAN TERRACE 3.70 0.80
BLOCK 2 AC DB 2 28.00 0.70
BLOCK 2 AC D 1 ADDITIONAL AREA 1.40 0.70

BLOCK 2 LIGHTING & POWER LOAD (1F TO 4th FLOOR) 6.14 0.70
Lift1 7.50 0.30
Terrace Lighting & power DB 2.34 0.50
2F UPS ROOM 8 TR DUCTABLE UNIT 12.00 0.80
TOTAL 136.68

SERVICE Block 2 Terrace panel CL DIV

VRF ODU-1 (1F 12HP) 10.80 0.80

VRF ODU-2 (2F 12HP) 10.80 0.80
VRF ODU-3(1F & 2F 8HP) 7.20 0.80
VRF ODU-5 (ALL FLOOR 26HP) 23.40 0.80
VRF ODU-6 (ALL FLOOR 26HP) 23.40 0.80
TOTAL 75.60

UTILITY PANEL CL DIV

External lighting & Power 8.00 0.40

Basement Smoke Ventilation EA Fans-1(98000CFM) 22.00 0.60
Basement Smoke Ventilation EA Fans-2(98000CFM) 22.00 0.60
Basement Smoke Ventilation FA Fans-3(26000CFM) 22.00 0.60
JET FAN-1 7.50 0.80
JET FAN-2 7.50 0.80
FRESH AIR FAN 4200 CFM 3.00 0.80
Mechanical car parking (2kw motor each) 108.00 0.20
BASEMENT 1 Lighting & Power (UPPER BASEMENT) 9.48 0.80
BASEMENT 2 Lighting & Power ( LOWER BASEMENT) 10.17 0.80
BLOCK 1 LIGHTING ,POWER & AC LOAD :GF PANEL 16.82 0.80
PUMP PANEL 91.55 0.70
TOTAL 328.02

PUMP PANEL CL DIV

Submersible pump in sump (1) BASEMENT 2 5.5 0.75
Submersible pump in sump (2)BASEMENT 2 5.5 0.75
Submersible pump in sump (3) BASEMENT 2 5.5 0.75
Submersible pump BASEMENT 1 3.7 0.75
Kitchen Panel 15 0.75
STP 21.55 0.75
WTP 24.05 0.75
Fountain water feature Ground floor 3 0.75
VTPN DB for BM1 & BM2 Exhaust and Fresh Air Fan 7.75 0.75

TOTAL 91.55

FIRE FIGHTING PANEL CL DIV

FIRE PUMP 1 90.00 0.00

FIRE PUMP 2 90.00 0.00
JOCKEY PUMP 5.50 0.30

TOTAL 185.50

TERRACE PANEL CL DIV

STAIRCASE PRESSURIZATION FAN 11.00 0.75
LIFT LOBBY AND BASEMENT PRESSURISATION FAN 10.00
0.80
SERVICE LIFT WELL 3.70 0.80
LIFT WELL pressurisation 11.00 0.80
HRW WITHOUT COOLING COIL 11.00 0.80
TOILET EXHAUST 5.5 0.80
PANTRY EXHAUST 2.2 0.80
LIFT 1 21 0.40
LIFT 2 15 0.40
LIFT 3 15 0.40
LIFT 4 18 0.40
BLOCK 1 TERRACE LIG & PWR DB 2.465 0.40
Domestic water booster TERRACE 0.38 0.80
Flushing water booster TERRACE 1.5 0.80
Terrace water body feature TERRACE 5 0.30
Terrace water feature TERRACE 8 0.30
BMU 5 0.30
TOTAL 145.75

VRF ODU PANEL - TERRACE CL DIV

VRF ODU -1 (GF 22HP) 14.76 0.7
VRF ODU -2 (GF 12HP) 8.03 0.7
VRF ODU -3 (1F 32HP) 21.49 0.7
VRF ODU -4 (1F 28HP) 19.85 0.7
VRF ODU -5 (2F 20HP) 13.46 0.7
VRF ODU -6 (2F 20HP) 13.46 0.7
VRF ODU -7 (3F 20HP) 14.76 0.7
VRF ODU -8 (3F 20HP) 14.76 0.7
VRF ODU -9 (4F 20HP) 16.06 0.7
VRF ODU -10 (4F 20HP) 16.06 0.7
VRF ODU -11 (7F 22HP) 14.76 0.7
VRF ODU -12 (7F 24HP) 16.06 0.7
VRF ODU -13 (8F 20HP) 13.46 0.7
VRF ODU -14 (8F 20HP) 13.46 0.7
VRF ODU -15 (9F 20HP) 13.46 0.7
VRF ODU -16 (9F 24HP) 16.06 0.7
239.95

TOTAL LOAD 1396.75

Transformer Rating Calculation

Total Maximum Demand in KW 773.7

Total Maximum Demand in KVA AT 0.9 PF 859.7
Applying 85% Loading Factor 1011.4

Recommended Transformer rating is 1#1250KVA

DG set Rating Calculation

Total Maximum Demand in KW 773.7

 Total Maximum Demand in KVA AT 0.8 PF 967.2
Applying 85% Loading Factor 1137.8

Recommended DG Set Rating is 1# 750 KVA

Recommended DG Set Rating is 1# 500 KVA

Power Factor Control

Demand load 773.7
Demand load 967.2
Average non corrected PF 0.80
Corrected PF 0.94
Factor of Correction 0.387
Required kVAR 299.4
Design kVAr 400
DL

63.525
30.7986
78.46
172.78

76.01
9.60
85.61

DL

60.48
2.96
19.6
0.98

4.298
2.25
1.17
9.6
101.34

DL

8.64
8.64
5.76
18.72
18.72
60.48

DL

3.2
13.2
13.2
13.2
6
 6
2.4
21.6
7.584
8.136
13.4592
68.20
176.18

DL
4.0975
4.0975
4.0975
2.7565
11.175
16.05475
17.91725
2.235
5.77375

68.20

DL

0
0
1.65

1.65

DL
8.25

8.00
2.96
8.80
8.80
4.40
1.76
8.40
6.00
 6.00
7.20
0.99
0.30
1.20
1.50
2.40
1.50
78.46

DL
10.33
5.62
15.04
13.90
9.42
9.42
10.33
10.33
11.24
11.24
10.33
11.24
9.42
9.42
9.42
11.24
167.97

773.73

KW
KVA
KVA

KW
 KVA
KVA

kW
kVA
 BLOCK - 1 LOAD DETAILS
S.NO DESCRIPTION LOCATION SERVING TO UNIT CAPACITY QTY POWER (KW) TOTAL LOAD (KW) Phase Fire mode O/G feeder
Basement 1
JET FAN CAR AREA 5200 CFM 5 1.5 7.5 3 UTILITY PANEL
WALL MOUNTED FA FAN ELEC.RM 300 CFM 1 0.5 0.5 1 VTPN DB(PUMP PANEL)
WALL MOUNTED EA FAN ELEC.RM 300 CFM 1 0.5 0.5 1 VTPN DB(PUMP PANEL)
SMOKE VENTILATION EA FANS bottom of corner area 98000 CFM 1 7.5 7.5 3 22 UTILITY PANEL
FRESH AIR FAN STP ROOM 4200 CFM 1 3 3 3 UTILITY PANEL
EA.WALL MOUNTED FAN STAIRCASE@STO3B 500 CFM 1 0.75 0.75 1 VTPN DB(PUMP PANEL)
TOTAL 19.75

Basement 2
DX Cassette unit Elevator lobby 2.5 TR 1 3 3 1 VTPN DB(PUMP PANEL)
JET FAN car area 5200 CFM 5 1.5 7.5 3 UTILITY PANEL
PROPELLER FRESH AIR FAN pump room 1000 CFM 1 1 1 1 VTPN DB(PUMP PANEL)
PROPELLER EXHAUST FAN pump room 1000 CFM 1 1 1 1 VTPN DB(PUMP PANEL)
WALL MOUNTED FA FAN Elec.rm 300 CFM 1 0.5 0.5 1 VTPN DB(PUMP PANEL)
WALL MOUNTED EA FAN Elec.rm 300 CFM 1 0.5 0.5 1 VTPN DB(PUMP PANEL)
SMOKE VENTILATION EA FANS bottom of corner area 98000 CFM 1 7.5 7.5 3 22 UTILITY PANEL
SMOKE VENTILATION FA FANS top of corner area 26000 CFM 1 7.5 7.5 3 UTILITY PANEL
TOTAL 28.5

Ground floor 7.75

DUCTABLE UNIT EXHIBITION SPACE 8 2 1.41 2.82 3 GF AC DB 43.998
1 WAY CASSETTE PASSAGE 1.3 1 0.054 0.054 1 GF AC DB

RECEPTION COUNTER 1.14 1.14 3

GF AC DB
DUCTABLE UNIT 6.5 1
SERVICE LOBBY + PASSAGE 0
GF AC DB
COMPACT CASSETTE COURIER ROOM 0.8 1 0.55 0.55 1 GF AC DB
HIWALL BACK OFFICE 0.8 1 0.04 0.04 1 GF AC DB
COMPACT CASSETTE CCTV ROOM 1.3 1 0.06 0.06 1 GF AC DB
HIWALL SECURITY ROOM 0.8 2 0.04 0.08 1 GF AC DB
HIWALL BMS ROOM 2.08 2 0.05 0.1 1 GF AC DB
EA FAN Toilet 350 CFM 1 0.5 0.5 1 GF AC DB
WALL MOUNTED FA FAN RMU 300 CFM 1 0.5 0.5 1 GF AC DB
WALL MOUNTED EA FAN RMU 300 CFM 1 0.5 0.5 1 GF AC DB
TOTAL 6.344

1st floor
1 WAY CASSETTE 01 - 4 PAX RM 1.3 1 0.054 0.054 1 1F AC DB
1 WAY CASSETTE 02 - 4 PAX RM 0.8 1 0.044 0.044 1 1F AC DB
1 WAY CASSETTE 03 - PASSAGE 0.625 2 0.042 0.084 1 1F AC DB
1 WAY CASSETTE 04 - 4 PAX RM 0.625 1 0.042 0.042 1 1F AC DB
1 WAY CASSETTE 05 - 4 PAX RM 0.625 1 0.042 0.042 1 1F AC DB
1 WAY CASSETTE 06 - 4 PAX RM 0.625 1 0.042 0.042 1 1F AC DB
1 WAY CASSETTE 07 - 4 PAX RM 0.8 1 0.044 0.044 1 1F AC DB
2 WAY CASSETTE 08 - 10 PAX RM 2 2 0.105 0.21 1 1F AC DB
2 WAY CASSETTE 09 - 10 PAX RM 1.6 2 0.086 0.172 1 1F AC DB

GF-02-MAIN VISITOR LOBBY 1.14 3.42 3

1F AC DB
DUCTABLE UNIT 6.5 3
10-PASSAGE+PREFUNCTION 0 3
1F AC DB
2 WAY CASSETTE 11 - 12 PAX MEETING RM 1.6 2 0.086 0.172 1 1F AC DB
DUCTABLE 12 - TRAINING RM 8 1 1.41 1.41 3 1F AC DB
DUCTABLE 13 - CONF RM 6.5 1 1.14 1.14 3 1F AC DB
HIWALL 14 - SERVER RM 2.08 4 0.05 0.2 1 1F AC DB
TOTAL 7.076

2nd floor
1 WAY CASSETTE floor VIP RM 1.3TR 1 0.07 0.07 1 2F AC DB
DUCTABLE CABIN, PASSAGE, WKS 4.5 TR 1 0.59 0.59 1 2F AC DB
DUCTABLE WKS & WAITING AREA 6.5TR 5 1.14 5.7 3 2F AC DB
TOTAL 6.36

3rd floor
DUCTABLE floor STOCK & WKS 6.5TR 1 1.14 1.14 3 3F AC DB
DUCTABLE WKS & MEETING RM 6.5TR 5 1.14 5.7 3 3F AC DB
HIWALL 14 - HUB RM 2.08 2 0.05 0.1 1 1F AC DB
TOTAL 6.94
4th floor
DUCTABLE floor WKS & HOD CABIN 6.5 TR 2 1.14 2.28 3 4F AC DB
DUCTABLE WKS 6.5 TR 2 1.14 2.28 3 4F AC DB
DUCTABLE WKS & 6 PAX RM 6.5 TR 2 1.14 2.28 3 4F AC DB
TOTAL 6.84
 7th floor
DUCTABLE floor AVAITION DEPT 6.5 TR 1 1.14 1.14 3 7F AC DB
2 WAY CASSETTE 8 PAX RM 4.0 TR 1 0.28 0.28 1 7F AC DB
1 WAY CASSETTE 8 PAX RM 1.3TR 2 0.054 0.108 1 7F AC DB
DUCTABLE WKS 6.5 TR 1 1.14 1.14 3 7F AC DB
DUCTABLE WKS & OTHERS 6.5 TR 1 1.14 1.14 3 7F AC DB
DUCTABLE 4PAX & WKS 4.5 TR 1 0.48 0.48 1 7F AC DB
DUCTABLE WKS 6.5 TR 1 0.63 0.63 3 7F AC DB
2WAY CASSETTE 17 - CABIN 1 1.6 1 0.086 0.086 1 7F AC DB
1WAY CASSETTE 18 - CABIN 2 0.8 1 0.044 0.044 1 7F AC DB
1WAY CASSETTE 19 - CABIN 3 0.8 1 0.044 0.044 1 7F AC DB
1WAY CASSETTE 20 - CABIN 4 0.8 1 0.044 0.044 1 7F AC DB
1WAY CASSETTE 21 - CABIN -5 0.8 1 0.044 0.044 1 7F AC DB
1WAY CASSETTE 22 - CABIN 6 1 1 0.044 0.044 1 7F AC DB
HIWALL 14 - HUB RM 2 2 0.05 0.1 1 7F AC DB
TOTAL 5.324
8th floor
1WAY CASSETTE floor 02 - CABIN 1 0.8 1 0.044 0.044 1 8F AC DB
1WAY CASSETTE 03 - CABIN 2 0.8 1 0.044 0.044 1 8F AC DB
1WAY CASSETTE 04 - HOD CABIN 0.8 1 0.044 0.044 1 8F AC DB
1WAY CASSETTE 05 - 6 PAX RM 1.3 2 0.054 0.108 1 8F AC DB
1WAY CASSETTE 10 - 8 PAX RM 1.3 1 0.054 0.054 1 8F AC DB
DUCTABLE RECORD & WKS 6.5 2 1.14 2.28 3 8F AC DB
DUCTABLE 4PAX & WKS 6.5 3 1.14 3.42 3 8F AC DB
TOTAL 5.994
9th floor
1WAY CASSETTE floor 01 - BED RM 1.3 2 0.054 0.108 1 9F AC DB
DUCTABLE 02 - CHAIRMAN SUITE 3 2 0.58 1.16 1 9F AC DB
DUCTABLE 03 - RECEPTION 6.5 1 1.14 1.14 3 9F AC DB
DUCTABLE 04 - BOARD RM 6.5 1 1.14 1.14 3 9F AC DB
1 WAY CASSETTE 05 - DIRECTOR CABIN - 1 1.3 2 0.054 0.108 1 9F AC DB
1 WAY CASSETTE 06 - DIRECTOR CABIN - 2 1.3 2 0.054 0.108 1 9F AC DB
1 WAY CASSETTE 07 - DIRECTOR CABIN - 3 1.3 2 0.054 0.108 1 9F AC DB
2WAY CASSETTE 08 - DIRECTOR CABIN - 4 4 1 0.28 0.28 1 9F AC DB
2WAY CASSETTE 09 - DINING/BOARD RM 1.6 2 0.086 0.172 1 9F AC DB
DUCTABLE 10 - FUTURE DEVELOP 6.5 1 1.14 1.14 3 9F AC DB
TOTAL 5.464
LOWER TERRACE
VRF ODUs Lower Terrace GF 22HP 1 14.76 14.76 3 VRF PANEL
VRF ODUs GF 12 HP 1 8.03 8.03 3 VRF PANEL
VRF ODUs 1F 32 HP 1 21.49 21.49 3 VRF PANEL
VRF ODUs 1F 28 HP 1 19.85 19.85 3 VRF PANEL
VRF ODUs 2F 20 HP 2 13.46 26.92 3 VRF PANEL
VRF ODUs 3F 20 HP 2 14.76 29.52 3 VRF PANEL
VRF ODUs 4F 20 HP 2 16.06 32.12 3 VRF PANEL
VRF ODUs 7F 22 HP 1 14.76 14.76 3 VRF PANEL
VRF ODUs 7F 24 HP 1 16.06 16.06 3 VRF PANEL
VRF ODUs 8F 20 HP 2 13.46 26.92 3 VRF PANEL
VRF ODUs 9F 20 HP 1 13.46 13.46 3 VRF PANEL
VRF ODUs 9F 24 HP 1 16.06 16.06 3 VRF PANEL
TOTAL 239.95
Ventilation Fans
HRW WITHOUT COOLING COIL Lower Terrace 14000 CFM 1 11 11 3 TERRACE PANEL
STAIRCASE
LIFT LOBBY PRESSURIZATION
AND BASEMENT FAN UPPER Terrace 15000 CFM 1 11 11 3 TERRACE PANEL
PRESSURISATION FAN Lower Terrace 13500 CFM 1 10 10 3 TERRACE PANEL
SERVICE LIFT WELL UPPER Terrace 5000 CFM 1 3.7 3.7 3 TERRACE PANEL
LIFT WELL pressurisation UPPER Terrace 15000 CFM 1 11 11 3 TERRACE PANEL
TOILET EXHAUST Lower Terrace 7200 CFM 1 5.5 5.5 3 TERRACE PANEL
PANTRY EXHAUST Lower Terrace 3000 CFM 1 2.2 2.2 3 TERRACE PANEL
WALL MOUNTED EA FAN Lower Terrace at elec.rm 300 CFM 1 0.5 0.5 1 9F AC DB
TOTAL 54.9
393.442
 BLOCK - 2 FLOOR LOAD DETAILS
S.NO DESCRIPTION LOCATION SERVING TO UNIT CAPACITY QTY POWER (KW) TOTAL LOAD Phase
GF floor
DG SMALL-FA wall mounted 600 CFM 1 0.75 0.75 1 BLOCK2 AC DB 1A
DG SMALL-EA rectangular 600 CFM 1 0.75 0.75 1 BLOCK2 AC DB 1A
DG TRANSFORMER wall mounted 900 CFM 2 1 2 1 BLOCK2 AC DB 1A
DG TRANSFORMER rectangular 900 CFM 1 1 1 1 BLOCK2 AC DB 1A
TOTAL 4.5 4.5
FINALISED VRF UNITS
1F floor
WALL MOUNTED EA small Elec.rm 100 CFM 1 0.2 0.2 1 BLOCK2 AC DB 1A
Hiwall Large Electrical room 2.0tr 3 0.1 0.3 1 BLOCK2 AC DB 1A

2nd floor
VRF Floor mounted DUCTABE UNIT ups room 8.0tr 2 12 24 3 BLOCK 2 MAIN PANEL,BLOCK2 AC DB 1A
VRF HIWALL battery room 2.0tr 3 0.1 0.3 1 BLOCK2 AC DB 1A
WALL MOUNTED EXHAUST ELEC.RM 100 CFM 1 0.2 0.2 1 BLOCK2 AC DB 1A
CIRCULAR FAN battery room 350 CFM 1 0.5 0.5 1 BLOCK2 AC DB 1A
TOTAL (1F&2F) 25.5 13.5
TENTATIVE VRF UNITS
2nd floor
STANDARD CASSETTE 04 - PASSAGE 1.6 1 0.1 0.1 1 BLOCK2 AC DB 1A
1 WAY CASSETTE 05 - OFFICE 1.3 2 0.1 0.2 1 BLOCK2 AC DB 1A
3rd floor
DUCTABLE UNIT 2.55 2 0.75 1.5 1 BLOCK2 AC DB 1A
COMPACT CASSETTE OFFICE/GYM 1.08 2 0.1 0.2 1 BLOCK2 AC DB 1A
HIWALL 0.82 2 0.1 0.2 1 BLOCK2 AC DB 1A
ELEC.RM WALL MOUNTED EXHAUST 100 CFM 1 0.2 0.2 1 BLOCK2 AC DB 1A
4th floor
DUCTABLE UNIT 3.18 2 0.75 1.5 1 BLOCK2 AC DB 1A
COMPACT CASSETTE OFFICE/GYM 1.3 2 0.1 0.2 1 BLOCK2 AC DB 1A
HIWALL 1.08 2 0.1 0.2 1 BLOCK2 AC DB 1A
ELEC.RM WALL MOUNTED EXHAUST 100 CFM 1 0.2 0.2 1 BLOCK2 AC DB 1A 4.5
TOTAL 4.5
1F-900Sq.ft PROPOSED AREA
STANDARD CASSETTE FLOOR 2.08 2 0.1 0.2 1 BLOCK2 AC DB 2
HIWALL FLOOR 1.6 2 0.1 0.2 1 BLOCK2 AC DB 2
2F-900Sq.ft PROPOSED AREA
STANDARD CASSETTE FLOOR 2.08 2 0.1 0.2 1 BLOCK2 AC DB 2
HIWALL FLOOR 1.6 2 0.1 0.2 1 BLOCK2 AC DB 2
3F-900Sq.ft PROPOSED AREA
STANDARD CASSETTE FLOOR 2.08 3 0.1 0.3 1 BLOCK2 AC DB 2
4F-900Sq.ft PROPOSED AREA
STANDARD CASSETTE FLOOR 2.08 3 0.1 0.3 1 BLOCK2 AC DB 2
TOTAL 1.4

TERRACE
1 FINALISED VRF ODUs Lower Terrace 1F & 2F 12 HP 2 10.8 21.6 3 BLOCK 2 TERRACE PANEL
2 FINALISED VRF ODUs Lower Terrace 1F & 2F 8 HP 1 7.2 7.2 3 BLOCK 2 TERRACE PANEL
3 TENTATIVE VRF ODUs Lower Terrace ALL FLOOR 26 HP 2 23.4 46.8 3 BLOCK 2 TERRACE PANEL
4 LIFT WELL 5000 CFM 1 3.7 3.7 3 BLOCK 2 MAIN PANEL
5 TOILET EXHAUST 1800 CFM 1 1.5 1.5 1 BLOCK2 AC DB 1A
6 STP EXHAUST terrace 4200 CFM 1 3.7 3.7 1 BLOCK2 AC DB 1A
7 WALL MOUNTED FAN elec.rm 100 CFM 1 0.2 0.2 1 BLOCK2 AC DB 1A
TOTAL 84.7 5.4

120.6 27.9
