1.

7 Protective relays applied to a unit transformer

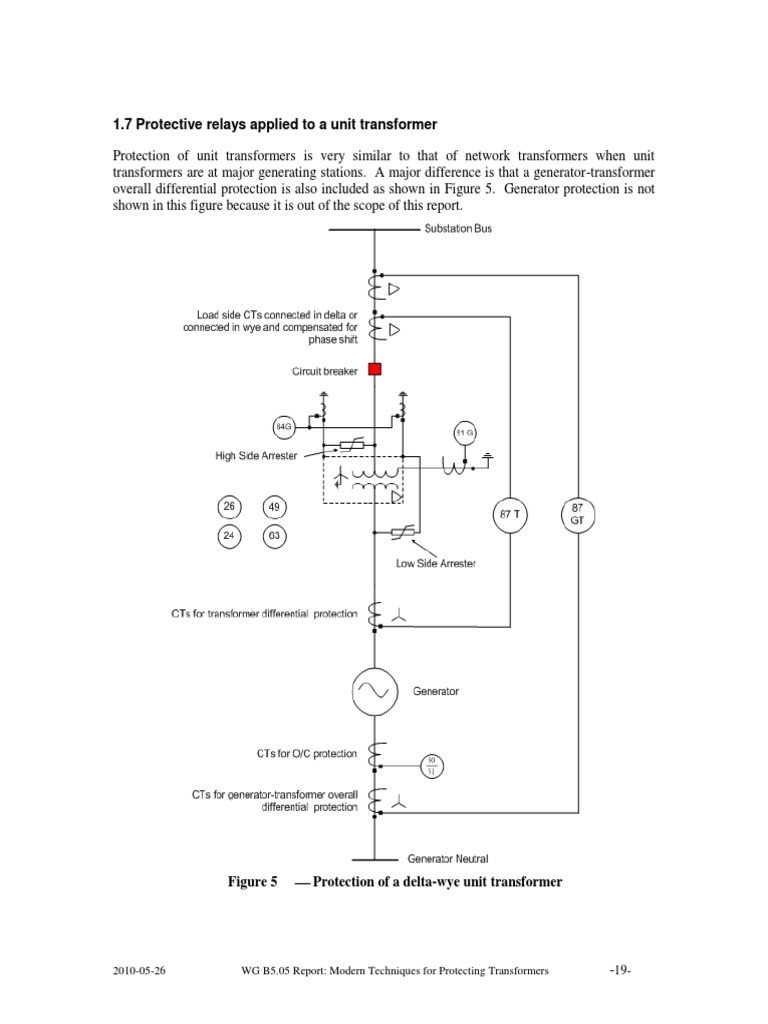

Protection of unit transformers is very similar to that of network transformers when unit
transformers are at major generating stations. A major difference is that a generator-transformer
overall differential protection is also included as shown in Figure 5. Generator protection is not
shown in this figure because it is out of the scope of this report.

Figure 5  Protection of a delta-wye unit transformer
